MTP6550 QUICK START GUIDE

More Information on the Radio

Motorola Online

@68015000672@

68015000672-A

This document is copyright protected. Duplications for the purpose of the use of Motorola products are

permitted to an appropriate extent. Duplications for other purposes, changes, additions or other processing of

this document are not permitted. Only this electronically-saved document is considered to be the original.

Duplications are considered merely copies. Motorola Solutions, Inc., and its subsidiaries and affiliates do not

vouch for the correctness of such kinds of copies.

MOTOROLA,MOTO,MOTOROLASOLUTIONSand the stylizedM Logo areregistered in theU.S. Patent and

TrademarkOffice.All other product or service names are the property of their respective owners.

Feature User Guide and related documentation available at:

https://emeaonline.motorolasolutions.com/

Open Source Software Legal Notices

Available at: https://emeaonline.motorolasolutions.com/

and on Customer Programming Software Plus (CPS Plus) DVD

Visit the Motorola Solutions Web site at:

http://www.motorolasolutions.com/tetraterminals

MTP6550

QUICK START GUIDE

68015000630_QuickStartGuide_MTP6550_18x13_lscp.ai 1 10/16/2013 5:22:59 PM68015000630_QuickStartGuide_MTP6550_18x13_lscp.ai 1 10/16/2013 5:22:59 PM

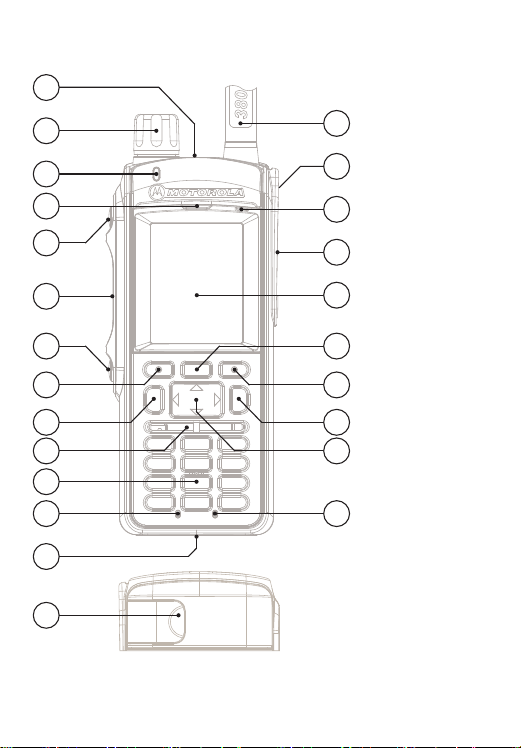

Your Radio

7 7

QuickStartGuide6550.pdf 1 10/16/2013 4:25:32 PM

Number Description

1Emergency button

When the radio is on, press and hold to start emergency

operations. When the radio is off, press and hold to power

on in the Emergency Mode.

2Rotary Knob

• Press and hold to lock/unlock it.

• Rotate to set the volume.

• Press and rotate to select a different talkgroup.

3LED Status Indicator

4Earpiece

5 Programmable Side buttons

The upper button activates Flip Display and the lower

activates High/Low audio One-Touch Button. Your service

provider may change the programmed functions of these

buttons.

6PTT (Push-To-Talk)

Press and hold to talk in simplex calls or initiate group calls.

Release it to listen.

7Soft keys

Press the left/right Soft key to select the option displayed

above it.

8CALL key

• Press to initiate or answer duplex calls.

• Press to send messages.

• Press in the home screen to enter the Recent Callsmenu

item.

9Slimport Speaker

10 Keypad

Press to enter alphanumeric characters, or press and hold

to activate One-Touch Button features.

11 Bottom Microphone

Activated during duplex low audio calls such as private

calls.

12 Bottom Connector

Used for charging and programming the radio, and

connecting data transfer cables.

13 Antenna

QuickStartGuide6550.pdf 2 10/16/2013 4:25:32 PM

Number Description

14 External Antenna Connector

Used with the digital car kit to connect the RF signal to the

external antenna.

15 Top Microphone

Activated during simplex high audio calls such as group

calls.

16 Side Connector

Provides connection for accessories.

17 Display

Provides alphanumeric text and images within 65,536

colors and 240 x 320 pixels with scalable fonts and

contrast.

18 Menu key

Press to enter the main menu (from the home screen) or

the context-sensitive menu.

19 EXIT key

• Press and hold to turn on/off the radio.

• Press to end calls.

• Press to return to the home screen.

20 Navigation key

Press the Navigation key to scroll the list while moving

around the menu, or to navigate the text.

From the home screen, press:

• Down Navigation key – to enter the Recent Calls menu item.

• Up Navigation key – to change the My Groups talkgroup

folder.

• Left and right Navigation key – to browse through the

talkgroups.

22 Backlight Sensor

By measuring the ambient light intensity, the keypad

backlight sensor determines if there is a need to light up the

keypad backlight.

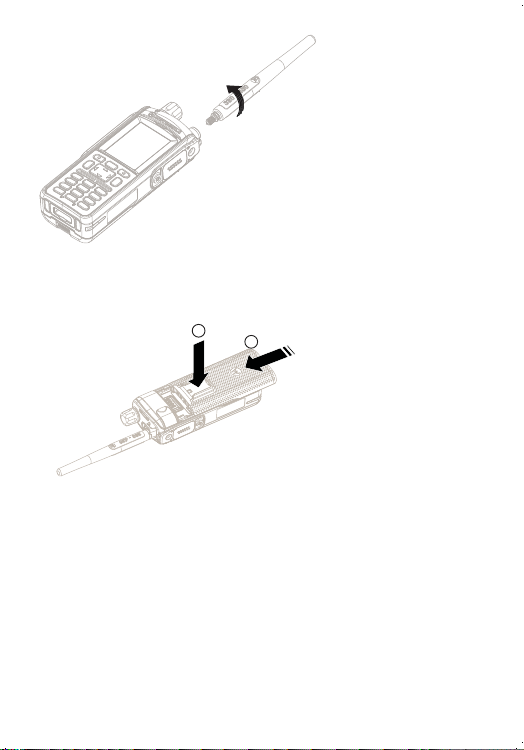

Attaching the Antenna

1Align the bottom of the antenna and the screw-in base on the top of the radio.

2Turn clockwise until snug. Do not force.

QuickStartGuide6550.pdf 3 10/16/2013 4:25:32 PM

Installing the Battery

1Insert the battery into the compartment.

2Slide the battery towards the top of the radio until it clicks.

Installing the MicroSD and SIM Cards

1Remove the battery.

2Open the plastic compartment cover.

3Slide the SIM card holder and lift it up (A).

4Slide the microSD card holder and lift it up (B).

QuickStartGuide6550.pdf 4 10/16/2013 4:25:32 PM

5Insert the microSD card (C) and close the microSD card holder.

6Insert the SIM card (D) and close the SIM card holder.

7Close the compartment cover.

8Replace the battery.

Turning the Radio On/Off

To power the radio on/off, press and hold .

If the Covert Mode is activated, the radio powers on without visible and

audible notifications.

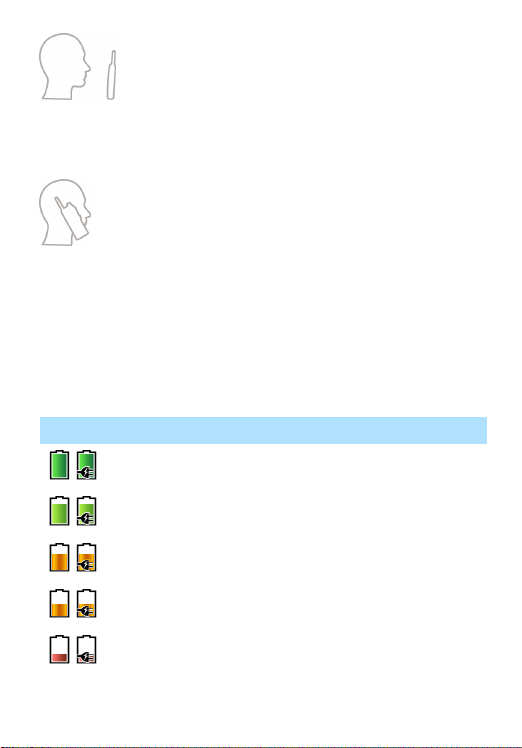

Holding Your Radio

The radio has two microphones:

•A top microphone for simplex group, dispatcher, or private calls

• A bottom microphone for duplex, telephone-like calls

Simplex Calls

When making simplex calls (high audio), hold the radio in a vertical position with the

top microphone 5 to 10 centimeters away from your mouth. Speak into the top

microphone. Listen via the radio internal speaker. Keep the antenna at least 2.5

centimeters from your head and body.

QuickStartGuide6550.pdf 5 10/16/2013 4:25:32 PM

Duplex Calls

When making duplex calls (low audio), hold your radio as you would a telephone.

Speak into the bottom microphone. Listen via the earpiece. Keep the antenna at

least 2.5 centimeters from your head and body.

Lapel/Shoulder Use

For group and private calls turn your head towards your shoulder/lapel, and speak

directly into the top microphone. Listen through the internal speaker.

Speakerphone Use

Place your radio 30–60 centimeters away from you. In a noisy environment, move

the radio closer for better transmission.

Battery Capacity Information

Icon Description

80%–100% capacity

60%–80% capacity

40%–60% capacity

25%–40% capacity

15%–25% capacity

QuickStartGuide6550.pdf 6 10/16/2013 4:25:33 PM

Icon Description

5%–15% capacity

0%–5% capacity

Status Icons

Icon Description

In Service (TMO) – standard/extended icon

No Service (TMO) – standard/extended icon

Signal Strength – standard/extended icon

High RF Power – standard/extended icon

Direct Mode

Using Gateway

Repeater Mode

Emergency

Scan

Priority Scan

QuickStartGuide6550.pdf 7 10/16/2013 4:25:33 PM

Icon Description

Battery Level

Battery Charging

All Rings Muted

Simplex Ring Muted

Duplex Ring Muted

Migration

Low Audio

High Audio

Earpiece Connected

New Message Has Arrived

New Message(s)

Packet Data

Radio Keys Locked

QuickStartGuide6550.pdf 8 10/16/2013 4:25:33 PM

Icon Description

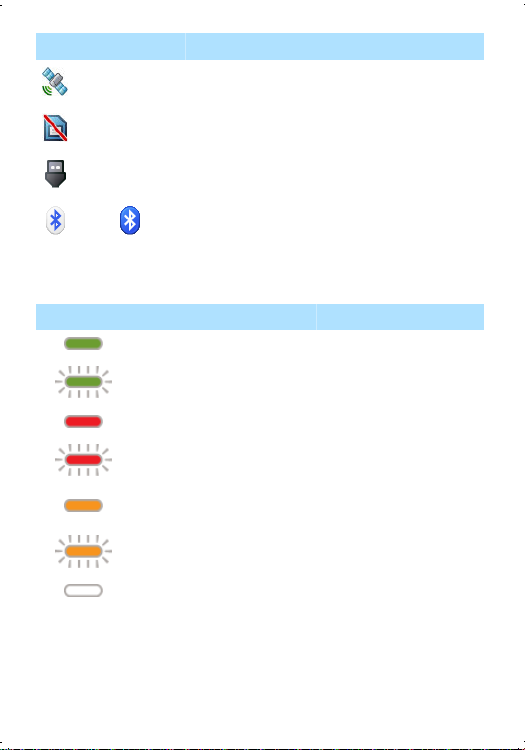

GPS

Invalid MicroSD Card

USB Connected

No Active Bluetooth Connection/Bluetooth Active

LED Status Indicator

Indication Status Charging Status

In use Battery fully charged

In service Battery charged at 90%

Out of service Rapid charge

Connecting to a network

Entering DMO Faulty or invalid battery

Transmit inhibit in service

Channel busy in DMO

Incoming private or phone call Battery waiting to charge

Switched off

Unlocking Your Radio

Your radio may be locked at power on. To unlock it, enter the PIN code at the

prompt. By default the code is set to 0000. Your service provider may change this

number before you receive your radio.

QuickStartGuide6550.pdf 9 10/16/2013 4:25:33 PM
