Motorola P040 Bedienungsanleitung

Professional Radio

P040

User Guide

68P64110B67A

Issue: April 2002

1English

CONTENTS

Radio Overview . . . . . . . . . . . . . . . . . . . . 3

Parts of the Radio . . . . . . . . . . . . . . . . . . . 3

On-Off/Volume Knob. . . . . . . . . . . . . . . 4

Channel Selector Knob. . . . . . . . . . . . . 4

Push-to-Talk (PTT) Button . . . . . . . . . . 4

Microphone . . . . . . . . . . . . . . . . . . . . . . 4

LED Indicator . . . . . . . . . . . . . . . . . . . . 4

Programmable Buttons . . . . . . . . . . . . . 4

Indicator Tones . . . . . . . . . . . . . . . . . . . . . 6

Programmable Buttons’ Audio Indicators. . 6

Improved Audio Features. . . . . . . . . . . . . . 6

Low Level Expansion (LLE) . . . . . . . . . 6

Companding . . . . . . . . . . . . . . . . . . . . . 6

Getting Started . . . . . . . . . . . . . . . . . . . . . 7

Battery Information. . . . . . . . . . . . . . . . . . . 7

Battery Care and Tips. . . . . . . . . . . . . . 7

Recycling or Disposal of Batteries . . . . 8

Charging your Battery. . . . . . . . . . . . . . 8

Accessory Information . . . . . . . . . . . . . . . . 9

Attaching the Battery. . . . . . . . . . . . . . . 9

Removing the Battery . . . . . . . . . . . . . . 9

Attaching the Antenna. . . . . . . . . . . . . 10

Removing the Antenna. . . . . . . . . . . . .10

Attaching the Belt Clip . . . . . . . . . . . . .11

Removing the Belt Clip. . . . . . . . . . . . .11

Turning the Radio On or Off . . . . . . . . . . .12

Adjusting the Radio’s Volume . . . . . . . . . .12

Selecting a Radio Channel . . . . . . . . . . . .12

Sending a Call . . . . . . . . . . . . . . . . . . . . . .13

Receiving a Call. . . . . . . . . . . . . . . . . . . . .13

Radio Call Information . . . . . . . . . . . . . .14

Repeater or Talkaround Mode. . . . . . . . . .14

Setting Tight or Normal Squelch . . . . . . . .14

Setting the Power Level. . . . . . . . . . . . . . .14

Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Starting or Stopping a Scan Operation . . .15

Talkback . . . . . . . . . . . . . . . . . . . . . . . . . .15

Deleting a Nuisance Channel . . . . . . . . . .15

Adding a Deleted Nuisance Channel

back to the Scan List . . . . . . . . . . . . . . . . .16

Prioritization of a Scan List member . . . . .16

English

CONTENTS

Safety Information . . . . . . . . . . . . . . . . . 17

omputer

tware

opyr

The products described in this manual may include copyrighted computer

programmes stored in semiconductor memories or other media. Laws in the

United States of America and other countries preserve for Motorola Europe

and Motorola Inc. certain exclusive rights for copyrighted computer

programmes, including the right to copy or reproduce in any form the

copyrighted computer programme. Accordingly, any copyrighted computer

programmes contained in the products described in this manual may not be

copied or reproduced in any manner without the express written permission of

the holders of the rights. Furthermore, the purchase of these products shall not

be deemed to grant either directly or by implication, estoppel, or otherwise, any

licence under the copyrights, patents, or patent applications of the holders of

the rights, except for the normal non-exclusive royalty free licenceto use that

arises by operation of the law in the sale of the product.

3English

RADIO OVERVIEW

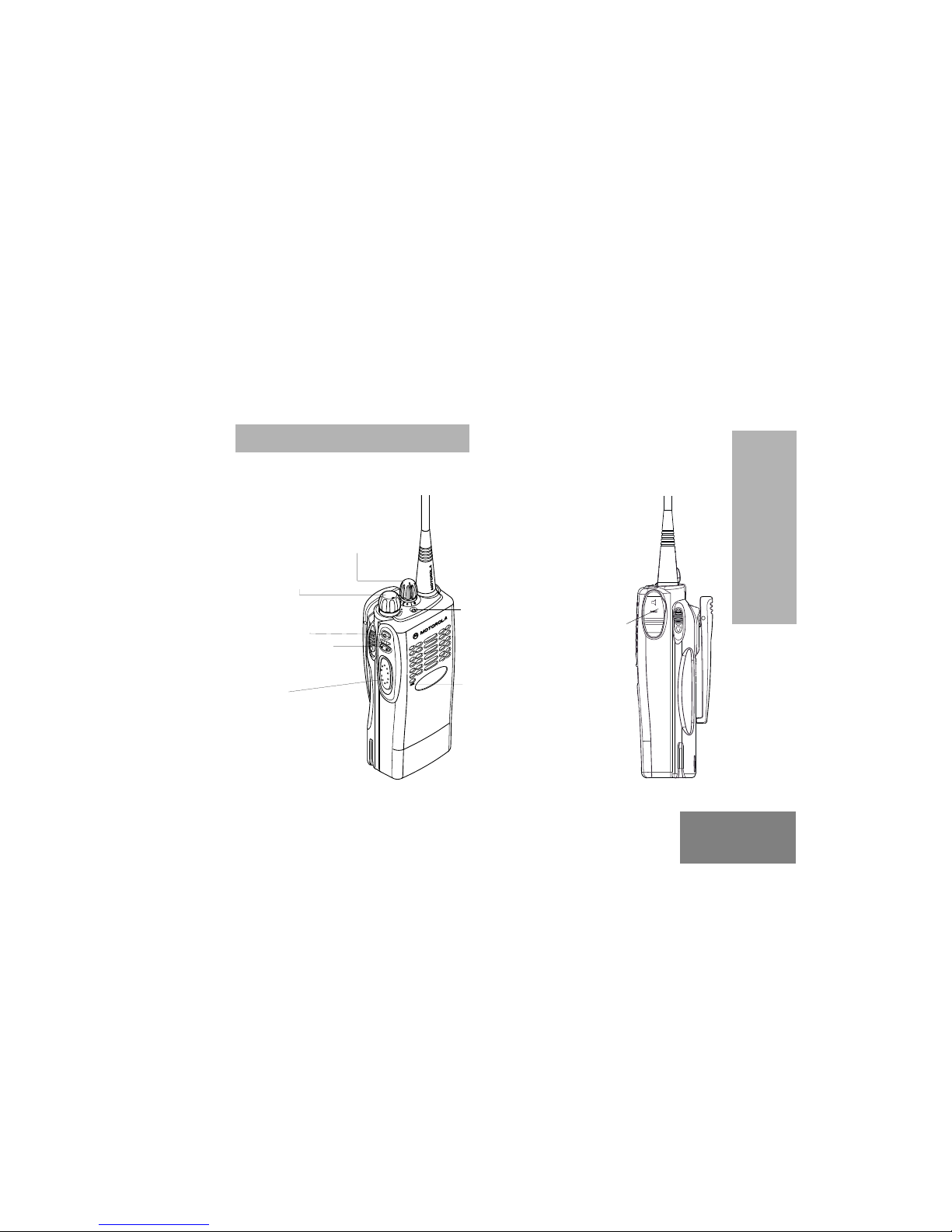

PARTS OF THE RADIO

On-Off/Volume

Knob

Microphone

(programmable)

Side Button 1

Push-to-Talk

(PTT) Button

LED Indicator

(programmable)

Side Button 2

Channel Selector

Knob

Dust Cover

covering the

Accessories

Port

(Pull down from

top to open)

English

RADIO OVERVIEW

On-Off/Volume Knob

Turns the radio on or off, and adjusts the radio’s

volume.

Channel Selector Knob

Switches the radio to different channels.

Push-to-Talk (PTT) Button

Press and hold down to talk; release it to listen.

Microphone

Speak clearly into the microphone when sending a

message.

LED Indicator

Provides visual feedback on radio status. The

operation of the indicator depends upon how the

radio has been programmed by your dealer.

Basic Features

Optional Transmit Power Level Indicator

Optional Transmit Battery Status

Indicator

Programmable Buttons

Your radio’s two side buttons can be programmed

by your dealer as short-cut buttons for many of the

radio’s features.

Check with your dealer for a complete list of the

functions your radio’s programmable buttons

support.

LED State/Colour Indication

Radio Call

Continuous Red

Blinking Red Sending message.

Receiving message.

Scan

Blinking Green Scanning for activity.

Low Battery

Blinking Red when

sending message Low battery level.

LED State/Colour Indication

Power Level

Continuous Red

Continuous Green Sending message in high power.

Sending message in low power.

LED State/Colour Indication

Battery Status

(while pressing PTT)

Blinking Green

Continuous Green

Continuous Orange

Continuous Red

Blinking Red

Battery is fully charged.

Battery is optimally charged.

Battery is half charged.

Low battery level.

Very low battery level.

5English

RADIO OVERVIEW

The table below shows the functions available by

•short press - quickly pressing and releasing

the programmable buttons, or

•long press - pressing and holding the

programmable buttons for a period of time

(programmable by your dealer) before

releasing, or

•hold down- pressing and holding down the

programmable buttons while checking status

or making adjustments.

Depending on how your radio has been

programmed by your dealer, these functions are

activated EITHER through short press OR long

press, but NOT both.

Button Short Press/Long Press Hold Down

Monitor — Monitors the selected channel for

any activity.

Volume Set — Sounds a tone for adjusting the

radio’s volume level.

Scan Starts or stops the Scan operation. —

NuisanceChannel

Delete Deletes a nuisance channel while scanning. —

Power Level Toggles your radio’s transmit power level between High

and Low settings. —

Repeater/

Talkaround Toggles between using a repeater and transmitting

directly to another radio. —

Squelch Toggles your radio’s squelch level between tight and

normal settings. —

English

RADIO OVERVIEW

INDICATOR TONES

High pitched tone Low pitched tone

PROGRAMMABLE BUTTONS’ AUDIO

INDICATORS

Some programmable keys function as toggles

(alternating between two different choices). These

keys use audio indicators to indicate the change.

IMPROVED AUDIO FEATURES

Your radio may be programmed by your dealer to

utilise ONE of the following audio enhancement

features.

Low Level Expansion (LLE)

LLE improves voice quality by reducing unwanted

background noise when receiving a message.

Companding

Companding improves voice quality by compressing

your voice at transmission, and expanding it when

receiving. Companding also reduces extraneous

noise. However, to enjoy this benefit, ALL

transmitting and receiving radios must have this

feature activated.

Self Test Pass Tone

Self Test Fail Tone

Positive Indicator Tone

Negative Indicator Tone

Button Positive

Indicator Tone

Negative

Indicator Tone

Scan Start Scan

operation Stop Scan

operation

Power

Level Radio transmits at

high power Radio transmits at

low power

Squelch Radio operates in

tight squelch Radio operates in

normal squelch

Repeater/

Talkaround Radio DOES NOT

use the repeater Radio uses the

repeater

Button Positive

Indicator Tone

Negative

Indicator Tone

7English

GETTING STARTED

BATTERY INFORMATION

Battery Care and Tips

This product is powered by a nickel-cadmium (NiCd)

or a nickel-metal-hydride (NiMH) rechargeable

battery.

The following battery tips will help you obtain the

highestperformance and longest cycle life from your

Motorola rechargeable battery.

• Charge your new battery overnight (14-16

hours) before using it to obtain maximum

battery capacity and performance.

• Charging in non-Motorola equipment may lead

to battery damage and void the battery warranty.

• When charging a battery that is attached to the

radio, turn the radio off to ensure a full charge.

• The battery should be at about 25°C (room

temperature) whenever possible. Charging a

cold battery (below 10°C) may result in leakage

of electrolyte and ultimately, in failure of the

battery.

• Charging a hot battery (above 35°C) results in

reduced discharge capacity, affecting the

performance of the radio. Motorola rapid-rate

battery chargers contain a temperature-sensing

circuit to ensure that the battery is charged

within these temperature limits.

• New batteries can be stored up to two years

without significant cycle loss. Store new/unused

batteries in a cool dry area.

• Batteries which have been in storage should be

charged overnight.

• Do not return fully charged batteries to the

charger for an “extra boost”. This action will

significantly reduce cycle life.

• Do not leave your radio and battery in the

charger when not charging. Continuous charging

will shorten battery life.(Do not use your charger

as a radio stand.)

• For optimum battery life and operation use only

Motorola brand chargers. They were designed to

operate as an integrated energy system.

English

GETTING STARTED

Recycling or Disposal of

Batteries

At the end of its useful life, the NiCd battery

can be recycled. However, recycling facilities may

not be available in all areas.

Motorola endorses and encourages the recycling of

all re-chargeable batteries. Contact your local

Motorola dealer for further information.

Charging your Battery

When the battery level is very low, a blinking red

LED indicator lights up during transmit mode, and

an alert tone sounds. You will need to recharge the

battery before you can continue to use your radio.

Place the radio with the battery attached or the

battery alone in the charger. The charger’s LED

indicator will indicate the charging progress.

NOTE: Since new batteries or batteries that have

not been used for several months could

prematurely indicate full charge (solid green

LED), charge the batteries for 14 to 16 hours

prior to initial use to achieve optimal

performance.

NiCd

LED color Status

Single flash of Green Successful charger power-up.

Flashing Red* Battery is unchargeable.

Flashing Yellow Charger is getting ready to

charge.

Red Battery is charging.

Flashing Green†Battery is 90% charged.

Green Battery is fully charged.

*Remove the battery from charger and use a pencil eraser to

clean the four metal contacts on the bottom of the battery.

Place the battery back into the charger. If the LED indicator

continues to ?ash red, replace the battery.

†A standard battery may require one hour to charge to 90%

capacity.

Andere Handbücher für P040

Inhaltsverzeichnis

Andere Motorola Radio Handbücher

Motorola

Motorola ASTRO XTL 2500 Bedienungsanleitung

Motorola

Motorola EMS APX 7500 Bedienungsanleitung

Motorola

Motorola GM Series Bedienungsanleitung

Motorola

Motorola GM1200E Bedienungsanleitung

Motorola

Motorola MTM800 FuG ET Bedienungsanleitung

Motorola

Motorola cm200 Commercial Series Bedienungsanleitung

Motorola

Motorola MTP850 Bedienungs- und Wartungshandbuch

Motorola

Motorola VX-P949 Bedienungsanleitung

Motorola

Motorola XPR 3000 Series Bedienungsanleitung

Motorola

Motorola GP300 Series Bedienungsanleitung

Motorola

Motorola MTP3150 Bedienungsanleitung

Motorola

Motorola GP320 Series Bedienungs- und Montageanleitung

Motorola

Motorola GP320 Series Bedienungsanleitung

Motorola

Motorola TETRA MTM800 Bedienungs- und Wartungshandbuch

Motorola

Motorola Professional GP640 Bedienungs- und Montageanleitung

Motorola

Motorola TALKABOUT Bedienungsanleitung

Motorola

Motorola Syntor X9000 UHF Bedienungsanleitung

Motorola

Motorola EM400 Bedienungsanleitung

Motorola

Motorola M120 Bedienungsanleitung

Motorola

Motorola TMR 2 Bedienungsanleitung

Motorola

Motorola Radius CM200 Bedienungsanleitung

Motorola

Motorola VHF2 Bedienungs- und Montageanleitung

Motorola

Motorola Professional CDM1550 LS+ Bedienungsanleitung

Motorola

Motorola RADIUS GM300 Bedienungsanleitung

Beliebte Radio Handbücher anderer Marken

EisSound

EisSound KBSound iSelect Bedienungsanleitung

Midland

Midland 1001LWX Bedienungsanleitung

Konig

Konig HAV-SR41 Bedienungsanleitung

Roberts

Roberts exprssion Bedienungsanleitung

VDigi

VDigi DD3.0 Bedienungsanleitung

Radio Shack

Radio Shack 21-1863 Bedienungsanleitung

Roberts

Roberts Stream 207 Bedienungsanleitung

Sony

Sony Walkman SRF-M97 Bedienungsanleitung

Stanley

Stanley FatMax FMC770 Bedienungsanleitung

auna

auna DAB-Radio 10026947 Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER UR190 Bedienungsanleitung

HYT

HYT TC-320 Bedienungsanleitung

auna multimedia

auna multimedia Yellowstone 10026851 Bedienungsanleitung

B-Tech

B-Tech GMRS-V2 Bedienungsanleitung

Weierwei

Weierwei VEV-V8 Bedienungsanleitung

SOUNDMASTER

SOUNDMASTER DAB750 Bedienungsanleitung

Telefunken

Telefunken TF-1505 Bedienungsanleitung

Makita

Makita LXRM03 Bedienungsanleitung
