Motorola ML25260 Bedienungsanleitung

Motorola ML25260

2-Line Corded Full Duplex

Speakerphone

Quick Start Guide

Easy to Navigate Menus

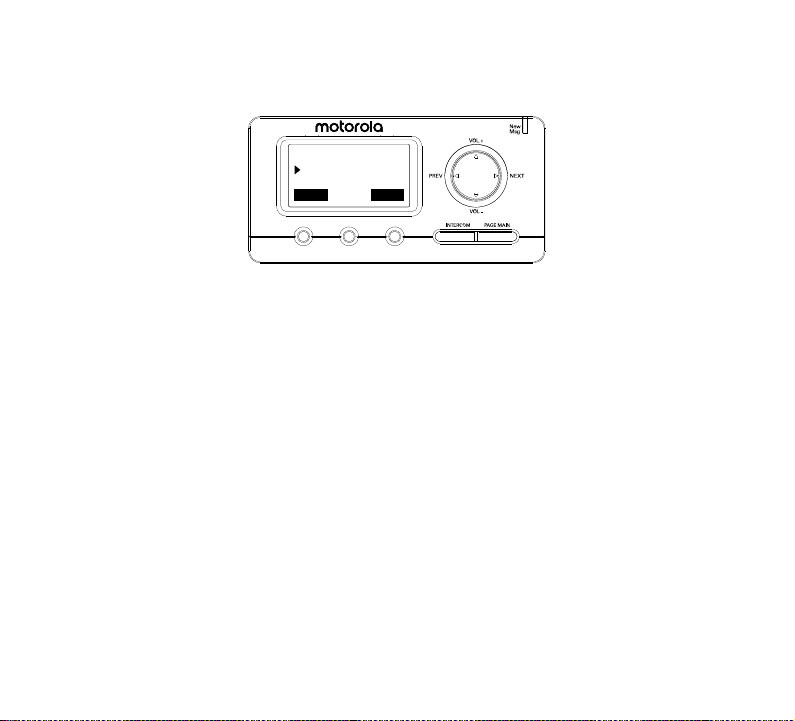

In standby mode, the base displays the current date, time and the softkey labels.

To choose a softkey option, press the button directly under that part of the screen.

The softkey labels will change according to the status of the unit.

1. Press

softkey to access the feature and setup menus.

2. Using VOL + and VOL - of the navigation button to change your selection on

the menu.

The PREV and NEXT of the navigation button are also used in menus to switch

between some options.

3. Press

SELECT

softkey to enter menus or make selections.

4. Press

BACK

softkey to return to a previous menu or EXIT button to return to the

idle screen.

NOTE

The base display has a dedicated

SET CLOCK

icon ﬂashing when the clock is not set.

Go to

PHONE SETTING - DATE/TIME

to set the clock.

SELECT MODE

MAIN/WIRED

EXT/WIRELESS

BACK

BACK SELECT

Softkeys

Navigation

Button

Manufactured, distributed or sold by Meizhou Guo Wei Electronics Co. LTD., ocial licensee for this product.

MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings,

Issue 1.1 (EN-US)

Base Layout

A Volume + N Redial Record

B Previous O Line 1, Line 2 Buttons / Indicators

C 3 Softkeys P New Message LED Indicator

D Directory Q One-Touch Memory (1-10) Buttons

E Delete R Next

F # Pause S Volume -

G * Tone T Page

H Mute U Intercom

I Headset V Caller ID Record

J Headset LED Indicator W Privacy

K Hold X Exit

L Mute LED Indicator Y Flash

M Do Not Disturb (Button / Indicator) Z Speakerphone Button / Indicator

LKJI

ONM

Adding a Directory Entry / One-Touch Memory

To program a One-Touch Memory button:

1. Press

STORE

softkey to access the feature.

2. The screen displays

SELECT BUTTON LOCATION

3. Press One-Touch Memory (1-10) button to be programmed.

4. The screen will display

ENTER NAME:

5. Using the dial pad to enter the name and press

SAVE

softkey.

6. The screen will display

ENTER NUMBER:

7. Using the dial pad to enter the number and press

SAVE

softkey to complete.

11/30 09:15AM

99 NEW CALLS

MENU STORE

Softkey

Dial Pad

One-Touch Memory

(1-10) Buttons

Intercom & Call Transfer

Making an Intercom Call

1. In idle mode, press any One-Touch Memory (1 -10) button for the extension you

want to intercom. One-Touch Memory (1) button represents extension 01, (2)

represents extension 02, etc. The intercom / page tone will be emitted.

Or, press INTERCOM to bring up the list of all extensions (except itself). Then

using VOL + and VOL - of the navigation button to scroll to the desired extension

and press

SELECT

softkey.

To cancel the intercom call, press

STOP

softkey.

Transferring a Call to Another Station

1. During a call, press

XFER

softkey. The current call is put on hold.

2. Using VOL + and VOL - of the navigation button to select the extension you want

to transfer the call to. Press

SELECT

softkey.

3. The unit will initiate an intercom call to the selected extension. If you do not wish

to attend the transfer, you may hang up and the call transfer will be completed.

For an attended transfer, wait until the selected extension has answered, then

hang up to ﬁnish the transfer or press

CONF

to have a 3 way conference call.

Connecting Your System Cont.

The base will display

REGISTRATION

to indicate the base is now in

registration mode.

If registration is successful, both phones will beep and display

REGISTRATION

COMPLETE!

. If registration is not successful, move the phones closer together and

try again.

To wirelessly connect your Motorola ML25260 to another Motorola ML25260 or a

compatible Motorola base phone:

You can only wirelessly connect a Motorola ML25260 to another Motorola base

phone when the Motorola ML25260 is in Extension/Wireless mode. To do this:

1. In idle mode, press

softkey to go to the main menu.

2. Press

SELECT

softkey to enter

SELECT MODE

menu.

3. Using VOL + and VOL - of the navigation button to scroll to

EXT/WIRELESS

4. Press

SELECT

softkey and the phone will remind you that you need to register it to

a base station.

5. Press

SELECT

softkey and the phone will switch to Extension/Wireless mode.

To pair your Motorola ML25260 to a compatible Motorola base phone:

1. Press

REG

softkey.

NOTE

If your Motorola ML25260 is not already registered to a base, the screen will display

PRESS “REG” TO INITIATE REGISTRATION

. Press

REG

softkey to start the registration.

2. The screen will display

PRESS BASE UNIT PAGE BUTTON UNTIL BEEP

and will begin

searching for a compatible Motorola base phone.

3. Press and hold PAGE MAIN or PAGE button on the base phone that is plugged

into the phone jack for about 5 seconds.

If registration is successful, both phones will beep and display

REGISTRATION

COMPLETE!

If registration is not successful, move the phones closer together and

try again.

Connecting Your System Cont.

3. Press

SELECT

softkey again to choose

MAIN/ WIRED

mode.

The phone will remind you that you need this unit to be plugged into a phone line.

4. Press

SELECT

softkey and the phone will switch to Main/Wired mode.

NOTE

Before you begin pairing your phones together, you may wish to set them up in the

same room. This will make accessing both phones easier. But don’t worry, you can

unplug and move either phone afterwards.

If you have a Motorola ML25055:

To pair your Motorola ML25055 handset with Motorola ML25260 base phone:

1. Press

REG

softkey.

NOTE

If the cordless handset has not been registered to a base, the screen will display

PRESS “REG” TO INITIATE REGISTRATION

. Press

REG

softkey to start the registration.

If the cordless handset does not display the

PRESS “REG” TO INITIATE REGISTRATION

message, the

option is available in the

PHONE SETTING - REGISTRATION

menu.

2. The handset screen will display

PRESS BASE UNIT PAGE BUTTON UNTIL BEEP

3. Press and hold PAGE MAIN button on the base for about 5 seconds.

SELECT MODE

MAIN/WIRED

EXT/WIRELESS

BACK

BACK SELECT

Connecting Your System

To wirelessly connect accessories to your Motorola ML25260:

First, make sure your Motorola ML25260 is in Main/Wired mode. To do this:

1. In idle mode, press

softkey to go to the main menu.

2. Press

SELECT

softkey to enter

SELECT MODE

menu.

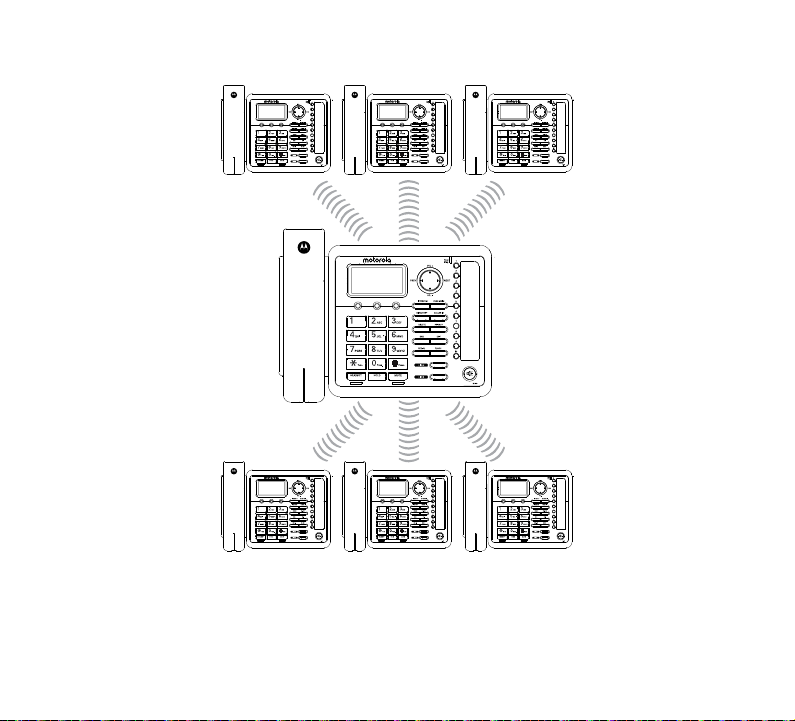

Wireless Extensions

Wired Main Unit
