Mounting Dream MD2209-03 Bedienungsanleitung

MD2209-03 INSTALLATION INSTRUCTION

(DE-C1)

10"~26" Max:100x100mm/4x4"

Min:50x50mm/2x2"

x3 x1

1 2

Für die Installationsanweisungen auf Deutsch, siehe Seite 10~11.

Pour l'instruction en Français, veuillez vous reporter à la page 12~13.

Para las instrucciones de la instalación en Español, favor vea la página 14~15.

Per le Istruzioni in Italiano, vedi pagina 16~17.

If you have any questions, please contact our customer service.

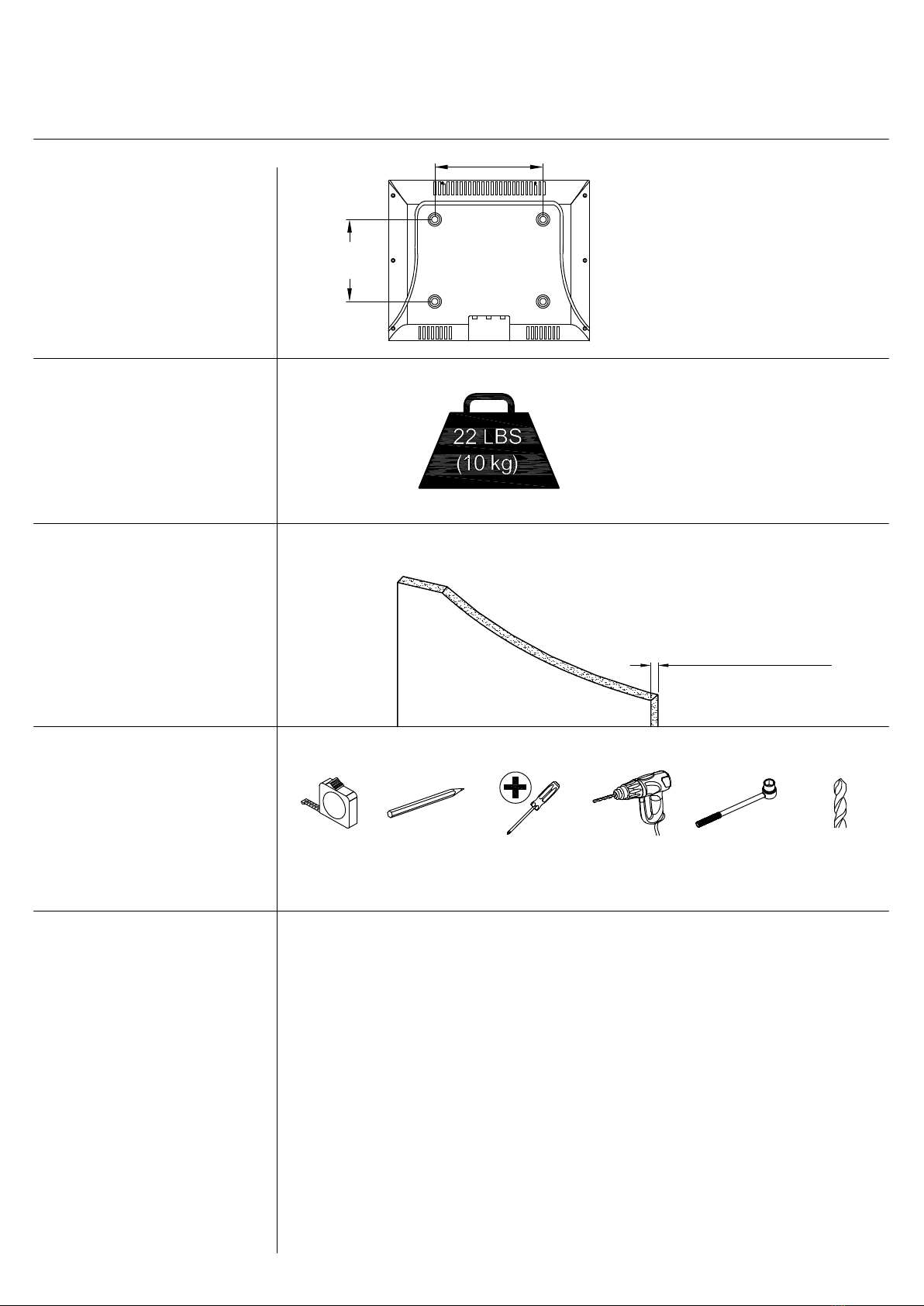

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

50x50mm/2x2" and

equal to/less than

100x100mm/4x4"?

2 Does your TV

(including accessories)

weigh less than

22 LBS (10 kg)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:100mm/4"

MAX:

100mm/4"

Yes --- Perfect!

No --- This mount is NOT compatible.

Band Tape

2M2M

5 Safety Caution

● The hardware provided in the package can only use in 0.5"(12.7mm) thick or above

wooden board installation on RV.

● The wall must be capable of supporting five times the weight of the TV and mount

combined. According to the wall you're going to install, the structure of your RV may

require additional reinforcement.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Make sure to stow the TV and fully lock the mount in place before your RV is moving.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

3 Where can you

install this mount?

0.5"(12.7mm) thick or above wooden board

Min. 0.5"(12.7mm)

1/8"(3mm)

Wood Drill Bit

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, please contact customer service.

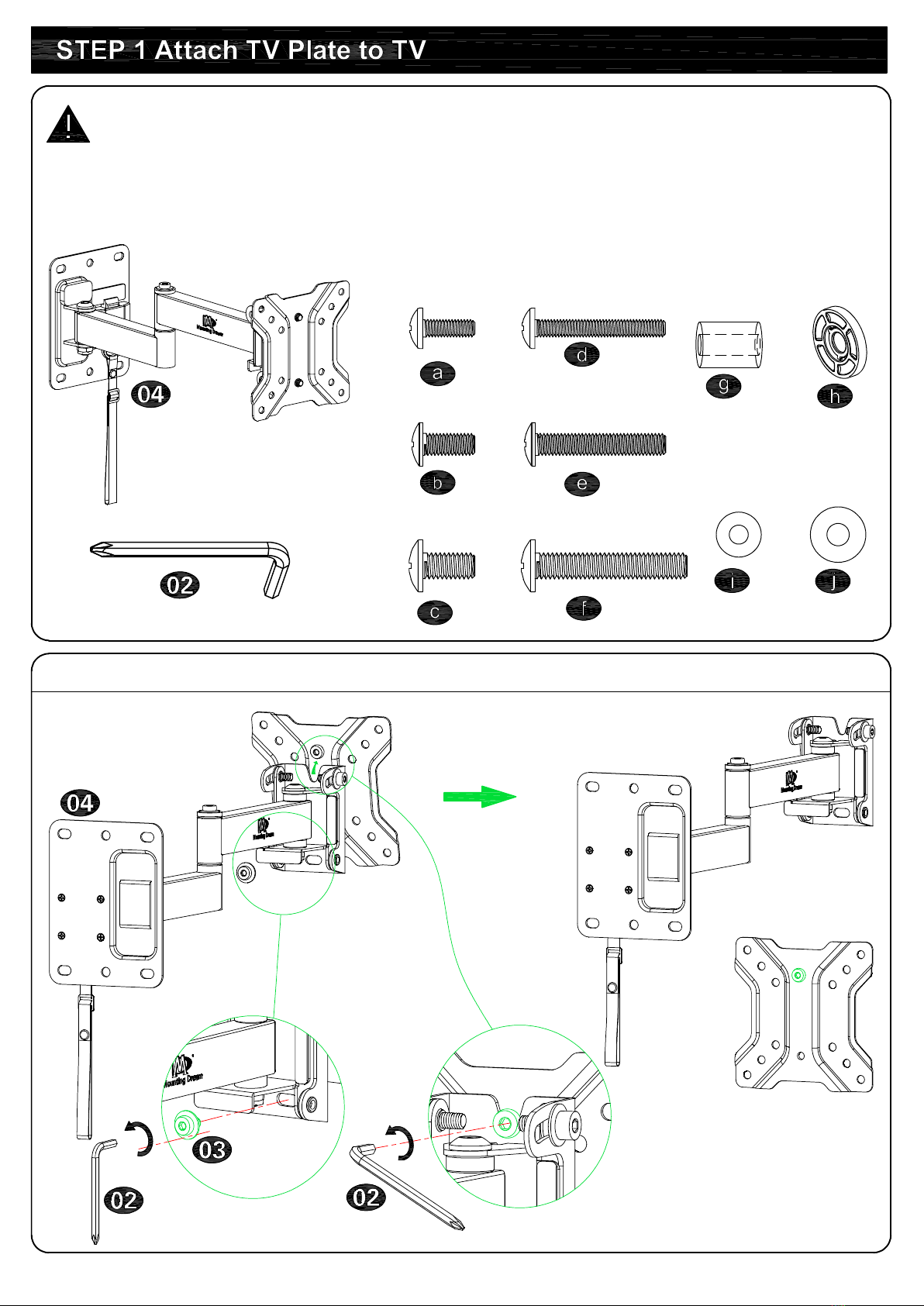

Parts and Hardware

M4x12mm

M6x12mm

M4 M6

Washers

TV Screws

x4 x4

1-1 Disassemble Wall Plate Unit into Two Pieces

Wall Plate Unit

Allen Key

Wall Plate

TV Plate

one turn

M5x12mm

M4x30mm

M5x30mm

M6x35mm

M6x17mm 2.5mm

Spacers

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged. For parts

shortage or damage, please contact customer service.

NOTE: Not all hardware included will be used.

1-2 Choose Configuration

① 50mm x 50mm

② 75mm x 75mm

③ 100mm x 100mm

1-3 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 4 for detailed combination.

Yes, go to PAGE 4 for detailed combination.

TV back

1-4 Need Spacer?

Short Screw

Washer

①

②

③

①

①①

②

② ②

③

③③

1-5 Attach TV Plate to TV Back

No!

Screw and washer

Spacer(s), screw and washer

Tips: If you need to combine M6(f) screw with 2.5mm spacer(h), you have to remove the

inner circle.

Parts and Hardware

Min. 0.5"(12.7mm)

1/8"

(3mm)

Wall Plate

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!

The TV plate is off center about 0.63"/16mm to

the wall plate. Please consider this point, when

positioning your TV on the wall.

Wooden Board

Lag Bolt M6x25mm

0.63"(16mm)

TV plate center Wall plate center

Wall Plate

Bolt Head UP!

Level

Wall Plate

Level

22 LBS (10 kg)

Before hanging TV, please conduct "wall plate installation integrity test" first.

1 2

4-1 Tilting angle adjustment (+5°/-15°)：

Pull TV to your desired angle then fasten 2 tilting bolts with

Allen key .

4-2 TV leveling adjustment (±3°):

Loosen 2 leveling bolts on the rear of TV plate by maximum 1

turns, adjust to level, and retighten to secure.

Tilting bolts

-15°

+5°

Loosen

Tighten

Loosen

Tighten

Important ! Make sure to stow the TV and fully lock the mount in place

before your RV moves.

Push your TV to the wall. Pull down the strap and lock the TV plate to

the wall plate.

Pull down

the straps

Stow

Pull and hold the strap

Pull out

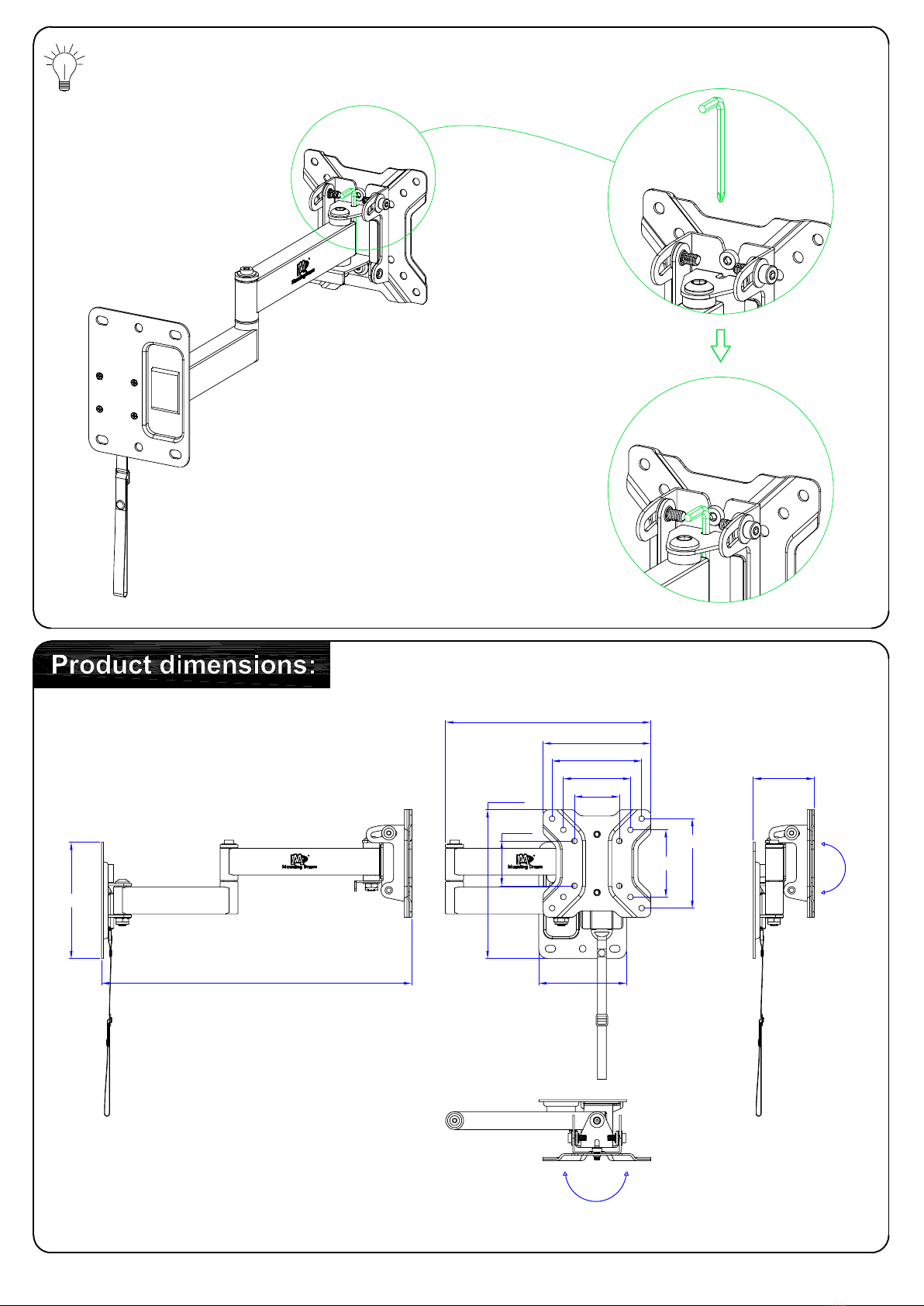

Allen key storage: For easy adjustment, you might put the Allen key on

the wall plate as illustration.

50mm

75mm

100mm

120mm

229mm

166mm

98mm

50mm

75mm

100mm

130mm

346mm

68mm

+90°/-90°

+5°

-15°
