Moyerdiebel 201LT Bedienungsanleitung

201LT

Undercounter Low Temperature

Dishwashing Machine

MD032 Printed in U.S.A.

Moyer Diebel – USA

P.O. Box 4183, Winston-Salem, NC 27115 Tel: 336/661-1992 Fax: 336/661-9546 800/228-8350

www.moyerdiebel.com

SPECIFIER STATEMENT

Specified unit will be Moyer Diebel Model 201LT

undercounter low temperature dishwashing machine.

Features include 15-3/4" door opening, standard detergent,

rinse-aid and sanitizer dispensing pumps. Wash tank heater

maintains required water temperature.

1 year parts and labor warranty.

Project

Item No.

Quantity

STANDARD FEATURES

• Pumped drain

• Door safety switch

• Low-water tank heat protection

• Built-in detergent, rinse-aid, and sanitizer

dispensing pumps

• Wash pump, 1-Hp motor

• Fill and dump

• Thermostatically controlled wash tank heater

maintains water at the required temperature

• Upper & lower interchangeable spray arms

• Top mounted controls

• Stainless steel top and side panels

• Single phase connection

• Stainless steel construction

• 15-3/4" [406mm] door opening accommodates

larger wares, including trays!

• Fully automatic wash/rinse cycle processes a rack

of wares in 141 seconds … 21 racks an hour!

• One year parts and labor warranty.

NEW!

OPTIONS & ACCESSORIES

CST- Combination sink/table

Machine on right P/N 403561

CST- Combination sink/table

Machine on left P/N 403562

Flat bottom dishrack P/N 101273

Peg dishrack P/N 101285

6" Stand P/N 0712393

17RS – 17" Stand P/N 0708757

□

201LT UNDERCOUNTER

Utilities

1 Electrical

115/60/1; 12 amp draw; to be fused at 15 amp. 4ft. plug-in cord supplied.

2 Hot Water

140°F Min., 1/2" supply hot water connection

6 ft. long, 1/2" I.D. flexible fill hose with 3/4" hose connector

Flow pressure: 25-95 psi (173-656 kPa)

3 Drain Connection

6 ft. long, 5/8" I.D. flexible drain hose

Max. drain flow: 15 US gpm

Warning: Plumbing and electrical connections should

be made by qualified personnel who will observe all the

applicable plumbing, sanitary and safety codes.

Dimensions shown in inches and [millimeters]

(1M) 1/08

SPECIFICATIONS

Capacity

Racks per hr. 21

Motor Horsepower

Wash 1

Water Consumption

Per hr. (max. use) 38.4 US gal;

Per rack 1.8 US gal;

Temperatures °F

Wash (minimum) 140

Rinse (minimum) 140

Heating

Tank heat, electric (kW) .75

Time Cycle in Seconds

Wash 90

Rinse 26

Drain/fill 25

Total 141

201LT

Undercounter

Low Temperature

Dishwashing Machine

MOYER DIEBEL USA

201LT

1 2

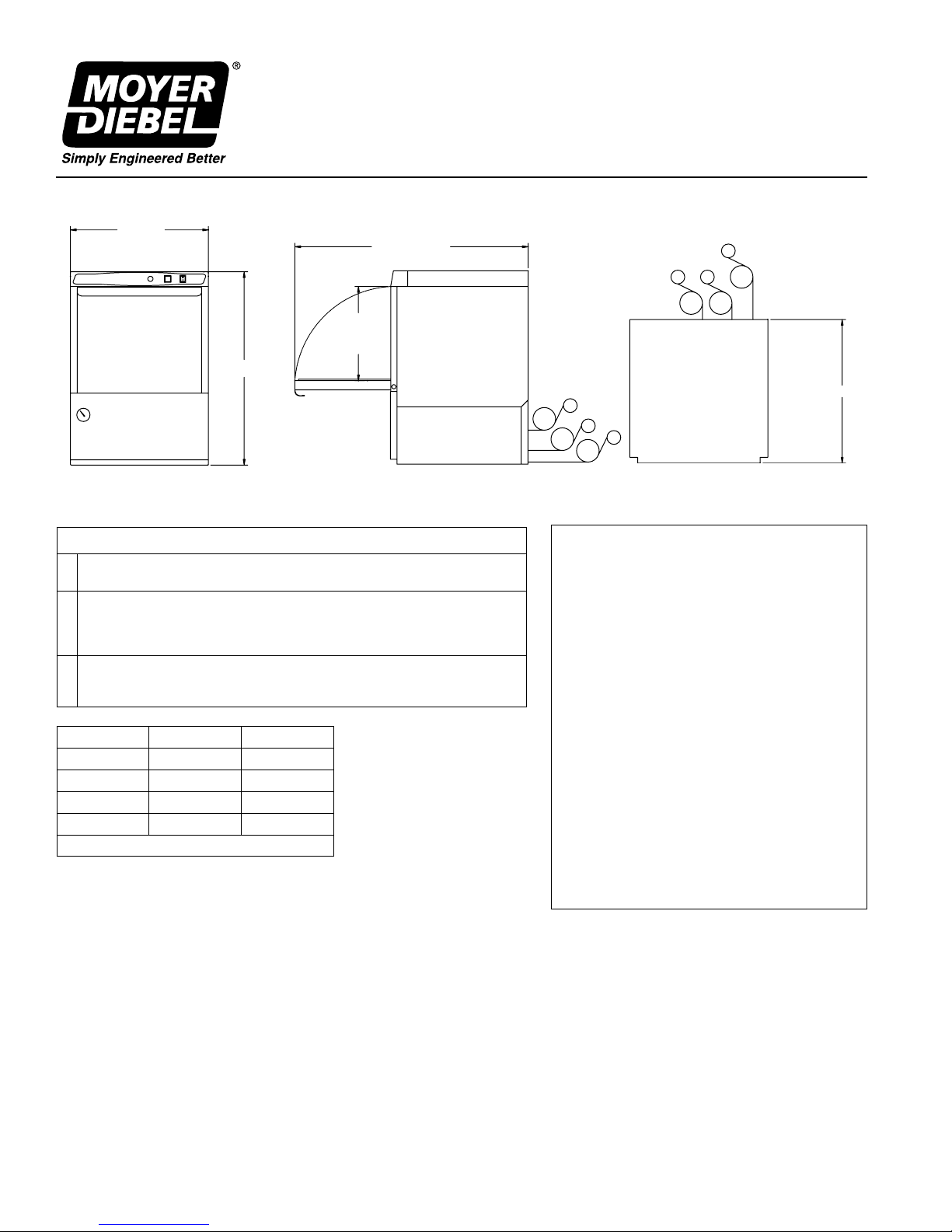

25" [635]

33-3/4" [857]

15-3/4"

[400]

Clearance

40-1/2" [1029]

24" [610]

MOYER DIEBEL USA

201LT

1 2

25" [635]

33-3/4" [857]

15-3/4"

[400]

Clearance

40-1/2" [1029]

24" [610]

MOYER DIEBEL USA

201LT

1 2

25" [635]

33-3/4" [857]

15-3/4"

[400]

Clearance

40-1/2" [1029]

24" [610]

Plan ViewFront View Side View

Due to an ongoing value analysis program at Moyer Diebel, specifications in this catalog are subject to change without notice.

Uncrated Crated

Height 33-3/4" 39-1/2"

Width 24" 25"

Depth 25" 25-1/2"

Ship Wt. lbs/kg 178 198

* Front leveling feet provided.
