Moza R9 V2 Bedienungsanleitung

User Manual 使用说明书

R9 V2 Direct Drive Wheel Base

Quick Guide 售后客服

· Peak Torque: 9 Nm

· Professional direct drive system

· High energy density and high slot ﬁll rate motor

· Wide range of speed and torque output platform

· Aviation grade aluminum alloy body

· Dual mode communication

· Support most racing games

· Mobile APP cloud control

Product Features

Connection Ports

Dimensions

Shifter

HandbrakeDash

Pedal Emergency stop

USB-B Power Switch

206.87mm

124.00mm

90mm

156.88mm

· It is strictly forbidden to expose the device to rain and humidity to avoid ﬁre/electric shock.

· It is strictly prohibited to use the device in direct sunlight.

· Recommended indoor temperature: 15°C ~ 35°C.

· For your safety and well-being, please monitor your gaming time and take breaks as needed.

· The device is not suitable for children under the age of 6, small accessories may pose a

choking hazard!

· Children under 13 should have adult supervision.

· It is strictly forbidden to disassemble the equipment by yourself, failure to adhere to this will

result in loss of warranty.

· The equipment must be connected with the factory-supplied power supply to ensure the

electrical safety and the protection of user rights and interests.

· In order to ensure user safety, parts repair or replacement can only be carried out by ofﬁcially

authorized repair centers.

· Non-standard power supplies are strictly prohibited even if data such as related voltages

match.

· Use only AC power provided by a standard wall outlet to avoid damage to the product.

· Do not expose the device to heat sources.

· Unplug the power cord of the device if it will not be used for a long time.

· If you ﬁnd any abnormality, please stop using it immediately and seek help from MOZA

representatives or authorized repair centers.

· Stay tuned to our ofﬁcial website and social media platforms for the latest product updates.

1. Fix the R9 V2 base to the mounting bracket through the the 4 screw holes at the bottom.

2. Connect the power connector and type-B USB connector into the corresponding ports on the

rear of the R9 V2 base, plug the PSU into a power socket and connect the type-A USB

connector to the PC.

3. Short press the power button on the rear of the R9 V2 base (short press to power on, long

press to power off).

4. Download and install the MOZA Pit House software from the help center of the MOZA Racing

ofﬁcial website (www.mozaracing.com) to start your racing journey.

5. Please visit our ofﬁcial website for detailed instructions. (www.mozaracing.com).

Precautions

Base Installation Guide

This product use is limited to activities related to simulated driving, please distinguish

between simulated games and reality to ensure safe driving

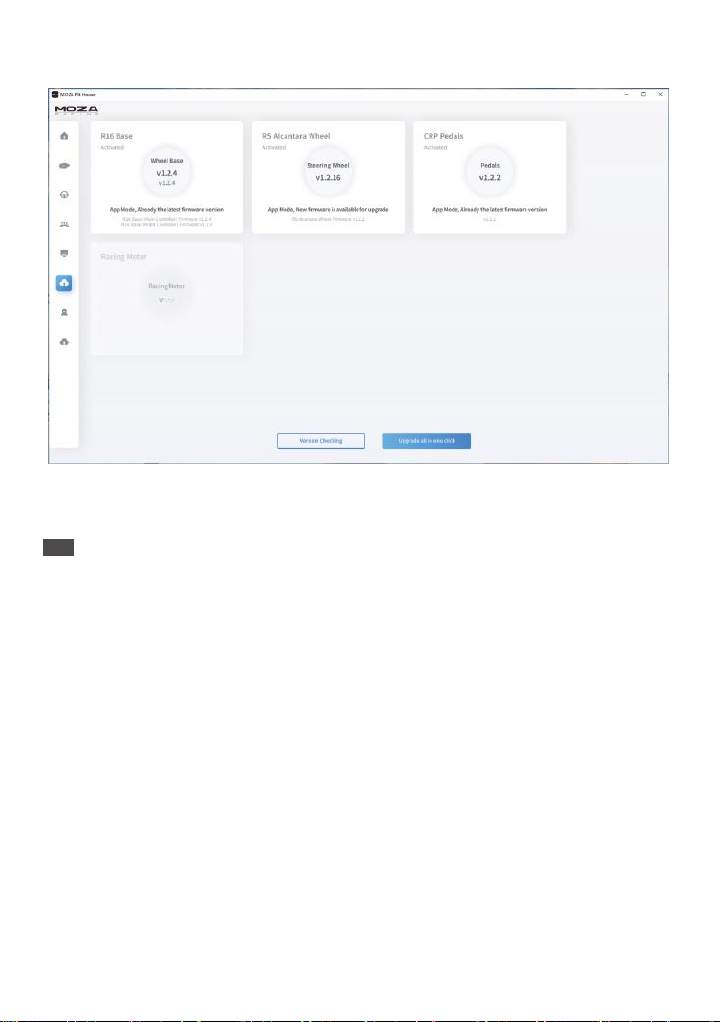

On the main page, you can view the working status of each connected device, set the

wheelbase, force feedback, pedals, steering wheels and digital dashes, etc., and you can

quickly start the game.

Software Introduction

Packing List

· Wheel Base

· Power adapter

· Power cord

· Data cable

· Screw Kit

· Cloth bag

· MOZA sticker

MOZA’s FFB equalizer allows full customization and ﬁne-tuning of the FFB effects spectrum

for a perfect setup for all track conditions.

With both click-and-go presets to fully customizable advanced tuning, everyone from

beginners to pro drivers can easily ﬁnd that perfect setup.

Quickly adjust the pedal stroke to enrich the foot feel to meet individual needs

Full customization of the shift indicator LEDs is available in the control center. Timing, color

and shift modes can all be adjusted to suit every car and setup.

Speciﬁcation

Easily upgrade the MOZA Pit House with one click and enjoy the latest functional experi-

ence.

* For detailed software instructions, please visit the MOZA Racing ofﬁcial website

(www.mozaracing.com) help center page.

Platform: PC

Drive Type: direct drive

Max Wheel Rotation: limitless

Housing Material: aviation grade aluminum alloy

Color: Black/White

Peak Torque: 9 Nm Peak

Power: 180W

Input Voltage: 110V~220V AC —> 36V DC

USB Refresh Rate: 1000Hz

APP Function: supported

Quick Release: supported

Connection Ports: Power, DC Input, E-stop, USB, Dash

Accessories: user manual and warranty card, power supply, data cable, tool kit Mounting

Method: 4 holes bottom mount

Desk Clamp: optional

Side Mount: optional

Emergency Stop Switch: optional

Firmware Upgrade Function: supported

· This product has high force feedback strength and small parts. Children are prohibited from

using it without adult guidance.

· Keep away from loose clothing and easily tangled objects such as hair, cables, skirts, etc.

· MOZA R9 V2 is ready to use right out of the box. Firmware is updated to the latest version at

the factory. For more information on software updates, visit the MOZA website.

· This manual is intended for demonstration purposes only and should not be used for

marketing. It provides a general overview of a single product, including related product series.

Please refer to the actual product when making a purchase.

· The product images and content above are for demonstration purposes and may not precisely

match the external design (including but not limited to appearance, color, size) and content

display (including but not limited to background, UI, pictures) of the actual product. Please

refer to the actual product for accurate information.

· The above test data are all from the MOZA test laboratory and may not reﬂect the actual

performance factors due to usage conditions and environmental reasons.

· The information provided, such as descriptions and images, is subject to change. MOZA may

update the content to better reﬂect the performance and speciﬁcations of the actual product,

ensuring more accurate information. Product availability may vary due to unforeseen issues

during batch processing or delivery. In such cases, MOZA reserves the right to modify the

descriptions and images as needed without prior notice. For the most up-to-date information,

please refer to ofﬁcial channels.

Additional Explanation

Desk Clamp: optional

Side Mount: optional

Emergency Stop Switch: optional

Firmware Upgrade Function: supported

· 9牛米最大扭矩

· 专业伺服直驱系统

· 高能量密度高槽满率电机

· 宽泛的转速与扭矩输出平台

· 航空级铝合金机身

· 无线或有线供电和通讯技术

· 支持数十款赛车模拟软件

· 手机APP控制

产品介绍

基座接口介绍

基本参数

换挡器接口

手刹接口

仪表屏幕接口

踏板接口急停开关接口

电源开关

USB-B

(连接电脑)

206.87mm

124.00mm

90mm

156.88mm

· 严禁将设备暴露在雨水以及潮湿的环境中，以避免发生火灾/电击

· 严禁在太阳直射的条件下使用设备

· 建议室内温度:15°C ~ 35°C

· 为了您的健康，请合理控制游戏时间

· 设备不适用于6岁以下儿童，小配件可能造成窒息的危险!

· 13岁以下孩童需在家长陪同下使用

· 严禁自行拆解设备，否则将失去质保资格

· 设备必须使用配套出厂的电源进行连接，以保障用电安全及用户权益得到保障

· 为保障相关安全，零部件维修或者更换只能由官方授权维修中心进行

· 即使相关电压等数据匹配，亦禁止使用非标准电源

· 只能使用标准壁式电源插座提供的交流电源以避免对产品造成损坏

· 禁止将设备暴露在热源中

· 长期不使用的情况下，请拔出设备电源线断电

· 如发现有任何异常，请立即停止使用并寻求 MOZA 官方或相关授权中心的帮助

· 请关注 MOZA 官网及公众平台以了解最新的相关产品信息

1. 将R9 V2基座通过底部4个螺丝孔固定到模拟器支架上。

2. 将电源线、USB线Type-B端分别插入R9 V2基座尾部对应接口上，电源线另一端接入220V电

源插口，USB线Type-A端接入PC。

3. 短按R9 V2基座尾部的电源按钮（短按开机，长按关机）。

4. 在MOZA Racing官网（www.mozaracing.com）的帮助中心下载MOZA Pit House软件并安

装，即可开启您的赛车之旅。

5. 更多信息和教学视频请登录官网（www.mozaracing.com）进行查阅。

注意事项

安装教程

本产品仅限于模拟驾驶相关活动，请区别模拟游戏与现实，安全驾驶。
