MP-Man MP-AV20 Bedienungsanleitung

Please read this manual thoroughly before

operating your mpman MP-AV20/40 and retain it

for future reference.

(Model MP-AV20/40)

User’s Manual

󳢯Confirm items related to our company and our products, and

reply to customers’questions.

󳢯The contents that is mentioned in this operating instruction

subject to change without previous notice by an improvement

of function or a change of specification.

󳢯Possible to improve continuously the function and the various

kinds of setup of machine through our homepage.(Upgrade of

firmware)

Ⅰ.Feature

Ⅱ.Do’s and Dont’s

Ⅲ.Unpacking the box

1.Checking all items

2.Checking the Names

3.Checking the Specifications

Ⅳ.After checking all items

1.Charging a storage battery with

electricity

2.Connecting with computer

3.Downloading files from computer

4.Connecting with other equipments

Introduction related to Home Page

Web Address 󳥸 http://www.mpman.com

Table of contents

Ⅴ.Operating Manual

1.Hearing Music

2.Watching Moving Picture

3.Seeing Images

Ⅵ.Additional Information

1.Upgrading Firmware

2.Trouble Shooting

3.Q/A

Feature

Ⅰ

●mpman MP-AV20/40

●Feature

mpman MP-AV20/40 is the portable moving picture player that you use MPEG

files and can enjoy music, lectures with the moving picture, movies, music

videos, saving pictures, etc.

1. Equipped with 20/40GB HDD

󳢯You can use mpman MP-AV20/40 as a portable storage equipment saving the

capacity of 25/50 700MB CDs by connecting to a computer.

2. Storing the files of moving picture

󳢯Possibility of storing up to 50/100 titles based on 1 hour 30 minutes movie of

320MB.

3. Listening to MP3 music

󳢯MP3 music should be 4~5 MB in a title, so you can save the music till about

4,500/9,000 titles of music that you want, and can freely listen to them.

4. Ultra-high speed by USB 2.0 interface

󳢯USB 2.0 transmits data with a speed of 480Mbps that is 40 times faster than

USB1.1

5. Supports DivX, MPEG1, MPEG2 and MPEG4

󳢯You can enjoy super high-density and natural dynamic sounds.

6. Back-up Storage for image files

󳢯You can see a picture per each, or you can make electronic albums that agree

with your taste.

7. Color 2.5" TFT-LCD

󳢯TFT-LCD screen can display the optimum image quality, so can realize vivid,

natural colors.

8. Output to TV or Beam Projector with large screen

󳢯You can watch the mpman MP-AV20/40 screen with remote control that is given

as a bundle at long distance.

9. Large-capacity rechargeable battery

󳢯You can continuously watch a movie for an average of 2.5 hours.

10. Upgrading Firmwares

󳢯It can become the continuous improvement of the function and the various

setting up this product through up-grade of firmware.

are protected by regulation concerned to the Copyright Act. In case of

illegal copying and distribution of the copyright contents by use of this

product, the user of this product assumes legal responsibility.

Do’s and Dont’s

1. Do not use multi-outlet for plug.

3.Do not spray water on product

while cleaning up.

Rub product with piece of soft cloth or

cotton. Do not use any chemical on washing

powder because of affected surface and

decolorization of product.

2. Do not put this machine at moist

or dusty place.

5. Please correctly insert the plug

fully into the outlet. It might be the

cause of fire if not.

4. Prohibit decomposition, repair and

modification of product.

Please keep away from heat resources

such as radiators or air ducts, or a place

subject to direct sunlight, excessive

dust. Also, do not leave this machine in

a place subject to too high-temperature,

too low-temperature, or so humidity.

Ⅱ

Please do not fall objects into this

product. Please keep away from a

place subject to mechanical

vibration or shock, equipments

with strong magnets.

9.Do not press more than one of

buttons at the same time.

8. Unplug the unit from the wall outlet

if there is a natural disaster like

thunder, lightning, or flood.

11. Do not connect USB cable to

MCP port. It might be a cause of a

mechanical trouble.

10. Do not put metal materials like

nail, hair pin, etc. into the inside

of this product.

12. Do not drop this machine to the

floor. It might be a cause of a

mechanical trouble.

1110

Unpacking the box

Ⅲ

1. Checking all items

Mainbody Earphone

User’s Manual

A/V cable USB cable

Remote Control Carrying case

Lithium-Ion Rechargeable

Battery(2200mA)

AC Adaptor

2. Checking the names

Front

REMOTE SENSOR

1312

Right Left

BRIGHTNESS

VOLUME

POWER

SWITCH

Top

Back

BATTERY

BATTERY HOLDER

PROP

EARPHONE

After checking all items

1514

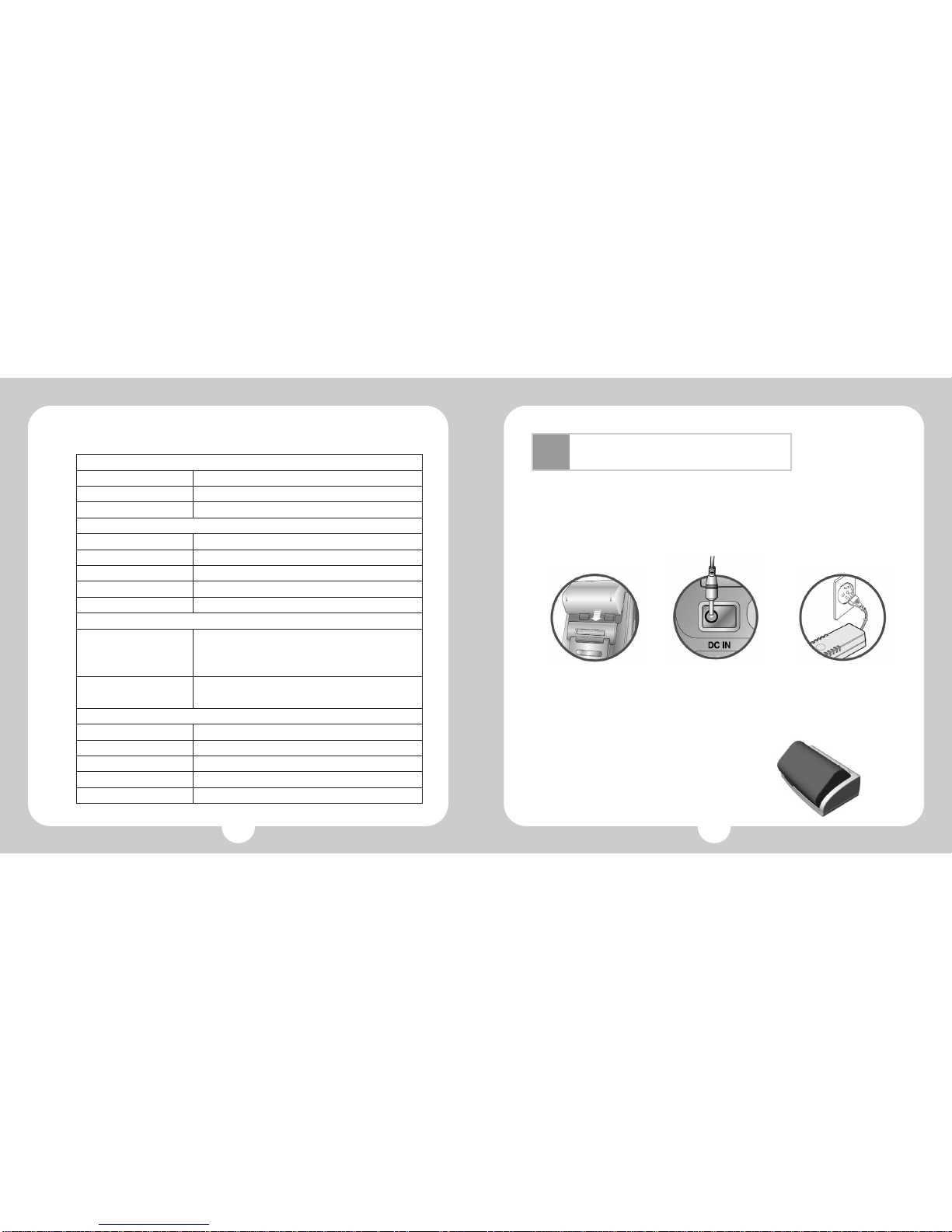

3. Checking the Specifications

*This specification should be subjected to change.

Ⅳ

1. Charging a storage battery with electricity

A. In the case of charging a battery from the mpman MP-AV20/40

First, switch off, and fasten the battery to mpman MP-AV20/40. Next, insert the

battery jack to DC IN of mpman MP-AV20/40, and insert the plug of the adaptor

into outlet. Then, it should be charged the battery with electricity automatically.

B. In the case of charging a battery from a charger (option)

Fasten the battery to the portable charger. The indicator lamp should be

changed to green color if the battery is full.(Charging time: about 3 hours (at the

situation of fully discharge of electricity)

(Option)

①Fasten the battery ②Insert the battery jack

to DC IN ③Insert the plug of the

adaptor into outlet

GENERAL

AUDIO

Adaptor

Current consumption

Power Supply

Decoding

Audio Sampling rates

Voice output

Bandwidth of output frequency

S/N rate

VIDEO

Video Decoding

Video output

OTHERS

Monitor

USB

Remote controller

Volume of Hard disk

Dimensions

DC +9V +/- 5%, 2A

850mA~1500mA(basic:850mA, Continuous playing of Moving Picture)

Lithium ion 7.2V 2200mAh(rechargeable, discrete type)

MPEG-1,2, MP3, WMA

32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz

1.2V(RMS)/ 1K 0.5W, 3.5mm earphone jack

20Hz ~ 20KHz

> 90dB

MPEG-1, MPEG-2, MPEG-4,

AVI files: DivX files, Xvid

JPEG image files: resolution 1920X 1080 max.

NTSC/PAL

Composite video output 75 Ohm/1.0Vpp

2.5" TFT-LCD

USB 2.0(compatible with USB1.1)

Infrared type

20/40GB

142(L) X 85(W) X 40 (H) mm

1716

Removing the battery from mpman MP-AV20/40

Move the battery holder of the back side until the left end, and push the

battery up with continuing situation, and then, the battery should easily

be removed from mpman MP-AV20/40.

①②

STOP!

(1) About the battery

󳢯Use certainly the right battery.

󳢯Do not short, disassemble, or heat or put it into

the fire.

󳢯

Do not leave the battery at the place of getting sun.

󳢯The disassembled battery is kept out of reach

of children.

󳢯Do not rub by hand, wash the part with clean

water, and immediately give medical

treatment when your body is stained with the

electrolytic solution.

󳢯Immediately charge the battery with electricity

if the capacity of the battery is short. There are

the risk that data may be lost if you did not

deal with the short of the battery.

󳢯Clean up the terminals with tissue or fabric as

it may be given the connecting deficit between

the terminals and battery due to pollutants.

󳢯

Remove battery in case of not using for a long time.

(2) About the adapter

󳢯Certainly use the adapter attached for safety. It

may be given a serious damage to mpman MP-

AV20/40 in case of using other adaptor.

󳢯This adaptor is for a 220 volt, 60Hz only

however we will support the different adapter

that is agreed with the electric environment for

each country.

󳢯It should be caused of receiving an electric

shock if you insert the plug into the outlet with

the wet hand.

󳢯Use at the place where is well ventilated when

you supply the electricity to mpman MP-

AV20/40.

󳢯Do not cover mpman MP-AV20/40 with a

cushion or blanket. It may be caused of fire or

other disasters due to overheating, battery

liquid, etc.

󳢯Do not put heavy materials on near adaptor

code, or cut the code. An electric danger

should be caused by.

2. Connecting with computer

A. Push switch on right side of the machine if the machine is off.

B. USB port is on the upper side of the machine. The small port of the cable will

be connected with mpman MP-AV20/40 and the bigger one will be for

computer as the following drawings.

1. The power of this machine must be turned on before you

connect to computer.

2. Although this machine has USB 2.0 interface, the transmit

speed should be the same as USB 1.1 if customer’s computer

has USB 1.1 interface. The customer has to install USB 2.0

card in the computer if the customer wants to transmit files

by USB 2.0.

3. You may regard this machine connected with computer as

use of additional portable hard disk.

3. Downloading files from computer

A. Connect between PC and mpman MP-AV20/40 with USB cable.

B. Then, a new hard drive will be created in the computer, and it will be named

one of the D, E, F, G according to user's environment.

C. Choose the files or fold that you want by

using EXPLORER, copy, and save them to

the drive added by mpman MP-AV20/40.

D. Processing download

Complete the download into mpman MP-

AV20/40.

Please use the adaptor if you

have to connect mpman MP-

AV20/40 with computer for a long

time. It may not complete the

transmission if the battery

volume is not enough during

transmitting data.

The power consumption of battery will be reduced if you press

the LCD MODE button and switch off the screen of mpman MP-AV

20/40 during displaying through TV.

It is possible to connect to other apparatus like a beam projector

with the same method as TV.

4. Connecting with apparatus

A. Output to TV

The contents displayed on the LCD screen of mpman MP-AV20/40 will be output

through TV by connecting A/V cable between mpman MP-AV20/40 and TV.

a. Insert the right side of A/V cable into A/V OUT of

mpman MP-AV20/40.

b. Insert 3 out jack of A/V cable into IN jack of TV

correctly.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere MP-Man MP3-Player Handbücher

MP-Man

MP-Man OV15 Bedienungsanleitung

MP-Man

MP-Man MP-CS100 Bedienungsanleitung

MP-Man

MP-Man MP10WOM Bedienungsanleitung

MP-Man

MP-Man MP-E2004 Bedienungsanleitung

MP-Man

MP-Man MP-FUB34 Bedienungsanleitung

MP-Man

MP-Man MP-FUB26 - annexe 1 Bedienungsanleitung

MP-Man

MP-Man MP-F777 Bedienungsanleitung

MP-Man

MP-Man MP-FOL6 Bedienungsanleitung

MP-Man

MP-Man MP125 Bedienungsanleitung

MP-Man

MP-Man MP-F1000 Bedienungsanleitung

MP-Man

MP-Man CSD-282 Bedienungsanleitung

MP-Man

MP-Man MP-F70 Handbuch

MP-Man

MP-Man MPF 97 Bedienungsanleitung

MP-Man

MP-Man MPUB 330 Bedienungsanleitung

MP-Man

MP-Man MP-F72 Bedienungsanleitung

MP-Man

MP-Man TK262 Series Bedienungsanleitung

MP-Man

MP-Man MP-E2002 PLUS Bedienungsanleitung

MP-Man

MP-Man BT-20 Bedienungsanleitung

MP-Man

MP-Man MP-FUB26 Bedienungsanleitung

MP-Man

MP-Man MP-F80 Bedienungsanleitung

MP-Man

MP-Man MP-FOL8 Bedienungsanleitung

MP-Man

MP-Man MP-FOL8 Handbuch

MP-Man

MP-Man TK1 Bedienungsanleitung

MP-Man

MP-Man MIRROR2 Bedienungsanleitung

Beliebte MP3-Player Handbücher anderer Marken

Blaupunkt

Blaupunkt Compact Drive MP3 Bedienungsanleitung

Memorex

Memorex MMP9008 - 8GB USB 2.0 Bedienungsanleitung

Meizu Electronic Technology

Meizu Electronic Technology E5 Bedienungsanleitung

Naxa

Naxa NMV-173NX Bedienungsanleitung

Philips

Philips PSA250 Bedienungsanleitung

Zipy

Zipy go! Waving Bedienungsanleitung

Sylvania

Sylvania SMPK4068 Bedienungsanleitung

Sony

Sony NW-MS7 - Memory Stick Walkman Bedienungsanleitung

Irradio

Irradio RF-42UC Bedienungsanleitung

NABAIJI

NABAIJI SWIM MUSIC 100 Bedienungsanleitung

Laser

Laser MP3-A9-4GB Bedienungsanleitung

Samsung

Samsung YP-T7F Bedienungsanleitung

Savant

Savant SMS-1001-00 Kurzanleitung

Trevi

Trevi XP 71 BT Bedienungsanleitung

AGPtek

AGPtek C2 Bedienungsanleitung

MobiBlu

MobiBlu DAH-1500i Bedienungsanleitung

Denver

Denver MPS-201 Bedienungsanleitung

Steren

Steren MP3-002 Bedienungsanleitung
