MP-Man MP101 WOM Bedienungsanleitung

Model - No. :

MP101 WOM

MP 101

WOM

User’s Manual

Page 1

For your safety – read this user guide carefully to ensure proper use of the

product and to avoid any danger of physical damage.

■Please use your MP4 player properly in case of explosion, re, electric shock, etc.

■When using your player, pay attention to your health, especially the hearing power.

■Do not leave the player in a place subject to moisture or temperature higher than 35℃or 5℃.

■Do not use the earphones while driving or riding a bicycle.

■Do not repair the player by yourself, or it will cause damage.

■It may cause trac accident if you turn up the volume of the earphones while walking down the street.

■Do avoid getting the player wet or drop it in water.

■Do not turn up the volume too high, doctors warn against prolonged exposure to high volume.

■Please backup important data onto your computer as repair or other causes may result in data loss.

■Stop using the device or turn down the volume if you have ringing in your ears.

■Always use the accessories provided by or approved by our company. Also do not spray water on the player

Note: Please recharge the digital player before using it!

Page 2

Function features

■The player supports MP3/WMA/WAV/OGG/APE/AIFF/MS_ADPCM/MPC/FLAC format music les.

■Support USB 2.0 capability, much faster than USB 1.1, to enable faster communication with your PC.

■The player can record outside voice and FM radio.

■The player has repeat functions.

■The player has Video Playback, Photo Viewer, E-book functions, etc.

■The player can power o automatically after a preset time.

1. Volume up

2. Forward

3. Volume down

4. Menu button

5. Backward

6. LCD display

7. Power on/o or play/pause

8. Hang strip hole

9. USB port

10. Reset hole

11. Earphone jack

12. Micro SD/T-ash card slot

13. Microphone

NOTE: You need a card which has songs and

videos in it to play, this player can’t save data

without card.

9 10

Page 3

Components and Button functions

Page 4

Charging Li .polymer battery safely

1. Connect the PC USB port and the MP3 USB port with the provided USB cable.

2. The power sign is shown dynamic when charging, once full charged, the power sign will stop moving,

power is full, please shut o the power. The charging time is approximately 2 hours.

3. To stop recharging, disconnect the USB cable.

Notes

■Before your rst time use, please recharge your digital player.

■Your computer must be turned on while connected to your player for charging.

■Do not overcharge your player, or it may shorten the battery’s life.

■The times of charge/discharge are no less than 300 cycles.

■The li-polymer battery is consumptive material, so recharge it periodically is needed even if the

player is not be used.

CAUTION

1. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

2. Do not disassemble, crush, short-circuit or incinerate your battery as it may cause re, injury, burns, or other hazards

NOTE: Please reset your player by pressing the RESET hole while failing to power on or hanging up in

power on mode.

Page 5

Basic operations

Turn power on and play music

1. Connect earphone to earphone jack.

2. Insert the card into Micro SD/T-Flash card slot in power o mode.

3. Press and hold 【Play】button to turn on and enter main menu.

4. To return main menu: Press and hold 【M】button.

To Pause/Play: Short press 【Play】button.

To change tracks: Short press 【Forward/Backward】button.

To turn unit o: Press and hold 【Play】button.

Volume Adjustment

In Audio playing or tuning FM radio mode, short press 【+/-】button to turn up/turn down the volume.

Page 6

Basic operations

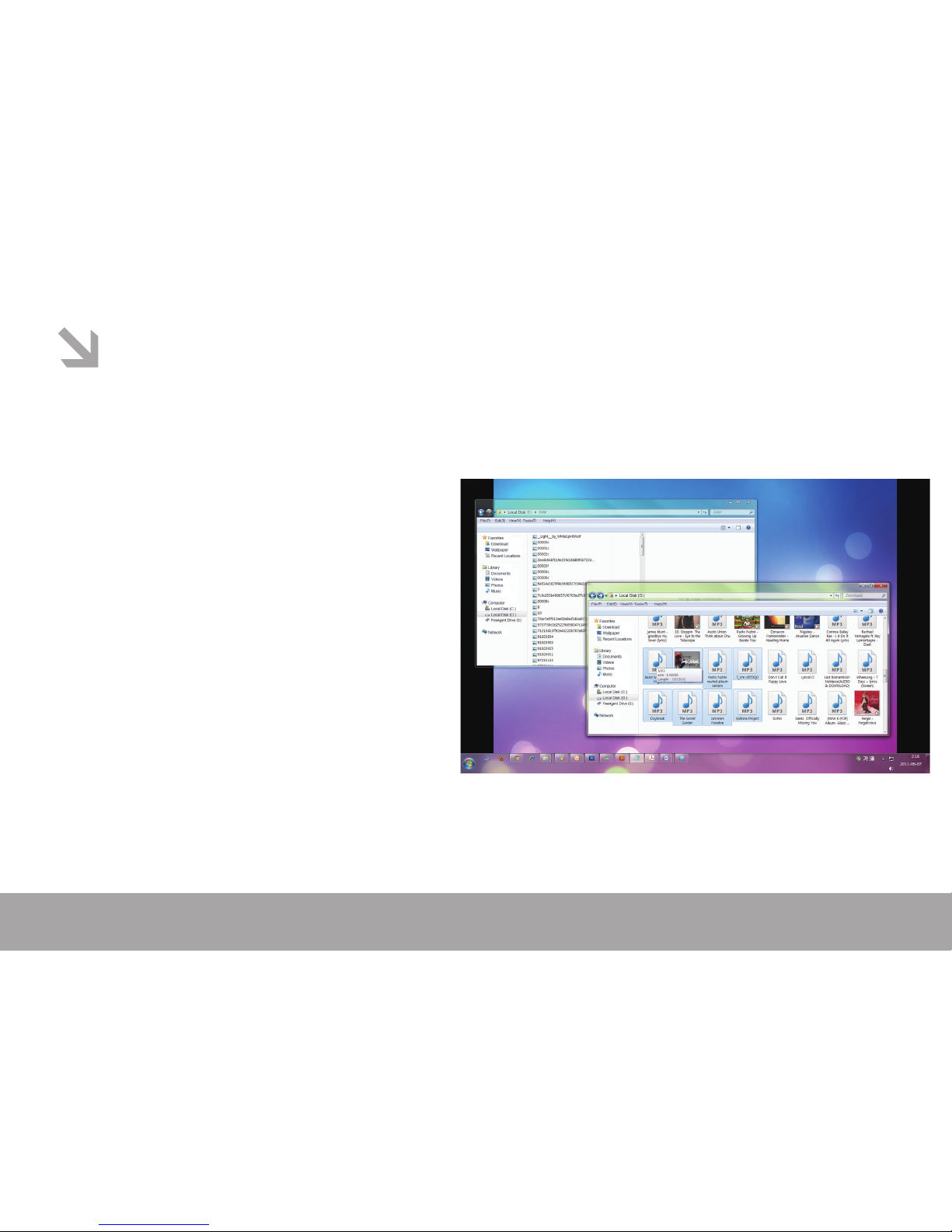

Adding/Removing ﬁles/Folders

- you can use the player as a removable USB storage.

1. Plug SD card into the card slot

2. Connect the PC USB port and the player USB port

with the provided USB cable.

3. Add les/folders to the USB storage‘s folder. Select

”USB Disk” or “MTP Device”,

Ⅰ. Open les/folders to transfer from your

computer.

Ⅱ. Open My Computer →Removable Disk from the

desktop.

Ⅲ. Select the les/folders to transfer from your

computer and draw and put them to a folder of your

choice in the Removable Disk (you also can transfer

les on your PC to the player using the "Copy" and

"Paste" functions).

4. Delete les from the removable USB storage (use the

"Delete" command).

Page 7

Basic operations

Remove the player from PC

- please follow the steps in case of damaging the player or data loss.

1. Click the left mouse button on the icon that is on the taskbar at the bottom right corner of the desktop.

2. Click the "Safely remove USB Mass storage Device. Drive (X:)" column.

3. Disconnect the player from your computer.

CAUTION:

■Do not remove the player while les within the USB Mass Storage are being played on your computer.

■Do not disconnect the player from your computer or press 【M/Play】button while transferring les,

or it will cause damage to the player or data loss.

Page 8

Basic operations

Menu Navigation

【M】button: Enter main menu, submenu, conrm, long press return to main menu.

Skip button 【Forward/Backward】: Shift menus/long press fast backward/long press fast forward

Play/Pause button 【Play】: Play, Pause, or return.

1. Press and hold 【M】button to enter main menu.

2. Press 【Forward/Backward】buttons to select your desired option

(e.g. Music, Movie, Record, Play, Radio, Picture, Text, Browser, Setting, Tools).

3. Press 【+/-】buttons to increase/decrease volume.

Page 9

Music

Select “Music” in main menu and press 【M】button to enter.

Press 【Forward/Backward】buttons to select music les and press 【Play】to playback it, press 【Play】to pause.

Music Playback Submenu

In music playback mode, short press 【M】button to enter submenu and short press 【Forward/Backward】

buttons to select your desired mode.

NOTE:

1. How to delete songs: When in playing status, press 【Play】to pause, and then press 【M】,

Shows “Delete le” and Delete all” in the end of the submenu, you can delete songs.

2. All songs/Album/Artist/Genre all these items are created by Create Playlist, when choose these items,

it shows “playlist” on the top, user can update the playlist. After plug out the USB, player creates the

playlist automatically.

Now playing

1. Press 【M】to play

All songs

1. Press 【M】to show all songs in card

2. Press 【Forward/Backward】to choose the song you want to play

3. Press 【M】to play
