MRT320 Wireless Hand-Held

Retail Unit

User Manual

Version 1.0

Preface

Welcome

Congratulations on your purchase of the MRT320 Wireless Hand-Held

Retail Unit. This powerful, portable, and flexible device will change the way

your enterprise accepts wireless payment transactions in the field,

manages inventory, and incorporates mobility into retail operations.

Manual contents

This manual provides details and instructions on operating your device

including how to connect your device to other machines, using optional

devices, and troubleshooting.

Messages

Messages are used in this manual to bring important information to your

attention. Each type of message is identified and shown below.

CAUTION: Acaution informs you that improper use of the device or failure

to follow instructions may cause data loss or damage to your device.

NOTE: Please read. A note is a hint or advice that helps you to make best

use of your device.

Please contact MP2 Solutions, Inc. for the latest and best in wireless

technology and solutions.

MP2 Solutions Inc.

5700 Granite Parkway Suite 200 Plano, TX 75024

866-MPTWO22 (866-678-9622)

Email: [email protected]

Table of Contents

CHAPTER 1 THE GRAND TOUR ............................................................. 7

WHAT IS IN THE BOX..................................................................................... 7

FRONT SIDE................................................................................................. 8

TOP SIDE..................................................................................................... 9

BOTTOM SIDE .............................................................................................. 9

LEFT SIDE.................................................................................................... 9

RIGHT SIDE................................................................................................ 10

BACK SIDE..................................................................................................11

USB CRADLE ............................................................................................ 12

INDICATORS ............................................................................................... 13

CHAPTER 2 OPERATING BASICS ........................................................ 14

TURNING ON/OFF AND STANDBY................................................................. 14

USING THE STYLUS.................................................................................... 15

USING THE KEYPAD.................................................................................... 16

CHARGING YOUR DEVICE........................................................................... 17

REPLACING THE BATTERY PACK.................................................................. 18

ALIGNING THE SCREEN............................................................................... 19

RESETTING YOUR DEVICE.......................................................................... 20

CHAPTER 3 PERIPHERALS & EXPANSIONS ...................................... 21

USING THE BAR CODE SCANNER ................................................................ 21

USING THE MSR MODULE.......................................................................... 21

USING THE THERMAL PRINTER.................................................................... 22

USING THE MEMORY CARD......................................................................... 23

CONNECTING TO YOUR PC......................................................................... 24

CHAPTER 4 COMPANION PROGRAMS................................................ 25

OPERATING SYSTEM .................................................................................. 25

IBACKUP.................................................................................................... 25

SETTINGS.................................................................................................. 26

CHAPTER 5 TROUBLESHOOTING ....................................................... 27

APPENDIX SPECIFICATIONS................................................................ 28

Chapter 1 The Grand Tour

This chapter will identify the components of the device and briefly explain

how they function.

What is in the Box

Check to make sure you have all the following items:

 MRT320 Wireless Hand-Held Retail Unit (including stylus and

hand strap)

 USB Cradle

 AC Adaptor and Power Cord

 USB Synch Cable

 Lithium-ion Battery Pack (with screw cover)

 Roll Paper

 Companion CD

Front Side

1 Thermal Printer

Refer to the “Using the Thermal Printer” section in Chapter 3.

2 Magnetic Stripe Reader (MSR)

Refer to the “Using the MSR Module” section in Chapter 3.

3 Speaker

Produces sound generated by software as well as audio alarms

generated by the system.

4 CDMA Indicator (unavailable in this model)

5 Power Indicator

(green/amber) Refer to the “Indicators” section below in this chapter.

6 Microphone (unavailable in this model)

Top Side

1 Bar Code Scanner

Refer to the “Using the Bar Code Scanner” section in Chapter 3.

Bottom Side

1 Docking Connector

Use it to connect with the USB cradle.

Left Side

1 Scan Button

Refer to the “Using the Bar Code Scanner” section in Chapter 3.

Right Side

1 Stylus

Refer to the “Using the Stylus” section in Chapter 2.

2 Scan Button

Refer to the “Using the Bar Code Scanner” section in Chapter 3.

3 SD/MMC Slot

It can accommodate one memory card (SD/MMC).

4 Headphone Jack (with microphone)

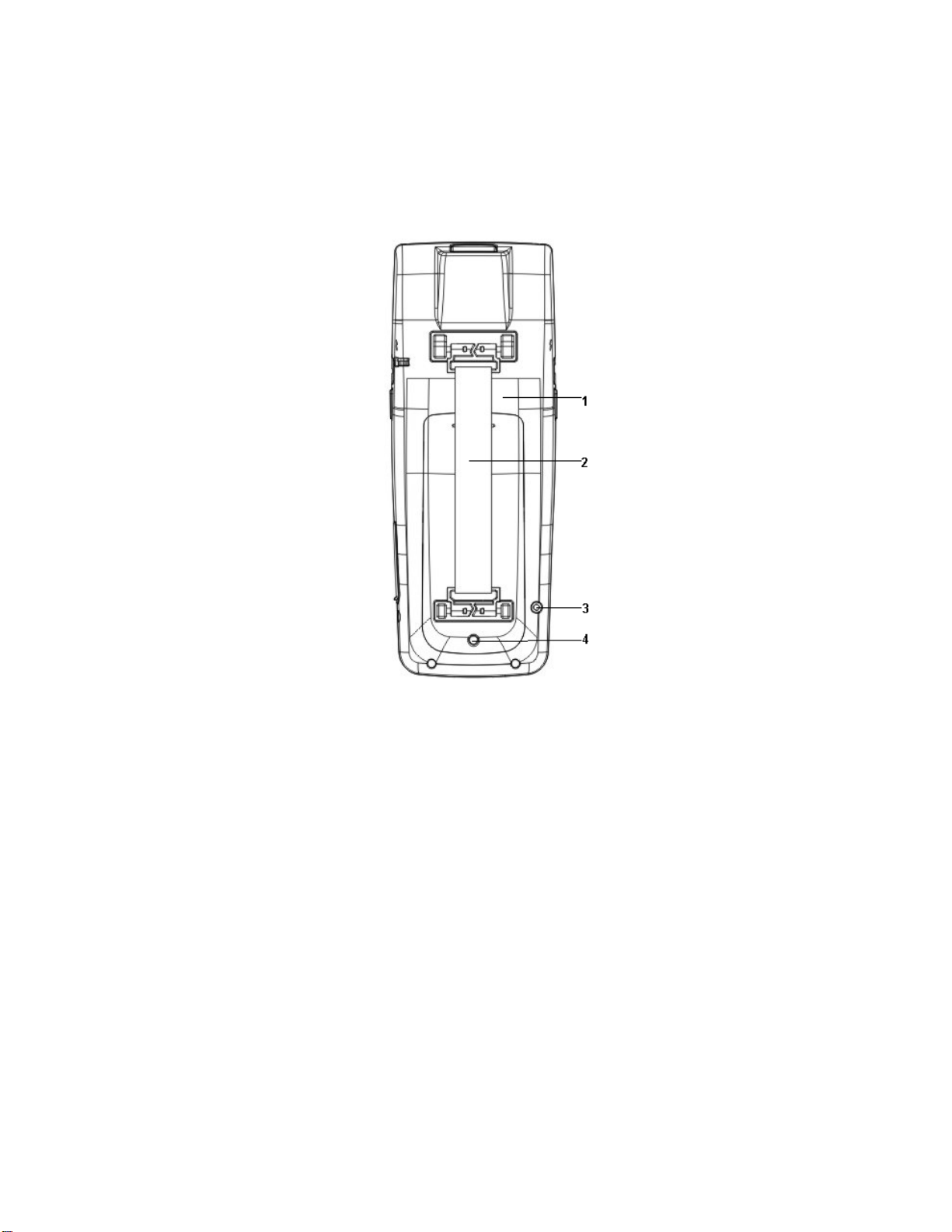

Back Side

1 Battery Pack

Powers the device when the AC adaptor is not connected.

2 Hand Strap

Supports hand for steady use.

3 Reset Button

Pressing this button will restart the device and reallocate memory.

4 Screw

Secures the battery pack cover.
