MrCool Universal Series Bedienungsanleitung
Please read this manual carefully before installation and keep it for future reference.
Copyright © 2021 MRCOOL, LLC
Thank you for choosing MRCOOL Please read this manual carefully before installation and keep it for future reference.
Owner’s Manual
Universal®Series
DC Inverter / Condenser (Cooling Only)
MDUCO18*
Due to updates and constantly improving performance, the information and instructions within this
manual are subject to change without notice. Please visit www.mrcool.com/documentation to
ensure you have the latest version of this manual.
Version Date: 10-25-21
Contents
Page 1 mrcool.com
MC MC
EU Disposal Guidelines ...... 43
5
Post Installation Checks ........... 32
3
Maintenance
...............................
34
1. Troubleshooting ....................................... 34
2. Error Codes ............................................... 36
3. Unit Maintenance .................................... 37
4. Notice on Maintenance .......................... 39
5. After Sales Services ................................. 42
4
Unit Installation ........................... 9
1. Installation Location.................................... 9
3. Conventional Line Set Installation.......... 15
4. No-Vac®Quick Connect®* Installation . 24
2. Outdoor Installation ................................. 14
7. Electrical Connection.................................. 27
5. Installation of Drain Pipe........................... 25
6. Condenser Field Conversion.................... 26
2
1. Introduction .................................................................. 5

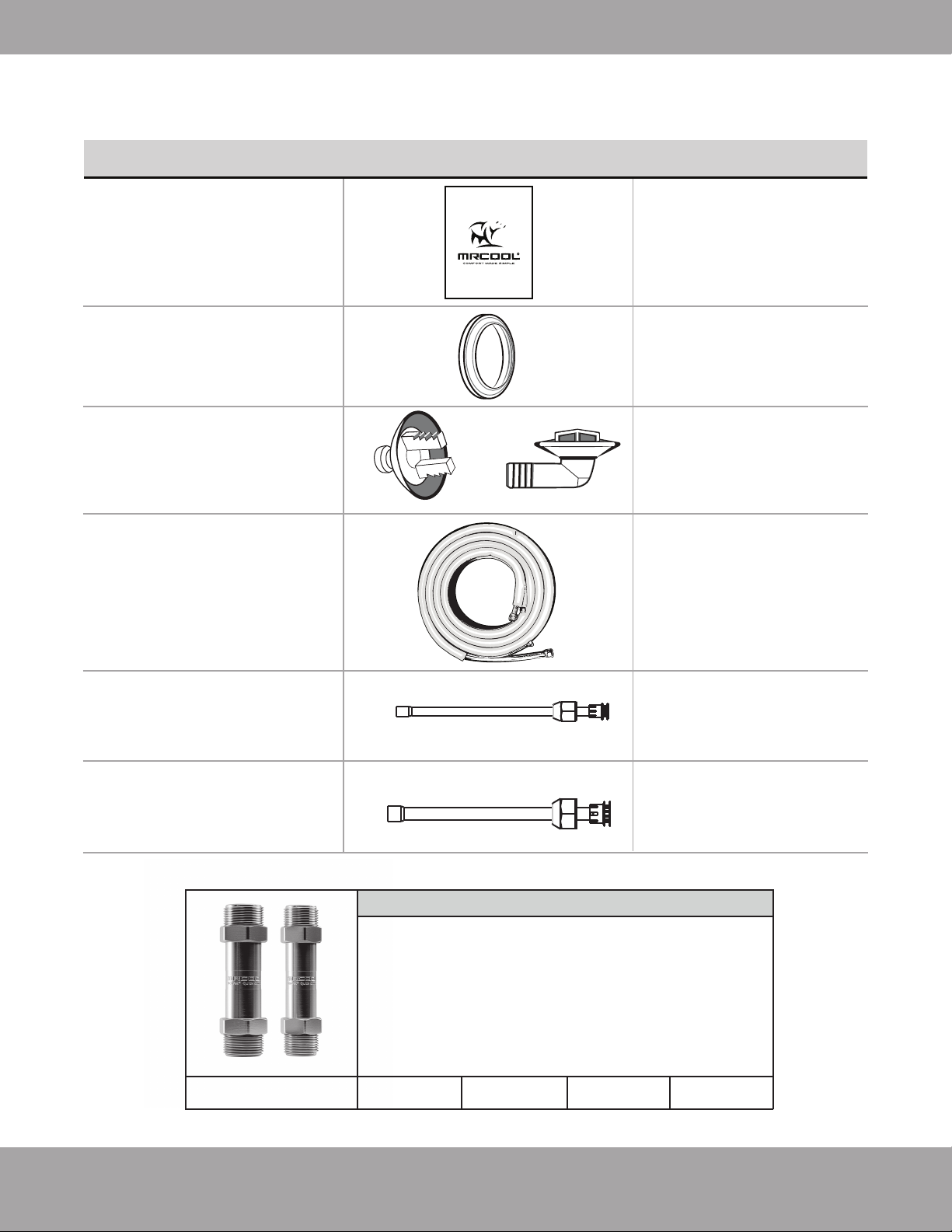

2. Accessories .................................................................. 6
4. Unit Dimensions .......................................................... 7
1Appliance Overview ................................. 5
Safety Precautions ................................... 2
!
3. Operating Range .......................................................... 7
*Pat. https://mrcool.com/mrcool-patents/
Page 2
Safety Precautions
mrcool.com
WARNING
Please read the manual in its entirety before installing, operating or repairing.
DO NOT share the electrical circuit with other appliances. Improper or insufficient power
supply can cause fire or electrical shock.
DO NOT let other substances or gases enter the unit when connecting refrigerant piping.
The presence of other gases or substances will lower the unit’s capacity, and could cause
abnormally high pressure in the operation cycle. This could cause an explosion and/or
personal injury.
DO NOT connect the ground wire to a gas pipe, water pipe, lightning arrester, or telephone
wire.
DO NOT allow children to play with the air conditioner. Children should be supervised
around the unit at all times.
DO NOT alter the settings of the pressure sensor or other protective devices; if
short-circuited or modified, fire and/or an explosion could occur.
Installation must be performed by an authorized technician. Improper installation could cause
water leakage, electrical shock, and/or fire.
Installation must be performed according to installation instructions. Improper installation could
cause water leakage, electrical shock, and/or fire.
In North America, installation must be performed in accordance with the requirement of NEC and
CEC (by authorized personnel only). Contact an authorized service technician for repair or
maintenance of the unit.
Only use the included accessories and specified parts for installation. Using non-standard parts
could cause water leakage, electrical shock, fire, and/or cause the unit to fail.
Before installing, modifying, or servicing the system, the main electrical disconnect switch must be
in the “OFF” position. There could be more than one disconnect switch. Lock out and tag switch
with a suitable warning label.
Read Before Installation
Incorrect installation may cause serious damage or injury.
The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION.
WARNING
CAUTION
This symbol indicates ignoring instructions may cause death or serious injury.
This symbol indicates that ignoring instructions may cause moderate personal
injury, damage to your unit, or other property.
This symbol indicates that you should never perform the indicated action.
1.
2.
3.
4.
5.
!
Safety Precautions
Page 3
Safety Precautions
mrcool.com
Note about Fluorinated Gases:
1.
2.
3.
4.
5.
6.
8.
9.
10.
11.
12.
13.
14.
15.
7.
6.
16.
17.
Install the unit in a firm location that can support the unit’s weight. If the installation location
cannot support the weight, or the installation is performed improperly, the unit may fall and cause
serious injury and/or damage.
For all electrical work, follow all appropriate wiring standards, regulations, and the installation
manual.
You must use an independent circuit to supply power. DO NOT connect other appliances to the
same circuit. Insufficient electrical capacity or defects in electrical work can cause electrical
shock and/or fire.
Connect electrical cables tightly and securely to the terminal board to prevent external forces from
damaging the terminal.
All wiring must be properly arranged to ensure that the control board cover can close properly. If
the control board cover is not closed properly, it can lead to corrosion and cause the connection
points on the terminal to overheat, which could cause fire and/or electrical shock.
In certain functional environments (such as kitchens and server rooms), the use of specially
designed air-conditioning units is highly recommended. If the power or thermostat wires are
damaged, they must be replaced by an authorized technician in order to avoid hazard.
This appliance can be used by children (aged 8 years and above) and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge only if they have been
given supervision or instruction concerning use of the appliance and understand the hazards
involved. Children should not play with the appliance. Cleaning and user maintenance should not
be performed by children.
The air conditioner unit can only be cleaned after it has been turned off and disconnected from the
power source, otherwise electric shock could occur.
If installed in a compact space, ensure that there is adequate ventilation in case of leakage. A
concentration of refrigerant gas could lead to an explosion and other hazards.
The fixed wires connecting to this appliance must be configured with an all-pole disconnect under
voltage class III.
Wear safety glasses, protective clothing, and work gloves during installation. Also, have a fire
extinguisher available in case of an emergency.
Always use a quenching cloth for brazing operations.
This air-conditioning unit contains R-410A fluorinated gases.
The refrigerant gas may not have an odor, so this should not be considered a means of leak
detection.
Installation, service, maintenance, and repair of this unit must be performed by a certified technician.
Product un-installation and recycling must be performed by a certified technician.
If the system has a leak-detection system installed, it should be checked for leaks at least every 12
months.
Keep a record of all leak checks for the lifetime of the unit.
Page 4
Safety Precautions
mrcool.com
1.
2.
DO NOT install the unit within 3 feet (1 meter) of combustible materials if the unit is
equipped with an auxiliary electric heater.
DO NOT install the unit in a location that may be exposed to combustible gases. If
combustible gas accumulates around the unit, it could cause fire and/or an explosion.
DO NOT operate your air conditioner in a room where it could be exposed to excessive
amounts of water, such as a bathroom or laundry room. This could cause electrical
components to short circuit.
DO NOT put appendages or other objects into the air inlet or return grills.
DO NOT stop the appliance by directly cutting off the power. Turn off the unit first.
DO NOT install the appliance in areas with the following:
oil smoke or volatile liquid, as plastic parts may deteriorate, adversely affecting the
integrity and functionality of the appliance.
or corrosive gas; as this may corrode copper piping and welds, adversely affecting the
integrity and functionality of the appliance.
DO NOT force-dry the filter using an open flame or blowers, as this could damage it.
DO NOT operate the air conditioner with wet hands.
DO NOT wash or sprinkle water on the air conditioner, otherwise a malfunction and/or
electric shock could occur.
This appliance must be properly grounded during installation, or electrical shock could occur.
Install drainage piping according to the instructions in this manual. Improper drainage could
cause water damage to your home and property.
This appliance must be stored in a well ventilated area equal in size to the area specified for
operation. It must also be without a continuously operating open flame (ex. an operating gas
appliance) and ignition sources (ex. an operating electric heater).
Use proper measures to protect the outdoor unit from rodents and other small animals that could
damage electrical components, causing the unit to malfunction.
If wired control (i.e. a wall-mount thermostat) is to be used, it should be connected first before
powering up the unit, otherwise it may not function properly.
Only use a soft dry cloth or, as necessary, a slightly wet cloth with neutral detergent to clean the
casing of this appliance.
Before operating the unit under low temperature, connect it to power for 8 hours. If it is
deactivated for a short time, for example, one night, do not cut off the power (this is to protect the
compressor).
If the unit is to be installed in a small space, please adopt protective measures to prevent the
concentration of refrigerant from exceeding the allowable safety limit; excessive refrigerant
leakage could lead to an explosion.
When installing or re-installing the air conditioner, please keep the refrigerant circuit away from
substances other than the specified refrigerant, such as air. Any presence of foreign substances
will cause an abnormal pressure change or even an explosion, resulting in injury.
Please adopt safety protection measures before touching the refrigerant pipe; otherwise injury
could occur.
Please select the properly-sized copper piping according to the requirements for pipe thickness.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
.
.
Page 5
Safety Precautions
mrcool.com
To Our Customers;
Thank you for choosing a MRCOOL®home HVAC product. Please read this manual carefully before
installation and operation of the Universal®Series Cooling-Only Condenser to ensure correct use and
handling. In addition to the safety precautions in the previous section, please adhere to the following
guidelines and note our exceptions to liability.
This appliance can be used by children aged 8 years and older and persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance and understand the hazards involved. Children should not
play with the appliance. Cleaning and user maintenance should not be performed by children.
To ensure product reliability, the unit may consume power under stand-by status to maintain normal
communication, and for preheating refrigerant and lubricant. If the unit will not be used for an extended
period, disconnect the power supply. Reconnect the power supply and preheat the unit prior to use.
Ensure you have selected the proper model for the operating environment. Improper selection may
impact operating performance.
This product has undergone strict inspection and operational testing before leaving the factory. In order
to avoid damage due to improper disassembly, which may impact the normal operation, please do not
disassemble the unit without the proper training and/or equipment.
For technical assistance, please contact MRCOOL® technical support, at (270) 366-0457.
If the product is malfunctioning and/or is inoperable please contact MRCOOL® technical support, at the
aforementioned number, as soon as possible and provide the following information:
a. Product Nameplate Contents (model number, cooling/heating capacity, product serial number,
factory date)
b. Nature of Malfunction (specify the circumstances before and after the error occurred)
All illustrations and information in the instruction manual are for reference only. In order to improve the
product , we will continuously assess and innovate. We retain the right to make necessary revisions to the
product from time to time. We reserve the right to revise the contents of this manual without notice.
If the supply cord is damaged, it must be replaced by MRCOOL®, a professional service agent, or a
similarly qualified person in order to avoid damage to the product.
MRCOOL®, LLC assumes no responsibility for personal injury, property loss or equipment damage caused
by improper installation and commissioning, unnecessary maintenance, or failure to follow relevant
federal and state regulations, industrial standards, and the requirements of this instruction manual.
MRCOOL®, LLC will bear no responsibilities for personal injury or property damage caused by the
following:
a. Improper use of the appliance
b. Altering, maintaining, or operating the product with non-approved equipment.
c. Altering, maintaining, or operating the product outside of the guidelines of this manual.
d. Defects caused by corrosive gas.
e. Defects caused by shipping damage.
f. Failure to abide by this instruction manual or government regulations.
g. Products made by other manufacturers
h. Natural disasters, improper installation environment, or force majeure.
1
Appliance Overview
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Page 6
mrcool.com
Appliance Overview
Unless otherwise stated (as “OPTIONAL”) the air conditioning system includes the following
accessories. Use all of the installation parts and accessories to install the air conditioner. Improper
installation may result in water leakage, electrical shock, fire, and/or equipment failure.
3
1
1
Owner’s Manual
Drain Plug
Drainage Connector
PART LOOKS LIKE... QUANTITY
Owner’s Manual
Universal®™ Series
Central Heating & Air Conditioning
1
1
Liquid Side Stub Kit
Gas Side Stub Kit
To connect the unit
with the liquid pipe
To plug the unused
drain hole
To connect with the
PVC drain pipe
To connect the unit
with the gas pipe
or
OPTIONAL
No-Vac
®
Quick Connect
®
Line Set*
Gas / Liquid
Pipe Assembly
1
Fig. 1.1
Additional Line Sets & Coupler Kit
If you find the standard size NO-VAC®QUICK CONNECT®
LINE SET length is not sufficient for your application,
additional line sets are available for purchase. You will also
need a NO-VAC®COUPLER kit (pictured), which allows line
sets to be connected together to increase the length. The
coupler kit is installed and checked for leaks by following the
same steps described in this manual for connecting the line
set to the indoor air handler (Refer to the NO-VAC®QUICK
CONNECT®Line Set section on pg. 24 for these steps).
NO-VAC®QUICK CONNECT®
LINE SET Lengths Available 15 FT 25 FT 35 FT 50 FT
*Pat. https://mrcool.com/mrcool-patents/
Page 7 mrcool.com
Appliance Overview
COOLING HEATING
Operating Range
39.2°F(4°C) ~ 118.4°F (48°C) N/A
Outdoor Temperature
Fig. 1.2
Unit Dimensions of 2-3 Ton Condenser
MDUCO18024036
Outdoor Unit DimensionsModel
Width (A) x Height (C) x Depth (G)
Mounting Dimensions
Width (A / D) Depth (B / E)
37 in x 32-1/4 in x 18-1/8 in.
940 mm x 820 mm x 460 mm
37 in / 24 in
940 mm / 610 mm
20-7/8 in / 19-1/8 in
530 mm / 486 mm
MDUCO18024036
Page 8
mrcool.com
Appliance Overview
COOLING HEATING
Operating Range
39.2°F(4°C) ~ 118.4°F (48°C) N/A
Outdoor Temperature
Fig. 1.3
Unit Dimensions of 4-5 Ton Condenser
MDUCO18048060
Outdoor Unit DimensionsModel
Width (A) x Height (C) x Depth (G)
Mounting Dimensions
Width (A / D) Depth (B / E)
37 in x 56-3/8 in x 12-5/8 in
940 mm x 1430 mm x 320 mm
37 in / 24-7/8 in
940 mm / 632 mm
16-1/8 in / 13-7/8 in
410 mm / 353 mm
MDUCO18048060
Page 9 mrcool.com
WARNING
DO NOT install the unit where combustible gas leakage may occur.
The unit must be installed in a location strong enough to support the weight of the unit and fixed
securely, to avoid toppling.
Install the appliance in a location where there is an incline of less than 5°.
The outdoor unit does not have a TXV (thermal expansion valve), please make sure there is a
throttling valve in the indoor unit (on the air handler or “A” coil).
1.
2.
3.
2
Unit Installation
Installation Location
Select an installation location for the outdoor unit pursuant to the following conditions:
Noise and airflow produced by the outdoor unit will not disturb neighbors.
The location is away from animals and plants. If not, please add safety fences to protect the unit.
The area is well ventilated with no nearby obstacles that could obstruct airflow.
The location is able to support the weight and withstand the operating vibration of the unit.
Installation is able to be performed safely.
The location area is free of combustible or corrosive gas, and oil smoke.
Unit is able to be shielded from strong wind. Strong wind may affect the outdoor fan and lead to
insufficient airflow volume, thus affecting performance.
Unit is away from objects which can generate or amplify noise during operation.
Condensate can be safely drained from the unit.
1.
2.
3.
4.
5.
6.
7.
1. The Conventional Weld Line Set Installation
Instructions can be found on pages 15 - 23
OR
View complete install video by scanning this QR code
2.
No-Vac® Quick Connect® Line Set*
Installation
Instructions can be found on page 24
OR
View complete install video by scanning this QR code
The Universal™ Series has 2 installation methods
MRCOOL®
Preferred Method
8.
9.
*Pat. https://mrcool.com/mrcool-patents/
