MSI 845 Pro Bedienungsanleitung

Introduction

1-1

Chapter 1.

Introduction

The 845 Pro (MS-6529) ATX mainboard is a high-performance

computer mainboard based on Intel®82845 & 82801BA chipsets. The 845

Pro (MS-6529) is designed for Intel®Pentium®4 processor in the 423 pin

package that delivers a high performance and professional desktop platform

solution.

The Intel®82845 Memory Controller Hub (MCH) provides the proces-

sor interface, SDRAM interface, AGP interface and hub interface. It supports:

a single processor with a data transfer rate of 400MHz, SDRAM at 133MHz

operation (PC133), AGTL+ host bus with integrated termination supporting

32-bit host addressing, 1.5V AGP interface with 4x SBA/data transfer and 2x/4x

fast write capability, and 8-bit, 66MHz 4x hub interface to the Intel ICH2.

The Intel®82801BA (ICH2) chipset is a highly integrated

multifunctional I/O Controller Hub that provides the interface to the PCI Bus

and integrates many of the functions needed in today’s PC platforms. It

communicates with the host controller over a dedicated hub interface and

provides added flexibility in designing cost-effective system solutions.

This chapter includes the following topics:

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Key Features 1-6

MSI Special Features 1-7

Chapter 1

1-2

CPU

zSupports Intel®Pentium 4 processor (423 pin package)

zSupports1.1GHz,1.2GHz,1.8GHzorfaster

Chipset

zIntel®845chipset (593FC-BGA)

- AGP 4x/2x universal slot

- Supports 100MHz FSB

- Supports 400MHz Intel NetBurst micro-architecture bus

zIntel®ICH2 chipset (360 BGA)

- AC’97 Controller Integrated

- 2 full IDE channels, up to ATA100

- Low pin count interface for SIO

Main Memory

zSupports three 168-pin DIMM sockets

zSupports 64MB to 1GB technologies up to 3GB

Slots

zOneCNR (CommunicationNetwork Riser)

zOne AGP (Accelerated Graphics Port) 2x/4x slot

zFive PCI 2.2 32-bit Master PCI Bus slots

zSupports 3.3v/5v PCI bus Interface

On-Board IDE

zAn IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with

PIO, Bus Master and Ultra DMA66/100 operation modes.

zCan connect up to four IDE devices

On-Board Peripherals

zOn-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes

- 2 serial ports (COM A + COM B)

Mainboard Specification

Note: The AGP slot does NOT support 3.3V AGP 2x card. Use of

3.3V AGP 2x card may cause damages to the mainboard.

Introduction

1-3

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports (Rear * 2 / Front * 2), one for USB PC 2 PC Networking

function

- 1 Line-In/Line-Out/Mic-In/Game port

- 1 D-Bracket™ header (Optional)

Audio

zS/W Audio ICH2 chip integrated

zAC’972.1Compliant

zSupport 2/4 Channel Audio

BIOS

zThe mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

zThe mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

Dimension

zATXFormFactor 30.5cm x 21.5cm

Mounting

z6 mounting holes

Chapter 1

1-4

Mainboard Layout

845 Pro (MS-6529) ATX Mainboard

Intel

845

chipset

BATT

ICH2

JUSB1

(Optional)

ATXPowerSupply

F_P1

JGL1

IR2

JMDM1

JWOL1

S_FAN1

JGS1

JBAT1

C_FAN1

FWH

PCI Slot 5

PCI Slot 4

PCI Slot 3

PCI Slot 2

PCI Slot 1

IDE1

IDE2

Winbond

W83627HF

Codec

AUX_IN1 MDM_IN1

CD_IN1 J2(Optional)

CNR

USB

Ports

Top :

ParallelPort

Bottom:

COM A

COM B

T : mouse

B:keyboard

JPW1

Top :

Game port

Bottom:

Line-Out

Line-In

Mic

FDD 1

AGP Slot

DIMM1

DIMM2

DIMM3

D-LED

Introduction

1-5

Quick Components Guide

Component Function Reference

DIMM1~3 Installing DIMM modules See p. 2-5~2-6

Socket 423 Installing CPU See p. 2-2~2-3

C_FAN1 Connecting to CPU FAN See p. 2-20

S_FAN1 Connecting to SYSTEM FAN See p. 2-20

ATX Power Supply Installing power supply See p. 2-7

JPW1 Connecting to 12V ATX power supply See p. 2-8

IDE1& IDE2 Connecting to IDE hard disk drives See p. 2-14

FDD1 Connecting to floppy disk drive See p. 2-13

JUSB1 Connecting to USB interfaces See p. 2-22~2-24

PCI Slot 1~5 Installing PCI expansion cards See p. 2-28

AGP Slot Installing AGP cards See p. 2-28

CNR Slot Installing CNRcards See p.2-29

JMDM1 Connecting to modem module See p. 2-19

JWOL1 Connecting to LAN module See p. 2-19

JBAT1 Clearing CMOS data See p. 2-27

F_P1 Connecting to case See p. 2-15

JGS1 Connecting to power saving switch See p. 2-18

JGL1 Connecting to power saving LED See p. 2-17

IR2 Connecting to IR module See p. 2-18

J2 Connecting to D-Bracket™ See p. 2-25

Chapter 1

1-6

ATX Form Factor

CPU: Socket 423 for Intel®Pentium®4 Processors

Memory: 3 SDRAM DIMMs

Slot: 1 AGP slot, 1 CNR slot, 5 PCI slots

I/O: 2 serial ports, 1 parallel port, 4 USB 1.1 ports, 1 floppy port, 1 IrDA

connector, 1 Audio/Game port

PC2001Compliant

Vcore/Vio Adjustable

USB Interface: USB 1.1 PC to PC Networking (Optional)

LAN Wake up Function

Modem (Internal) Ring Wake up Function

D-LED™ -- 4 Diagnostics LEDs embedded on the mainboard

Supports Optional D-Bracket™ (Optional)

TOP Tech™ III -- Thermal Overheat Protection Technology

Fuzzy LogicTM III overclocking utility

Live BIOS™ -- allows you to update BIOS online

Live Driver™ -- allows you to update drivers online

Audio: Chip integrated

Key Features

Introduction

1-7

MSI Special Features

The MSI special features are designed by MSI R&D which are only available in

MSI mainboards. The 845 Pro (MS-6529) mainboard is equipped with Fuzzy

Logic™III ,D-LED™, T.O.P. Tech™ III,LiveBIOS™ andLiveDriver™.

Fuzzy Logic™III

The Fuzzy Logic™ III utility allows users to overclock the CPU FSB

(Front Side Bus) frequency in the Windows environment. Select the CPU

frequency you prefer and click Go to apply the frequency or click Save

allowing the system to run at the specified frequency each time when the

system is powered on.

Features:

Display Current System Status

- CPU Fan

-CPUTemp.

-Vcore

-Vio

- Memory Clock

-CPUClock

-AGPClock

-PCIClock

Adjust CPU FSB Frequency

Chapter 1

1-8

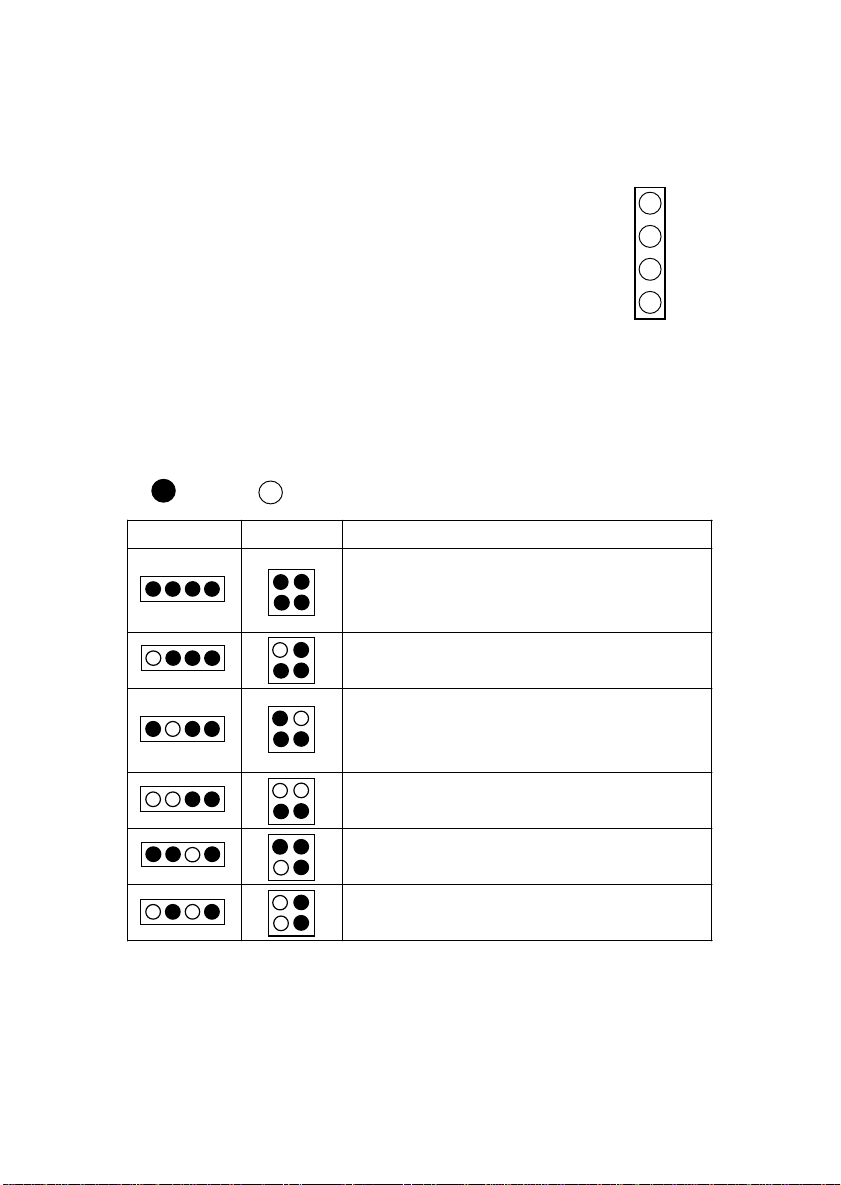

D-LED™ & D-Bracket™

The D-LED™ uses graphic signal display to help

users understand their system. Four LEDs embedded in

the mainboard provide up to 16 combinations of signals to

debug the system. The 4 LEDs can debug all problems that

fail the system, such as VGA, RAM or other failures. This

special feature is very useful for the overclocking users.

These users can use the feature to detect if there are any

problems or failures.

If your motherboard supports and installs D-

Bracket™ which also integrates four Diagnostic LEDs, definitions of the

LED signals are the same as D-LED™ as shown below.

Diagnostic LED

D-LED D-Bracket Description

System Power ON

- The D-LED will hang here if the processor is damaged or

not installed properly.

Early Chipset Initialization

Memory Detection Test

- Testing onboard memory size. The D-LED will hang if

the memory module is damaged or not installed properly.

Decompressing BIOS image to RAM for fast booting.

Initializing Keyboard Controller.

Testing VGA BIOS

- This will start writing VGA sign-on message to the screen.

Red Green

1 2 3 4 1 2

3 4

Introduction

1-9

D-LED D-Bracket Description

Processor Initialization

- This will show information regarding the processor (like

brand name, system bus, etc…)

Testing RTC (Real Time Clock)

Initializing Video Interface

- This will start detecting CPU clock, checking type of video

onboard. Then, detect and initialize the video adapter.

BIOS Sign On

- This will start showing information about logo, processor

brand name, etc….

Testing Base and Extended Memory

- Testing base memory from 240K to 640K and extended

memory above 1MB using various patterns.

Assign Resources to all ISA.

Initializing Hard Drive Controller

- This will initialize IDE drive and controller.

Initializing Floppy Drive Controller

- This will initializing Floppy Drive and controller.

Boot Attempt

- This will set low stack and boot via INT 19h.

Operating System Booting

1 2 3 4 1 2

3 4

Chapter 1

1-10

T.O.P Tech™ III

The T.O.P TechTM is a extended sensing device that can 100% accu-

rately detect the CPU’s temperature. You can find out the temperature on BIOS

setup menu. The PC AlertTM also provides the information.

CPU temperaure on Setup menu

AMIBIOS SETUP - Hardware Monitor Setup

ESC : Quit ↑↓←→ : Select Item

F1 : Help PU/PD/+/- : Modify

F5 : Load Previous Values

F6 : Load Fail-Safe Defaults

F7 : Load Optimized Defaults

CPU Ratio Selection 8.0x

CPU FSB (Mhz) 100

Spread Spectrum Enabled

CPU Vcore Adjust No

CPU Vcore 1.750V

DRAM Voltage Adjust 3.3V

Chassis Intrusion Disabled

CPU Temperature 29°C/84°F

System Temperature 39°C/102°F

CPU Fan Speed 6124 RPM

System Fan Speed 0 RPM

Vcore 1.71V

Vtt 1.50V

Vio 3.26V

+ 5.0V 4.92V

+12.0V 11.40V

–12.0V –11.56V

– 5.0V – 4.99V

Battery 3.22V

+5V SB 4.87V
