MSI MS-5153 Bedienungsanleitung

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-1

The ATX TX3 mainbard is a high-performance personal computer

mainboard. This mainboard supports Intel®Pentium®

processor and

Pentium®processorwithMMXTM technology,Cyrix®6x86/6x86L/6x86MX

processor, and AMD®K5/K6 processor. The mainboard also supports four

32-bit PCI (Peripheral Component Interconnect) Local Bus standard slots.

A cache subsystem is configured for 512K cache memory to improve overall

throughput.

The mainboard uses the highly integrated Intel®

83430TX chipset to support

the PCI/ISA and Green standards, and to provide the Host/PCI bridge. The

Intel®

82430TX chipset integrates all system control functions such as ACPI

(Advanced Configuration and Power Interface). The ACPI provides more

Energy Saving Features for the OSPM(OS Direct Power Management)

function. The Intel®

82430TX chipset also improves the IDE transfer rate by

supporting Ultra DMA/33 IDE that transfer data at the rate of 33MB/s.

The mainboard has an on-board Audio which uses Creative®

Vibra 16X

chipset. The Creative®

Vibra 16X chipset provides Windows applications like

Creative®

Wavesynth and Sound Blaster 16 Utility that allows you to play

high quality music for Windows multimedia applications and computer

games.

The mainboard also supports the LM78 System Hardware Monitor

Controller as optional function. The LM78 function includes: CPU chassis/

power fan control, CPU temperature detect and protect, and chassis

intrusion detect.

Chapter 1

Introduction

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1.1 Mainboard Features

CPU

lSocket 7 supports Intel®

Pentium®processor -- Pentium® processor w/

MMXTM technology.

lThe Cyrix®

6x86/6x86L/6x86MXand AMD®

K5/K6processors are also

supported.

CacheMemory

lSupports Directed Map Organization and Write-Back Cache Policy.

lSupports 512K pipelined burst cache memory.

VRM

lVRM(Voltage Regulator Module) is on board. It provides power for the

processor.

ChipSet

lIntel®

82430TX PCI chipset.

MainMemory

lSupports Six memory banks using Three 168-pin DIMM sockets.

lUp to 256 Mbytes main memory.

lSupports Fast Page (FP) Mode, Extended Data Output (EDO) Mode and

SDRAM.

lSupports only unbuffered DIMM.

Slots

lFour 32-bit Master PCI Bus slots and Four 16-bit ISA bus slots. One

shared slot that can be used as ISA or PCI.

lSupports3.3V/5VPCIBusInterface.

1-2

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1-3

On-BoardPeripherals

lOn-BoardPeripherals include:

-1 floppy port supports 2FDD with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

-2 serial ports (COMA + COMB)

- 1 parallel port supports SPP/EPP/ECP mode

- 1 IrDA connector or Fast IrDA(reserved)

- 1 Consumer IR(reserved)

lSupports ACPI

On-BoardIDE

lAn IDE controller on the Intel®

82430TX PCI Chipset provides IDE HDD/

CD-ROM with PIO Bus Master and Ultra DMA/33 operation modes.

lCan connect up to 4 IDE devices.

On-BoardUSB

lSupports dual port USB(Universal Serial Bus).

On-BoardSystemHardwareMonitor(LM78)

- System Voltage Detect

- CPU and Chassis Fan Speed detect

- Chassis Intrusion detect(reserved)

- CPU temperature detect(reserved)

Creative®

Vibra16xCT2510

lCodec, Mixer, Processor, CQM, Joystick I/F

lMicrosoft®

PC97 compliant

lPnP

Supports 2 Devices: SB & Joystick

Resources(4IRQ, 38-bit DMA)

l16CLmixerwith extra mixerchannel(5 stereo, 2 mono)

lCreative®

3D Stereo Enhancement

lFullDuplex16-bitRecordandPlayback

lSupports Type-F and Demand Mode DMA

lAPM1.2

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

BIOS

lThe system board BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

lThe system board provides a Desktop Management Interface(DMI)

function which records your system board specifications.

RTC

lNon-VolatileRTC.

KeyboardConnector

lPS/2®

keyboard interface and PS/2®

mouse interface.

Dimension

lATX FormFactor: 30.5cm(L)x18.6cm(W)x 4layerPCB.

lDouble deck I/O connectors, compatible with Intel®

Venus mainboard.

Mounting

l6 mounting holes.

1-4

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

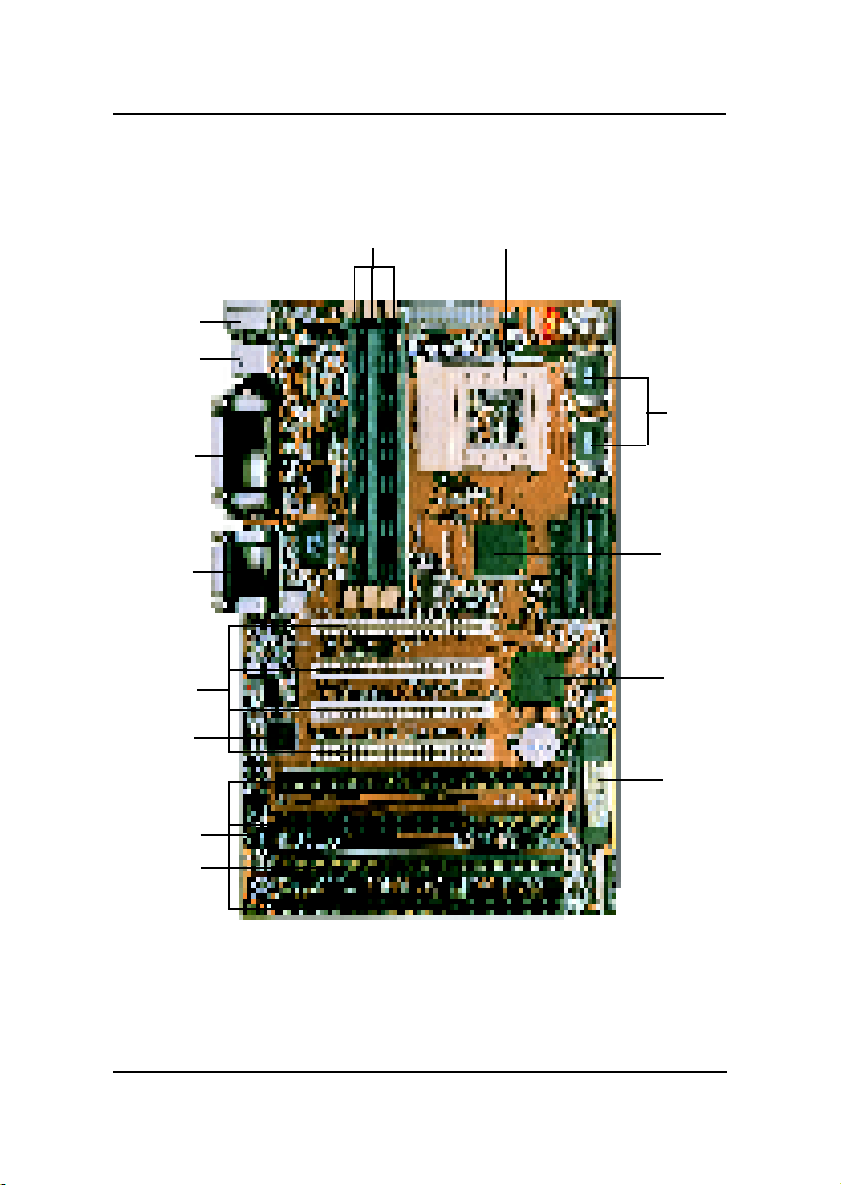

1.2 Parts of the Mainboard

1-5

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

A PS/2 Ports Top: Mouse

Bottom:Keyboard

B USBPorts Top: Port1

Bottom: Port2

C COMPorts Top: Parallel

Bottom: Serial

D SoundPorts Top:Joystick/Midi

Bottom: Line-Out/Line-In/Mic

E Four32-BitPCI SLOTs

F Creative®

Vibra16X

G LM78

H Four16-BitISASLOTs

I FlashBIOS

J Intel®

PCIset 82371AB

K Intel®

PCIset 82430TX

L 512KBPipelinedBurstL2Cache

M CPUSocket7

N Three168-pin DIMMSockets

1-6

CHAPTER 1CHAPTER 1

CHAPTER 1 INTRODUCTIONINTRODUCTION

INTRODUCTIONINTRODUCTION

INTRODUCTION

1.3 Mainboard Layout

MS-5153

1-7

ISA SLOT

PCI SLOT 4

PCI SLOT 3

PCI SLOT 2

PCI SLOT 1

DIMM 2

SOCKET 7

ISA SLOT

DIMM 1

DIMM 3

FDC

BATT

IDE1 BIOS

ATX

Power Supply

FW82371AB

FW82439TX

JGL

JFP

IDE2

JIR1

JRMS2

JBAT1

SW1

JFAN 2

JFAN 1

JRMS1

Top: JMS

Bottom:

JKB

Top: Port1

USB

Bottom:

Port2

Top: LPT

Bottom:

COMA

COMB

LM75

(optional)

LM78

(optional)

Top:MIDI/

Joystick

Bottom:

LineOut

LineIn

Mic

Creative

Vibra16X

J17

CD-LineIn

J16 J15

IMI643

JP2

JP4

JRMS3

CHAPTER2 HARDWAREINSTALLATION

CPU

2.1-1 CPU Installation Procedures

Chapter 2

Hardware Installation

2.1 Central Processing Unit: CPU

The ATX TX3 mainboard operates with Intel®Pentium®

processor-

Pentium®

processorwith MMXTM technology,Cyrix®

6x86/6x86L/6x86MX

and AMD®

K5/K6 processors. It could operates with 2.0V to 3.52V proces-

sors. The mainboard provides a 321-pin ZIF Socket 7 for easy CPU

installation, a DIP switch (SW1) to set the proper speed for the CPU. The

CPU should always have a cooling fan attached to prevent overheating.

OpenLever

Pin1

Sliding

Plate

White dot/

Cut edge

Lever

2-1

1. Pull the lever sideways away

from the socket. Then, raise

the lever up to a 90-degree

angle.

3. Press the lever down to

complete the installation.

2. Locate Pin 1 in the socket

and look for the white dot or

cut edge in the CPU. Match

Pin 1 with the white dot/cut

edge. Then, insert the CPU.

It should insert easily.

CHAPTER2 HARDWAREINSTALLATION

4 5 6 Clock

OFF OFF OFF 50MHz

OFF OFF ON 69.5MHz

OFF ON ON 78MHz

ON ON OFF 83.3MHz

ON OFF ON 85.5MHz

ON OFF OFF 100MHz

1. The mainboard supports different clock frequencies adjusted by SW1 pin

4, 5, and 6. See the following chart to set the different Host Clock

Frequencies.

4 5 6 Clock

ON ON OFF 55MHz

ON OFF OFF 60MHz

OFF OFF OFF 66MHz

OFF ON OFF 75MHz

OFF OFF ON 68.5MHz

SW1 CPU

2.1-2 CPU Core Speed Derivation Procedures

2-2

SW1 CPU

SpecialCPUClock

Note: If you’re going to use the special CPU

clock, then you must short JRMS3

CHAPTER2 HARDWAREINSTALLATION

2. The DIP Switch SW1 (1, 2, and 3) is used to set the Core/Bus (Fraction)

ratio of the CPU. The actual core speed of the CPU is the Host Clock

Frequency multiplied by the Core/Bus ratio. For example:

If CPUClock = 66MHz

Core/Bus ratio = 3/2

then CPU core speed = Host Clock x Core/Busratio

= 66MHzx3/2

= 100MHz

3. The PCI Bus Clock is the CPU Clock Frequency divided by 2.

1 2 3 Core/BusRatio

OFF OFF OFF 1.5/3.5

ON OFF OFF 2

ON ON OFF 2.5/1.75

OFF ON OFF 3

SW1 CPU

2-3

2.1-3 CPU Voltage

The mainboard voltage regulators can automatically detect and switch

between Single and Dual voltage. It can detect single voltage ranging from

3.38 volts to 3.52 volts. And dual voltage ranging from 2.0 volts to 3.2 volts.
