CHAPTER 1 INTRODUCTION

1-1

The MICRO ATX VI16 mainboard is a high-performance all-in-one system

mainboard. This mainboard supports Intel® Pentium® processor/Pentium®

processorwithMMXTM technology,Cyrix®/IBM®6x86/6x86L/6x86MX/MII,

and AMD®K6/K6-2/K6-III processors.

The mainboard uses the highly integrated Apollo MVP4. The Apollo MVP4

is a PC Socket-7 system logic North Bridge with integrated 2D/3D Graphics

Accelerator. The core logic portion of the chip is based on the popular

100MHz VIA Apollo MVP3 chipset with enhanced features and graphics

accelerator based on the Cyber9398DVD from Trident Microsystems. The

VT82C686ASuperI/O PCI integrated Peripheral Controller (PSIPC) is ahigh

integration, high performance, power efficient and high compatibility device

that supports Intel and non-Intel based processors plus PCI bus bridge

functionality to make a complete Microsoft PC98-compliant PCI/ISA system.

The VT82C686A supports PCI-to-ISA bus controller, four USB ports, dual

bus-masterIDE with Ultra DMA33/66, AC97Basic Audio, System Hardware

Monitoring, and integrated “Super I/O functionality”.

This Mainboard with Apollo MVP4 coupled with VT82C686A is a ideal

performance energy efficient, and highly integrated computer systems.

Chapter 1

INTRODUCTION

CHAPTER 1 INTRODUCTION

1-2

1.1 Mainboard Features

CPU

lSocket 7 supports Intel®Pentium®processor with MMXTM technology.

lTheCyrix®6x86/6x86L/6x86MX/MIIandAMD®K6/K6-2/K6-III proces-

sors are also supported.

Chipset

lVIA®VT82C501(MVP4)chipset. (Northbridge)

-support66/100MHzFSB

- integrated AGP 2D/3D Graphics Accelerator

-supportPC66/PC100SDRAMmemorymodule

-493BGApackage

lVIA®VT82C686Achipset.(Southbridge)

- PCI Super I/O Integrated

- integrated SoundBlaster/Direct Sound AC97 Audio

-UltraDMA-33/66

-352BGApackage

FSB(FrontSideBus)

l66/75/83.3/95/100MHzclocksaresupported.

MainMemory

lSupportsamaximum memory size of 512MB.

lSupports four memory banks using two 168-pin DIMM sockets.

lSupports 3.3v SDRAM.

Slots

lOne AMR (Audio Modem riser) slot and one PTI (PanelLink TV-Out

Interface) slot.

lThree 32-bit Master PCI Bus slots and one 16-bit ISA bus slot. (wherein

one PCI/ISA is shared)

lSupports 3.3v/5v PCI bus Interface.

CHAPTER 1 INTRODUCTION

1-3

On-BoardIDE

lAn IDE controller provides IDE HDD/CD-ROM with PIO, Bus Master and

UltraDMA-33/66operation modes.

lCan connect up to four IDE devices.

On-BoardPeripherals

lOn-BoardPeripherals include:

-1 floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and

2.88Mbytes.

- 1 serial ports (COMA)

- 1 parallel port supports SPP/EPP/ECP mode

- 2 USB ports

- 1 IrDA connector for SIR.

-1 AMR

-1 VGA Port

-1PTI

Video

lMVP4 chip integrated

lAGP2D/3D Graphics

Audio

lchip integrated

lDirectSound AC97 Audio

BIOS

lThe mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

lThe mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

Dimension

lMICROATX Form Factor: 24cm(L)x19.2cm(W)x 4layersPCB

CHAPTER 1 INTRODUCTION

1-4

Mounting

l6 mounting holes.

System Hardware Monitor (optional)

lCPU Fan Revolution Detect

lCPU Fan Control (the fan will automatically stop when the system enters

suspend mode)

lSystem Voltage Detect

lCPU Overheat Warning.

lDisplay Actual Current Voltage

Other Features

lLANWake-Up

lInternal/ExternalModemWake-Up

CHAPTER 1 INTRODUCTION

1-5

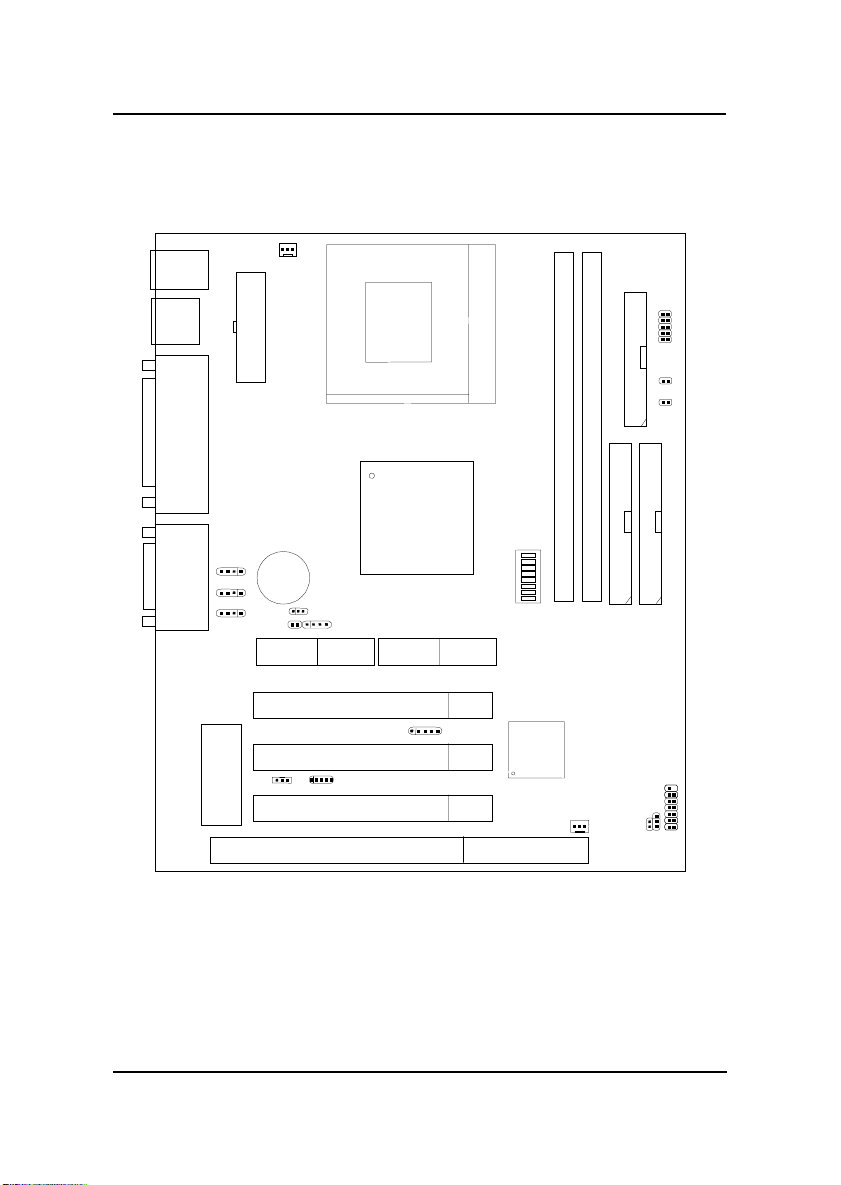

1.2 Mainboard Layout

PCI SLOT 3

PCI SLOT 2

PCI SLOT 1

ISA SLOT 1

ATX

Power Supply

VIA

Apollo

MVP4

Socket 7

DIMM 2

Top: mouse

Bottom:

keyboard

Top:Port 1

USB

DIMM 1

IDE2

Bottom:

Port2

IDE1 FDD

VT82C686A

JMDM1

IR1

SFAN1

JFP1

JGS1

BIOS

JWOL1

JCD1

JAUX1

CFAN1

BATT

Top: LPT

Bottom:

COMA

VGAPort

Top: Midi/

GamePort

Bottom:

Line-Out

Line-In

Mic

MS-5187 MICRO ATX VI16 Mainboard

MODEM1

JV1

AMR PTI

JBTCK1

JGL1

JSDIN1

JRMS1

SW1

JBAT1

JPL1+

CHAPTER 2 HARDWARE INSTALLATION

2-1

Chapter 2

Hardware Installation

2.1 Central Processing Unit: CPU

The MicroATX VI16 mainboardoperates with Intel®Pentium®processor/

Pentium® processorw/MMXTM technology, Cyrix®/IBM6x86/6x86L/

6x86MX/MII,andAMD®K6/K6-2/K6-III processors. Itcouldoperatewith

2.2V to 3.2V processors. The mainboard provides a 321-pin ZIF Socket 7 for

easy CPU installation. The CPU should always have a cooling fan attached

to prevent overheating.

CPU

OpenLever

Pin1

Sliding

Plate

White dot/

Cut edge

Lever

1. Pull the lever sideways away

from the socket. Then raise

the lever up to a 90-degree

angle.

3. Press the lever down to

complete the installation.

2. Locate Pin 1 in the socket

and look for the white dot or

cut edge in the CPU. Match

Pin 1 with the white dot/cut

edge. Then, insert the CPU.

It should insert easily.

2.1-1 CPU Installation Procedures

CHAPTER 2 HARDWARE INSTALLATION

2-2

2.1-2 CPU Core Speed Derivation Procedure

1. The DIP Switch SW1 (1, 2, and 3) are used to set the Core/Bus

(Fraction) ratio of the CPU. The actual core speed of the CPU is

the Host Clock Frequency multiplied by the Core/Bus ratio. For

example:

If CPUClock = 66MHz

Core/Bus ratio = 3.5

then CPU core speed = Host Clock x Core/Busratio

= 66MHzx3.5

= 233MHz

1 2 3 Core/Bus Ratio

ON OFF OFF 2

ON ON OFF 2.5

OFF ON OFF 3

OFF OFF OFF 3.5

ON OFF ON 4

ON ON ON 4.5

OFF ON ON 5

OFF OFF ON 5.5

SW1 CPU

2. The DIP Switch SW1 (5, 6, 7, and 8) are used to adjust the CPU

clock frequency.

5 6 7 8 CPU

OFF OFF OFF ON 66

ON OFF OFF OFF 75

OFF ON OFF ON 83.3

OFF ON ON OFF 95

OFF ON ON ON 100

SW1 Clock

CHAPTER 2 HARDWARE INSTALLATION

2-3

2.1-3 Processor Voltage Setting

The jumper Switch JV1 (1-5) is used to set the processor Vcore

voltage setting.

1 2 3 4 5 Vcore

OPEN SHORT OPEN OPEN OPEN 2.2

SHORT SHORT OPEN OPEN OPEN 2.3

OPEN OPEN SHORT OPEN OPEN 2.4

OPEN OPEN OPEN SHORT OPEN 2.8

SHORT OPEN OPEN SHORT OPEN 2.9

OPEN OPEN SHORT SHORT OPEN 3.2

JV1

Note: Always consult vendor for proper CPU specification, before

setting the processor voltage (Vcore/Vio). Improper setting

may damage the processor and other components.

CHAPTER 2 HARDWARE INSTALLATION

2-4

2.1-4 Fan Power Connectors: CFAN1/SFAN1

These connectors support system cooling fan with + 12V. It supports three

pin head connector. When connecting the wire to the connector, always

take note that the red wire is the positive and should be connected to the

+12V, the black wire is Ground and should be connected to GND. If your

mainboard has System Hardware Monitor chipset on-board, you must use a

specially designed fan with speed sensor to take advantage of this function.

For fans with fan speed sensor, every rotation of the fan will send out 2

pulses. System Hardware Monitor will count and report the fan rotation

speed.

Note: 1. Always consult vendor for proper CPU cooling fan.

2. CPU FAN supports the FAN control. You can install PC Alert

utility. This will automatically control the CPU FAN Speed according

to the actual CPU temperature.

CFAN1

CFAN1: Processor Fan

SFAN1:SystemFan

+12V SENSOR

GND

SFAN1

+12V SENSOR

GND

CHAPTER 2 HARDWARE INSTALLATION

2-5

To adjust the speed and voltage of the CPU, you must know the

specifications of your CPU (always ask the vendor for CPU specifi-

cations). Then refer toTable 2.1 (Intel®processors),Table2.2

(Cyrix®processors)and Table 2.3 (AMD®processors) forproper

setting.

2.1-5 CPU Speed and Voltage Setting: SW1, JV1

SW1

1 2 3 4 5 6 7 8

ECE

JV1
