CHAPTER 1 INTRODUCTION

1-1

TheMS-6188FlexATXWH11mainboardisahigh-performance

computer mainboard based on Intel®810 chipset. The MS-6188 is designed

for the Intel®CeleronTM/ Coppermine (PPGA) processor for inexpensive

business/personal desktop markets.

The Intel®810 chipset is the first generation Integrated Graphics

chipset for the Intel®CeleronTM processor. The graphics accelerator archi-

tecture consists of dedicated multi-media engines executing in parallel to

deliver high performance 3D, 2D, and motion compensation video capabili-

ties. An integrated centralized memory arbiter allocates memory bandwidth

to multiple system agents to optimize system memory utilization. A new

chipset component interconnect, the hub interface, is designed into the Intel

810 chipset to provide an efficient communication channel between the

memory controller hub and I/O hub controller.

The Intel 810 chipset contains three core components: the Graph-

ics and Memory Controller Hub (GMCH), the I/O Controller Hub (ICH) and

theFirmwareHub(FWH). TheGMCHintegratesa 66/100MHz,P6family

system bus controller, integrates 2D/3D graphics accelerator, 100MHz

SDRAM controller and high-speed hub interface for communication with the

ICH. The ICH integrates an Ultra ATA66(ICH) controller, USB host control-

ler,LPCinterfacecontroller,FWHintefaceconroller,PCIinterfacecontroller,

AC’97 digital controller and a hub interface for communication with the

GMCH.

Chapter 1

INTRODUCTION

CHAPTER 1 INTRODUCTION

1-2

1.1 Mainboard Features

CPU

lSupport Socket370 for Intel®CeleronTM/Coppermine processor.

lSupport300MHz,333MHz,366MHz,400MHz,433MHz,466MHzorhigher

Chipset

lIntel®810(GMCH) chipset. (421BGA)

- Integrated Graphics Controller

- Intel DDM+ Architecture

- SDRAM memory Independent of System Bus

lIntel®ICHchipset. (241 BGA)

- AC’97 Controller Integrated

- 2 full IDE channels, up to ATA66

- Low pin count interface for SIO

FrontSide Bus (FSB)

l66/100MHz clocks are supported.

l133Hzclocks are supported for 810E.

MainMemory

lSupport two 168-pin DIMM sockets.

lSupporta maximum memory size of 256MB(64Mbit technology) or

512MB(128Mbittechnology) SDRAM.

Slots

lTwo 32-bit Master PCI Bus slots.

lSupport 3.3v/5v PCI bus Interface.

On-BoardIDE

lAn IDE controller on the ICH chipset provides IDE HDD/CD-ROM with

PIO, Bus Master and Ultra DMA/66 operation modes.

lCan connect up to four IDE devices.

CHAPTER 1 INTRODUCTION

1-3

On-BoardPeripherals

lOn-BoardPeripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and

2.88Mbytes.

- 2 serial port (1 rear port + 1 header)

- 1 parallel port supports SPP/EPP/ECP mode

- 4 USB ports(2 USB rear ports + 2 USB front headers)

- 1 IrDA connector for SIR.

-1 VGA port

- 1 PanelLink Connector (optional)

Video

lGMCH chip integrated

l2D/3DGraphics

Audio

lICH chip integrated

lAC’972.1 Compliant

Network

lIntel 82559 10/100M Ethernet (optional. default setting)

- WFW baseline & NET PC specs compliant

- Advanced Power Management (ACPI support)

- ARP& Flexibleframefiltering

- Software drivers are backwards compatible

- IP checksumming in hardware

BIOS

lThe mainboard BIOS provides “Plug & Play” BIOS which detects the

peripheral devices and expansion cards of the board automatically.

lThe mainboard provides a Desktop Management Interface(DMI) function

which records your mainboard specifications.

CHAPTER 1 INTRODUCTION

1-4

Note: To be able to identify the chipset used onboard: During POST

(Power on Self Test), you can determine the chipset, which will

appear briefly at the bottom left of the POST screen.

Dimension

lFlexATX Form Factor: 7.5” x9”inches

Mounting

l6 mounting holes.

Warning: According to Intel 810 chipset specification: 810E chipset sup-

ports66/100/133MHzFSB processor and 810/810DC100 chipset

supports 66/ 100 FSB processor. Please do not use 133MHz FSB

processor on motherboards which use 810/810DC100 chipset.

CHAPTER 1 INTRODUCTION

1-5

1.2 Mainboard Layout

PCI SLOT 2

PCI SLOT 1

ATX

Power Supply

Intel

GMCH

chipset

(810)

Socket 370

DIMM 2

Top: mouse

Bottom:

keyboard

Top: LAN

DIMM 1

IDE2

Bottom: USB

Port 2/Port1

IDE1 FDD

ICH

JMDM1

J10

JIR1

JGS1

JBIOS

CD_IN

AUX_IN

COM B

JUSBV1

Top: LPT

Bottom:

PanelLink

VGAPort

Top:COMA

Bottom:

Line-Out

Line-In

Mic

MODEM_IN

CPUFAN

SDRAM SDRAM

JFP2

JBAT

JWOL1

JKBV1

CODEC

FWH

Intel

82559

Chipset

BATT

Sil154

MS-6188FlexATX WH11 Mainboard

JUSB1

JP2

JP100

CHAPTER 2 HARDWARE INSTALLATION

2-1

CPU

Chapter 2

HARDWARE INSTALLATION

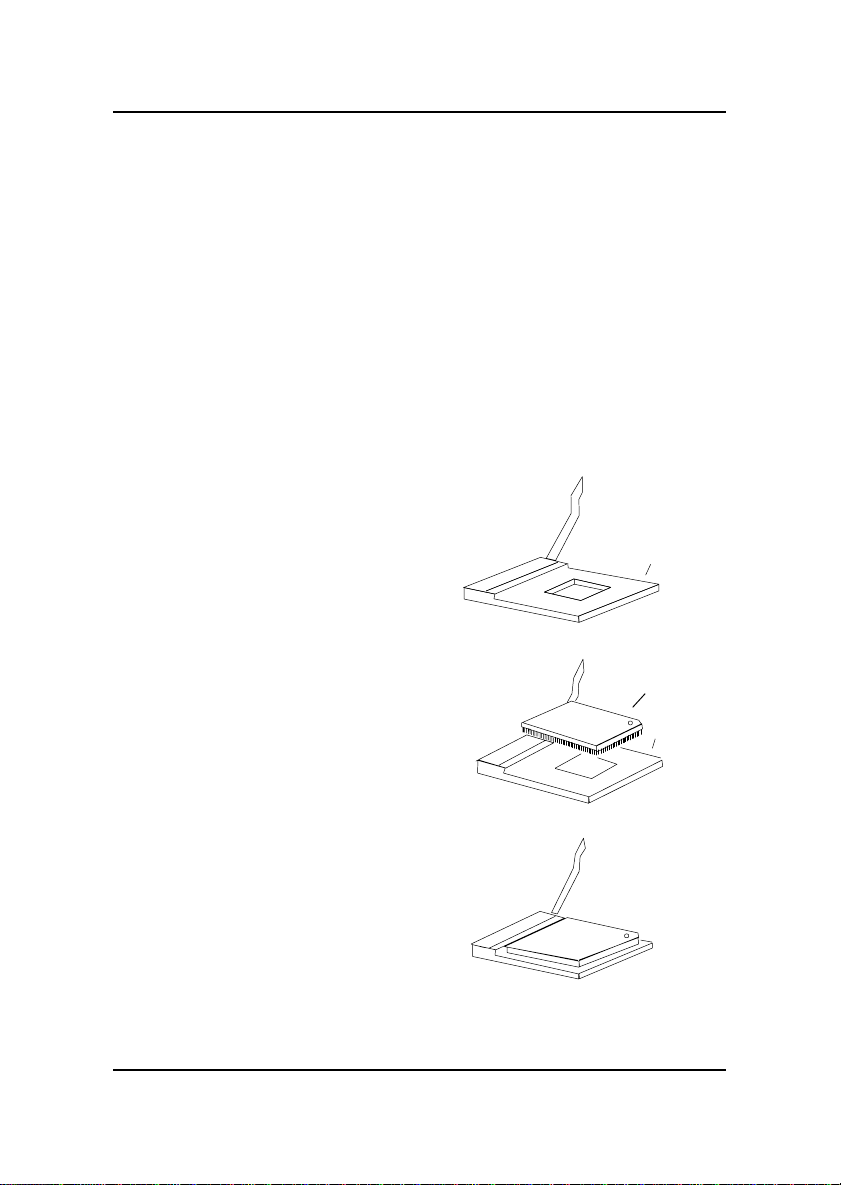

2.1 Central Processing Unit: CPU

Themainboard operates with Intel®Coppermine(FC-PGA)orCeleronTM

processor. The mainboard uses a CPU socket called Socket 370 for easy

CPU installation. The CPU should always have a Heat Sink and a cooling

fan attached to prevent overheating.

3. Press the lever down to

complete the installation.

2. Locate Pin 1 in the socket

and look for the white dot or

cut edge in the CPU. Match

Pin 1 with the white dot/cut

edge. Then, insert the CPU.

It should insert easily.

OpenLever

Pin1

Sliding

Plate

White dot/

Cut edge

Lever

1. Pull the lever sideways away

from the socket. Then, raise

the lever up to a 90-degree

angle.

Pin1

2.1-1 CPU Installation Procedures

CHAPTER 2 HARDWARE INSTALLATION

2-2

The mainboard CPU Bus Frequency can be set through BIOS setup

If CPUClock = 66MHz

Core/Bus ratio = 3.5

then CPU core speed = Host Clock x Core/Busratio

= 66MHzx3.5

= 233MHz

2.1-2 CPU Core Speed Derivation Procedure

CHAPTER 2 HARDWARE INSTALLATION

2-3

2.1-3 Fan Power Connector: CPUFAN

This connector support system cooling fan with + 12V. It supports three pin

head connector. When connecting the wire to the connector, always take

note that the red wire is the positive and should be connected to the +12V,

the black wire is Ground and should be connected to GND. If your

mainboard has System Hardware Monitor chipset on-board, you must use a

specially designed fan with speed sensor to take advantage of this function.

For fans with fan speed sensor, every rotation of the fan will send out 2

pulses. System Hardware Monitor will count and report the fan rotation

speed.

Note: 1. Always consult vendor for proper CPU cooling fan.

2. CPU FAN supports the FAN control. You can install PC Alert

utility. This will automatically control the CPU FAN Speed according

to the actual CPU temperature.

CPUFAN

CPUFAN: Processor Fan

+12V

SENSOR

GND

CHAPTER 2 HARDWARE INSTALLATION

2-4

2.2 Clear CMOS Jumper: JBAT

A battery must be used to retain the mainboard configuration in CMOS

RAM. Short 1-2 pins of JBAT to store the CMOS data.

Keep Data Clear Data

Note: You can clear CMOS by shorting 2-3 pin, while the system is off.

Then, return to 1-2 pin position. Avoid clearing the CMOS while

the system is on, it will damage the mainboard. Always unplug

the power cord from the wall socket.

JBAT

CHAPTER 2 HARDWARE INSTALLATION

2-5

2.3 Memory Installation

2.3-1 Memory Bank Configuration

Themainboardsupportsa maximum memory size of 256MB(64-bit technol-

ogy) or 512MB(128-bit technology for SDRAM: It provides two 168-pin

unbuffered DIMMs (Double In-Line Memory Module) sockets. It supports

8 MB to 128 Mbytes DIMM memory module.

DIMM1(Bank0+ Bank1)

DIMM2(Bank2+Bank3)
