CHAPTER 1 INTRODUCTION
1-1
The MS-6315 Micro-ATX S1 mainboard is a high-performance
computer mainboard based on Intel®815E chipset. The MS-6315 is
optimized to support the Intel®Pentium®III (FC-PGA) processor for high-
end business/personal desktop markets.
The Intel®815E chipset integrates a Display Cache SDRAM
controller that supports a 32-bit 133MHz SDRAM array for enhanced
integrated 3D graphics performance. It is a highly-flexible chipset which is
designed to extend the basic graphics/multimedia PC platform up to the
mainstream performance desktop platform.
The Intel®815E chipset implements the host address, control, and
data bus interfaces within a single device. It takes advantage of the
pipelined addressing capability of the processor to improve the overall
system performance. In addition, the chipset also integrates a system
memory controller that supports a 64-bit 100/133 MHz SDRAM array.
The Intel®82801BA (ICH2) chipset is a highly integrated
multifunctional I/O Controller Hub that provides the interface to the PCI Bus
and integrates many of the functions needed in today’s PC platforms. It
communicates with the host controller over a dedicated hub interface and
provides added flexibility in designing cost-effective system solutions.
Chapter 1
INTRODUCTION
CHAPTER 1 INTRODUCTION
1-2
Mainboard Features
CPU
lSupport Socket370 for Intel®CeleronTM/Pentium® III (FC-PGA) processor
and Cyrix®Joshua processor.
lSupport500MHz,550MHz,600MHz,633MHz,667MHzandfaster
Chipset
lIntel®815Echipset.(544BGA)
-AGP 4x/2x universal slot
-Support66/100/133MHzFSB
lIntel®ICH2chipset.(360EBGA)
-AC’97 Controller Integrated
- 2 full IDE channels, up to ATA100
- Integrated 10/100Mbit/sec Ethernet
- Low pin count interface for Winbond SIO
- 4USB ports
Main Memory
lSupport two 168-pin DIMM sockets.
lSupport a 32 to 512MB using 16/64/128/256Mbit technology.
Slots
lOneCNR(CommunicationNetworkRiser).
lOneAGP(Accelerated Graphics Port)2x/4x slot.
lThree PCI 2.2 32-bit Master PCI Bus slots.
lSupport 3.3v/5v PCI bus Interface.
On-BoardIDE
lAn IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA66/100 operation modes.
lCan connect up to four IDE devices.
CHAPTER 1 INTRODUCTION
1-3
On-Board Peripherals
lOn-BoardPeripherals include:
-1 floppy port supports 2 FDD with360K, 720K, 1.2M,
1.44M and 2.88Mbytes.
-2 serial port (COMA+ COMB--Header)
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports (Rear * 2 / Front * 2)
-1VGA port
- 1 RJ45 Connector (optional)
-1Line-In/Line-Out/Mic-In/Game port
Video
lGMCHchip integrated
l2D/3DGraphics
lIntel®D.V.M Technology
lFlexibleAGP In-Line Memor Module(AIMM)(optional)
Audio
lICH2 chip integrated
lSigmatel9721
-AC972.1Compliant.
- Support 2 Channel Audio
lCreative®CT5880. (Optional)
-PCI2.2compliant
-PC97/98 specification compliant
- 3D audio effects.
- 32-voice XG wavetable synthesizer
- Direct Sound Hardware Accelerator
- Direct Music Hardware Accelerator
-Full-Duplex stereo
- Support SPDIF connector
- 4 Channel Speaker Audio
CHAPTER 1 INTRODUCTION
1-4
Network
lICH2Integrated LAN Controller
lIntel82562ET/EM (optional)
- ACPI and APM Supported (EM)
- Wake-On-LAN and WFM 2.0 Supported (ET/EM)
-BackwardCompatible software with 82557,82558and
82559(ET/EM)
- Support Basic AOL functionality (EM)
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface (DMI) func-
tion which records your mainboard specifications.
Dimension
lMicro-ATX Form Factor
Mounting
l6 mounting holes.
CHAPTER 1 INTRODUCTION
1-5

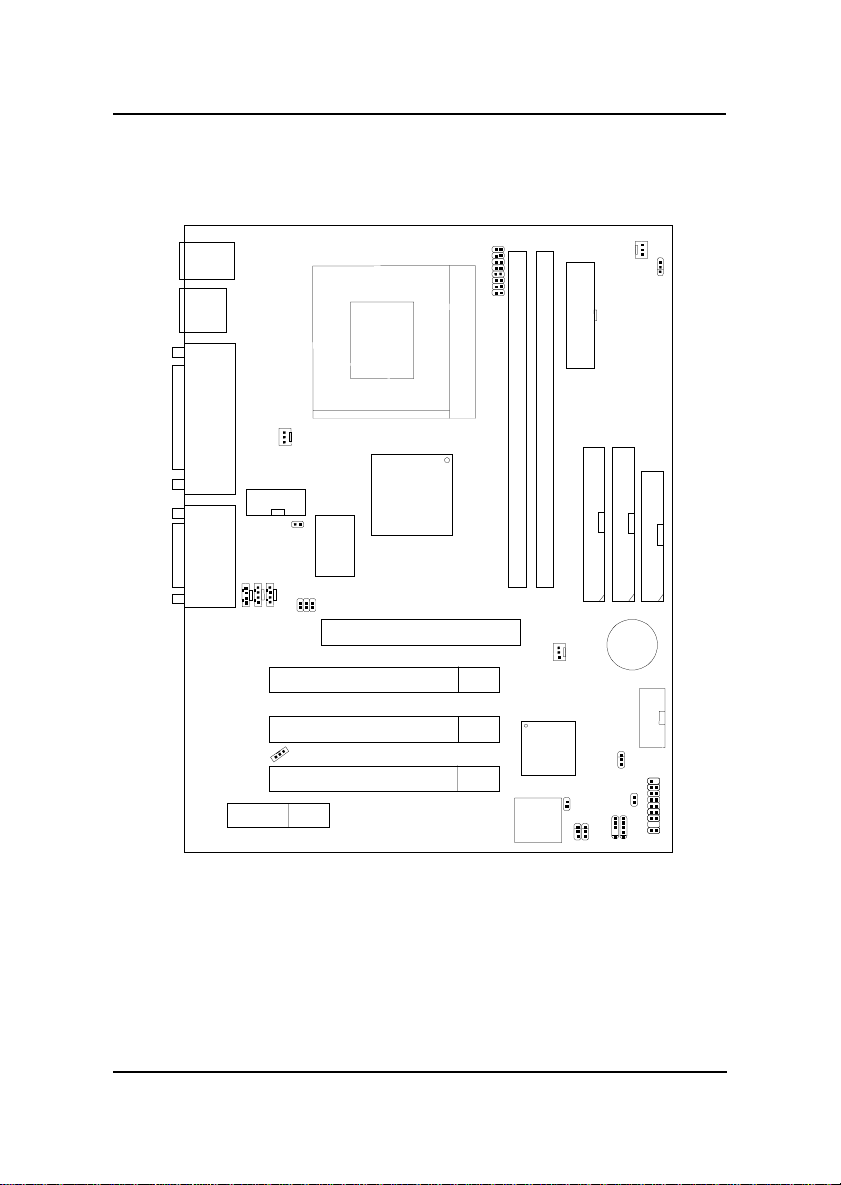

Mainboard Layout
PCI SLOT 2
PCI SLOT 1
ATX
Power Supply
Intel
815E
Chipset
Socket 370
DIMM 2
Top: mouse
Bottom:
keyboard
Top: LAN
IDE2
Bottom:
USBPorts
IDE1
FDD
JBAT1
Intel
FW82801BA
CD_IN
AUX_IN
PSFAN
SYSFAN
Top:LPT
Bottom:
COMA
VGA
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic
MDM_IN
FWH
AGP Slot BATT
+
DIMM 1
PCI SLOT 3
JFP1
JGL1
COM B
FrontUSB
815EM PRO (MS-6315) Micro-ATX S1 Mainboard
CPUFAN
JP1
JVTT1
JWOL1
IR
JP3
JMDM1
JGS1
CNR
J2
Winbond
W83627HF-AW
JP5
JP3401
CHAPTER 2 HARDWARE INSTALLATION
2-1
CPU
CPU
Chapter 2
HARDWARE INSTALLATION
Central Processing Unit: CPU
The mainboard operateswith Intel®CeleronTM/Pentium®III(FC-PGA)
processor. The mainboard uses a CPU socket called Socket 370 for easy
CPU installation. The CPU should always have a Heat Sink and a cooling
fan attached to prevent overheating.
3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
OpenLever
Pin1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
Pin1
••
••
•CPU Installation Procedures
CHAPTER 2 HARDWARE INSTALLATION
2-2
The mainboard CPU Bus Frequency can be set through BIOS setup.
If CPUClock = 100MHz
Core/Bus ratio = 7
then CPU core speed = Host Clock x Core/Busratio
= 700MHz
•CPU Core Speed Derivation Procedure
CHAPTER 2 HARDWARE INSTALLATION
2-3
•Fan Power Connectors: CPUFAN, SYSFAN & PSFAN
These connectors support system cooling fan with + 12V. It supports
three pin head connector. When connecting the wire to the connector,
always take note that the red wire is the positive and should be con-
nected to the +12V, the black wire is Ground and should be connected to
GND. If your mainboard has System Hardware Monitor chipset on-
board, you must use a specially designed fan with speed sensor to take
advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.
Note: 1. Always consult vendor for proper CPU cooling fan.
2. CPU FAN supports the FAN control. You can install PC Alert
utility. This will automatically control the CPU FAN Speed according
to the actual CPU temperature.
PSFAN
CPUFAN: ProcessorFan
SYSFAN: SystemFan
PSFAN: PowerSupply Fan
+12V
SENSOR
GND
CPUFAN
+12V
GND
SENSOR
SYSFAN
+12V
GND
SENSOR
CHAPTER 2 HARDWARE INSTALLATION
2-4

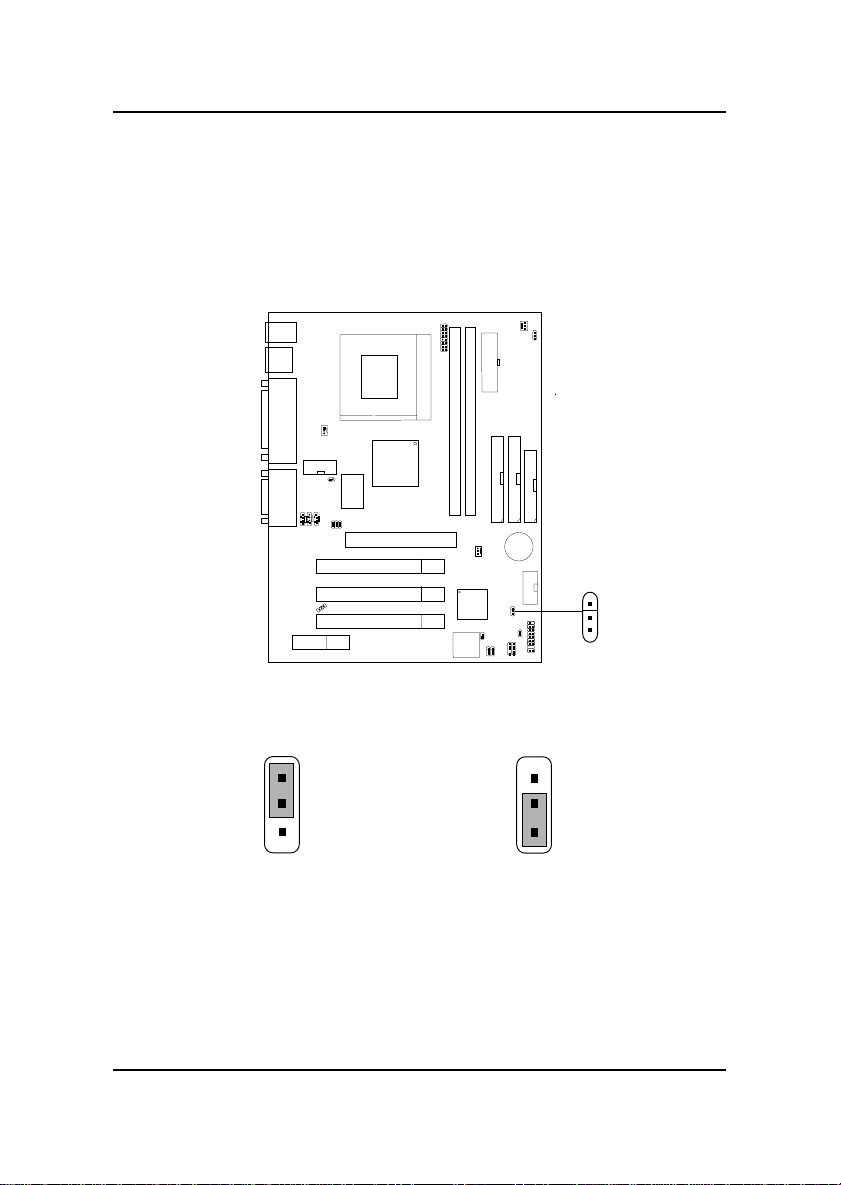

Clear CMOS Jumper: JBAT1
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT1 to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
JBAT1
1
3
CHAPTER 2 HARDWARE INSTALLATION
2-5
Memory Installation
••
••
•Memory Bank Configuration
Themainboard supports a maximum memorysize of 512MB for SDRAM: It
provides two 168-pin unbufferedDIMMs (DoubleIn-Line Memory Module)
sockets. It supports 8 MB to 512 Mbytes DIMM memory module.
DIMM1(Bank0+Bank1)
DIMM2(Bank2+Bank3)
