Version 1.0

G52-S9130X1

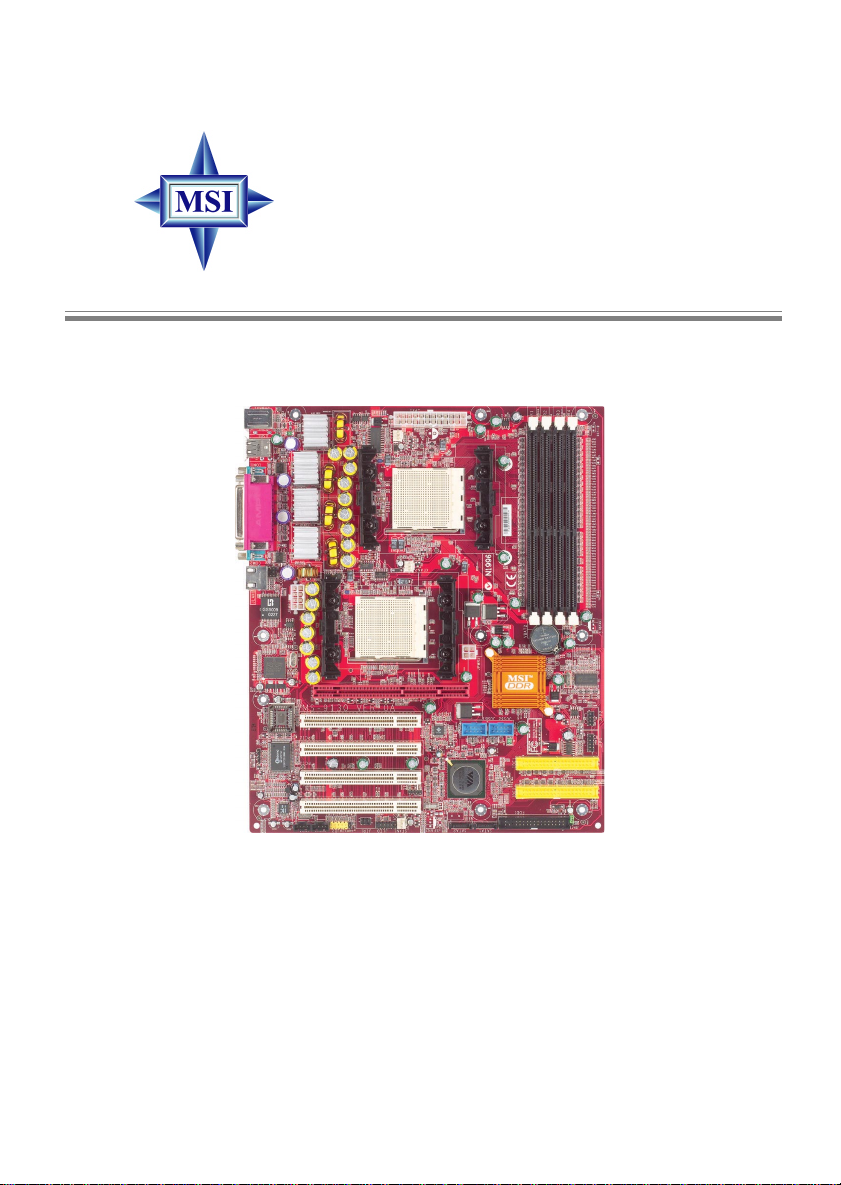

K8T Master2-FAR Series

MS-9130 (v1.X) Mainboard

Manual Rev: 1.0

Release Date: July 2003

FCC-A Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a class

A digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference when the equip-

ment is operated in a commercial environment. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in accor-

dance with the instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to

cause harmful interference, in which case the user will be required to correct

the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party respon-

sible for compliance could void the user’s authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to

comply with the emission limits.

VOIR LA NOTICE D’INSTALLATION AVANT DE RACCORDER AU

RESEAU.

Micro-StarInternational MS-9130

Testedtocomply

withFCCStandard

ForHomeor OfficeUse

iii

CopyrightNotice

The material in this document is the intellectual property of MICRO-STAR

INTERNATIONAL. We take every care in the preparation of this document,

but no guarantee is given as to the correctness of its contents. Our products

are under continual improvement and we reserve the right to make changes

without notice.

Trademarks

All trademarks are the properties of their respective owners.

AMD, Athlon™, Athlon™ XP, Thoroughbred™, and Duron™ are registered

trademarks of AMD Corporation.

Intel®and Pentium®are registered trademarks of Intel Corporation.

PS/2 and OS®/2 are registered trademarks of International Business Machines

Corporation.

Microsoft is a registered trademark of Microsoft Corporation. Windows®98/

2000/NT/XP are registered trademarks of Microsoft Corporation.

NVIDIA, the NVIDIA logo, DualNet, and nForce are registered trademarks or

trademarks of NVIDIA Corporation in the United States and/or other countries.

Netware®is a registered trademark of Novell, Inc.

Award®is a registered trademark of Phoenix Technologies Ltd.

AMI®is a registered trademark of American Megatrends Inc.

Kensington and MicroSaver are registered trademarks of the Kensington Tech-

nology Group.

PCMCIA and CardBus are registered trademarks of the Personal Computer

Memory Card International Association.

Revision History

Revision Revision History Date

V1.0 First release July 2003

1. Always read the safety instructions carefully.

2. Keep this User’s Manual for future reference.

3. Keep this equipment away from humidity.

4. Lay this equipment on a reliable flat surface before setting it up.

5. The openings on the enclosure are for air convection hence protects the

equipment from overheating. Do not cover the openings.

6. Make sure the voltage of the power source and adjust properly 110/220V

before connecting the equipment to the power inlet.

7. Place the power cord such a way that people can not step on it. Do not

place anything over the power cord.

8. Always UnplugthePower Cord beforeinsertingany add-on cardormodule.

9. All cautions and warnings on the equipment should be noted.

10. Never pour any liquid into the opening that could damage or cause electrical

shock.

11. If any of the following situations arises, get the equipment checked by a

service personnel:

zThe power cord or plug is damaged.

zLiquid has penetrated into the equipment.

zThe equipment has been exposed to moisture.

zThe equipment has not work well or you can not get it work according

to User’s Manual.

zThe equipment has dropped and damaged.

zThe equipment has obvious sign of breakage.

12. Do not leave this equipment in an environment unconditioned, storage

temperatureabove600C(1400F),itmaydamagetheequipment.

Safety Instructions

CAUTION: Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

警告使用者:

這是甲類的資訊產品，在居住的環境中使用時，可能會造成無線電干

擾，在這種情況下，使用者會被要求採取某些適當的對策。

CONTENTS

FCC-A Radio Frequency Interference Statement ..........................................iii

Revision History ...........................................................................................iii

Safety Instructions ....................................................................................... v

Chapter1.GettingStarted ........................................................................ 1-1

Mainboard Specifications ....................................................................1-2

Mainboard Layout ...............................................................................1-4

MSI Special Features ...........................................................................1-5

Core Center....................................................................................1-5

Chapter2.HardwareSetup ....................................................................... 2-1

Quick Components Guide ....................................................................2-2

Central Processing Unit: CPU ..............................................................2-3

CPU Installation Procedures for Socket 940 ..................................2-4

Installing the CPU heatsink/cooler ................................................2-5

Memory................................................................................................2-6

Installing DDR Modules ............................................................... 2-6

Memory Population Rules.............................................................2-7

Power Supply .......................................................................................2-8

SSI 12V Power Connector: JPWR2 ................................................ 2-8

SSI 24-Pin Power Connector: JPR1 ................................................2-8

ATX 20-Pin Power Connector: ATX1 ............................................2-9

SSI 8-Pin Power Connector: JPWR1 ............................................ 2-10

ATX 12V Power Connector: JPW1 .............................................. 2-10

BackPanel .......................................................................................... 2-11

View of the Back Panel ................................................................ 2-11

Mouse Connector ....................................................................... 2-11

Keyboard Connector ................................................................... 2-12

SerialPorts:COM1&COM2 ....................................................... 2-12

USB Ports .................................................................................... 2-13

RJ-45LANJack:Giga-bitLAN .................................................... 2-13

ParallelPort.................................................................................. 2-14

Connectors......................................................................................... 2-15

Floppy Disk Drive Connector: FDD1........................................... 2-15

Hard Disk Connectors: IDE1 & IDE2 ........................................... 2-15

Fan Power Connectors: CFAN1/2, SFAN1/2, NBFAN1 ............... 2-16

LCDPanelConnector: JLCD1...................................................... 2-16

Serial ATA/Serial ATA RAID Connectors controlled

by VT8237: SATA1 & SATA2 ............................................. 2-17

Front Panel Connectors: JFP1 & JFP2 ......................................... 2-18

Front Panel Audio Connector: JAUD1 ........................................ 2-19

Front USB Connectors: JUSB1 & JUSB2..................................... 2-20

IrDA Infrared Module Header: JIR1 ............................................ 2-20

Chassis Intrusion Switch Connector: JCI1 .................................. 2-20

SCSILEDConnector: J7 .............................................................. 2-21

CD-InConnector:JCD1 ............................................................... 2-21

Aux Line-In Connector: JAUX1 .................................................. 2-21

Jumpers .............................................................................................. 2-22

Clear CMOS Jumper:JBAT1 ........................................................ 2-22

Slots ................................................................................................... 2-23

AGP (Accelerated Graphics Port) Slot......................................... 2-23

PCI (Peripheral Component Interconnect) Slots.......................... 2-23

PCI Interrupt Request Routing .................................................... 2-23

Chapter3.BIOS Setup.............................................................................. 3-1

Entering Setup......................................................................................3-3

Control Keys .................................................................................3-3

Getting Help .................................................................................. 3-3

The Main Menu ................................................................................... 3-4

Standard CMOS Features .................................................................... 3-6

Advanced BIOS Features .................................................................... 3-8

vii

Advanced Chipset Features............................................................... 3-11

Integrated Peripherals ........................................................................ 3-14

Power Management Setup ................................................................. 3-18

PNP/PCIConfiguration ...................................................................... 3-21

PCHealth ........................................................................................... 3-22

Frequency/Voltage Control ................................................................ 3-24

LoadFail-Safe/OptimizedDefaults ..................................................... 3-25

Set Supervisor/User Password........................................................... 3-26

AppendixA.VIAVT8237SerialATARAIDIntroduction .......................A-1

Introduction ........................................................................................A-2

BIOS Configuration .............................................................................A-4

Installating RAID Software & Drivers...............................................A-14

Using VIA RAID Tool ....................................................................... A-17

1-1

Getting Started

Thank you for purchasing the K8T Master2-FAR (MS-

9130 v1.x), an excellent ATX serverboard from MSI. Based on

the innovative VIA K8T 800 and VIA VT8237 chipsets for

optimal system efficiency, the K8T Master2-FAR mainboard

accommodates dual latest AMD Opteron DPTM processors in

the 940-pin lidded ceramic micro PGA package, and supports

up to four 144-bit DDR registered ECC DIMMs (at 200, 266 and

333 MHz) to provide the maximum of 8 GB memory capacity.

This mainboard provides a cost-effective and professional

solution for high-end workstation and server markets.

Chapter 1. Getting

Started

Getting Started

1-2

MS-9130 Workstation Mainboard

Mainboard Specifications

Target Market Segment

hTarget in the workstation/high-end desktop user.

CPU

hSupports dual Socket 940 for AMD Opteron DPTM (SledgeHammer DP)

processors.

hSupports Opteron DPTM 244 and higher.

hAMD x86-64 Technology.

- AMD’s 64-bit, x86 instruction set extensions.

- 64-bit integer registers, 48-bit virtual address, 40-bit physical address.

- Eight new 64-bit integer registers (16 total).

- Eight new 128-bit SSE/SSE2 registers (16 total).

Chipset

hVIAK8T800 Chipset (578-pinBGA)

- HyperTransportTM technology tunnel with side A (16 bits)

- Each side support transfer rates of 1600, 1200, 800, and 400 mega-

transfer per second.

hVIAVT8237Chipset (539-pin BGA)

- A 33 MHz/32-bit PCI 2.2 compliant bus interface supports up to 6

external devices.

- 16-bit 66MHz V-Link client Interface with total bandwidth of 1066MB/

sec.

- 2 SATA ports (RAID 0 or 1 function).

- LPC bus to connect peripherals such as super I/O and BIOS.

- Extensive ACPI-compliant power management.

- IOAPCIcontroller.

- AC’97 2.2 soft audio controller.

- USB hosts supporting 8 ports (USB 1.1 and USB 2.0 optional)

MainMemory

h144-bitDDRRegisterDIMM at 200/266/333 MHz.

hSupports DIMM sizes from 64 MB (128 Mb x 16 DRAMs) to 2 GB (1 Gb x 4

DRAMs), up to 8GB of memory in total.

hSupports interleaving memory within DIMMs.

hChip Kill ECC allows continuous correction of 4-bit errors in a failed x 4

memory device.

1-3

Getting Started

Slots

hOne AGP Pro 8x/4x slot.

hFour 32-bit/33 MHz PCI slots.

Networking

hBroadcomBCM5705LAN controller.

hProvides 1000/100/10 MB per second data rates

PowerManagementFeatures

hWake-on-LAN (WOL), USB, PCI, mouse.

hRTCalarm.

hSupports ACPI S1/S4/S5 functions.

SystemManagement

hSMBus(I2C).

hTemperature, voltage, and fan monitors.

hChassis intrusion.

BIOS

h4 Mb flash EEPROM.

hPCI 2.2 compliant, VPD, and DMI.

hPnP1.0A,SMBIOS 2.3,ACPI1.0A/2.0.

hSupports PXE boot protocol.

hAPM 1.2, WOL.

hPC2001 system design compliant.

OnboardPeripherals

h2 x IDE ports.

h1 x PS/2 keyboard port and 1 x PS/2 mouse port.

h2 x serial ports.

h1 x parallel port supports SPP/EPP/ECP mode.

h1xRJ-45port(with LEDs).

h6 x USB ports (front*4 and rear*2).

h2 x SATA ports.

Dimension

hATA Form Factor: 12.0 x 10.0 inch (H x W).

Mounting

h9 mounting holes (ATX Form standard).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere MSI Hauptplatine Handbücher

MSI

MSI B250M PRO-VH Bedienungsanleitung

MSI

MSI K8N SLI Platinum Bedienungsanleitung

MSI

MSI MS-9892 Bedienungsanleitung

MSI

MSI MAG B550M MORTAR WIFI Bedienungsanleitung

MSI

MSI PRO B760M-E DDR4 Bedienungsanleitung

MSI

MSI MAG Z690 TOMAHAWK Bedienungsanleitung

MSI

MSI X470 GAMING PLUS Bedienungsanleitung

MSI

MSI K9N4 - Ultra-F Motherboard - ATX Bedienungsanleitung

MSI

MSI B85M-E45 Bedienungsanleitung

MSI

MSI MS-7317 Bedienungsanleitung

MSI

MSI MS-6545 Bedienungsanleitung

MSI

MSI 7C56-002R Bedienungsanleitung

MSI

MSI MS-6380 Bedienungsanleitung

MSI

MSI Z170A-G43 PLUS Bedienungsanleitung

MSI

MSI P55-CD53 series Bedienungsanleitung

MSI

MSI Z87 MPOWER MAX Bedienungsanleitung

MSI

MSI K9A2GM V2 Series Bedienungsanleitung

MSI

MSI Z77A-G45 GAMING series Bedienungsanleitung

MSI

MSI MEG Z590 UNIFY Bedienungsanleitung

MSI

MSI MAG B660 TOMAHAWK WIFI DDR4 Bedienungsanleitung

MSI

MSI H57M-ED65 Series Bedienungsanleitung

MSI

MSI Z170A KRAIT GAMING Bedienungsanleitung

MSI

MSI G4M-e43 Bedienungsanleitung

MSI

MSI MS-6398 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
