MSI MSI-5149 Bedienungsanleitung

MSI-5149

Pentium TR10

Mainboard

Version 2.41

Intel and Pentium are registered trademarks of Intel Corporation.

PS/2 and OS/2 are registered trademarks of IBM Corporation.

Windows 95 and Windows NT are registered trademarks of Microsoft.

Netware is a registered trademark of Novell.

AMI is a registered trademark of American Megatrends Inc.

Award is a registered trademark of Award Software Inc.

AMD is a registered trademark of AMD.

Cyrix is a registered trademark of Cyrix.

Other brand, product names and trademarks are the properties of their respective

owners.

Manual Rev: 2.41

Release Date: September, 1997

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment

generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference, in which case the

user will be required to correct the interference at his own expense.

Notice 1

The changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the

equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order

to comply with the emission limits.

VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER

AU RESEAU.

iii

Edition

September 1997

This manual is copyrighted. No guarantee is given as to the

correctness of its contents. We reserve the right to make changes

without notification.

Trademarks

All trademarks used in this manual are the property of their respective

owners.

Table of Contents

Chapter 1: Introduction

System Board Features ----------------------------------------------- 1-2

System Board Layout-------------------------------------------------- 1-3

Chapter 2: Hardware Installation

Central Processing Unit: CPU--------------------------------------- 2-1

CPU Installation Procedure------------------------------------- 2-1

CPU Voltage Setting : JV1 - JV4, JV5------------------------ 2-3

CPU Speed and Voltage Setting:: SW1 & JV1-JV4, JV5 -- 2-4

CPU Fan Power Connector: JFAN----------------------------- 2-8

CMOS RAM Clear: JRTC-------------------------------------- 2-9

Memory Installation--------------------------------------------------- 2-10

Memory Bank Configuration----------------------------------- 2-10

Memory Installation Procedures--------------------------------- 2-11

Case Connector (JFP)------------------------------------------------- 2-15

Power Saving Switch Connector: JGS1----------------------------- 2-17

Power Saving LED Connector: JGL1------------------------------- 2-17

Serial Port Connectors: COM1 & COM2------------------------- 2-18

Parallel Port Connector: LPT-------------------------------------- 2-19

Floppy Disk Connector: FDD--------------------------------------- 2-20

Hard Disk Connectors: IDE1 & IDE2------------------------------ 2-21

Power Supply Connector: JPW1------------------------------------- 2-22

Keyboard Connector: ATKBD--------------------------------------- 2-23

Mouse Connector: JM1----------------------------------------------- 2-24

IrDA Infrared Module Connector: IR------------------------------- 2-25

USB Connector: USB (Reserved)----------------------------------- 2-25

Chapter 3 AMIBIOS USER’S GUIDE

Entering BIOS Setup-------------------------------------------------- 3-2

Standard CMOS Setup------------------------------------------------ 3-4

Advanced CMOS Setup----------------------------------------------- 3-5

Advanced Chipset Setup---------------------------------------------- 3-9

Power Management Setup-------------------------------------------- 3-11

PCI/Plug and Play Setup---------------------------------------------- 3-14

Peripheral Setup-------------------------------------------------------- 3-17

Chapter 4 AWARDBIOS USER’S GUIDE

Entering Setup --------------------------------------------------------- 4-2

The Main Menu ------------------------------------------------------- 4-3

Standard CMOS Setup------------------------------------------------ 4-4

BIOS Features Setup -------------------------------------------------- 4-5

Chipset Features Setup ----------------------------------------------- 4-8

Power Management Setup ------------------------------------------- 4-9

PNP/PCI Configuration ---------------------------------------------- 4-11

Load Setup Defaults -------------------------------------------------- 4-12

Integrated Peripherals------------------------------------------------- 4-13

Supervisor/User Password Setting----------------------------------- 4-15

IDE HDD Auto Detection-------------------------------------------- 4-16

CHAPTER 1 INTRODUCTION

Chapter 1

Introduction

The MS-5149 is a high-performance personal computer mainboard. This

mainboard supports Intel® Pentium® processors/Pentium® processor with

MMX™ technology, Cyrix®6x86/6x86L/6x86MXprocessorsandAMD®

K5/

K6 processors.The system board supports the Peripheral Component

Interconnect (PCI) Local Bus standard and provides four 32-bit PCI bus

master slots.

It has a cache subsytem that can be configured for 256K or 512 K cache

memory to improve overall throughput.

The system board uses the highly integrated Intel®83430VX Chipset to

support the PCI/ISA and Green standards, and to provide the Host/PCI

bridge. The Intel®82430VX chipset integrates all system control functions.

1-1

CHAPTER 1 INTRODUCTION

1.1 System Board Features

CPU

lSocket 7 supports Intel®Pentium®processors and Pentium® processor

with MMXTM technology

lTheCyrix®6x86/6x86L/6x86MXand AMD®K5/K6processors are also

supported.

Chip Set

lIntel®82430 VX chipset.

Cache Memory

lSupports 256K/512K pipelined burst cache memory.

lSupports Directed Map Organization and Write-Back cache policy.

Main Memory

lSupports four memory banks using four 72-pin SIMM sockets and two

168-pin DIMM sockets.

lUp to 128 Mbytes main memory.

lSupports EDO Hyper Page Mode DRAM or Standard Fast Page mode

DRAM and SDRAM

Slots

lFour 32-bit Master PCI Bus slots and three 16-bit ISA bus slots wherein

one shared slot that can be used as ISA or PCI.

On-Board Peripherals

lOn-BoardPeripherals include:

- 1 floppy port supports 2FDD

- 2 serial ports (COMA + COMB)

- 1 parallel port supports ECP or EPP mode

- 2 PCI Bus Master IDE ports (up to four IDE HDD)

- USB (reserved)

Dimensions

lBaby-AT®form factor

l26cm(L)x22cm(W)x4layerPCB

Mounting

l5 mounting holes 1-2

CHAPTER 1 INTRODUCTION

1.3 System Board Layout

1-3

SIMM1

FDD

PRN

COM1

DIMM2

DIMM1

HDD1

HDD2

437VX

JFAN

371SB

+ -

438VX

SRAM

438VX

SRAM

KBC

RTC

ATKBD

ISA 3

USB1

JRTC1

+5V +3V

JGL 1

JGS1 JFM1

JM1

SOCKET 7

ON DIP

134

156

BIOS

SIMM2

SIMM3

SIMM4

COM2

Power Connector

JP1

JV1

JV2

JV3

JV4

SW1

ISA 2

ISA 1

PCI 3

PCI 4

PCI 2

PCI 1

JV5

MS-5149

CHAPTER 2 HARDWARE INSTALLATION

Chapter 2

Hardware Installation

2.1 Central Processing Unit: CPU

TheMS-5149 motherboard operates withIntel®Pentium®processors/

Pentium®processorwithMMXtechnology,Cyrix®6x86/6x86L/6x86MX,

andAMD®5K86/K6processors. It could operate with 2.8V to 3.52V

processors. The motherboard provides a 321-pin ZIF Socket 7 for easy CPU

installation, a DIP switch (SW1) to set the proper speed for the CPU and a

Jumper block (JV1 - JV4, JV5) for setting the CPU voltage. The CPU should

always have a cooling fan attached to prevent overheating.

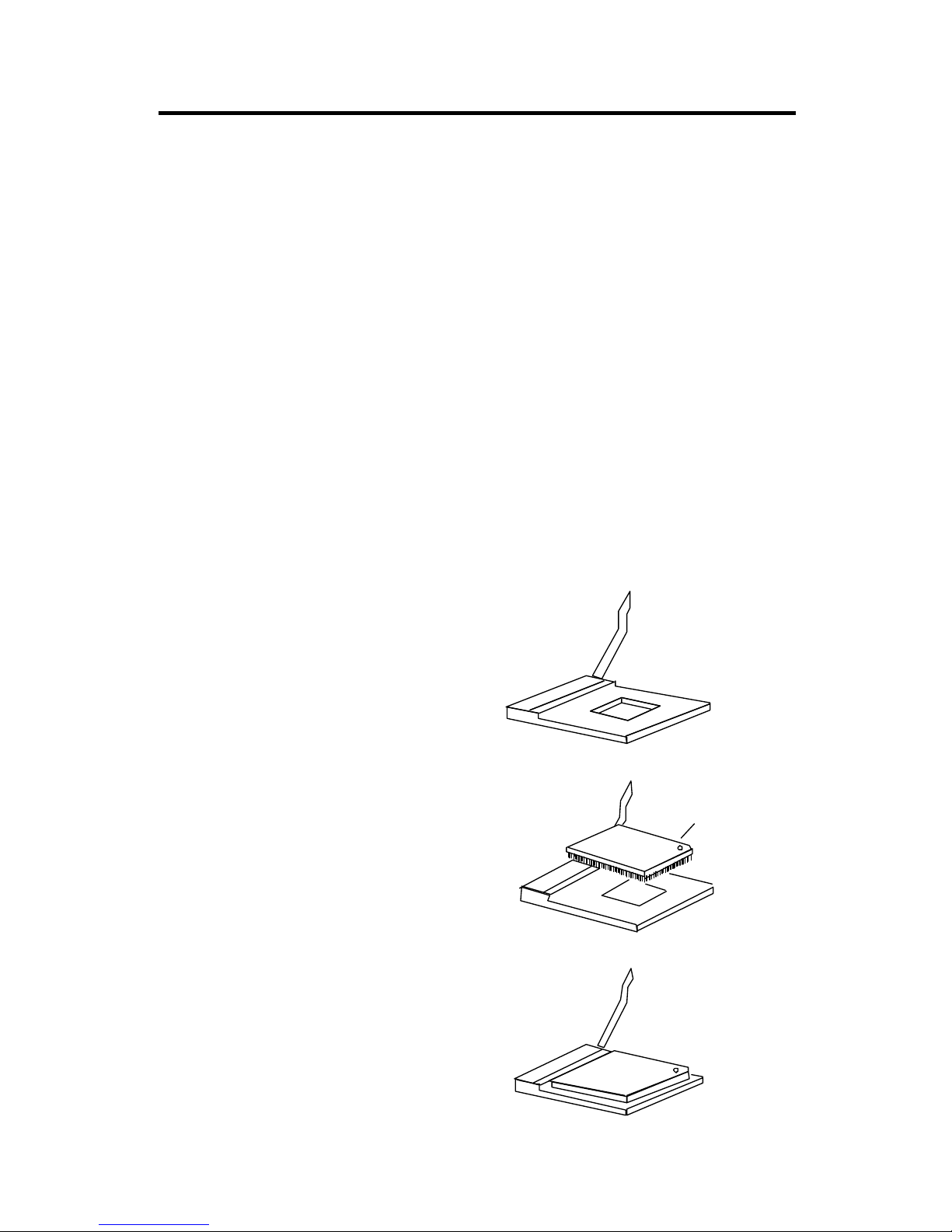

2.1-1 CPU Installation Procedure

1. Pull the lever sideways away

from the socket. Then raise

the lever up to a 90-degree

angle.

3. Press the lever down to

complete the installation.

2. Locate Pin 1 in the socket

and look for the white dot or

cut edge in the CPU. Match

Pin 1 with the white dot/cut

edge. Then insert the CPU.

It should insert easily.

CPU

OpenLever

Pin1

Sliding

Plate

White dot/

Cut edge

Lever

2-1
