100W (MS-N0A2) Disassemble Guide
■ 1、LCD MODULE ASSY
■ 2、WLAN
■ 3、BATTERY PACK
■4、USB ASSY
■5、THERMAL-KIT、DRAM AND SSD
■ 6、LOWER CASE ASSY
100W（MS-N0A2）Disassemble Guide
1、LCD MODULE ASSY
1.1 ：Separate the Cover and Bezel, first
remove the down side, and then from left
side to up side, last remove the right side.
1.2：Remove the LVDS and Touchpad cable as pic
shows.
1.3：Firstly remove the acid tape fixed the camera
cable, then remove the cable according to the
direction as pic shows.
100W（MS-N0A2）Disassemble Guide
1、LCD MODULE ASSY
1.4：Remove the Mylar as pic shows.
1.5：Remove the CMOS Camera module.
Component P/N Qty
Coaxial Cable K10-3005140-H58 1
Camera Module S1F-0001710-B36 1
1.6：Remove the 4 screws (M2*3mm), then remove
the display module.
Attention: the screw driver torque is 1.0-1.5Kgf-cm
Component P/N Qty
Display Module S1J-1D0A015-A90 1
Screw E43-1203003-H29 4
100W（MS-N0A2）Disassemble Guide
1、LCD MODULE ASSY
1.7：Remove the LVDS FPC as pic shows.
1.8：Remove the Bezel, and then remove the
touch.
Component P/N Qty
Touch OS1-N0A2002 1
100W（MS-N0A2）Disassemble Guide
2、WLAN

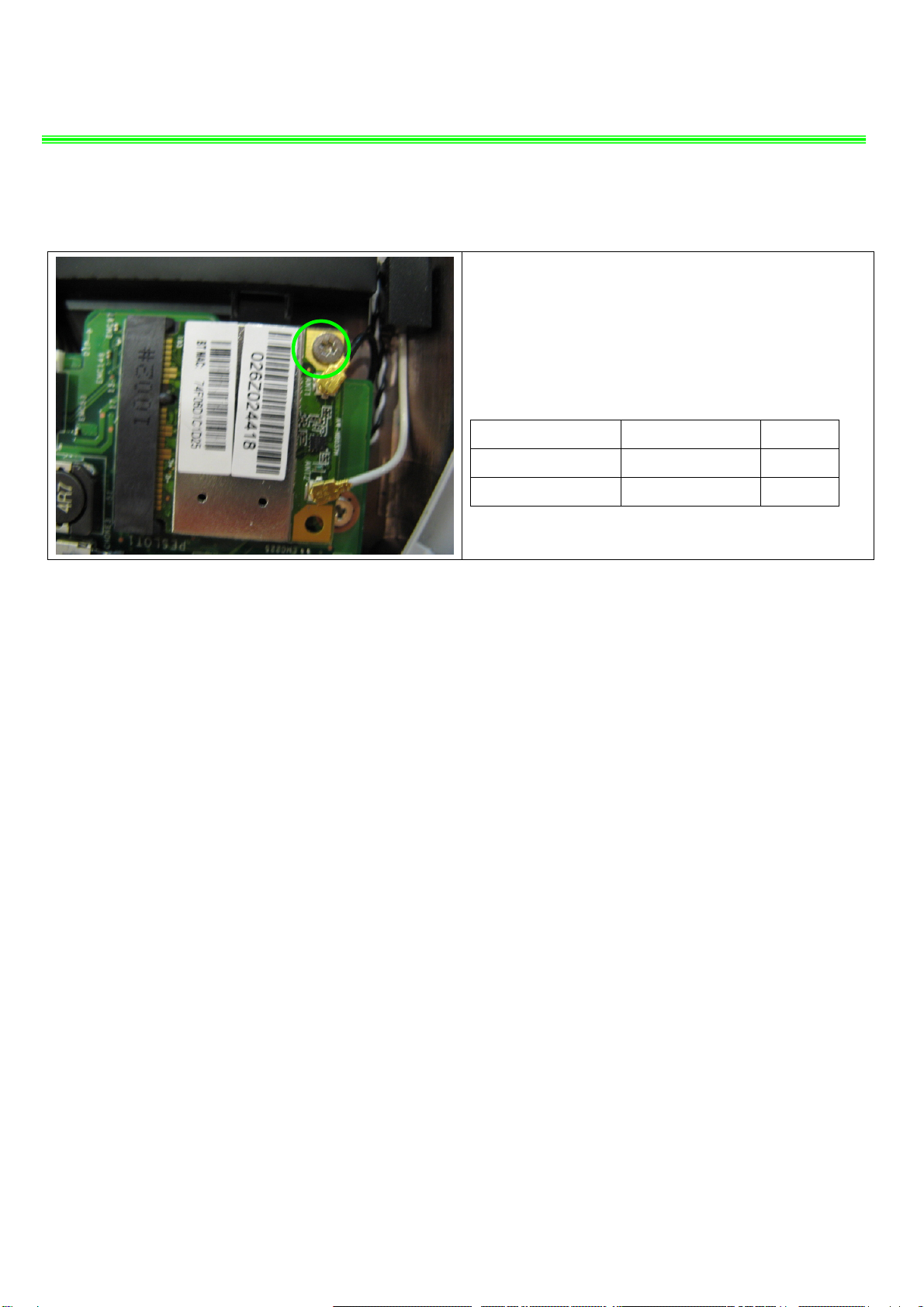

2.1：Remove the 1 screw(M2*3mm), then remove
the antenna and wireless card.
Attention: the screw driver torque is 1.0-1.5Kgf-cm
Component P/N Qty
Wireless card 605-3872-070 1
Screw E43-1203003-H29 1
100W（MS-N0A2）Disassemble Guide
3、BATTERY PACK
3.1：Remove the battery cable.
3.2：Remove the 3 screws (M2*3mm) that stabilize
the battery.
Attention: the screw driver torque is 1.0-1.5Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 3
Battery S9N-362AA10-SB3 1
100W（MS-N0A2）Disassemble Guide
4、USB ASSY
4.1：Remove the wireless antenna.
Component P/N Qty
Wireless Antenna S79-1800Y80-I05 1
4.2：Remove the 2 screws (M2*3mm) that stabilize
the Button Board.
Attention: the screw driver torque is 1.0-1.5Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 2
BUTTON Board 607-N0A22-01S 1
4.3：Remove the cable.
100W（MS-N0A2）Disassemble Guide
5、THERMAL-KIT、DRAM AND SSD
5.1：Push the two sides shielding of RAM as pic
shows; Then remove the RAM module according
the direction as pic shows.
Component P/N Qty
RAM Module S7C-S347202-H23 1
5.2: Remove the 2 screws (M2.5*5mm) and 2
screws (M2*3mm), after that remove the heatsink,
FAN and FAN cable.
Attention：the screw driver torque is 1.0-1.5Kgf-cm
Component P/N Qty
Screw E43-1255001-H29 2
Screw E43-1203003-H29 2
Fan E33-0601250-F05 1
Heatsink E31-0405120-F05 1
5.3: Remove the 2 screws (M2*3mm), after that
remove the SSD.
Attention：the screw driver torque is 1.0-1.5Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 2
SSD S78-1310030-SY7 1
2
1
100W（MS-N0A2）Disassemble Guide
6、LOWER CASE ASSY
6.1：Remove the Camera cable.
6.2：Remove the MIC cable.
6.3：Remove the speaker cable.
100W（MS-N0A2）Disassemble Guide
6、LOWER CASE ASSY
6.4：Remove the 2 screws (M2*3mm).
Attention：the screw driver torque is 1.0-1.5Kgf-cm
Component P/N Qty
Screw E43-1203003-H29 2
6.5：Remove the main board from Lower case.
Component P/N Qty
Main Board 607-N0A21-01S 1
