Chapter 1: Introduction

1.1. Introduction

IP Switch is designed to automatically power-cycle either one or both of its outlets

when either;

a) Internet connectivity is lost (resets Router/Modem to restart it), or

b) the network device being monitored is no longer responding in LAN.

It can also be used to:

a) remotely control outlets via instant messaging tool like Google Talk/ Hangouts, or

a Web User Interface.

b) perform scheduled power On / Off / Reset

c) manually control outlets by disabling the UIS (Uninterruptable Internet System)

function

IP Switch is useful where the Internet connection and accessibility to a remote site is

critical. It can be setup so that when the remote Mobile Broadband / Cable / Satellite

/ DSL / T1, etc. connection drops or if the remote router freezes-up, it will auto reset

the router to re-gain connectivity. IP Switch is also useful for:

1. Saving home users the trouble of constantly having to power-cycle their

router to re-gain Internet connectivity.

2. Resetting unresponsive device (for instance IP camera or NAS servers)

which otherwise will be inaccessible from remote.

3. IT Professionals who need to automatically or remotely reset devices

4. Preventing your connection from timing out or going dormant

5. Having devices on an automatic power schedule

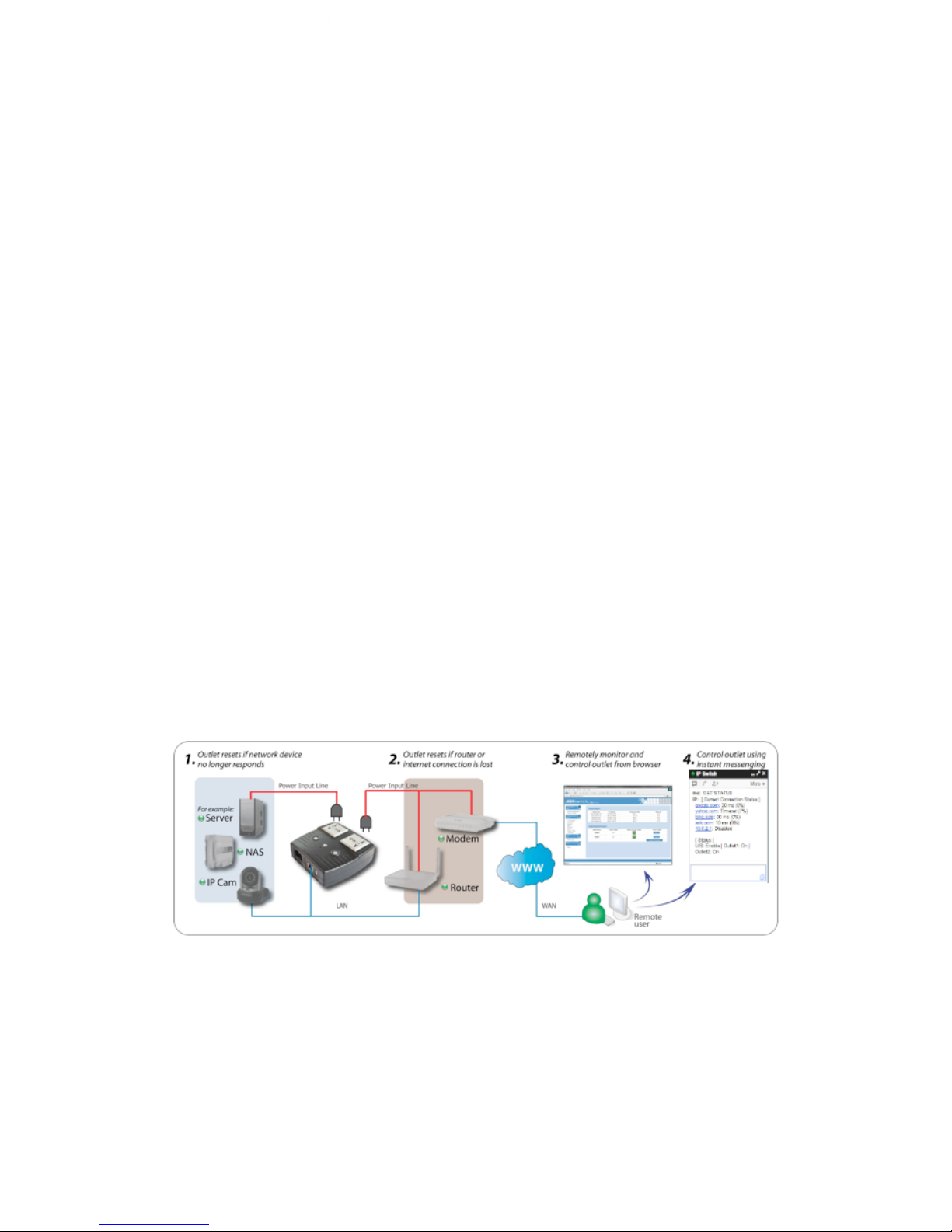

Generalized description of network connection:

Hardware Specifications:

1. Built-in Web Server with 32-Bit RISC CPU.

2. 10/100Mbps Fast Ethernet Network Access.

3. Support IE or Java-Enabled Web Browser.

4. Network Protocol: HTTP, TCP/IP, UDP, SMTP, Dynamic DNS, DNS Client,

SNTP, DHCP.

5. Operating Temperature: 0°C ~ 60°C; Operating Humidity: 10% ~ 90%

6. For indoor use only.

1.2. Hardware Specification

Model No:

UIS-322

Socket type

2x of either;

a) Universal socket (Type X)

b) USA (Type B, NEMA 5-15R)

AUST / China (Type I, AS / NZS3112, CCC)

Certifications

CE, FCC (tested to be compliant with FCC 47 CFR Part 2 and Part

15 Class B equipment regulations)

Electrical Rating

Input: 125~250V~50/60Hz

Output: 10A (for 2 sockets) & DC5V, 500mA (for USB port)

Breaker

10A (Thermal fuse)

Available Sockets

2x fixed

Internet Control-able

2x fixed socket

Power ON / OFF switch

Individual outlet power ON / OFF LED button

(Press & hold 2 seconds)

Power Indicator

Orange LED

Reset to Factory Default

Reset button located to the right of Ethernet port

Internet Indicator

Green LED

Web Server CPU

32-Bit RISC CPU

Supported browser

IE and Java

Supported Network

Protocols

HTTP, TCP/IP, UDP, SMTP, Dynamic DNS, DNS Client, SNTP,

BOOTP, DHCP.

Network Access

10/100 Base-T, RJ45 (Cat. 5)

Operating Environment

0°C to 60°C at 10% to 90% relative humidity.

For indoor use only.

Package

White Box

1.3. Network Diagram

The following Network diagrams applies to all IP Switch models.

Fig.1 IP Switch setup to perform auto reset of router and modem

Fig.2 IP Switch setup to keep Internet device alive.

Fig.3 IP Switch setup for remote control via Google Talk/ Hangouts or thru Web User

Interface.

1.4. LED Indicators Explained

LED Status for Internet & Outlets

LED

LED status

Condition description

Internet

Solid Green

Internet connection available and UIS (Uninterruptable

Internet System) mode has been activated.

Internet

Blinking Green

There is internet connection. UIS mode button has not

been activated. With UIS enabled however, this means

that at least one of the target sites is not responsive

(regardless of being assigned or not)

Internet

OFF

There is no internet connection.

Outlet

Solid Orange

Outlet is powered ON

Outlet

OFF

Outlet is powered OFF

Fig.4 LED Indicator

LED Status on LAN Port

Light color

Condition description

Green

When On: Internet speed is at 100M

When flashing: Data transmitting / receiving

Yellow

On: Internet correspond speed is 10M

Flash: Data transmitting / receiving

Fig.5 LAN LED Indicators

Fig.6 Description

Chapter 2: Hardware Setup

IP Switch hardware installation procedure:

Step 1:

Connect the power cord to device and wall

outlet. The two orange LED will light up,

indicating that the individual Outlet is ON.

Press the Orange LED for 2 seconds to

turn the Outlet On / Off.

Step 2:

Connect the power plug to IP Switch

outlet.

NOTE: In order for IP Switch to

maintain continuous Internet

connection or reset your modem/

router, the router power input must

be connected here.

Step 3:

Connect LAN cable from your router.

Step 4:

Make sure the Internet LED light is

blinking to show that the internet

connection is ready.

Press and hold the “UIS On/Off” button

(about 2 seconds) to activate internet

protection, which will allow the switch to

auto reset upon loss of connection to the

Target sites (i.e web site addresses or

local IP addresses). This completes the

basic setup.

Chapter 3: Software & Web Setup (For Advanced User)

3.1. Introduction

IP Switch is designed to work without having to install any software (see hardware

setup above). However, for the advanced user, the unit can be customized and

configured for remote access. This gives the user further control over the power

ports.

There are two ways to remotely control the outlets (access from WAN);

a. Using DDNS and Port forwarding, see Section 3.3 or;

b. Using Google Talk/ Hangouts instant messaging tool, see Section 3.4.

3.2. How to Locate & Access IP Switch in LAN

IP Switch comes with a built-in Web User Interface (Web UI) that allows for more

advanced control over the unit. There are two ways of accessing the Web UI in LAN

(i.e. when both IP Switch and PC is connected to the same router).

1. Utility program (available for Windows only)

2. Use a fixed IP (when there’s no DHCP server).

*Note–You can also use any LAN program to locate the WebUI URL for example:

Mac: LANscan https://itunes.apple.com/us/app/lanscan/id472226235?mt=12

Windows: Wireshark or Angry IP Scanner

3.2.1 Locate IP Switch in LAN using Utility program.

Step 1:

Download the Utility program from

http://3gstore.com/ipswitchupdates and

install.

Once installed Utility will locate and list the

IP Switch units.

NOTE: Utility can only discover the IP

Switch units that are located within the

same LAN or network. Be aware that

certain things such as VPN, antivirus,

admin privileges, etc, can prevent

Utility from locating your device(s).

Utility will show LAN IP if units are

connected to a Router. If you are

connecting to your computer directly,

you will need to manually assign an IP

address to the device via the ‘Network’

tab, as well as manually set an IP for

your computer’s Ethernet adapter.

Step 2:

Click “Launch Web User Interface” to run

Internet Explorer (or your default browser)

and access the IP address of the unit.

A password dialog box will appear.

By default; Username/ password is:

admin/ admin. Press “OK” to proceed.

Step 3:

You will be logged into the IP Switch.

3.2.2 Locate IP Switch in LAN using fixed IP.

By default, the IP Switch should obtain an IP address automatically from your router

using DHCP. If for some reason it does not, press and hold the UIS button for 10

seconds and it will revert to a fixed LAN IP of 192.168.0.100.

To access IP Switch Web interface in this mode:

Step 1:

Connect the LAN cable from IP Switch to your PC’s Ethernet port

Step 2:

Assign a fixed IP within the same subnet to your PC. Example: IP address -

192.168.0.20; Subnet Mask - 255.255.255.0; Gateway: 192.168.0.1

Step 3:

On your PC, launch a web browser and enter the IP: 192.168.0.100 - Login

username/ password: admin/ admin. You can now change this fixed IP address

to one that you prefer by going to Configuration Settings -> Network.
