Muller Elektronik S-Box Bedienungsanleitung

Installation and operating instructions

S-Box

Version: V1.20180627

30322616-02-EN

Read and follow these operating instructions.

Keep these operating instructions in a safe place for

later reference.

Company details

Installation and operating instructions

Product: S-Box

Document number: 30322616-02-EN

Original language: German

Müller-Elektronik GmbH & Co.KG

Franz-Kleine-Straße 18

33154 Salzkotten

Germany

Phone: ++49 (0) 5258 / 9834 - 0

Fax: ++49 (0) 5258 / 9834 - 90

Email: [email protected]

Homepage: http://www.mueller-elektronik.de

Document

Table of contents

V1.20180627

Table of contents

Product description

1.1

System requirements

1.2

Controls

Mounting and cabling

2.1

S-Box with Sub-D connector with joystick

2.2

S-Box with Sub-D connector without joystick

2.3

S-Box with CPC connector

Technical specifications

3.1

Technical data for the S-Box

3.2

Connector pin assignment

3.2.1

9-pin Sub-D connector

3.2.2

9-pin CPC connector

Item overview

Disposal

Product description

System requirements

30322616-02-EN

Product description

The S-Box is a section switching box with mechanical switches for the control of

sections and the main switch of an ISOBUS sprayer.

The S-Box can be also operated in addition to the ISOBUS joystick or separately for

the control of sprayer sections.

Versions exist for 5, 6, 7, 8, 9, 10, 8, 9, 11, 12, 13, and 18 sections.

System requirements

Depending on the number of sections that you operate with the S-Box, a specific

software version must be installed on your ISOBUS job computer.

Sections

SPRAYER-Controller

MIDI and MAXI 2.0

SPRAYER-Controller

MIDI and MAXI 3.0

5-13

5.2xx

7.0

6.4i

7.0

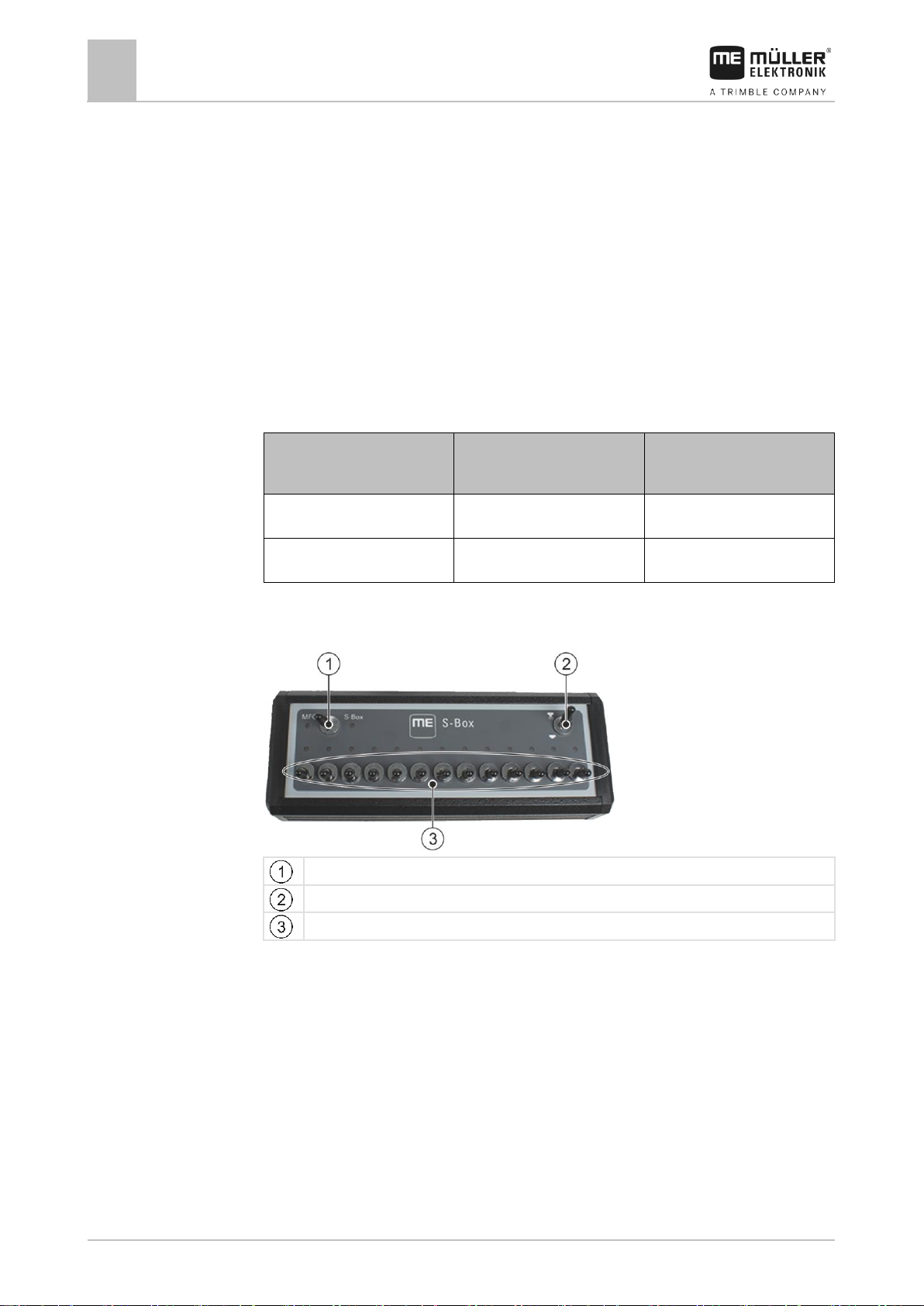

Controls

Function switch

Section main switch

Section switches

1.1

1.2

Product description

Controls

V1.20180627

Standard functions of the switches

Switch

Position

Meaning

Function switch

MFG

The S-Box has no function. The sections

can be operated via the joystick depending

on the selected mode.

S-Box

The S-Box is active. The S-Box symbol is

visible on the work screen of the sprayer.

The job computer evaluates the current

switch positions of the section main switch

and the section switches.

Section main switch

Activated

All sections activated via the section

switches are in the active state.

Deactivated

All sections activated via the section

switches are in the preselected state.

Section switches

Activated

The selected section is active or

preselected depending on the position of

the section main switch.

Deactivated

The selected section is not active.

Mounting and cabling

S-Box with Sub-D connector with joystick

30322616-02-EN

Mounting and cabling

There are three different ways you can install the S-Box:

▪Connect the S-Box to a joystick connected to the terminal via a Sub-D

connector.

▪Connect the S-Box to a terminal via a Sub-D connector.

▪Connect the S-Box to the ISOBUS In-Cab-Connector via a CPC connector.

S-Box with Sub-D connector with joystick

S-Box with Sub-D connector without joystick

S-Box with CPC connector

2.1

2.2

2.3

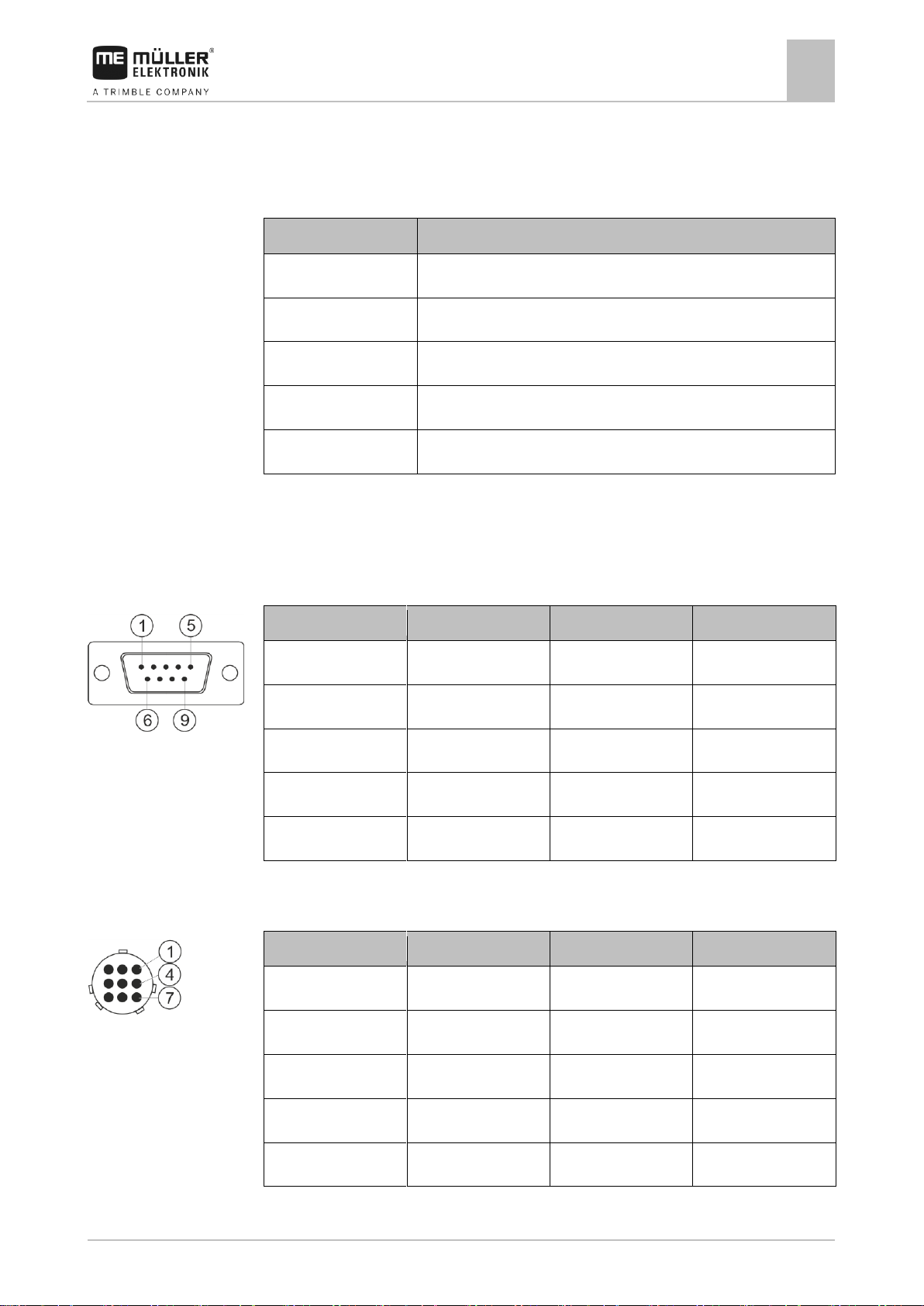

Technical specifications

Technical data for the S-Box

V1.20180627

Technical specifications

Technical data for the S-Box

Parameter

Value

Power supply

10.5 V - 16 V

Current consumption

Max. 0.7 A

Temperature

-20 °C –+70 °C

Housing

Aluminium continuous casting with plastic end caps

Protection rating

IP42

Connector pin assignment

9-pin Sub-D connector

Signal

CAN_L_Out

0 VE

CAN_L_In

CAN_H_In

CAN_0 V

CAN_EN_Out

CAN_H_Out

12 VE

CAN_EN_In

9-pin CPC connector

Signal

CAN_E

CAN_L_In

12 VE

CAN_L_Out

CAN_0 V

CAN_H_In

0 VE

CAN_H_Out

3.1

3.2

3.2.1

3.2.2

Item overview

30322616-02-EN

Item overview

Item

number

Designation

30322600

S-Box, 5 sections, with 9-pin Sub-D connector

30322602

S-Box, 6 sections, with 9-pin Sub-D connector

30322604

S-Box, 7 sections, with 9-pin Sub-D connector

30322606

S-Box, 8 sections, with 9-pin Sub-D connector

30322608

S-Box, 9 sections, with 9-pin Sub-D connector

30322610

S-Box, 10 sections, with 9-pin Sub-D connector

30322612

S-Box, 11 sections, with 9-pin Sub-D connector

30322614

S-Box, 12 sections, with 9-pin Sub-D connector

30322616

S-Box, 13 sections, with 9-pin Sub-D connector

30322618

S-Box, 18 sections, with 9-pin Sub-D connector

30322634

S-Box, 7 sections, with 9-pin CPC connector for third-party terminals

30322638

S-Box, 9 sections, with 9-pin CPC connector for third-party terminals

30322640

S-Box, 10 sections, with 9-pin CPC connector for third-party terminals

30322642

S-Box, 11 sections, with 9-pin CPC connector for third-party terminals

30322644

S-Box, 12 sections, with 9-pin CPC connector for third-party terminals

30322646

S-Box, 13 sections, with 9-pin CPC connector for third-party terminals

Disposal

V1.20180627

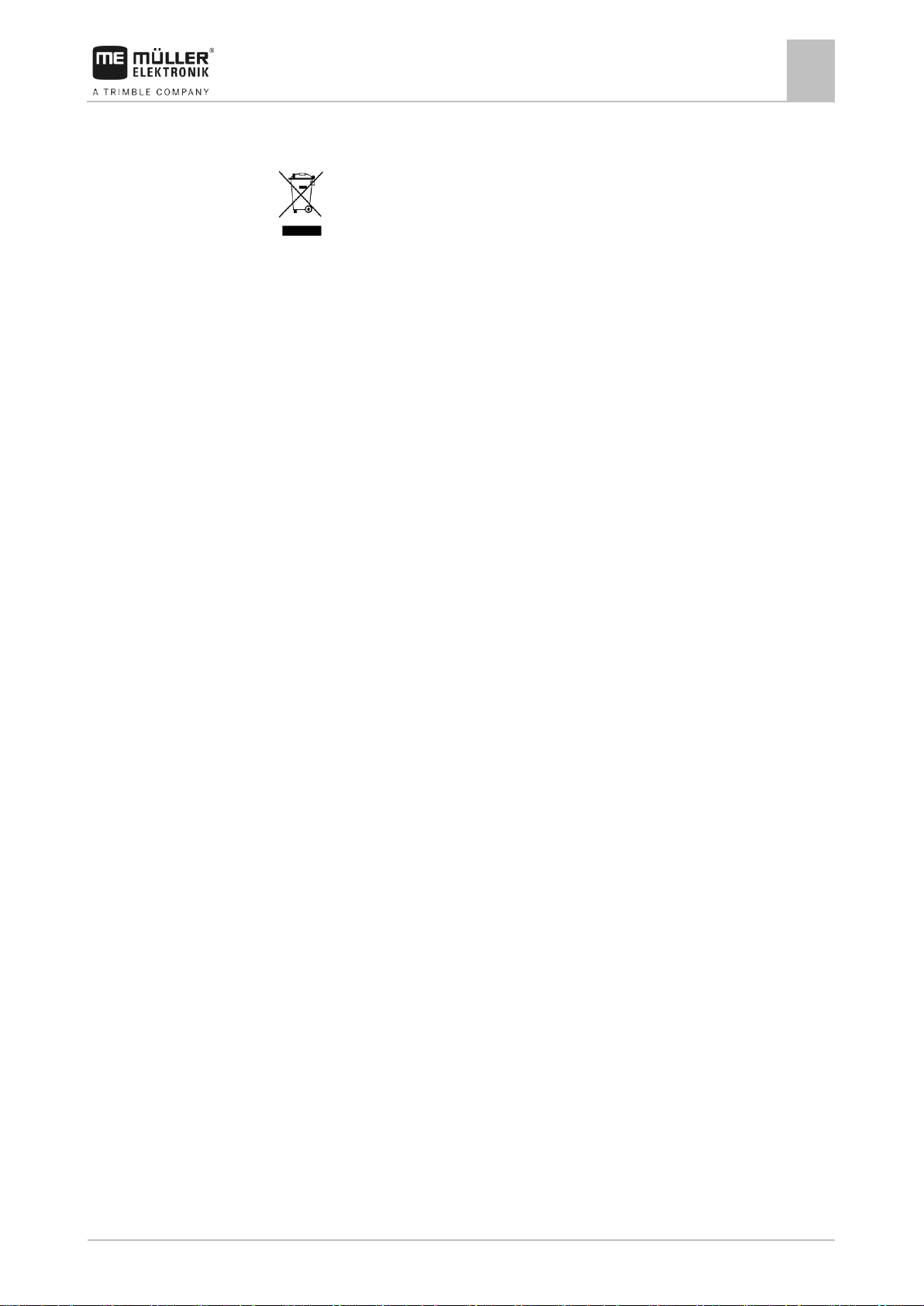

Disposal

When it has reached the end of its service life, please dispose of this

product as electronic scrap in accordance with all applicable waste

management laws.
