Multicomp pro 50-8891 Bedienungsanleitung

Page <1> V1.024/02/22

Newark.com/multicomp-pro

Farnell.com/multicomp-pro

sg.element14.com/b/multicomp-pro

Part Number: 50-8891

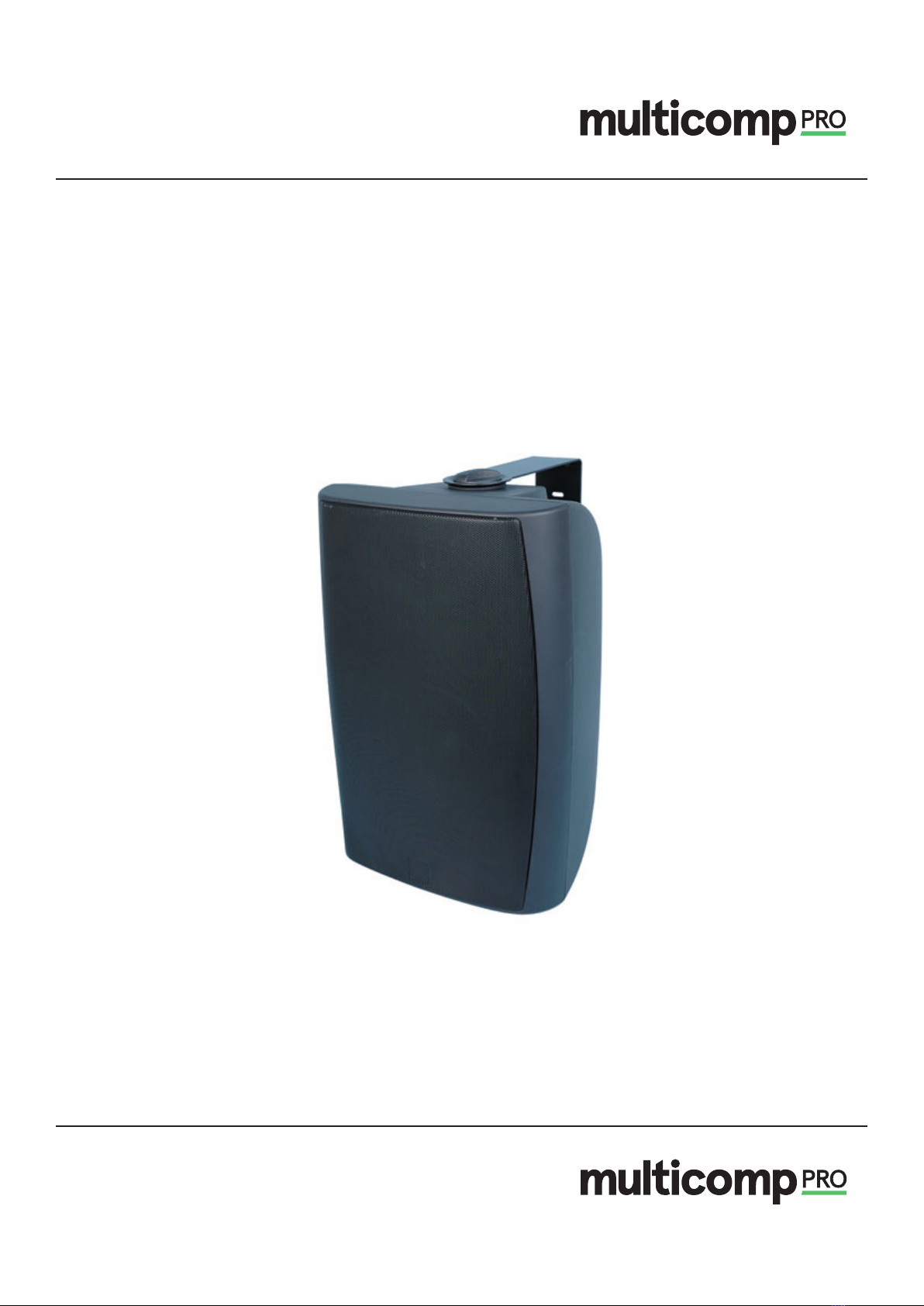

Wall Mount Speaker

User Manual

Page <2> V1.024/02/22

Newark.com/multicomp-pro

Farnell.com/multicomp-pro

sg.element14.com/b/multicomp-pro

Thank you for your recent purchase of this quality loudspeaker system. As with all MCM Custom Audio product, this speaker

design was carefully planned and thoroughly tested to meet the most stringent needs of today’s installation professionals. This

is the ideal speaker pair for a variety of uses including commercial buildings, shopping centres, schools, theme parks, and

indoor or outdoor residential use. To ensure maximum benet and enjoyment of this product, please read this instruction sheet

completely.

Safety Tips

• Please read this manual completely

• Pay special attention to safety warnings stated in this manual

• Keep this manual for future reference

Common warning signs and security

The following information and warnings are provided to ensure safety and prevent personal injury or equipment damage due to

improper installation. Please read before using and make sure you are aware and understand potential risks prior to installation.

Warning Inappropriate installation or use may cause injury, death or equipment/property damage.

When installed loudspeakers

• While speakers are designed for outdoor use, the should not be placed in a where they will be exposed to direct rain.

• Ensure the connected system is designed for this type of 8Ω or 70V speaker system and that connected wiring meets local

and national codes.

• Ensure that speakers are located in a secure and stable location. Shelves must be secure and able to support the weight.

Wall and pole mounts must be able to adequately support this product to prevent chance of property damage or injury.

• In 8Ω applications, make sure you are aware of impedance limitations of your sound equipment

• If using multiple pairs in an 8Ω installation, make sure you are aware of parallel and series wiring characteristics and the

overall e󰀨ect on amplier load.

• When using 70V/100V installation, it is critical that you do not exceed the total wattage of your amplier.

• Avoid speakers installed in the humidity or dust, direct contact with the sun, from the near-electric, or smoke or steam, may

cause re or electric shock.

Specications

Rated Power (100V) : 7.5W, 15W, 30W, 60W

Rated Power (70V) : 3.75W, 7.5W, 15W, 30W, 60W

Impedance : 1.3kΩ/ 670Ω/330Ω/165Ω/81Ω

Input : 70V/100V/8Ω

Crossover Frequencies : 3kHz

Sensitivity : 94dB

Max. SPL (1W/1M) : 112dB

Frequency Response : 100Hz to 20kHz

Dimensions : 450mm×295mm×290mm

Weight : 6.5kg

Colour : Black

Page <3> V1.024/02/22

Newark.com/multicomp-pro

Farnell.com/multicomp-pro

sg.element14.com/b/multicomp-pro

Diagram

Installation

When installing speakers, note the overall weight of 6.5kg (14.3lbs.) each. This must be considered when selecting a mounting

location and method. It is the responsibility of the installer to ensure proper mounting to ensure optimum operation and safety.

Important Notice : This data sheet and its contents (the “Information”) belong to the members of the AVNET group of companies (the “Group”) or are licensed to it. No licence is granted for

the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change

without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness,

any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make

any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or

where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its

negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019.
