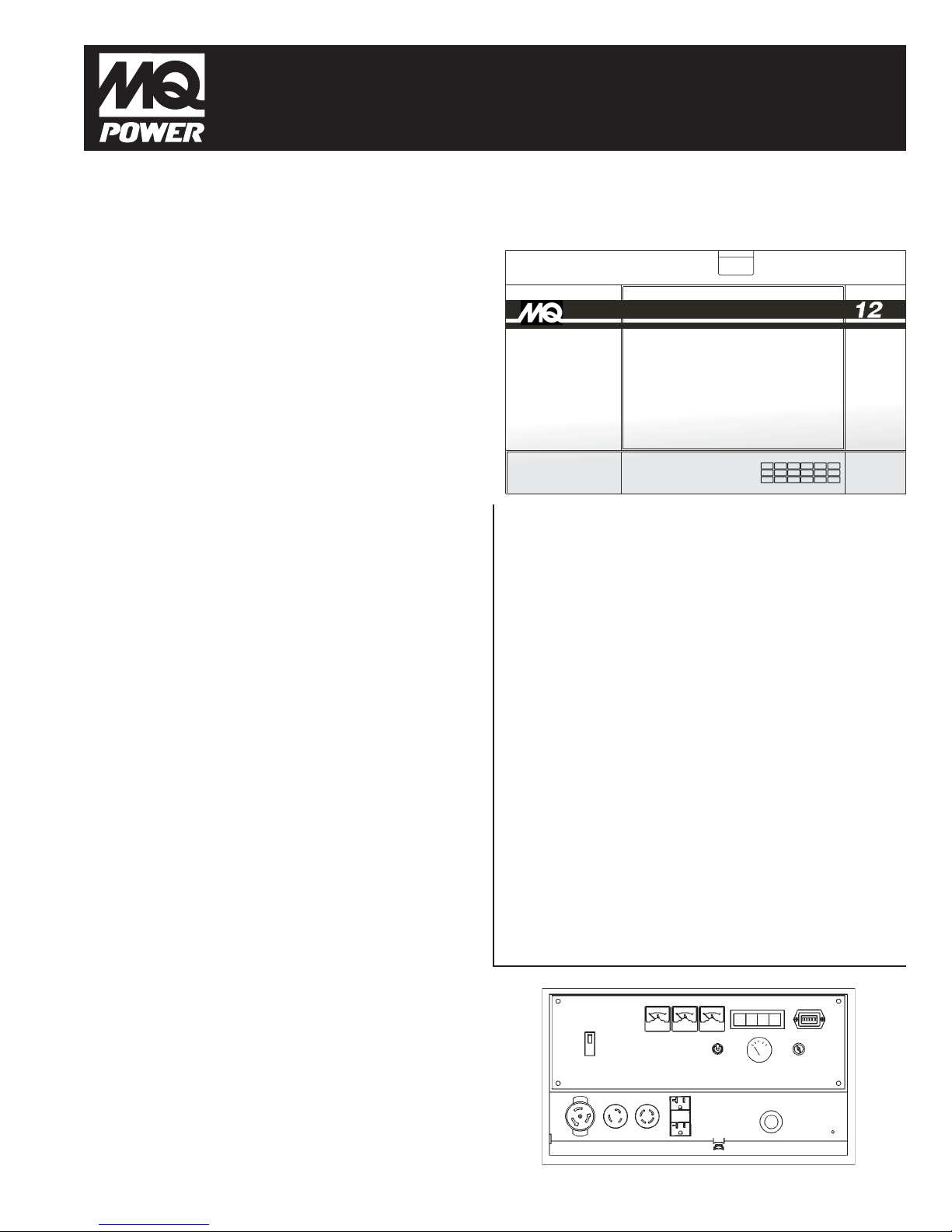

MULTIQUIP WhisperWatt TLG12SPX Konfigurationshandbuch

TLG12SPX

WhisperWatt

Generator

WhisperWatt

™

12kW

Prime Rating: 12 kW (12 kVA)

Standby Rating: 13 kW (13 kVA)

60 Hertz, 3600 RPM

Single Phase, 1.0 Power Factor

120V - 50A (2 sets)

240V - 50A

Standard Features:

■

Excellent voltage regulation - Power is controlled within

±0.5 % of mean voltage. External regulator.

■

Complete power panel - Fully covered; NEMA standard

single phase receptacles including:

1 - 120V, 20A Duplex with GFI 5-20R

1 - 120V, 30A Twistlock L5-30R

1 - 240V, 30A Twistlock L6-30R

1 - 120/240 50A Twistlock CS6369

■

Main Line Circuit Breaker - Thermal-magnetic trip

mechanism, 50 Amp rating.

■

Brushless generator design - Reduces services and

maintenance requirements.

■

Automatic safety shutdown system - Monitors the engine

oil pressure and water temperature; warning lights indicate

abnormal conditions.

■

Sound attenuated, weather resistant, steel housing -

Standard baffles and insulation to reduce operating noise

levels to as low as 68 db(A) at 23 feet.

■

Easy Maintenance Design - Quick, direct access to all

filters. External fluid drain extensions allow fast, easy

service.

■

Fully lockable enclosure - Allows safe unattended

operation. Single point lifting capability.

■

Complete Instrumentation - Easy-to-read, Illuminated

instrument panel.

Optional Features:

■

Electronic Governor Control (Crystal Sync) - Maintains

frequency to within ±0.25% from no load to full load. A

manual idle switch is also available.

■

Automatic Start/Stop Control - Automatically starts and

monitors generator during power failure when used in

conjunction with a transfer switch.

■

Jacket Water Heater - For easy starting in cold climates.

■

Solid State Battery Charger - Provides fully automatic and

self-adjusting charging to the generator’s battery system.

■

Fuel/Water Filter - Effectively separates damaging

condensation from fuel.

■

Emergency Stop Switch

■

Single Wall or Double Wall Sub-base Fuel Tanks -

Additional fuel cell for extended run time. Available in a

variety of configurations.

■

Trailer Mounted Package - Highway legal trailer with single

axle configuration. Extra capacity fuel tank is also available.

Control Panel Instrumentation:

■

Frequency meter

■

Voltage regulator control

■

AC ammeter

■

Hour meter

■

AC voltmeter

■

AC circuit breaker

■

Manual speed control

■

Alarm lamp (oil, water,

■

Keyed start switch charging, pre-heat)

■

Fuel gauge

TLG12SPX4 Rev 5

TLG12SPX

WhisperWatt

Generator

Your MQ Power dealer is:

Rev 5 (09-08) TLG12SPX4

MQ POWER

POST OFFICE BOX 6254

CARSON, CA 90749

310-537-3700 • 800-421-1244

FAX: 310-632-2656

E-MAIL: mqpower@multiquip.com

WEBSITE: www.mqpower.com

Engine Specifications

Make Kubota

Model D902

Emissions EPA Tier 4 Certified

Design 3 cylinder, 4-cycle, water cooled,

Swirl Chamber

Displacement 898 cc

Bore 2.83 in. (72 mm)

Stroke 2.89 in. (73.6 mm)

SAE Gross Horsepower 24.8 hp

Starting System Electric

Battery 12V 45 Ah x 1

Oil Capacity 0.95 gal (3.6 L)

Coolant Capacity 0.92 gal (3.5 L)

Fuel System

Fuel Tank Capacity 13.5 gal (51.1 L)

Fuel Consumption

Diesel Fuel At % of Load gal/hr (L/hr)

100% 1.4 (5.2)

75% 1.1 (4.4)

50% 1.0 (3.8)

25% 0.8 (3.1)

Weights and Measurements

Housing (mm)

ABC

56 in. (1422) 34 in. (863) 28 in. (711)

Appx. Dry Weight 858 lbs (389 kg)

Appx. Wet Weight 964 lbs (437 kg)

Max. Lifting

Point Capacity 1600 lbs (735 kg)

Generator Specifications

Typ e 2-Pole, Revolving field, Self-ventilated,

Drip-proof, Single bearing

Excitation Brushless with AVR

Number of Leads 4 Leads

Frequency 60 Hz

Insulation Class F

Generator RPM 3600

Power Factor 1.0

Armature Connection Series

Voltage Regulation (no load to full load) ±0.5%

Sound Level dB(A) Full load 23 ft. 68

Warranty*

Kubota Engine

24 months or 2000 hours from date of purchase (whichever occurs first).

Generator

24 months or 2000 hours from date of purchase (whichever occurs first).

*Refer to the express written, one-year limited warranty sheet for additional information.

Trailer

12 months excluding normal wear items.

Generator is not intended for use in enclosed areas or where free flow of air is restricted.

Backfeed to a utility system can cause electrocution and/or property damage. Do not

connect to any building’s electrical system except through an approved device.

Specifications are subject to change without notice.

Top View
