Multitech MTD-H5 Bedienungsanleitung

Beneﬁts

• Quick deployments to shorten

time to market

• Long and stable life cycles

• Certiﬁed and carrier approved

The QuickCarrier™USB-D is a cellular dongle designed and

built for M2M (machine-to-machine) applications. That means

it is built for long life while delivering reliable

data connectivity. The QuickCarrier USB-D is

designed for quick implementation of cellular

technology – allowing customers to easily

connect their devices to the internet.

Features

·3G GSM and CDMA models available

·Internal antenna

·Short Message Services (SMS)

·Drivers for Windows®and Linux

·AT command compatible

·Certiﬁed and carrier approved

·Two-year warranty

QuickCarrier™USB-D

USB Cellular Modems

Cellular

Network

Send +

Receive

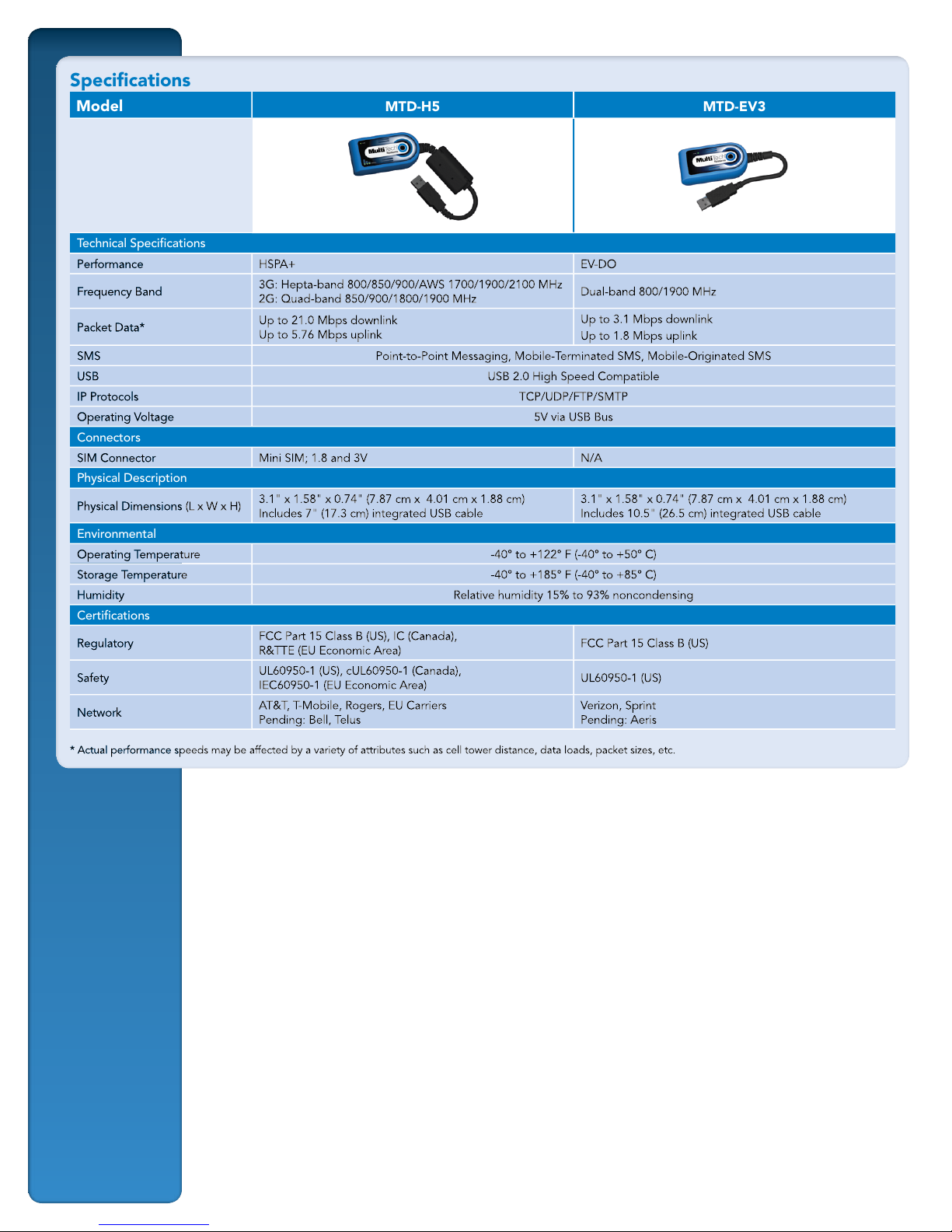

Speciﬁcations

Model MTD-H5 MTD-EV3

Technical Speciﬁcations

Connectors

Physical Description

Environmental

Certiﬁcations

Speciﬁcations

Model MTD-H5 MTD-EV3

Technical Speciﬁcations

Connectors

Physical Description

Environmental

Certiﬁcations

Services & Warranty

Multi-Tech’s comprehensive Support

Services programs offer a full array of

options to suit your speciﬁc needs. These

services are aimed at protecting your

investment, extending the life of your

solution or product, and reducing total

cost of ownership. Our seasoned technical

experts, with an average tenure of more

than 10 years, can walk you through smooth

installations, troubleshoot issues and help

you with conﬁgurations. Products include a

2-year warranty that can be extended up to

5 years via Multi-Tech’s Extended Warranty

program, which offers the convenience of

Overnight Service* for optimal uptime.

Extended Warranty & Overnight

Services

To give you peace-of-mind and protect your

investment, our Extended Warranty Service

Plans ensure your Multi-Tech products are

covered for 1, 2, or 3 years beyond the

manufacturer’s warranty with an optional

Overnight Service plan*.

Installation Support

Multi-Tech’s Installation Support Service

delivers priority service with the ability to

work one-on-one with an experienced

Multi-Tech technical support engineer, to

guide you through the installation process

for our products.

Technical Support Services

At Multi-Tech, we’re committed to

providing you personalized attention and

quality service while providing you a quick

response to your product support needs.

We have several options of support for you

to choose from.

For additional information on Support

Services as well as other service

offerings, please contact your Multi-Tech

representative or visit

www.multitech.com/support.go.

* Overnight replacement service is currently

available for U.S. customers.

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, MN 55112 U.S.A.

Tel: 763-785-3500

Toll-Free: 800-328-9717

Email: [email protected]

www.multitech.com

EMEA Headquarters

Multi-Tech Systems (EMEA)

Unit 1, Thames Court

2 Richﬁeld Avenue

Reading, Berkshire RG1 8EQ

United Kingdom

Tel: +(44) 118 959 7774

Email: [email protected]

Services & Warranty

Multi-Tech’s comprehensive Support

Services programs offer a full array of

options to suit your speciﬁc needs. These

services are aimed at protecting your

investment, extending the life of your

solution or product, and reducing total

cost of ownership. Our seasoned technical

experts, with an average tenure of more

than 10 years, can walk you through smooth

installations, troubleshoot issues and help

you with conﬁgurations. Products include a

2-year warranty that can be extended up to

5 years via Multi-Tech’s Extended Warranty

program, which offers the convenience of

Overnight Service* for optimal uptime.

Extended Warranty & Overnight

Services

To give you peace-of-mind and protect your

investment, our Extended Warranty Service

Plans ensure your Multi-Tech products are

covered for 1, 2, or 3 years beyond the

manufacturer’s warranty with an optional

Overnight Service plan*.

Installation Support

Multi-Tech’s Installation Support Service

delivers priority service with the ability to

work one-on-one with an experienced

Multi-Tech technical support engineer, to

guide you through the installation process

for our products.

Technical Support Services

At Multi-Tech, we’re committed to

providing you personalized attention and

quality service while providing you a quick

response to your product support needs.

We have several options of support for you

to choose from.

For additional information on Support

Services as well as other service

offerings, please contact your Multi-Tech

representative or visit

www.multitech.com/support.go.

* Overnight replacement service is currently

available for U.S. customers.

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, MN 55112 U.S.A.

Tel: 763-785-3500

Toll-Free: 800-328-9717

Email: [email protected]

www.multitech.com

EMEA Headquarters

Multi-Tech Systems (EMEA)

Unit 1, Thames Court

2 Richﬁeld Avenue

Reading, Berkshire RG1 8EQ

United Kingdom

Tel: +(44) 118 959 7774

Email: [email protected]

Highlights

Applications

With 3G packet data rates, the QuickCarrier

USB-D will support highly data-intensive

applications such as remote video

surveillance, multimedia POS/ATM terminals

as well as other lower data rate applications.

M2M Design

The QuickCarrier USB-D is speciﬁcally

designed for M2M customers. Many cellular

dongles available today are designed and

built with consumers in mind. Consequently,

the modem is constantly undergoing change.

For M2M applications this is extremely

troublesome. The QuickCarrier USB-D

delivers reliable 3G connectivity in a platform

customers can depend on.

Ordering Information

GSM Products

Product Description Region

MTD-H5 HSPA+ USB Modem Global

CDMA Products

Product Description Region

MTD-EV3-N2 EV-DO USB Modem for Sprint Networks US

MTD-EV3-N3 EV-DO USB Modem for Verizon Wireless Networks US

MTD-EV3-N16 EV-DO USB Modem for Aeris Networks US

Use ordering codes for speciﬁc build options. Go to www.multitech.com for detailed product model

numbers.
