Multitech MultiModem MT5634ZBA-V.92 Bedienungsanleitung
MultiModemZBA Quick Start Guide
Model MT5634ZBA-V92
P/N 82090150 Revision A (9/7/01)
Copyright © 2001 by Multi-Tech Systems, Inc.
All rights reserved. This publication may not be reproduced, in whole or in part,
without prior expressed written permission from Multi-Tech Systems, Inc.
Multi-Tech Systems, Inc. makes no representations or warranties with respect to
the contents hereof and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose. Furthermore, Multi-Tech
Systems, Inc. reserves the right to revise this publication and to make changes in
the content hereof without obligation of Multi-Tech Systems, Inc. to notify any
person or organization of such revisions or changes.
Trademarks
MultiModemZBA, Multi-Tech, and the Multi-Tech logo are trademarks of Multi-Tech
Systems, Inc.
Adobe and Acrobat are trademarks of Adobe Systems Incorporated. Microsoft,
Windows, Windows 95, Windows 98, Windows Me, Windows NT, and Windows
2000 are either registered trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries. All other brand and product names
mentioned in this publication are trademarks or registered trademarks of their
respective companies.
Notice
Though the MT5634ZBA-V92 modem is capable of 56K bps download perfor-
mance, line impairments, public telephone infrastructure, and other external
technological factors may prevent maximum 56K bps connections.
Multi-Tech Systems, Inc.
2205 Woodale Drive
Mounds View, MN 55112
U.S.A
Telephone (763) 785-3500 or (800) 328-9717
Fax (763) 785-9874
Technical Support (800) 972-2439
Internet
http://www.multitech.com
MultiModemZBA Quick Start Guide
1
Getting Started
Congratulations on your purchase of the MT5634ZBA-V92
modem. You have acquired one of the finest V.92 data/fax
modems available today from one of the world’s oldest modem
manufacturers: Multitech Systems, Inc.
This
Quick Start Guide
will help you install and set up your
modem. A full
User Guide
containing instructions on how to
use the V.92 Modem on Hold feature, detailed configuration
information, a command reference, a troubleshooting chapter,
and an index can be found on the MultiModemZBA CD. The
User Guide
, which is in Adobe Acrobat 4.0 format, can be viewed
on your monitor or printed out for easy reference.
What Is in Your Modem Package?
Your modem package has several components. Please make
sure you have them all before trying to operate your modem.
The MT5634ZBA-V92 package should contain:
4
An MT5634ZBA-V92 data/fax modem
4
A set of four self-adhesive plastic feet
4
This
Quick Start Guide
4
A MultiModemZBA CD containing modem drivers and the
User Guide
4
A CD containing data communications and other programs
4
A universal power supply
4
A 9-pin to 25-pin serial cable
MultiModemZBA Quick Start Guide
2
A localization kit is included with the modem in some countries
and purchased separately in others. The kit can include any or
all of the following items:
4
An RJ-11 telephone cable
4
An adapter to connect the RJ-11 cable to your local telephone
service
4
A country-specific power cord

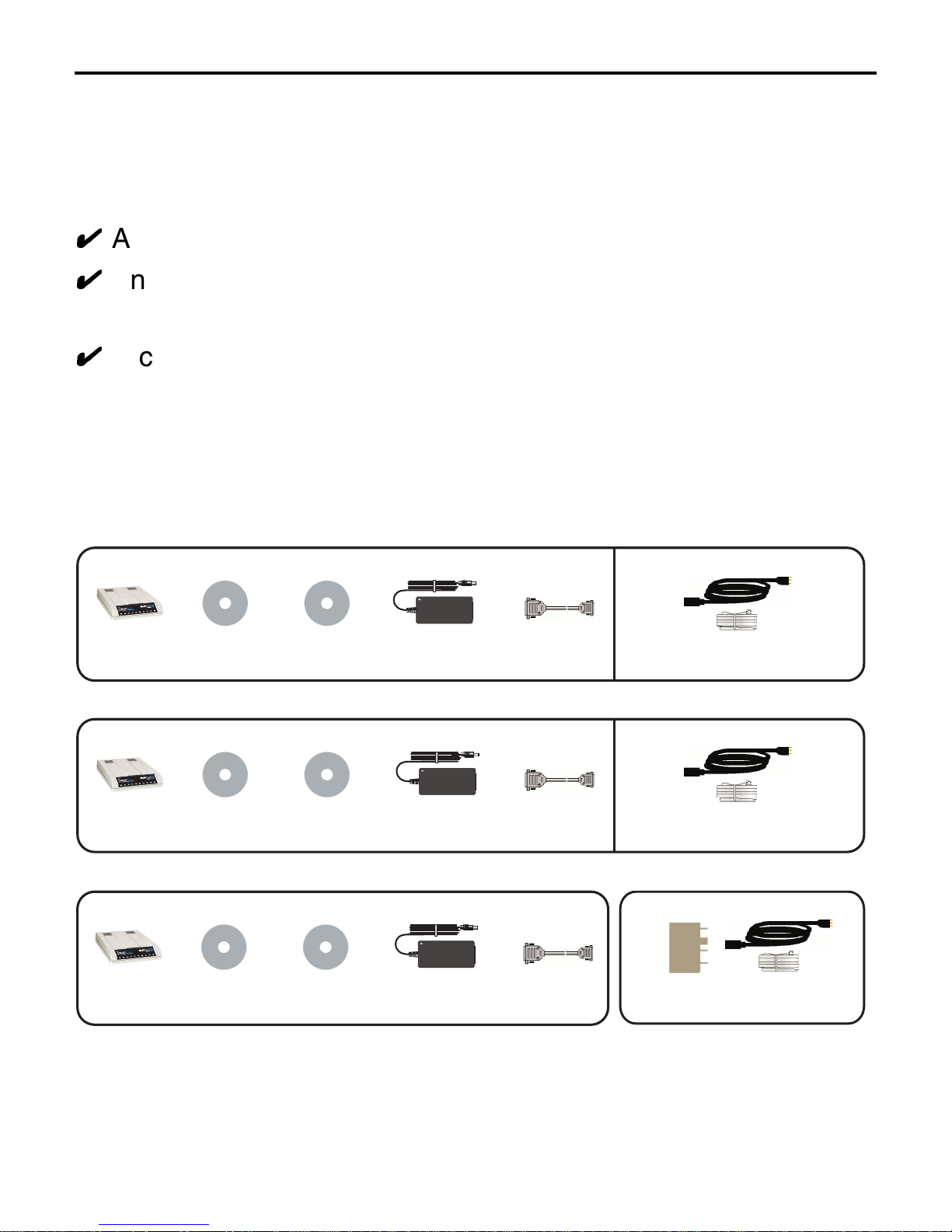

The following illustration shows how the modem is packaged
for different counties. Please use this information to check the
contents of your package.
(Ordered separately)
Telco adaptor, power cord
and RJ-11 phone cable
LK-ZBA-XXXX
odem Installation
CD
Program
CD
Universal
power supply
RS-232
cable
T5634ZBA-V92
U.S.-style power cord
and RJ-11 phone cable
LK-ZBA-US/NA
odem Installation
CD
Program
CD
Universal
power supply
RS-232
cable
T5634ZBA-V92
Euro-style power cord
and RJ-11 phone cable
LK-ZBA-Euro
odem Installation
CD
Program
CD
Universal
power supply
RS-232
cable
T5634ZBA-V92
Figure 1. Localization kits
MultiModemZBA Quick Start Guide
3
The localization kit order number for your country can be found
at
http://www.multitech.com/GlobalModem/order/localkits.asp
If any item is missing, please contact Multi-Tech Systems or your
dealer/distributor (see Appendix D of the User Guide for informa-
tion on contacting Multi-Tech via telephone, fax, or the Internet).
What You Will Need
In addition to the contents of the MultiModemZBA package,
you will need the following items:
4
A computer with an unused serial port
4
A nearby AC power outlet
4
A nearby telephone line
4
A nearby two-wire leased line jack or terminals (optional)
Safety Warnings
•Use this product only with UL- and CUL-listed computers.
•To reduce the risk of fire, use only 26 AWG (.41mm) or
larger telephone wiring.
•Never install telephone wiring during a lightning storm.
•Never install a telephone jack in a wet location unless the
jack is specifically designed for wet locations.
•Never touch uninsulated telephone wires or terminals unless
the telephone line has been disconnected at the network
interface.
•Use caution when installing or modifying telephone lines.
MultiModemZBA Quick Start Guide
4
•Avoid using a telephone during an electrical storm; there is
a risk of electrical shock from lightning.
•Do not use a telephone in the vicinity of a gas leak.
Step 1: Mount the Feet
The modem comes with a strip of self-adhesive plastic feet,
which you can optionally mount on the modem. To install the
feet, simply peel them from their paper strip and press them
into the recesses on the bottom of the modem.
Figure 2. Mounting the feet
Step 2: Change the Internal Jumpers
This step is required only if you intend to use the modem on a
leased line. For leased line instructions, see the
User Guide
.
MultiModemZBA Quick Start Guide
5
Step 3: Connect the Modem to Your System
Turn off your computer. Placing the modem in a convenient
location, connect it to your computer’s serial port, to the tele-
phone line or leased line, to AC power, and, optionally, to your
telephone.
PWR RS232 PHONE LINE
Figure 3. MultiModemZBA connections
MultiModemZBA Quick Start Guide
6
RS232 Connection
Plug one end of the serial cable into the RS232 connector on
the modem, and the other end into a serial port connector on
your computer, such as COM1 or COM2.
Dial-Up Connection
Plug one end of the modular telephone cable into the modem’s
LINE jack, and the other end into a standard telephone wall jack.
Note: The LINE jack is not interchangeable with the PHONE
jack. Do not plug the telephone into the LINE jack or the line
cable into the PHONE jack.
Note: Regulatory agencies may impose certain restrictions on
equipment connected to public telephone systems. For more
information, see Appendix A in the
User Guide
.
Two-Wire Leased Line Connection
Plug one end of a two-wire telephone cable into the modem’s
LINE jack, and connect the other end to a two-wire leased line
wall jack or terminals.
Note: Before you can use the modem on a leased line, you
must first change the internal jumpers. See “Step 2: Change
the Internal Jumpers”in the
User Guide
.
MultiModemZBA Quick Start Guide
7
Telephone Connection
If you want to connect a telephone to the same line as the
modem, plug it into the modem’s PHONE jack.
Note: The PHONE jack is not interchangeable with the LINE
jack. Do not plug the telephone into the LINE jack or the line
cable into the PHONE jack.
Power Connection
The power switch is located on the right side of the modem.
Make sure it is set to OFF. Plug the the universal power supply
into the PWR jack on the modem. Then plug one end of the
country-specific power supply cord into the universal power
supply and the other end into a power outlet or power strip.
Note: Use only the power supply supplied with the modem.
Use of any other power supply voids the warranty and can
damage the modem.
Power-On Test
Test the modem by turning it on. When you turn it on, the mo-
dem performs a diagnostic self-test, after which the 56 indica-
tor should light. If this does not happen, check that the power
switch is on, the power supply is solidly connected, and the AC
outlet is live. If these measures do not work, see Chapter 8 of
the
User Guide
, “Solving Problems.”
MultiModemZBA Quick Start Guide
8
Step 4: Install the Modem Driver
If you use Windows 95 or above, you must install the modem
driver. The MTMoh Modem on Hold program is installed at the
same time (see Chapter 7 in the
User Guide
). If you use another
operating system, please see the
User Guide
.
1. Make sure your modem is connected properly, and then
turn on your computer. Windows should detect your new
modem and open the Install New Modem wizard.
Note: If Windows cannot find a modem, your modem may
be turned off, it may be plugged into the wrong connector
on your computer, or the serial cable may be faulty. See
“None of the LEDs Light When the Modem Is Turned On”
and “The Modem Does Not Respond to Commands”in
Chapter 8 of the
User Guide
, “Solving Problems.”
2. In the Install New Modem wizard, select Don’t detect my
modem; I will select it from a list, and then click Next. A
dialog box with a list of manufacturers and a list of modem
models appears.
3. Insert the MultiModemZBA compact disc into your CD-ROM
drive, and then click Have Disk. (If the disc menu appears,
you may either close it or ignore it for now.)
4. In the Install from Disk dialog box, select the drive the
disc is in, and then click OK.
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Andere Multitech Modem Handbücher
Multitech
Multitech SocketModem Anwendungshandbuch
Multitech
Multitech MultiModem II BA-Series Bedienungsanleitung
Multitech
Multitech CommPlete MT5634HD8 Bedienungsanleitung
Multitech
Multitech Multimobile MT10100ZL-X/E Bedienungsanleitung
Multitech
Multitech MultiModem ZBA MT9234ZBA Bedienungsanleitung
Multitech
Multitech SocketModem Anwendungshandbuch
Multitech
Multitech MultiConnect Cell 100 Series MTC-EV3 Bedienungsanleitung
Multitech
Multitech MMH2834 Technisches Handbuch
Multitech
Multitech SocketModem MTSMC-L Series Anwendungshandbuch
Multitech
Multitech MultiMobile MT5634ZLX Bedienungsanleitung
Multitech
Multitech MultiModem II MT5600BA-V.92 Bedienungsanleitung
Multitech
Multitech MultiModem GPRS with Ethernet Interface Bedienungsanleitung
Multitech
Multitech MTCBA-C-EN-N1 Bedienungsanleitung
Multitech
Multitech MultiConnect Cell 100 series Bedienungsanleitung
Multitech
Multitech MultMobile MT9234MU Bedienungsanleitung
Multitech
Multitech MultiModem MT3334ZDX Bedienungsanleitung
Multitech
Multitech MultiModem MT5600ZDX Bedienungsanleitung
Multitech
Multitech MT202TD Bedienungsanleitung
Multitech
Multitech MultiModem DID Bedienungsanleitung
Multitech
Multitech MultiModem MTCBA?H3?U1 Bedienungsanleitung
Beliebte Modem Handbücher anderer Marken
Davicom
Davicom DM562AP Bedienungsanleitung
EpiValley
EpiValley TATA indicom SXC-1080 Bedienungsanleitung
Zte
Zte WiMAX Bedienungsanleitung
Intelimax
Intelimax MA-2060 Bedienungsanleitung
SMC Networks
SMC Networks D3CM1604V Gebrauchs- und Pflegehandbuch
Telstra
Telstra Wi-Fi 4G Advanced Pro X Bedienungsanleitung
US Robotics
US Robotics 3453C Bedienungsanleitung
MaxTech
MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Bedienungsanleitung
Zte
Zte MF823 Bedienungsanleitung
Four-Faith
Four-Faith F1403 Bedienungsanleitung
Sierra Wireless
Sierra Wireless AIRLINK MP595W Bedienungsanleitung
Gemtek
Gemtek WiMAX WIXFBR-103 Bedienungsanleitung
