Murata MEX-1031 Bedienungsanleitung

Barometric Pressure Sensor

Evaluation Board: MEX-1031

Quick Start Guide

Downloaded from Arrow.com.

Barometric Pressure Sensor

Evaluation Board: MEX-1031

•This Evaluation Board will support you to study and check how our

barometric pressure sensor(ZPA2326-0311A) works and its

performance.

–Specifications

•Rated Voltage : 3.3V

•Output signal : I2C

•Dimension : 12.5×8mm

Downloaded from Arrow.com.Downloaded from Arrow.com.

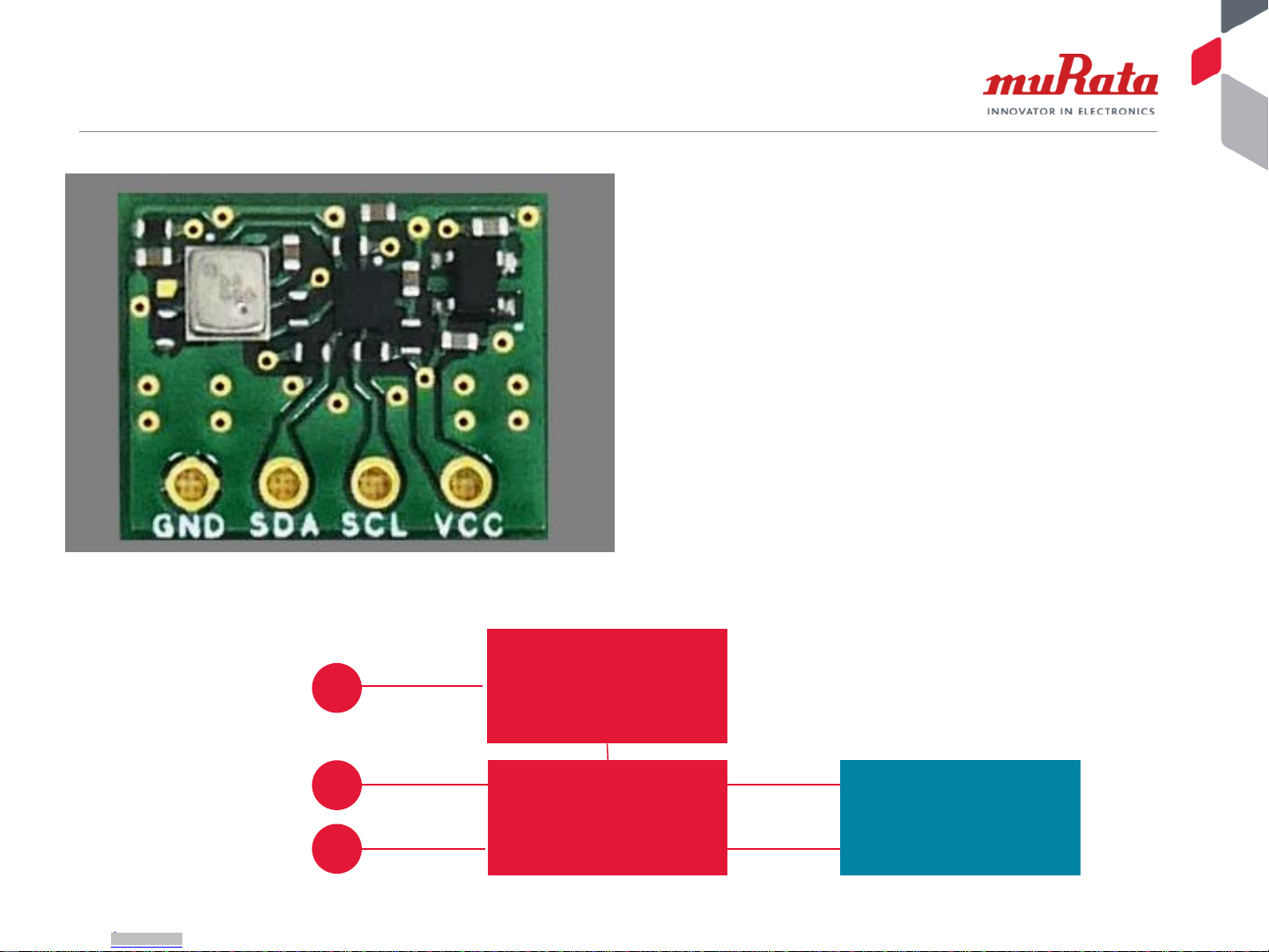

Quick Start Guide : Barometric Pressure Sensor

Barometric Pressure sensor device is

capacitive type MEMS device combined

with ASIC with I2C interface. Since its

voltage level is 1.8V, there’s level converter

on this board, which enables user to

connect directly to 3.3V system.

Via I2C, we can obtain barometric pressure

and temperature info as well.

I2C(SDA)

I2C(SCL) Barometric

Pressure

Sensor

Level

Converter

3.3V 1.8V

DC/DC

3.3V1.8V

VCC(3.3V)

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Software Operation

For operation modes and I2C commands, please refer to specsheet.

In our sample code, we operate it in one-shot mode and obtain air pressure and

temperature twice a second.

Main loop()

Read data from register

Calculation

& Display

Wait 500ms

Configure into

ONESHOT mode

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Pin Connection

Pin connection to each CPU board is also

instructed in sample code.

Evaluation Board



Arduino

UNO

VCC

3.3V

SCL

SDA

GND

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.
