Murphy PowerCore MPC-20 Bedienungsanleitung
00-02-0897
2015-10-22
Section 40
PowerCore
Model MPC-20
Installation Manual
*Approved by CSA for non-hazardous locations (Group Safety Publication IEC 61010-
1 Third Edition).
Products covered in this document comply with European Council electromagnetic
compatibility directive 2004/108/EC and electrical safety directive 2006/95/EC.
In order to consistently bring you the highest quality, full featured products, we reserve the
right to change our specifications and designs at any time. The latest version of this
manual can be found at www.fwmurphy.com.
BEFORE BEGINNING INSTALLATION OF THIS MURPHY
PRODUCT:
•Read and follow all installation instructions.
•Visually inspect this product before installation for
any damage during shipping.
•Disconnect all electrical power to the machine.
Failure to do this before welding can result in
damage to the panel and/or its components.
•It is your responsibility to have a qualified
technician install the unit and make sure the
installation conforms to local codes Including but
not limited to double insulation and fire
containment.
•Observe all Warnings and Cautions in each
section of these instructions.
•The MPC-20 is designed for use in industrial
environments for monitoring and control which
include engine driven pumps, compressors,
grinders, chippers, & rock crushers. Potential
difficulties may exist when ensuring
electromagnetic compatibility in other
environments due to conducted as well as
radiated disturbances.
Contact Enovation Controls Technical Service if you
have any questions or concerns at: +1 918-317-4100.
IMPORTANT! Improper use and operation of electronic
products can be dangerous. It is required that point-of-
operation guarding devices be installed and maintained.
All such devices must meet OSHA and ANSI Machine
safety standards. The manufacturer shall not accept
any responsibility for installation, application, or safety
of systems.
Table of Contents
Operations Manual Location...............................................1
Hardware Installation ...........................................................1
Inspecting Package Contents.....................................1
Tools Needed .............................................................1
Installation ..................................................................2
Dimensions for Installation .................................................4
Wiring Instructions ...............................................................6
PIN Specifications for FCI Connection .......................6
Connector...................................................................7
Accessories ...........................................................................8
Specifications........................................................................9
Electrical.....................................................................9
Environmental...........................................................10
Mechanical ...............................................................10
Mounting Template............................................................ 11
Panel Opening Cutout ..............................................11
-NOTES-
LENS CLEANING PROCEDURES
The lens on the MPC-20 is composed of Polycarbonate
materials. Use only mild soap and water to clean the
lens/display window. Evidence of improper cleaning
techniques or chemicals includes cracks, smear marks,
scratches, or fogged/hazy lenses.
Section 40 00-02-0897
2015-10-22 - 1-
Operations Manual Location
After installation, please review the MPC-20 Operations Manual
prior to placing the controller into service. In order to access the
MPC-20 Operation Manual please visit the MPC-20 product
page to download or print a copy located under the literature tab.
www.fwmurphy.com/mpc-20
Hardware Installation
The following instructions will guide you through installing the
MPC-20 controller.
Inspecting Package Contents
Before attempting to install the product, it is recommended that
you ensure all parts are accounted for and inspect each item for
damage (which sometimes occurs during shipping). The items
included in the box are:
MPC-20 Controller kit – P/N 40-70-0490 includes:
•MPC-20 Controller
•4 (6-32) mounting screws
•4 (#6) lock washers
•P/N 00-02-0897 MPC-20 Installation Manual
Tools Needed
Use a ¼” drill bit to make the approximately sized 0.250”
mounting holes.
Section 40 00-02-0897
2015-10-22 - 2-
Installation
Preparing the Enclosed Panel
Determine the location of the MPC-20 on the customer-supplied
flat or enclosed panel. The suitability of the enclosure is subject
to investigation by the local authority having jurisdiction at the
time of the installation.
Use the Installation Template measurements (included at the
end of the manual) as a guideline to cut a hole to the specified
dimensions. Drill holes where indicated on the template for the
mounting screws. Please read IMPORTANT note below:
IMPORTANT: When using the paper template
from the manual, please be aware that the drawing
is not represented to scale. The measurements
provided are accurate, and should be referred to
when preparing the placement of the unit.
Once the holes are cut, check to make sure that there is
adequate clearance for the edges of the MPC-20 housing to
mount flush against the outside surface of your panel.
Recommended torque for tightening the mounting screws is 7.5-
inch pounds. Although not required, only Blue polycarbonate
compatible thread lock should be used for the MPC-20 mounting
screws if thread lock is desired.
Insert the MPC-20 controller from the front side of the panel and
install the four mounting screws and lock washers. Ensure that
there is a good seal between the controller, the gasket (if used)
and the mounting panel. Plan the MPC-20 mounting for easy
wiring and access.
Section 40 00-02-0897
2015-10-22 - 3-
Installing the Display
Place the back side of the display through the opening in the
panel.
1. Use the 4 screws to line up the unit with the drilled holes.
2. Ensure that the back of the case is flush.
3. Use the screws provided to tighten unit to the panel. Use
the appropriate wrench or socket to tighten. Torque
screws to 7.5 inch pounds.
MPC-20 Controller
(Accessory Item)
MPC Mounting /
Panel Gasket
Customer-supplied
panel
#6 Lock Washers
#6-32 Mounting
Screws
Section 40 00-02-0897
2015-10-22 - 4-
Dimensions for Installation
Front Inches
[mm]
Section 40 00-02-0897
2015-10-22 - 5-
Back
Side View
Section 40 00-02-0897
2015-10-22 - 6-
Wiring Instructions
PIN Specifications for FCI Connection
Wiring of this device must meet all applicable electrical codes.
Battery lines to the unit must all come through a single 10 Amp or less
fuse or circuit breaker to retain the controller’s CSA rating.
Andere Handbücher für PowerCore MPC-20
1
Inhaltsverzeichnis
Andere Murphy Controller Handbücher
Murphy
Murphy MX4 Series Bedienungsanleitung
Murphy
Murphy Auto-Start/Stop Controller Cascade Bedienungsanleitung
Murphy
Murphy iGUARD Bedienungsanleitung
Murphy
Murphy Automatic Engine Controller EA150 Bedienungsanleitung
Murphy
Murphy PowerCore TEC-10 Bedienungsanleitung
Murphy
Murphy Autostart AS731 Bedienungsanleitung
Murphy
Murphy Autostart 705 AS705S Bedienungsanleitung
Murphy
Murphy Selectronic Micro-Controller Series 1500 Bedienungsanleitung
Murphy

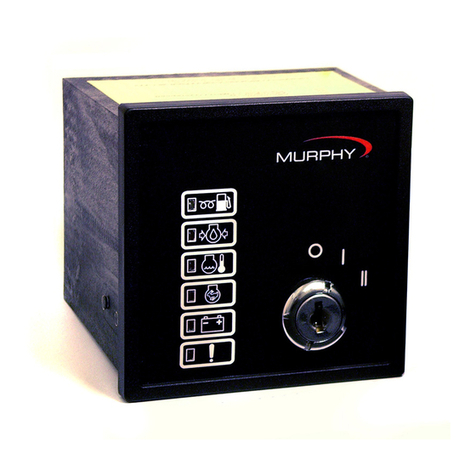

Murphy Keystart 9700 Bedienungsanleitung
