LCD-19 Installation Instruction
UNPACKING INSTRUCTIONS
!Carefully open the carton, remove contents and lay out on cardboard or other
protective surface to avoid damage.
!Check package contents against the Supplied Parts List in the next page to assure
that all components were received undamaged. Do not use damaged or defective
parts.
!Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before
beginning the installation, and carefully follow all instructions contained herein. Use
proper safety equipment during installation.
Please call a qualified installation contractor for help if you:
!If you don't understand these directions or have any doubts about the safety of the
installation.
!If you are uncertain about the nature of your wall, consult a qualified installation
contractor.
Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaims any and all liability for injury or damage
arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
1

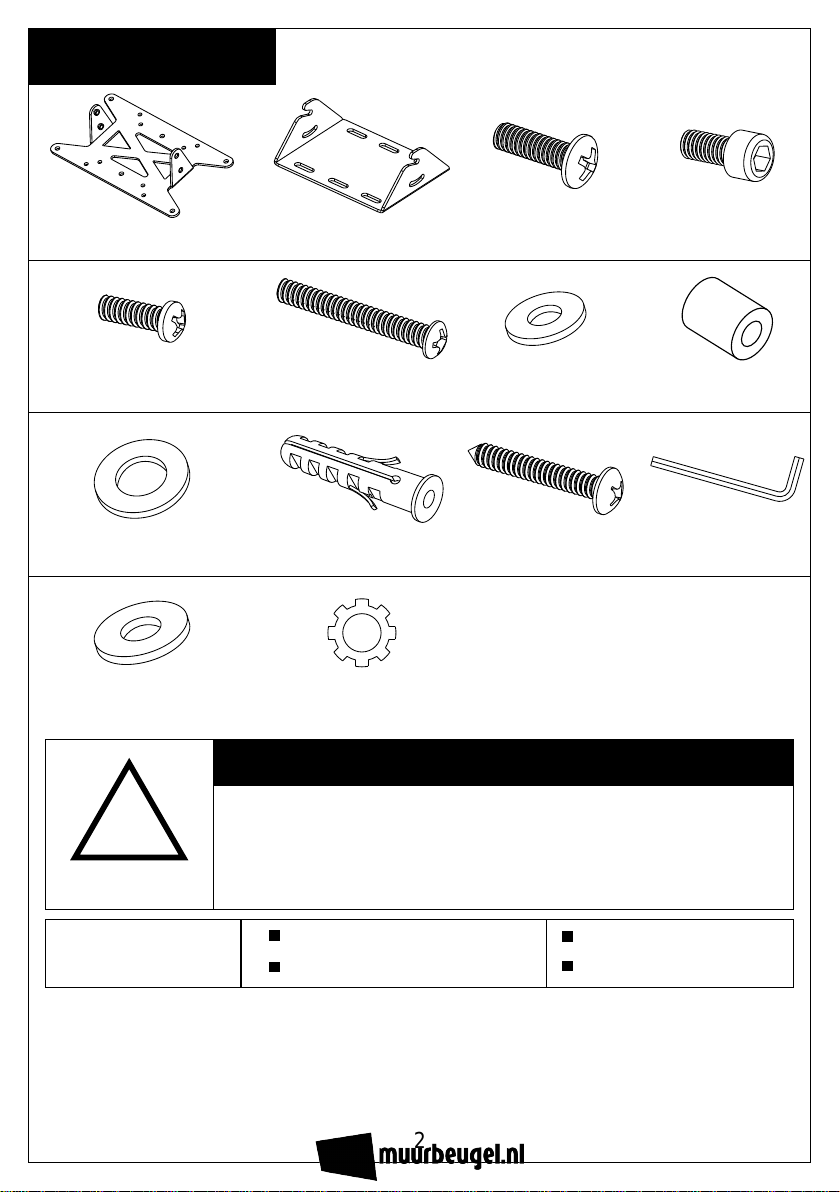

Supplied Parts List
2
CAUTION!
WARNING
!This TV mount must be securely attached to the
vertical wall. If the mount is not properly
installed it may fall, resulting in possible injury
and/or damage.
Note: The mounting components and hardware supplied in this package are
not designed for installations to walls with steel studs or to cinder block walls.
If the hardware you need for your installation is not included, please consult
your local hardware store for proper mounting hardware for the application.
Tools Required 3.8mm Drill Bit
Phillips Screwdriver 8mm Masonry Bit
Carpenter's Level
(4)M4 Space-h
(4)Lag Bolt Washer-i
(2)M6 x 12 Bolt-c
(8)M4 Washer-g
(1)Wall plate-b
(4)Lag Bolt-k
(1)Monitor Bracket-a
(4)ConcreteAnchor-j
(4)M4x12 Bolt-e (4)M4x30 Bolt-f
(2)M6Allen Bolt-d
(1)Allen Key-l
(2)M6 Washer-m (2)M6 Lock Washer-n

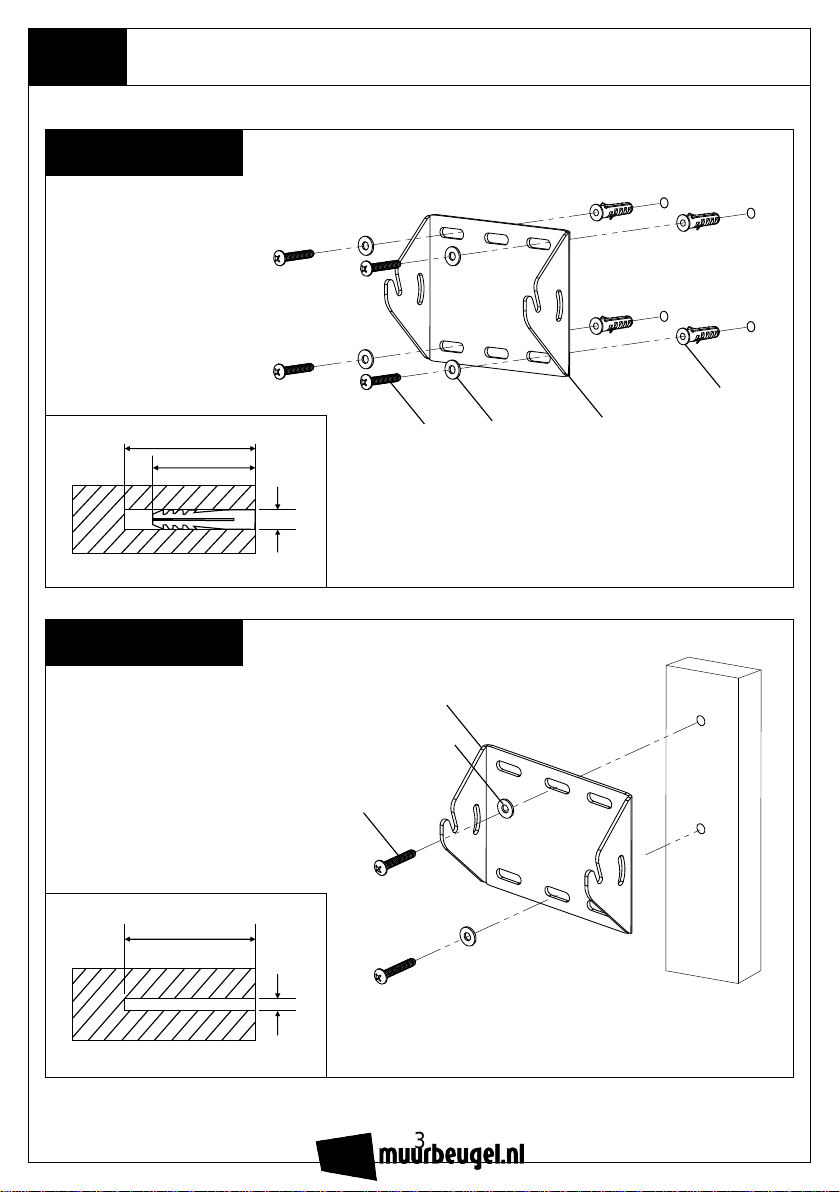

Brick Mount
Step 1 Mounting the Wall Plate to the Wall
3
Wood Mount
40mm
50mm
8mm
50mm
3.8mm
kibj
k
i
b
4

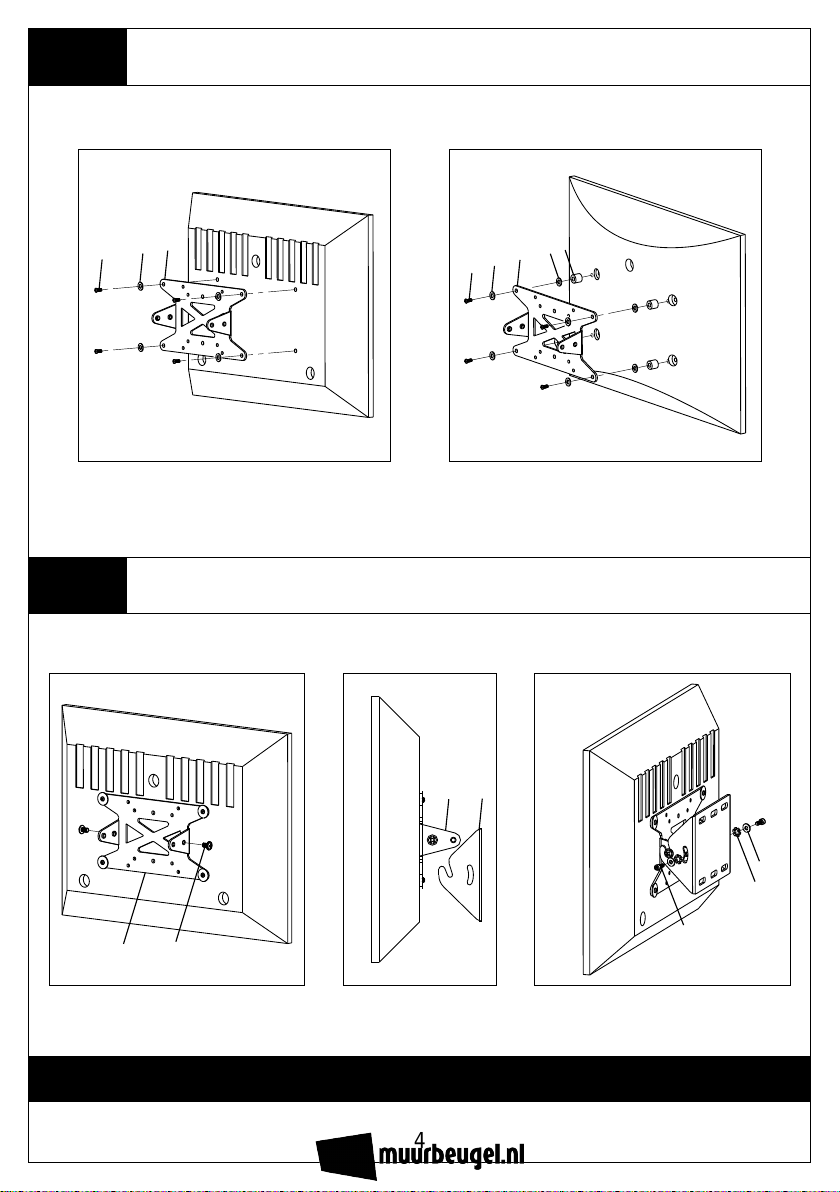

Mounting the Monitor Bracket to a TV
Thanks for choosing our products, enjoy the using.
Step 3
Step 2
For Flat Back TV For Curved Back TV
Attaching TV to Wall Plate
egaa
fgh
c
a
ab
d
g
m
n
