1. INTRODUCTION ............................................................................................................. 3

2. MYCHEF BAKERSHOP .................................................................................................. 4

2.1 Control Panel.......................................................................................................... 4

2.1.1 Switching on the equipment.......................................................................... 8

2.1.2 Cooking control .............................................................................................. 9

2.1.3 Start of the cooking cycle ............................................................................ 11

2.1.4 End of cycle .................................................................................................. 11

2.1.5 Speed selection ............................................................................................ 12

2.1.6 Saving a program ......................................................................................... 12

2.1.7 Retrieve a program....................................................................................... 13

2.1.8 Level control ................................................................................................. 13

2.1.9 Quick memories ........................................................................................... 13

2.2 Configuration menu ............................................................................................. 14

2.3 Errors and alarms................................................................................................. 16

1. INTRODUCTION

This manual has been carefully prepared and reviewed to provide reliable information

and assistance for proper installation, use, and maintenance that will ensure proper

operation and prolong the life of the oven. This manual is divided into two parts, the first

part dedicated to the installation of the equipment at the working point, and the second

part focused on the cleaning and maintenance of the oven.

Before any intervention or use of the equipment, it is necessary to read this

manual carefully and completely.

The manufacturer declines all implicit or explicit responsibility for any errors or

omissions it may contain.

- The furnace may not be used by personnel who have not received any kind of

training and do not have the necessary skills or experience for the proper

functioning of the equipment. Do not let children use or play with the equipment.

- The owner of the equipment is obliged to have this manual read by personnel

responsible for its use and maintenance, and to keep this manual in a safe place

for use by all users of the equipment and for future reference. If the equipment

is sold to others, they must be given this manual.

- This oven must only be used for the purpose for which it was designed, i.e.

cooking, heating, regenerating or dehydrating food. Any other use can be

dangerous and can result in personal injury and property damage.

- The equipment is shipped from the factory once it has been calibrated and

passed rigorous quality and safety tests that ensure its correct operation.

The manufacturer will disclaim any responsibility for problems caused by

improper installation, modification, use or maintenance.

2. MYCHEF BAKERSHOP

2.1 Control Panel

The following figure shows the control panel of a Mychef Bakershop oven. It consists of

a central screen with displays, indicators and buttons.

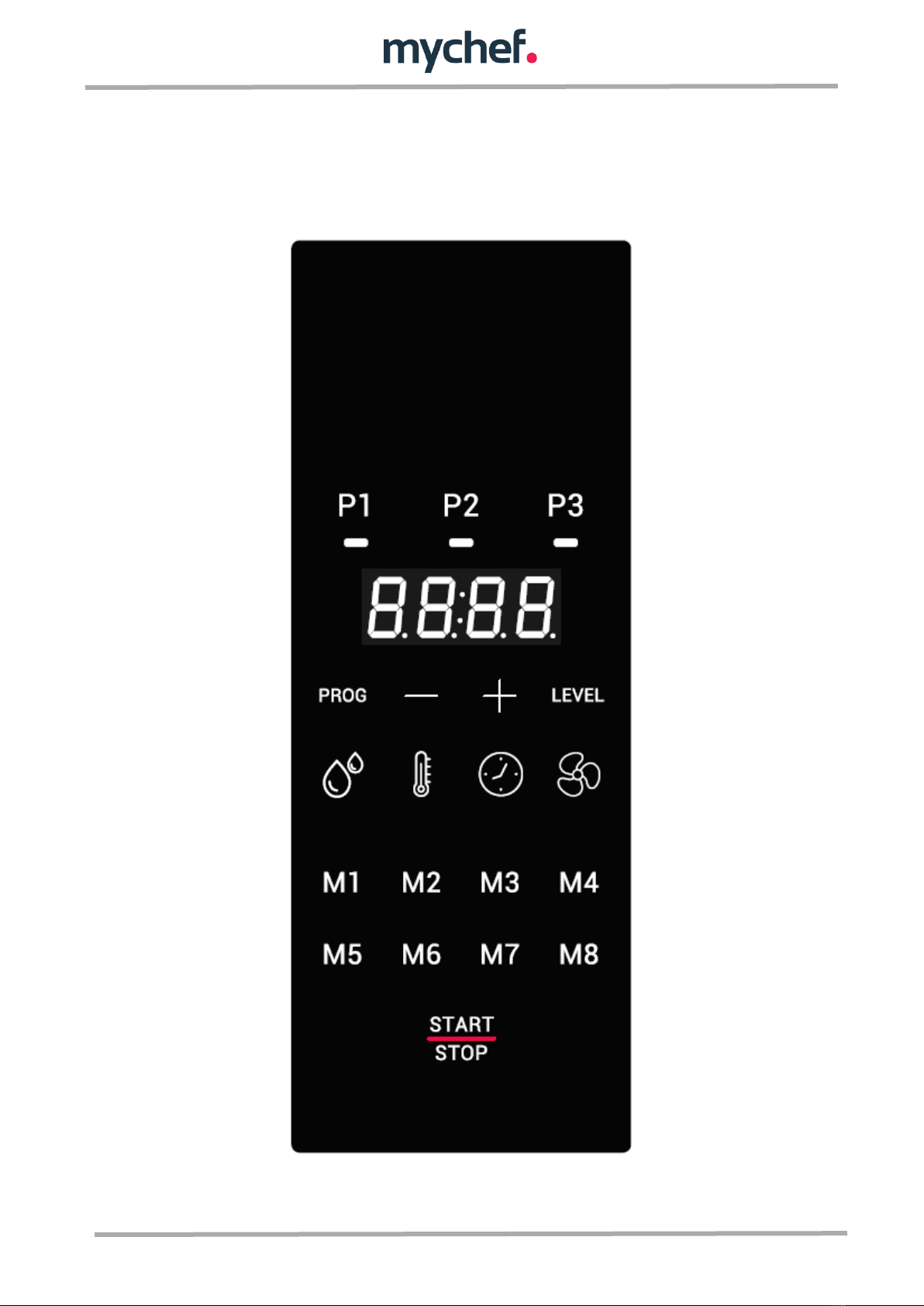

Figure 1. Control panel.

The functionality of each of them is explained below:

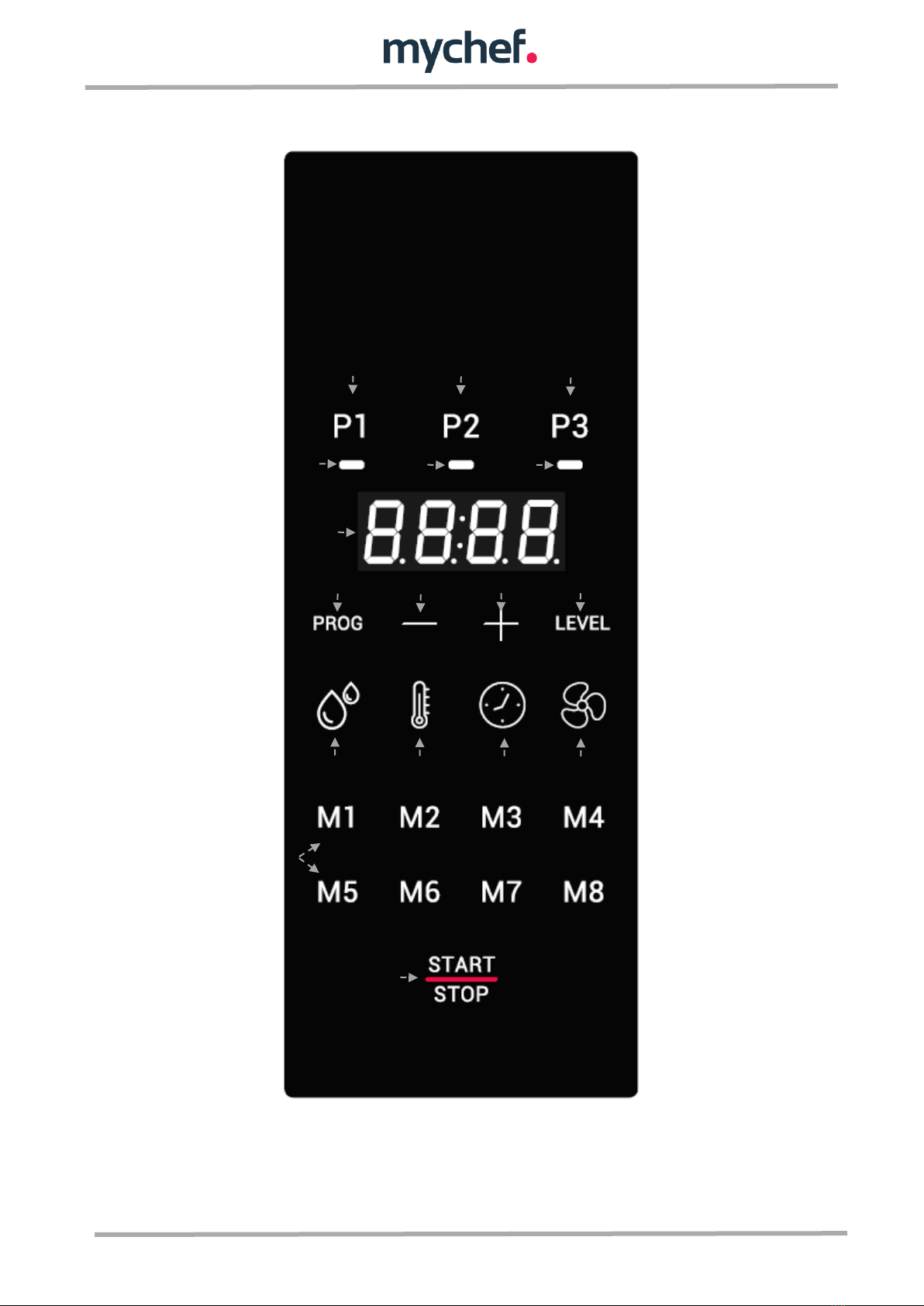

Figure 2. Control panel detail.

Block

Function

Description

Phase 1 button

Button for selecting the first cooking phase

Phase 1 indicator

Flashing, it indicates we're in phase 1. In fixed colour, it indicates that

this phase is active.

Phase 2 button

Button for selecting the first cooking phase

Phase 2 indicator

Flashing indicates we're in phase 2. In fixed colour, it indicates that

this phase is active.

Phase 3 button

Button for selecting the first cooking phase

Phase indicator 3

Flashing, indicates we're in phase 3. In fixed colour, it indicates that

this phase is active.

Display screen

Displays the selected parameter: humidity, temperature, time or fan

speed

Program button

Allows to save or retrieve a program

Adjustment button -

Decreases the selected parameter: program, level, humidity,

temperature, time or fan speed.

Adjustment button +

Increases the selected parameter: program, level, humidity,

temperature, time or fan speed

Level button

Allows to adjust the parameters of a fermenter from the same control

Moisture button

Moisture selection button

Temperature button

Temperature selection button

Time button

Time selection button

Fan speed button

Fan speed selection button

Quick memory button block M1..

With a long press, it records the current parameters in a specific

memory.

With a short press, it executes the cooking in memory.

START/STOP button

Oven on/off and start/stop button

If the oven is on but not baking, slight pressure will start the baking

cycle.

If the oven is on and baking, slight pressure will cancel the baking

cycle.

Table 1: Control panel description.

The central display is a very important part when interacting with the furnace, since it

indicates the value of each firing parameter.

Figure 3: Central screen.

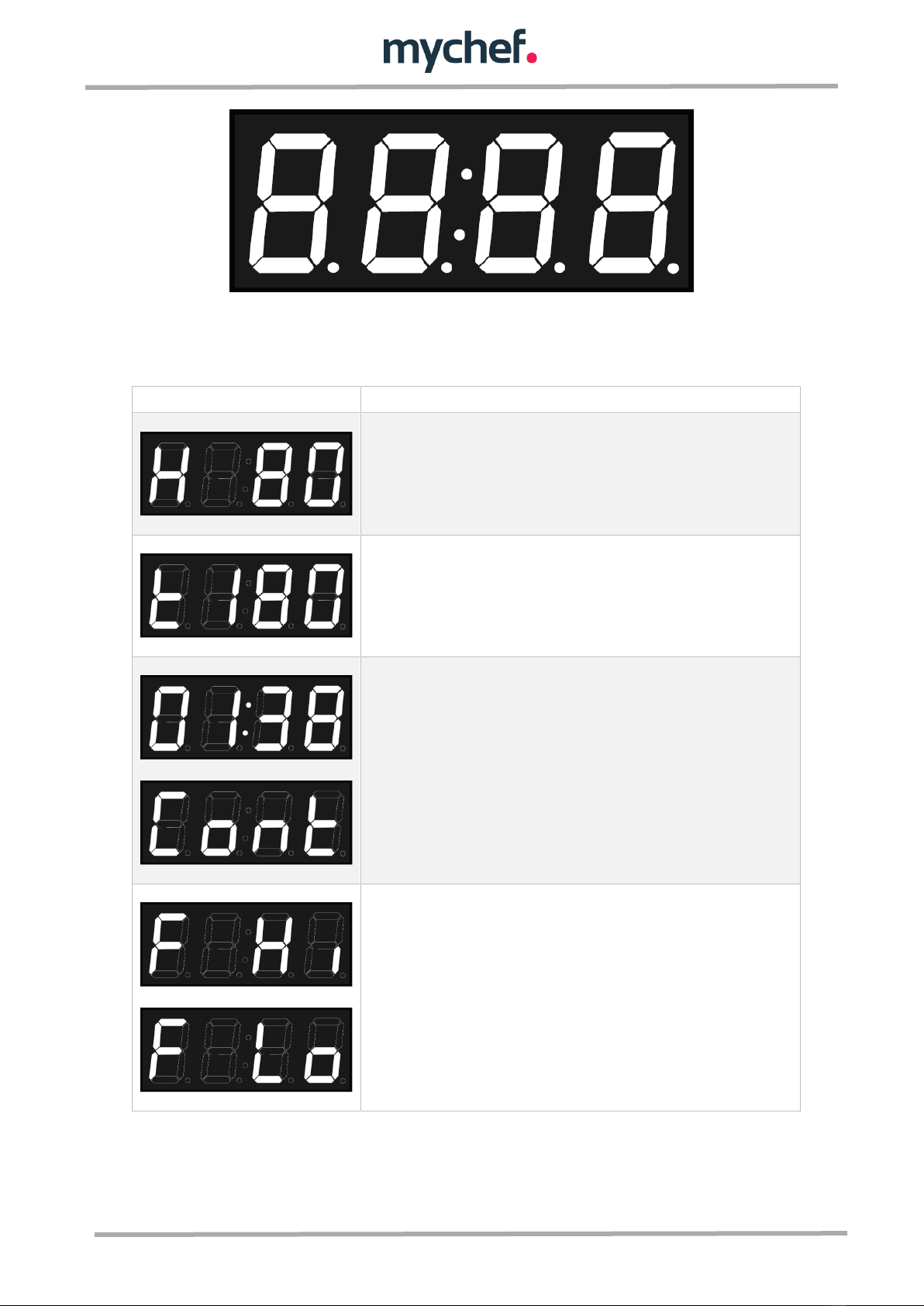

The parameter display format is explained below:

Icon

Function

The moisture level is shown with an H in the first digit. The humidity value is

shown below.

The chamber temperature is shown with a T in the first digit. The temperature

value in degrees Celsius is shown below.

The cooking time is shown with the two central points. The two digits on the

left are the hours, and the two digits on the right are the minutes.

Cooking can also be continuous. In this case, CONT appears on the display.

For continuous firing, press the adjustment key - until CONT appears in the

display.

The fan speed is shown with an F in the first digit. If the convection fan is on

high speed, HI is displayed. Otherwise, if the convection fan is at low speed,

LO appears.

The program is shown with a P in the first digit, followed by the program

number.

The level is shown with an L in the first digit, followed by the level number.

Level 1 accesses the furnace parameters, and level 2 accesses the fermenter

parameters (OPTIONAL).

This icon indicates that a cooking process has been completed.

The message DOOR appears when the door is opened during a cooking

process.

In the case of an error, the first two digits of the display show ER, followed by

the error number. Refer to the chapter on errors for more information.

It is possible to change the operating parameters of the furnace. In the

parameter edit menu, the central display shows a P, followed by the parameter

number. The two digits on the right show the value of the parameter. Refer to

the chapter on the configuration menu for more information.

Table 2: Description of messages on the central screen.

2.1.1 Switching on the equipment

The equipment is switched on or off by pressing the START/STOP button for two

seconds.

In order to protect the furnace from possible overheating, some protective

elements may work even when the furnace is switched off. When the oven is at

a safe temperature it will automatically turn off.

If the equipment does not turn on, check the status of the safety thermostat and the

service switch, located at the rear of the equipment.

Figure 4: Safety thermostat (A) and service switch (B).

2.1.2 Cooking control

2.1.2.1 Temperature and time controlled cooking

The temperature and time control mode is chosen by setting the temperature and time

with the +/- buttons after pressing the TEMPERATURE and TIME buttons respectively.

By pressing the START/STOP button, the oven will start to heat the chamber and will

stop when the set time has passed. At this point, the time indicator will display the

keyword "End", the oven will beep for one second and the interior light will illuminate until

the user finishes cooking by lightly pressing the START/STOP button.

Example of cooking at 90º for 10 minutes:

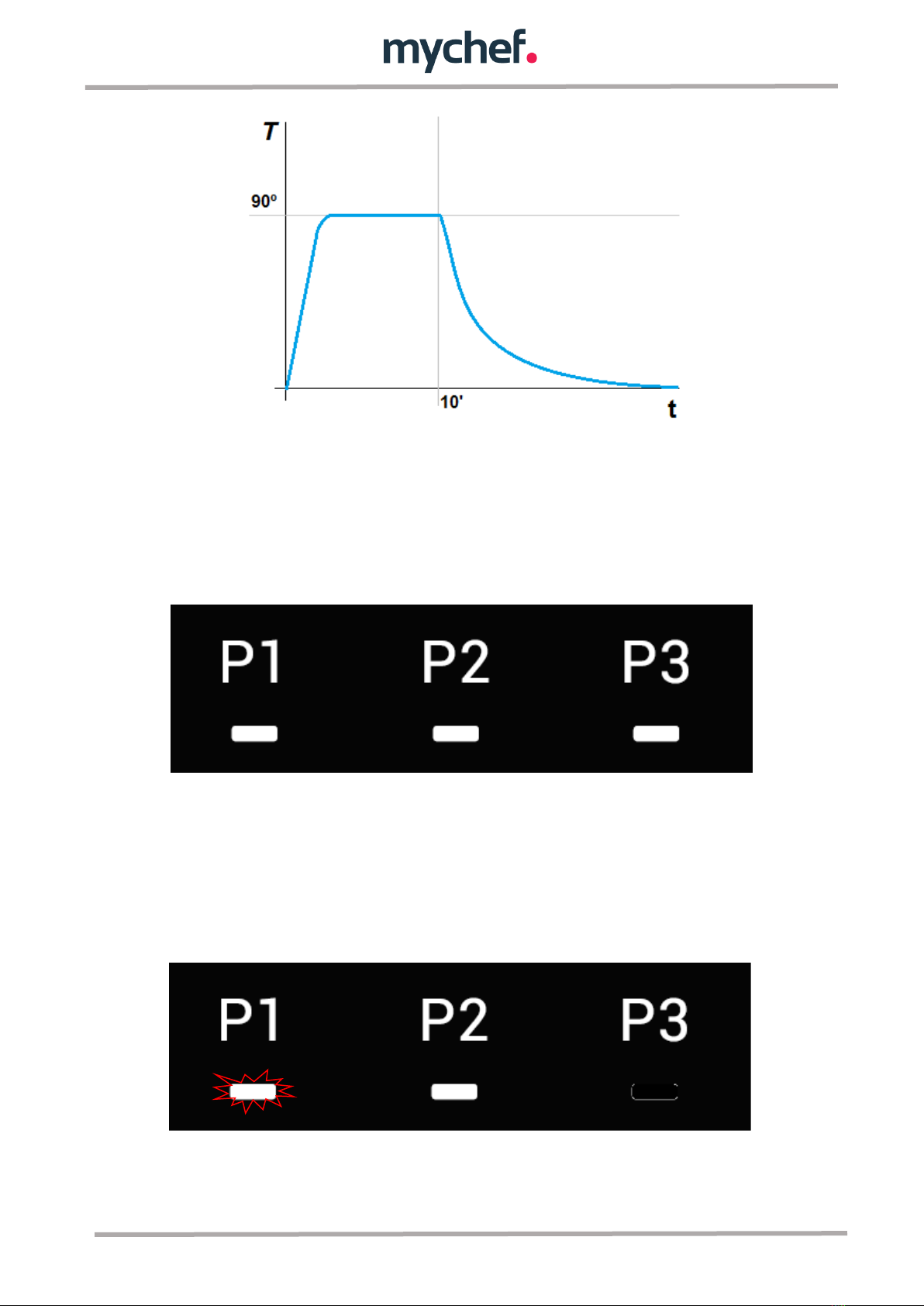

Figure 5: Example. Cooking at 90ºC for 10 minutes.

Figure 6: Oven temperature.

2.1.2.2 Cooking phases

At the top of the control panel there are three buttons, P1, P2, and P3, each corresponding

to the cooking phases. Associated with each button is an indicator, which shows the

status of the phase.

Figure 7: Buttons and cooking phase indicators.

If the indicator for a particular phase is lit and blinking, it means that that phase is being

displayed. If the indicator for a particular phase is lit continuously, it indicates that this

phase is activated. If the indicator for a particular phase is off, it indicates that this phase

is off. For example, in the figure below, phase P1 is on and displayed, phase P2 is on, and

phase P3 is off:

Figure 8: Buttons and cooking phase indicators.
