USER S MANUAL

myPhone HaloX

myPhone HaloX set contains:

Before you begin to use you myPhone

HaloX check if all of these items can be

fund in the box:

myPhone HaloX phone,

battery,

charger,

charging base,

microUSB cable,

user manual,

Contact your retailer if one of the abo e

items is missing.

There is an IMEI sticker on the box. Keep

it for further use (warranty, identification

in case of theft, etc.)

Keep it away from water and children.

Tech. specification:

Frequency range: 900 / 1800 MHz; and

GPRS

One SIM card nest;

Size: 121 x 58 x 14 mm (L*W*H);

Touch panel and L D display: 3.5” size

diagonally, constructed using G+F

technology, can display 262 thousands of

colours;

amera:

oPicture resolution: max. 2Mpix;

oRecording mo ies: 480 x 320 px

resolution, 3 frames per second.

H-free loudspeaker;

Battery capacity: 1400 mAh, 5.18 Wh;

Wieght – device and battery: 115 g;

Box weighs:

oNet: around 272 g;

oGross: around 344 g;

MicroSD memory card support: up to

32 GB;

Available sockets: 5-pin microUSB and

3.5 mm miniJack.

Memory available for user: around 3MB

harger specs.:

oInput: 100-240 V~, 50/60 Hz, 150 mA;

ooutput: 5.0 V , 500 mA;

This cellphone can fit up to 500 contacts

into it’s memory.

We suggest to mount a microSD memory

card to increase a ailable memory for

pictures and music.

FM radio will work without plugging

earphones in, but you may ha e to use

them in order to use them as an antenna.

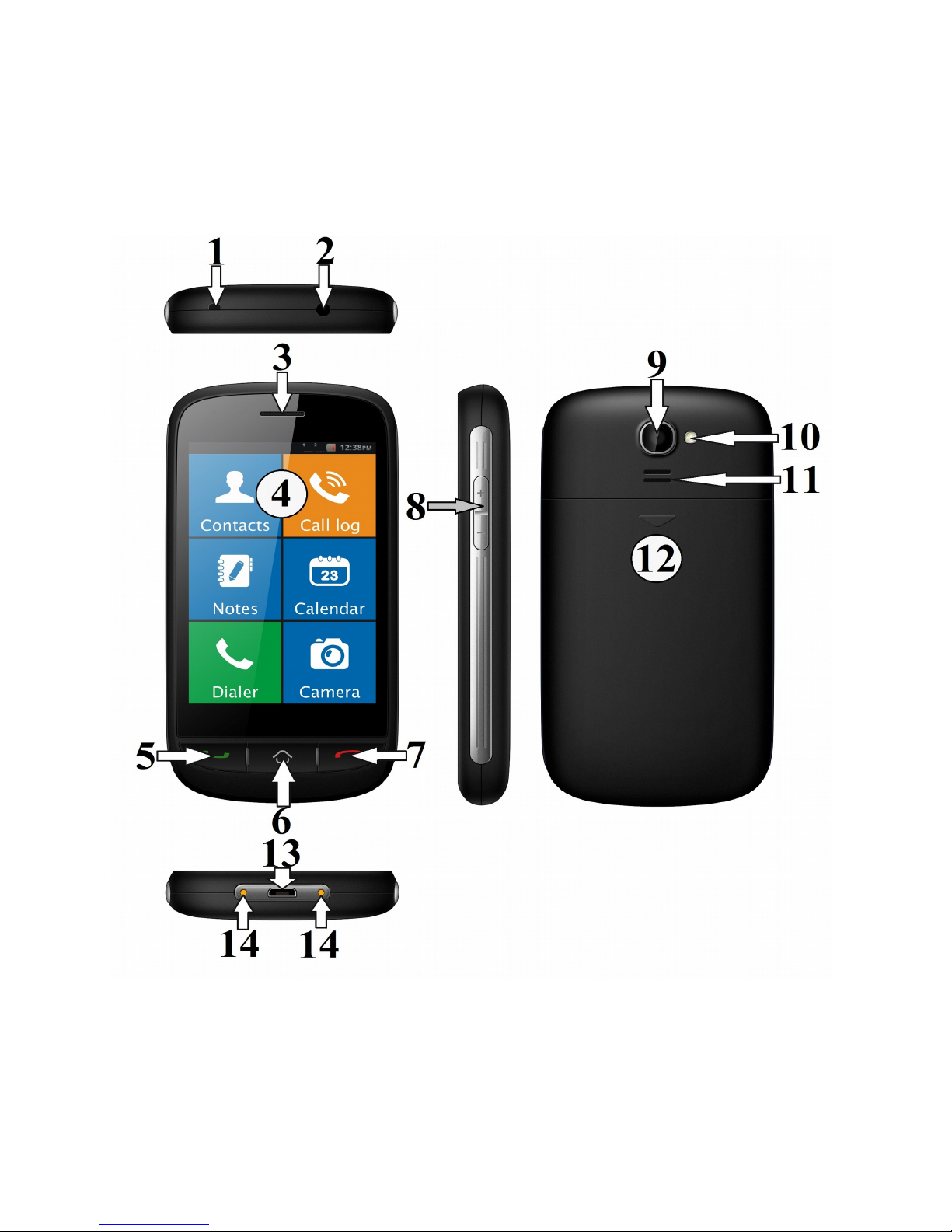

FUNCTIONS AND VIEW

1. „Leash” mount nest.

2. 3.5 mm miniJack socket.

3. Internal „handset” speaker.

4. Touch screen 3.5”

To mo e around and use the phone

use swipe and touch gestures similar

to that used in smartphones.

5. „Green phone” button used to

recei e calls.

6. „Home” button.

Used to jump immediatelly to the

mainscreen from where er you are.

7. „Red phone” button.

Used to cancel options, reject and

end calls. Pressing it in a menu will

ha e a “go back one le el” effect.

Pressing it in the main screen will

cause the screenlock to take effect.

8. Volume control buttons.

This phone allows olume control o er

media, incoming call ringtones, and

the call itself.

9. Camera lens.

10. LED diode. Used as a flashlight, or

a camera flash.

11. External speaker.

12. Back co er.

Turning the phone on/off

In order to turn the phone on, press and

hold the „red phone” button for about 3

seconds. To turn the phone off do the

same on the main screen, screen must

be unlocked.

Mounting the SIM and microSD card

To mount the SIM card in – take the back

co er (12) off – there is a downwards

pointing arrow on it. Push it in and then

swipe down.

The SIM card must be inserted in such

a manner as shown in the figures - on

and next to the SIM slot.

To unlock the microSD slot push it to the

right side and it will open up. Insert the

microSD card and close the slot. You can

SIM nest

Battery

connectors

MicroSD

card

socket

lock it by pushing it to the left.

Insert the battery but pay attention to the

correct orientation, it should be

impossible to insert the battery wrong, but

be careful because you can still break the

battery connectors – these should be

adjacent to those on the battery in order

to fit into it.

Charge the de ice before you turn it on.

In case of any problems with the battery

the de ice must be sent to myPhone

ser ice center. Contact your retailer.

Replace the back co er now and charge

the de ice

Charging

*WARNING: connecting the charger

forcefully and incorrectly may seriously

damage your de ice. Such damage does

not fall under warranty rules and may

lead to warranty cancellation.

To charge the phone use only the

pro ided charger. After properly plugging

the charger you will see this icon (or

alike), a red diode will light up in the left

upper corner of the phone. Plug the

adapter out from the wall plug and then

unplug it from the phone.

If you want to use the charging base

Plug in the charger’s USB connector into

the back of the charging base. A diode

should light up.

Place the phone in the charging base as

shown in the picture on the next page:
