NADAIR KIT-01-30G Bedienungsanleitung
User Manual
Garage attachment kit
Model Number:
KIT-01-30G
Since1980
1
Index
1. Specifications .................................................................................................................. 3
2. Straight hair Hose .......................................................................................................... 4
3. How to use the wand ....................................................................................................... 5
4. Included cleaning tools ................................................................................................... 6
5. Easy Storage included....................................................................................................... 7
Page 2

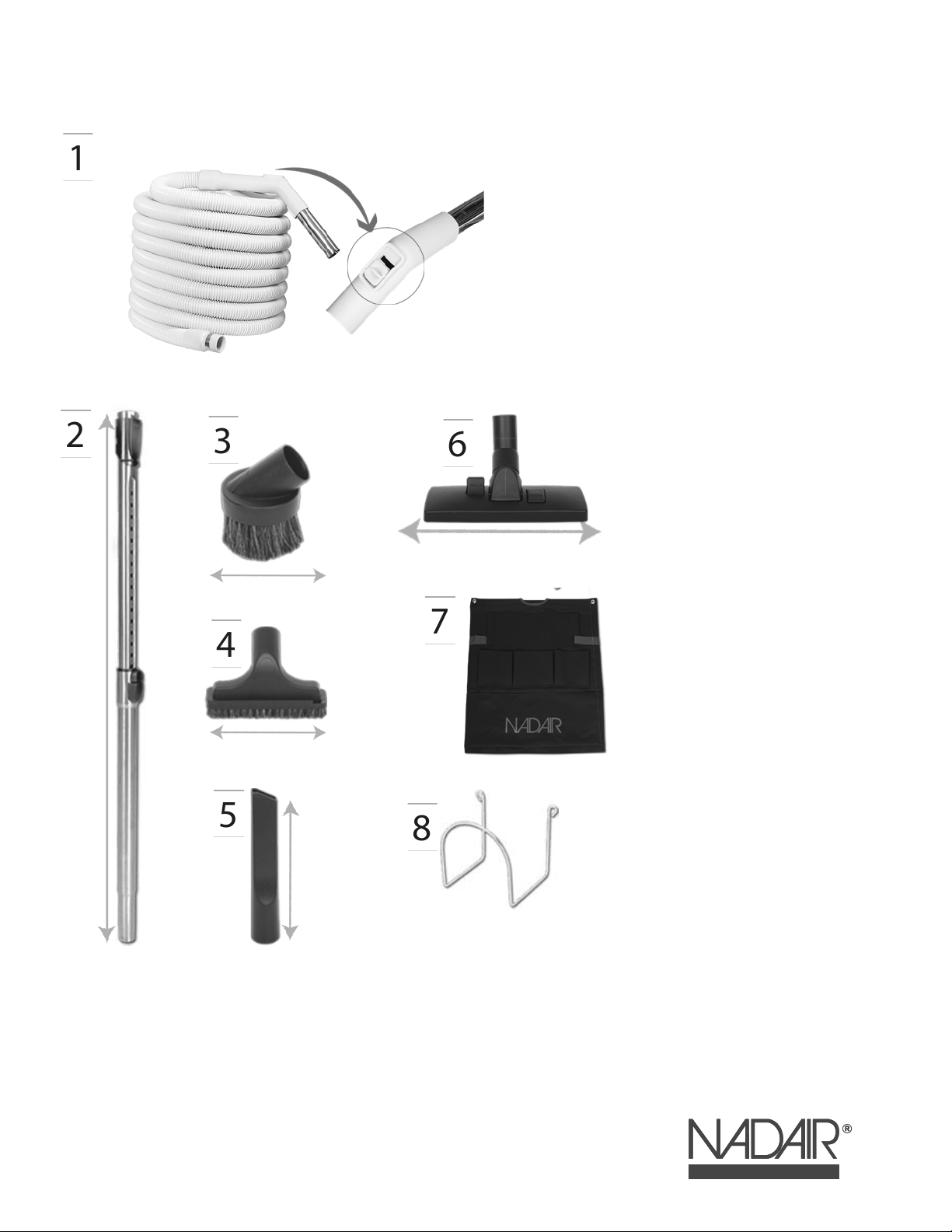

1. INCLUDED IN THE KIT
Page 3
1. Straight air hose
2. Adjustable wand
3. Dusting brush
4. Upholstery brush
5. Crevice Tool
6. 12’’ Combo brush
7. Accessory bag
8. Hose Hanger
1
6
7
8
3
4
5
2
5’’
4’’
10’’
12’’
Straight air
* Product dimensions may vary
ADJUSTABLE FROM 25.5’’ TO 38’’
2. STRAIGHT AIR HOSE
Page 4
2.2
The vacuum will automatically start when the hose is inserted in the wall inlet and the unit will stop when the
hose is removed from the inlet.
Hose metal band must be touching the 2
pins inside the inlet in order to create the
connection
2.1 Compatibility
The hose is compatible with most wall inlets. Inlets must have a 1.5’’ inner diameter (A) in order for the hose to
fit, and must have 2 low-voltage pins/metal prongs (B) in order to turn the vacuum ON and OFF.
Starting and stopping your central vacuum
2.3
If the suction is too strong for your needs, use this opening on the hose handle to slightly reduce it.
Suction realease
A B
Straight air
Page 5
To extend the wand, simply push on the button (E) and pull on the wand (F) at the same time
G
F
E
Align the hose nozzle (G) with the wand (H) and push the
nozzle into the wand. The hose will lock in the wand with friction system.
Insert the other end of the wand into the port on the brushes
3. HOW TO USE THE WAND
3.1 How to extend the wand
3.1 How to connect the wand to the hose nozzle
3.1 How to connect the different attachment tools
H
Ideal for linoleum, ceramics, tiles and rugs
4. INCLUDED CLEANING TOOLS
Page 6
4.1 12’’ Combo brush
Made of horse hair - Delicate and soft on furniture
4.2 Dusting brush
Made of horse hair - Perfect for delicate furniture
4.3 Upholstery brush
Ideal for cleaning nooks and crannies
4.4 Crevice tool
12’’
4’’
5’’
10’’
Press on this pedalPress on this pedal
release it to clean
hard surfaces
Retract the brush
to clean rugs
* Product dimensions may vary
5. EASY STORAGE INCLUDED
Page 7
The perfect accessory to store your hose neatly.
5.2 Chrome hose hanger
The perfect accessory to have your small tools always accessible.
Install it on the hose nozzle Install your small tool on it
5.1 Tool Cady
Nozzle connection
Place for
Small tools
Easily store your accessories without making a mess in your storage room.
5.3 Accessory bag
13’’
20’’
4.75’’ 4.75’’
4.5’’
* Product dimensions may vary
Crevice tool compartment
Floor Brush compartment
Small brushes compartment
Wand storage compartment
2044 Autoroute 440 Ouest, Laval, QC, H7S 2M9
TO REGISTER YOUR WARRANTY:
USA: www.nadair.com
Canada: www.nadair.ca
USA: nadair.com/vacuum/warranty-general/
Canada: nadair.ca/vacuum/warranty-general/
1 800 776-7891
TO GET PARTS OR OTHER PRODUCTS:
USA: nadair.com
CANADA: nadair.ca
TOOL FREE: 1-800-776-7891
