Thank you for choosing the Nady Encore II diversity wireless microphone system,

we know you will be very pleased with its performance and features. The Encore II

is loaded with top professional operating features and is the best performance and

price value available in VHF dual receiver wireless systems.

This booklet provides information regarding the use of the Encore II VHF wireless

system and includes a description of features and a step‑by‑step guide to operation of

the unit. This manual should answer any questions you may have about the operation

and servicing of your Encore II.

INTRODUCTION

USING THIS MANUAL

•AvailableonselectedfrequenciesintheVHFhighband

(171‑216 MHz) for interference‑free, long‑range performance

•Proprietarycompandingcircuitryforanindustry-best120dBDynamicRange, 

and the clearest, most natural sound available

•OperatingRange:Upto250feettypical(dependingonsiteconditions)—

upto500+feetline-of-sight

•Noise-freetransmitterON-OFFoperation

ENCORE II RECEIVER

•Half-rackreceiverdesignwithretractablefrontpaneldualantennas

•ProprietaryDigiTRUDiversity™digital processing circuitry to eliminate

dropouts and maximize operating range

•RFandAF5-LEDdisplaysformonitoringincomingsignalstrengthandaudiolevel

•BalancedXLRandunbalancedadjustable1/4”jackoutputs

•Mute(squelch)adjustcontrol

•ExternallypoweredbyAC/DCpoweradapter

•Uniquesnap-outpanellockingtabsforsinglereceiverordualreceiver

(side‑by‑side) optional rack mounting

WHT HANDHELD MIC TRANSMITTER

•FeaturestheNadyDM-10Dunidirectionalneodymiumdynamiccartridgefor 

optimumtruesound,maximumfeedbackrejectionandminimalhandlingnoise

•OFF/STANDBY/ONswitchallowsconvenientaudiomutingwiththe

transmitter“ON”

•LowbatteryLEDindicatorashesonceforunit“ON”;lightssteadyforlow

battery alert

WGT & WLT BODYPACK TRANSMITTERS

•Choiceofinstrument(WGT)orheadworn/lavaliermicrophone(WLT)

bodypack transmitter

•OFF/STANDBY/ONswitchallowsconvenientaudiomutingwiththe

 transmitter“ON”

•LowbatteryLEDindicatorashesonceforunit“ON”;lightssteadyforlow 

battery alert

•Locking3.5mmmini-jackprovidessecureconnectionforremovablemicrophone

or instrument cable

•Easilyaccessibleinputleveladjustcontrolforoptimumsound

SYSTEM FEATURES

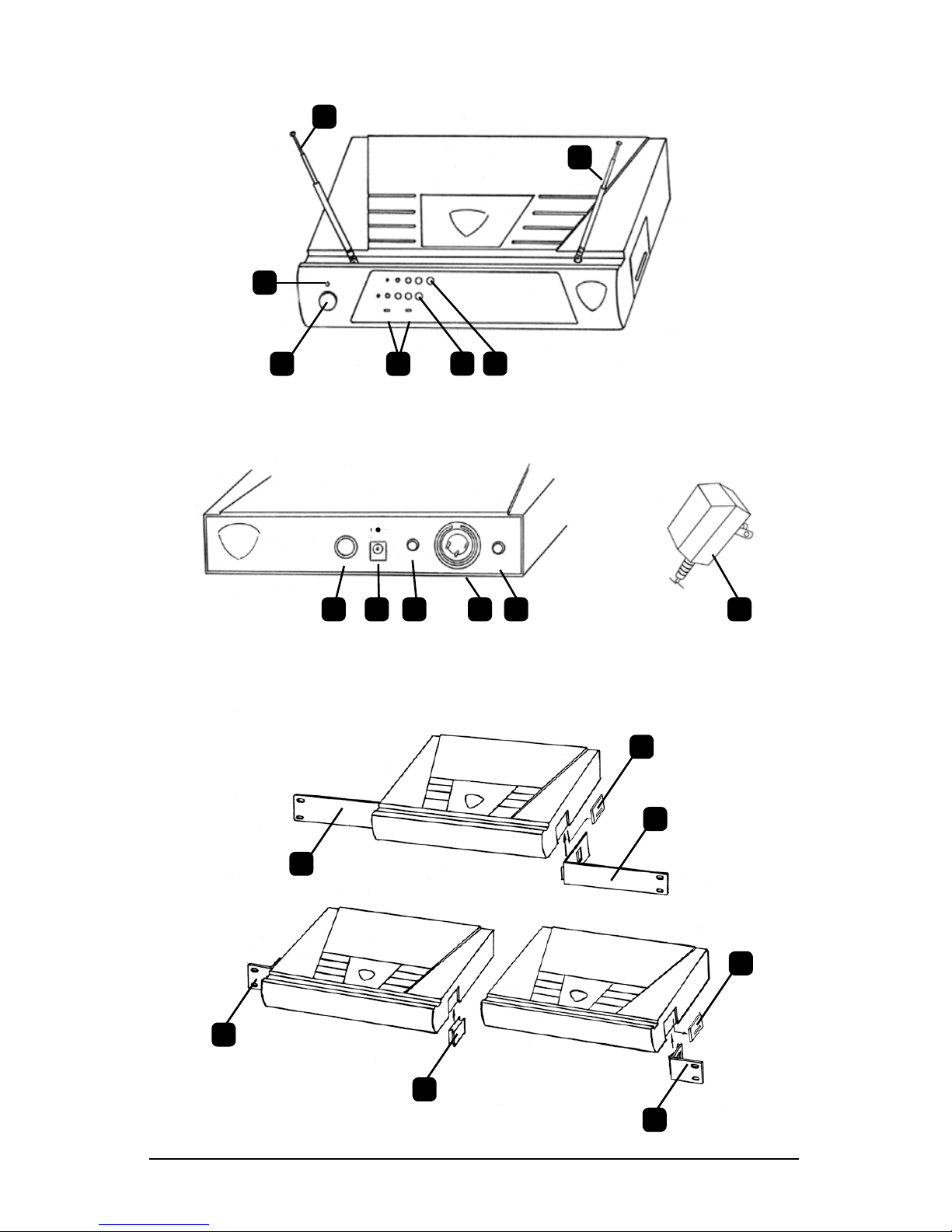

1. Rackmounting the Receiver

TherearetwooptionsavailableforrackmountingtheEncoreIIreceiver:

singly or side‑by‑side with another Encore Series receiver.

a. Single mounting: Remove the receiver SIDE MOUNT CLIP (1) from each side of

the receiver (as shown) and slide in the optional ERM-12 RACK EARS (9).

b. Side-by-side double mounting: After removing the SIDE MOUNT CLIPS (1) from

bothEncorereceivers,jointhetworeceiverswiththeEJC-2 JOINING CLIP (10)

and attach the ERM-22 RACK EARS (12) as shown.

(Note: Do not mount the receiver in a rack directly above an ampliﬁer or

other source of high heat — this could degrade the performance of the

Encore I. Always ensure adequate airﬂow and heat dissipation in any rack

conﬁguration.)

2. Powering the Receiver

Plug the 12V AC/DC ADAPTER (15) provided into the DC INPUT JACK (11) on

the back of the receiver. Then plug the power supply into an AC outlet.

(Note: Any 12V DC source with 400mA capability can also be used.)

Press the POWER SWITCH (8) once to turn on the receiver. The POWER ON LED (7)

will now light and the receiver is operational.

3. Antennas

The Encore II receiver is supplied with TELESCOPIC ANTENNAS (16). These should be

extended fully to obtain maximum range. Optimal antenna position is 45 degrees

fromthereceiver(at90degreesfromeachother).Formaximumrange,itisalways

best to maintain a line of sight (no obstructions) between the receiver antennas and

the transmitter at all times whenever possible.

4. Mute (Squelch) Adjustment

In normal operation, the MUTE CONTROL (2) should be set fully counterclockwise to

the factory preset minimum RF level. However, in areas of high RF activity, the mute

(orsquelch,asitissometimescalled)mayneedtobeadjustedtocompensateforthe

adverse conditions in a particular location. If, with the transmitter off, the receiver’s

A and/or B DIVERSITY LED INDICATORS (3) and/or one or more LEDs of the 5 LED RF

LEVEL DISPLAY (4) ickerorstayon,thesquelchcontrolshouldbeturnedclockwise

untiltheLEDsextinguish.Whenthesquelchisproperlyadjusted,theAand/orB

LEDs or the RF LEVEL LED displays will only light when the system transmitter is turned

on. Turning the squelch control too far clockwise will reduce the range, but yield a

quieter mute (squelch) function. During operation, especially at ranges greater than

75feet,oneortheotheroftheAorBLEDsmayextinguishbriey.Thisisnormal—

the unit’s DigiTRU Diversity™reception ensures that the received audio will not be

interrupted. When both the A/B DIVERSITY LEDs and the 5 LED RF LEVEL display

extinguish, the transmitter is out of range for that given location, and the user should

move closer to the receiver to re‑establish the radio link.

ENCORE II RECEIVER

5. Connecting the Audio Output

The Encore II receiver provides both a ﬁxed mic level BALANCED AUDIO OUTPUT XLR

(14)andanadjustablelinelevelUNBALANCED AUDIO OUTPUT 1/4” JACK (13). The level

from the UNBALANCED OUTPUT is controlled by the rear panel VOLUME CONTROL (6).

(Note: As when making any connection, make sure the amplier or mixing board

volume is at the minimum level before plugging in the receiver to avoid possible

sound system damage. Also make sure that the phantom power on the input of

the mixer is turned OFF before making connection to the receiver.)

a. Instrument Connection (using the WGT instrument transmitter)

Insert an audio cord with a 1/4" mono phone plug in the A + B

UNBALANCED OUTPUT JACK (13) on the rear panel of the receiver. Plug the

otherendofthecordintoanamplier,effects,ormixingboard.Adjustthe

appropriate VOLUME CONTROL (6) for the channel being used on the Encore I

receiver clockwise to about 3/4 rotation, until the mixed volume level is

comfortable for your application. This setting is roughly equivalent to a direct

instrument cord connection. Turning the volume up to maximum will provide

4dB gain over a cord.

b. Microphone Connection (using the WLT transmitter with either a headset

or lavalier microphone or the WHT handheld microphone transmitter)

For microphone use, either the BALANCED MIC AUDIO OUTPUT XLRs (14) or the

1/4" line level A + B UNBALANCED OUTPUT (13)canbeused.TheXLRoutput

issetatanon-adjustablemicrophonelevel,similartohardwiredmiclevels.

PluganXLRconnectorintoeitherorbothoftheXLR OUTPUT JACKS on the

rear of the unit and plug the other end into your ampliﬁer or mixing board.

(Note: Make sure the phantom power on your mixing board is turned off

and the volume is turned down when making connections.)

Foryourconvenience,theXLRoutputlevelsarepresetatthefactoryand

arenotadjustablewiththereceivervolumecontrols.Tousethe1/4" A + B

UNBALANCED OUTPUT JACK (13), follow the instructions for the Instrument

Connection(above),exceptstartwiththereceivervolumeat1/2MAX

andadjustthevolumecontrolforeachchanneluntilthemixedChAand

Ch B volume level is optimal. If the volume controls are set too high, you

may overload your mixer or amp.

POWER

12-15V

DC INPUT

VOLUME

BALANCED OUT

UNBALANCED OUT

MUTE

4 5

8 3

14 2 1513 11 6

1. Unscrew the BATTERY COMPARTMENT COVER (17) and remove, exposing the

BATTERY HOLDER (18). Insert a fresh 9V ALKALINE BATTERY (19), observing the

correct polarity as marked, and screw the cover back on to the microphone.

Make sure the cover is screwed on completely. A fresh alkaline battery can

last up to 16 hours in use, but in order to ensure optimum performance, it is

recommendedthatyoureplacethebatteryafterevery10hoursofuse.

2. Turn on the WHT by sliding the OFF/STANDBY/ON SWITCH (20) to the STANDBY

position (transmitter on, audio muted) or the ON position (transmitter and audio

both on). The BATTERY INDICATOR LED (21)willgiveasinglequickash,indicating

usable battery strength. In the case of a dead or low battery, the LED will either

not go on at all or will stay on continuously, indicating that the battery should be

replaced with a fresh one. To preserve battery life, turn the transmitter off when

not in use.

3. The microphone is now ready to use. The A and/or B DIVERSITY LED INDICATORS

(3) and most or all of the RF LEVEL DISPLAY LEDs (4) on the Encore II receiver

should now be lit, indicating a received signal from the transmitter. When ready

tospeak,slidethetransmitterswitchtotheONposition.Adjustthevolume

of the receiver as per the Audio Output Microphone Connection section of

the above Encore II receiver instructions. The AF LEVEL LED DISPLAY (5) on the

Encore II receiver will light up to 5 LEDs (4 green and 1 red) for all input signals.

OccasionalickeringonandoffduringuseofthetopredLEDindicatorinthis

display is normal, however if the red LED stays on continuously, it means the

signal is too loud and there is the possibility of overload distortion. Back off from

themicrophoneuntiltheredLEDindicatoronlyickersonpeaks.

[Note: Observe care in selecting P.A. volume, transmitter location and speaker

placement so that acoustic feedback (howling or screeching) will be avoided.]

[Note: Microphone elements can easily be destroyed by the buildup of salts and

minerals from perspiration and saliva. It is good practice to put a windscreen on

the mic element at all times to protect it.]

WHT HANDHELD MICROPHONE TRANSMITTER

1. Snap open the BATTERY COMPARTMENT (22) and insert a fresh 9V BATTERY (23),

observing the correct polarity. Close the compartment.

2. The WLT is provided with a 3.5 mm LOCKING JACK (24) for connecting the

microphone. Plug in either the LAVALIER/LAPEL (25) or the HEADWORN

MICROPHONE (26), as supplied. To secure the connection, turn the metal slip ring

ontheplugclockwisetothreaditontothejack.Tounplug,reversetheprocess.

Slip the transmitter into a pocket or clip on to your clothes. To use the lavalier mic,

attachitatchestlevel.Donotplacetooclosetothemouth—adistanceofabout

six inches usually works best. To use the headworn mic, place it on the head and

adjustthemicboomsothatthemicisaboutoneinchtothesideofthefrontof

the mouth. (Note: The lavalier or headworn mic wire is also the transmit antenna,

and rolling up or shortening the wire may reduce the effective operating range.

Extend the wire fully during use, and keep it as straight as possible.)

3. Turn on the WLT by sliding the OFF/STANDBY/ON SWITCH (27) to the STANDBY

position (transmitter on, audio muted) or the ON position (transmitter and audio

both on). The BATTERY INDICATOR LED (28)willgiveasinglequickash,indicating

usable battery strength. In the case of a dead or low battery, the LED either will

not go on at all or will stay on continuously, indicating that the battery should be

replaced with a fresh one.

4. The microphone is now ready to use. Most or all of the RF DISPLAY LEDs (4) on

the Encore II receiver should now be lit, indicating a received signal from the

transmitter. When ready to speak, slide the transmitter switch to the ON position

andadjustthevolumeofthereceiveraspertheAudioOutputMicrophone

Connection section of the above Encore II receiver instructions. The AF LEVEL

LED DISPLAY (5) on the Encore II receiver will light up to 5 LEDs (4 green and

1red)forallinputsignals.Occasionalickeringonandoffduringuseofthe

top red LED indicator in this display is normal, however if the red LED stays

on continuously, it means the signal is too loud and there is the possibility of

overloaddistortion.Re-positionthemicrophonefartherfromthesourceoradjust

the AUDIO INPUT LEVEL CONTROL (29)untiltheredLEDindicatorickersonlyonthe

loudest inputs.

(Note: Observe care in selecting P.A. volume, transmitter location and

speaker placement so that acoustic feedback (howling and screeching) will be

avoided. Please also observe the pickup patterns of the microphone selected:

omnidirectional mics pick up sound equally from all directions and are prone to

feedback if not used carefully. Unidirectional mics are more resistant to feedback,

but pick up sound sources best that are directly in front of the mic. Also, mics

that are farther from the sound source, such as lavaliers, require more acoustic

gain and thus are also more prone to feedback than close-source mics such as

handheld or headworn mics that are used close to the mouth.)

(Note: Microphone elements can easily be destroyed by the buildup of salts and

minerals from perspiration and saliva. It is good practice to put a windscreen on

the mic element at all times to protect it.)

WLT LAVALIER/LAPEL OR HEADWORN

MICROPHONE BODYPACK TRANSMITTER

OFF/STANDBY/ON

BAT

LOW

MIC

Opening Battery Compartment

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Nady Systems Mikrofonsystem Handbücher

Nady Systems

Nady Systems WLT-15 Bedienungsanleitung

Nady Systems

Nady Systems DKW-3 GT Bedienungsanleitung

Nady Systems

Nady Systems ENCORE 200 Bedienungsanleitung

Nady Systems

Nady Systems 151 VR Bedienungsanleitung

Nady Systems

Nady Systems Encore I Bedienungsanleitung

Nady Systems

Nady Systems UHF-16 Bedienungsanleitung

Nady Systems

Nady Systems Encore I Bedienungsanleitung

Nady Systems

Nady Systems IRW-2PA Bedienungsanleitung

Nady Systems

Nady Systems AMERICAN STARPOWER X2 Bedienungsanleitung

Nady Systems

Nady Systems MGT-16 Bedienungsanleitung

Nady Systems

Nady Systems EO3 Bedienungsanleitung

Nady Systems

Nady Systems AMERICAN STARPOWER X2 Bedienungsanleitung

Nady Systems

Nady Systems 2W-1KU Bedienungsanleitung

Nady Systems

Nady Systems ENCORE DUET Bedienungsanleitung

Nady Systems

Nady Systems WS-16U Bedienungsanleitung

Nady Systems

Nady Systems Personal in Ear Monitor E03 Bedienungsanleitung

Nady Systems

Nady Systems UWS-100 Bedienungsanleitung

Nady Systems

Nady Systems UHF-3 Bedienungsanleitung

Nady Systems

Nady Systems UHF 10 Bedienungsanleitung

Nady Systems

Nady Systems DKW-duo Bedienungsanleitung

Nady Systems

Nady Systems WLT-15 Bedienungsanleitung

Nady Systems

Nady Systems UHF-4 Bedienungsanleitung

Nady Systems

Nady Systems UHF-4 Bedienungsanleitung

Nady Systems

Nady Systems UHF-7 Bedienungsanleitung

Beliebte Mikrofonsystem Handbücher anderer Marken

Paso

Paso R824 Bedienungsanleitung

Naxa

Naxa NAM-982 Bedienungsanleitung

Motorola

Motorola PMNN4461 Bedienungsanleitung

Xvive

Xvive U3 Bedienungsanleitung

Tekon

Tekon DUOS Bedienungsanleitung

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Bedienungsanleitung

Devine

Devine WMD-IE Bedienungsanleitung

LG LF-D7150 Bedienungsanleitung

GE S768DAV Bedienungsanleitung

LD U305 HBH 2 Bedienungsanleitung

Chainway

Chainway URA8 Bedienungsanleitung

ORATOR

ORATOR D860TD Bedienungsanleitung

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Bedienungsanleitung

Alpha Technologies

Alpha Technologies RBMS Bedienungsanleitung

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Bedienungsanleitung

Shure

Shure UA844 Bedienungsanleitung

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Bedienungsanleitung

Pyle

Pyle PDWM5000 Bedienungsanleitung
