CONTENTS OF PACKING BOX AND OPTION DEVICES

PACKING BOX

Please first check the contents of packing box after unpacking. The contents

should be:

• One PR9 passbook Printer.

• One Power Cord.

• One Ribbon Cartridge.

•CD-ROM of the User's Manual

• One Printed out default menu configuration.

CAUTION: Please contact YOUR PRINTER SUPPLIER instantly if any of list

above is missed.

WARNING：Please do not connect the printer’s power cord at this

moment, otherwise printer may be damaged permanently.

CAUTION：Put the packing box aside in case of future use.

OPTION DEVICES

Following option devices can be provided:

Hardware option: horizontal magnetic stripe R/W, parallel interface, serial

interface port2, USB interface and so on.

Add the second interface port

Printer has basic configuration of one standard serial communication

interface. At the rear of printer there is a second interface installation slot,

which is for option interface. The slot can be installed with option boards

and cards as below:

• parallel interface board

• second serial interface board and USB interface board

• second serial interface board

• USB interface board

CAUTION: When printer equipped with second or more other data

communication interface boards, interface’s working mode

can be selected by menu setup configuration.

1 Working with single communication port

Printer can only work according to the interface mode and emulation

selected by menu configuration, even if printer has been equipped with

more interface boards.

2 Working with dual-port

• If printer has been equipped with option interface board, operator can

set up printer’s working mode to be dual-port mode through the

operator panel to meet different usage requirement.

• If printer has been installed second serial port board and USB interface

board, there are only two serial ports( first serial port and second serial

port) can work synchronously. Under this configuration, printer can

check witch port is active. Any one of these two ports, if its data has

been received, printer will be under the contol of this port, and be kept

in this state till this port’s task is end. Two ports are independent. And

two ports have the same configuration except emulation mode.

Emulation mode can be shifted by commands.

• If printer has been installed with second parallel interface board and

configured as dual-port activity, it will check witch port’s buffer has data.

If any one of these two ports detect data has been received, printer will

be under the control of the port and it will be kept in this state till port’s

task is end. Dual-port functionality and corresponding parameters can

be selected though operator panel. Under the especial circumstance,

each port can has its own emulation mode, and emulation mode can be

shifted by using commands.

• If printer’s hardware configuration has two interface and the setup item

‘interface’ in the menu is ‘DUAL’, then it can print out two interface’s

corresponding emulation configuration in self-test sheet. Printer can set

which port to be active and emulation mode according to host’s

communication port.

DEFINITION OF TERMS

ON-LINE: Printer is ready after normal power on sequence.

STOP MODE: When printer is ON-LINE, if STOP■key is pressed down or

printer cover is opened, printer will enter STOP mode.

OFF-LINE: Press down STATION2 and COMPRESS▼key synchronously

when power on printer, or press down STATION2 and

COMPRESS▼key synchronously when printer is ON-LINE, printer

will enter OFF-LINE mode.

PRINTER SKETCH

·Front appearance（refer to figure 1.2-1）

（1）top cover

（2）operator panel

（3）front paper feeding platform

（4）power switch

（5）bottom frame

·Rear appearance（refer to figure 1.2-2）

（6）serial communication interface connector

（7）option interface board slot

（8）rear paper feeding path

（9）power cord socket

（10）electrical label

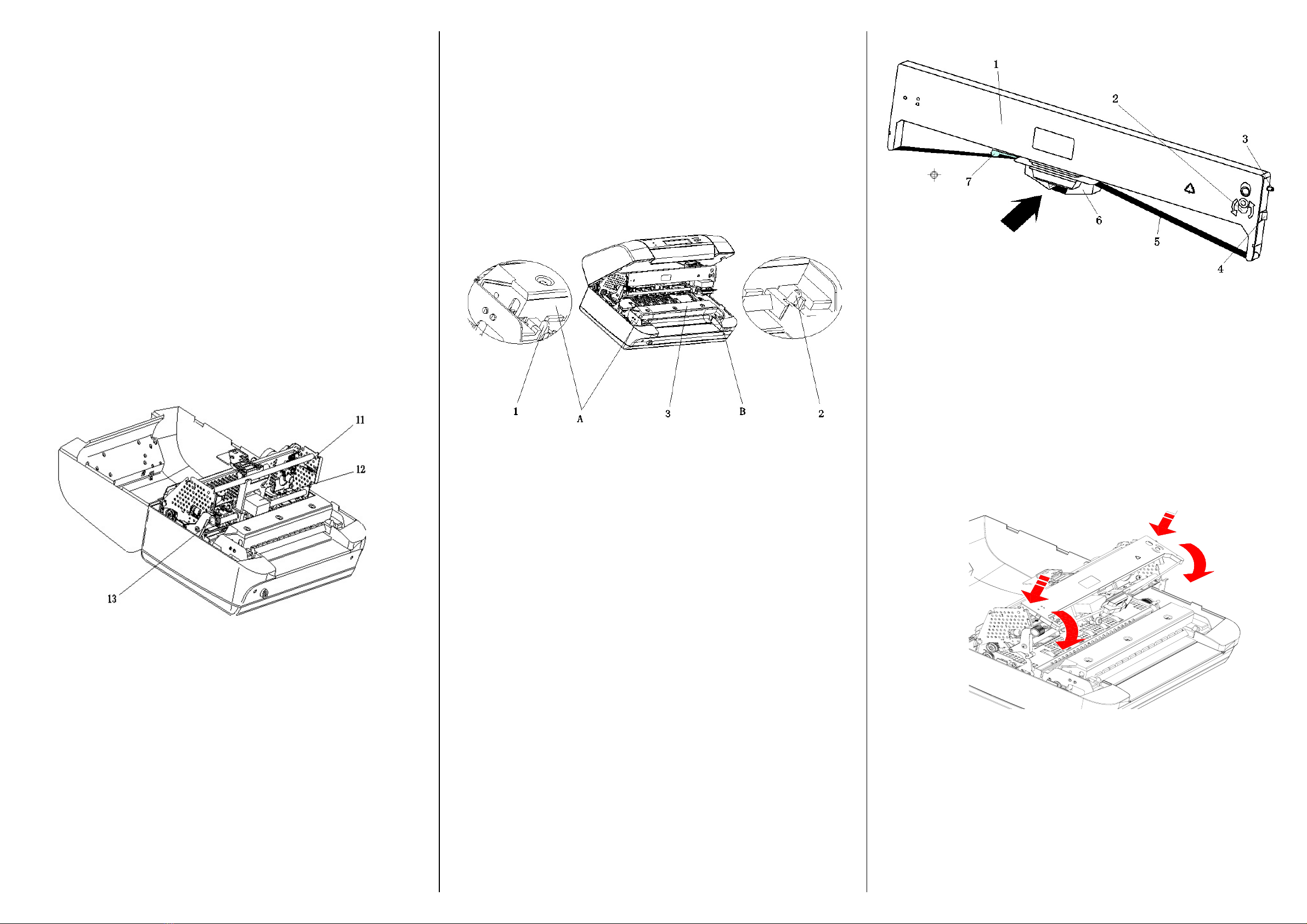

·cover opened appearance（refer to figure 1.2-3）

（11）ribbon rotation shaft

（12）print head

（13）print unit lift handle

Figure 1.2-1 Front appearance

Figure 1.2-2 Rear apprearance

Quick Reference Guide PR9

Figure 1.2-3 Cover opened apprearance

REMOVE TRANSPORTATION PROTECTION CLIP

OPEN TOP COVER

Open top cover with about 90 degrees. Be careful not to overexert to avoid

damage of cover gemel.

TAKE OUT THE BLACK IRON CLIP AND RED LABEL.

The black iron clip and red label are on the left side of print head.

TAKE OUT THE FOUR FOAM-RUBBER CUSHIONS WHICH ON THE BOTH

SIDES OF CARRIAGE.

WARNING：The black iron clip , yellow label and four foam-rubber

cushions must be taken out from carriage belt before

power on printer. Otherwise printer will be damaged.

Please keep the clip for future use.

ENVIRONMENTAL CONDITIONS

This printer is designed to be installed in a typical office environment. We claim

that customer must follow these operation explanation as below for printer’s well

working status and safety of operator:

Make sure that the electrical wall outlet to which the printer is connected has a

valid ground and that it is able to supply the power needed by the machine. A

wall outlet without ground can cause functional problems and can be a safety

hazard.

Do not plug the printer to electrical wall outlets that are already being used by

equipment that could cause electrical noise and excessive voltage fluctuations

(fans and air conditioners, large photocopiers, lift motors, TV radio transmitters

and signal generators, high frequency safety devices, and so on).

• During machine storage and operation, make sure that condensation

does not form as the result of extreme environmental variations. Dust,

dirt and smoke can cause the parts in motion to wear excessively, short

circuits (in the presence of a high degree of humidity). High

temperatures and low humidity can cause problems due to static

electricity.

• Do not put printer to the high tempture, shake or wet environment. And

no exposure to direct sunlight. For example boiler, humidifier or fridge.

• A stable level surface for placement.

• A clean,well-ventilated, and big enough environment for client.

INSTALLATION OF ALIGNMENT UNIT AND RIBBON CARTRIDGE

The alignment unit is important part of printer to align paper and rub paper. As

same to ribbon cartridge, alignment unit is packaged alone to avoid been

damaged in transport.

Description of lift handle

User can rise and fall lift handle up and down(replacement) to install and

take down alignment unit and ribbon cartridge expediently, and service the

printer easily. Before using lift handle please open the top cover firstly. The

position of lift handle is refered to Figure11.5-1, 13.

Figure11.5-1 descripton of lift handle

 Rise the lift handle

Open the top cover, buttress the bottom of shell with right hand and

fasten the lift handle with left hand. Rise the lift handle gently,and

make framwok layback rise till to it been locked.

 Fall the lift handle

Buttress the bottom of shell with right hand and fasten the lift handle

with lft hand. Pull the lift handle gently and make the up framework

touch the below framewok and been locked.

Warning: do not loosen hands in rising or falling the lift handle

optionally to avoid hands to be hurt.

INSTALL ALIGNMENT UNIT

DESCRIPTION OF ALIGNMENT UNIT

The alignment unit is important part of printer to align paper and rub paper.

As same to ribbon, alignment unit is packaged alone to avoid been

damaged in transport. Alignment unit‘s position is refered to Figure11.5-2.

The definition of term are :

(A), (B): Alignment unit’s installation position on framework.

(1), (2): Lock blocks’ postion. After been installed alignment unit will be

locked

by these two blocks.

(3): Alignment unit

Figure11.5-2 description of alignment unit

INSTALL ALIGNMENT UNIT

 Make sure the power has been shut down.

 Open the top cover and inspect if the black iron clip, yellow label and 4

foam-rubber cushions have been taken out. If not, please take out of

them refered to PACKING BOX.

 Install alignment unit

 Using the lift handle to rise the up framewok completely, please

notice that the paper blocking device should be sink here.

 Insert alignment unit in direction about 45°into flute on the below

framework.

 Press down the alignment unit to make the framewok lock the

block on the alignment unit.

 Fall the lift handle and close the top cover.

WARNING: If the paper blocking device does not sink when user

install the alignment unit, or before user wants to re-install

alignment unit which has been taken out, it requires user

to make the paper blocking device sink. After paper

blocking device sinked user can install the alignment unit

to avoid damage of alignment unit ,blocked badly by

rasied paper blocking device.

INSTALLATION OF RIBBON CARTRIDGE

Figure1.5-1

Definition of terms:

1 ribbon cartridge

2 active wheel

3 fixation axle

4 fixation block

5 ribbon

6 ribbon guide

7 protective foil

• Take out the ribbon cartridge from plastic wrapping bag. Take the lock

slice away, which is located between ribbon cartridge and ribbon guide

for transportation protection. Please refer to the figure 1.5-1.

• Open top cover and using print unit lift handle to lift the print unit

entirely.

• Move print head to the centre and insert the fixation axles at the both

ends of ribbon cartridge into the slots at both ends of print unit frame.

Please refer to the Figure 1.5-3.

• Try to push ribbon cartridge by rotation as shown in figure 1.5-3. If there

are any resistance, please rotate active wheel slightly. Insert ribbon

cartridge fixation block into both ends slot of print unit

Figure 1.5-3

• Insert ribbon guide into print head and press it up to make sure that two

dowels on the ribbon guide have been fixed. Please refer to the

figure 1.5-4.

Figure 1.5-4

• Take out of the protective foil as shown in figure 1.5-5.

• Circumgyrate the ribbon cartridge active wheel contraclockwise till the

ribbon is tight.

Figure 1.5-5

• Rotate print unit lift handle to let print unit return back to its normal

position.

• Close top cover.

CONNECT POWER CORD

WARNING: Before plug the power cord into the electrical wall outlet and

power on the printer, voltage rating indicated on the electrical

data plate must be checked to correspond to the local mains.

Make sure point 1.4 are completely satisfied.

It must not use the printer if the local mains voltage value is not consistent with

value on the electrical data plate, or plug does not match the socket. Please

contact to YOUR PRINTER SUPPLIER instantly.

Power cord connection sequence:

• Power switch is in “off” position.

• Plug power cord to printer’s power socket.

• Plug power cord to the local mains.

WARNING: Your printer supplier will not take any responsibility if you use

the substitute or damaged power socket and make any

contingency

Operator can press down front power switch to power on printer now.

After power on:

• ON, STATION1, STATION2 and FEED/EJECT indicator will be all

lighted. After several seconds print head start initialization action. Only

ON indicator will be light after initialization has been finished.

• Any printing medium in the printer paper path will be ejected.

• If anything happen not according to what listed above please refer to

chapter 4 of Reference manual ‘MAINTENANCE AND

TROUBLESHOOTING’.

PRINT TEST

SELFTEST

After power on, printer gets to the ON-LINE state. Pressing downSTATION 2

and COMPESS▼key synchronously can make printer get to OFF-LINE state.

Pressing downCOMPRESS▼key to select ‘MENU PRINTING’ and pressing

downSTOP■key to confirm

After feeding an A4 paper printer processes the selftest printing.

During printing if paper used out, printer will eject the paper.

If printing finished, printer will eject paper.

SELFTEST PRINTING CONTENTS

For different menu setup configuration, there will be different printed out selftest

printing contents. Concerning your printer’s menu configuration please refer to

printer packing enclosed sheet.

PR9/K10-P 2.08 CCG. GB18030 CG. 001

PRINTER ID : 02B00007F66681

NEEDLE TEST:

1 1 1 1 1 1 1 1 1 1 2 2 2 2 2 O E

1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 D V

CONFIGURE

INTERFACE: DUAL INTERFACE

RS1 EMULATION: OLIVETTI

BAUD RATE(RS1): 9600

BIT/CHARACTER(RS1): 8

PARITY(RS1): NONE

STOP BITS(RS1): 1

DSR(RS1): NO

CX EMULATION: IBM

CX STROBE EDGE: FALLING EDGE

SB CURRENCY SYMBOL: YES

CHINESE CODE STD: GB18030

DRAFT SPEED: NORMAL

LQ TYPE: NLQ1

NEEDLE FORMS: NO

SPECIAL FORMS: NO

IGNORE COVER OPEN: YES

OLIVETTI CONFIGURE

EMULATION: PR9

TOF PR40 LIKE: NO

PRINTING MODE: CHINESE

ASCII CHARACTER SET: OPTION 1

HIGH SPEED PRINTING NO

CPI: 10

LPI: 6

CHARACTER DEFINITION: DRAFT

LF+CR: NO

LEFT MARG.(1/60’’): 0

TOP MARG.(1/60’’): 0

CHARACTER SET: IBM/PC

IBM CHARACTER SET: PC

PC CHARACTER SET: 437(INT)

ISO CHARACTER SET: CPOLUNIX

BIM DEFAULT DPI: 96

VERT. RESOLUTION: 1/240

LINE LENGTH: 90

After checking menu configuration, printer can be connected to host PC or

system.

CONNECT TO HOST

PR9 is generally connected to host using RS232 C serial interface.

Plug cable connector to the D type 9-way socket and fix the cable with those

two screws.

Figure 1.8-1 connection of PC and PR9

It is suggested that the cable length would be less than 1.5 meters to avoid any

data communication problem when using parallel interface.

Items listed below must be followed when install and use printer:

• Printer must be switched off before connecting data communication

cable. Avoid pluging and pulling out the cable when printer is power on.

Connector must be fixed by attached screw after cable is connected to

socket to avoid it falling off the socket.

• AC power regulator is suggested to be used to avoid printer working

unsteadily or being damaged dute to the reason that if local mains is

unstable.

• To select single-phase 3-wire power socket with high quality and

enough surplus. Its protection end must be grounded. Ground

resistance must be less than 4Ω.

• Keep working environment clean and dustproof. Avoid using liquid

cleaner to clean interior of printer.

• Do not disassembe printer’s electronic parts and mechanical parts.

Mechnical parts need to be regulated and adjusted with special tools

and instruments. Incorrect regulation will cause printer be damaged

badly.

• Please contact your printer supplier if meeting with any troubles.

Operator Panel

The operator panel locates at the central top front of the printer. And which

comprises 4 LEDs and 5 buttons.

Figure 2.1-1 operator panel on printer

LED INDICATORS

The LEDs indicate operator the current state of the printer, as list below.

LEDs ON OFF BLINK

LED1(ON) POWER ON POWER OFF

LED2(READY) RECEIVING

DATA

LED3(STATION

ASSIGNED TO

USER 1

LED4(STATION

ASSIGNED TO

USER 2

BUTTONS

The buttons function differently according to whether or not the printer is on line.

Please refer to the following table for details when press button.

CONNECTION

BUTTON NAME

ON-LINE OFF-LINE

STATION 1 Assign printer to user 1.

STATION 2

(ALIAS: SKIP)

Assign printer to user2

press together with the

COMPRESS button in the

same time to become off-

line.

·press together with the

COMPRESS button in the

same time to restore on-

line

·Menu returns to the upper

level if there is one,

otherwise remain

unchanged

FEED/EJECT

(ALIAS: UP/LEFT

ARROW)

Feed the next page except

the last one if consecutive

paper has been

recognized by printer. In

other cases, eject the

paper.

Menu move backward to

the previous item within

the same group. It may

cycle to the last item from

the first one.

STOP

(ALIAS: ENTER)

Toggles between stops

printer temporarily and

wakes up printer to

continue its job

Ok. Acceptance

COMPRESS

(ALIAS:

DOWN/RIGHT

ARROW)

·Toggles between activates

and cancels compulsory

compression in print.

·press together with the

STATION 2 button in the

same time to become

offline.

·Menu move forward to

the next item within the

same group. It may

cycle to the first item

from the last one.

·press together with the

STATION 2 button in

the same time to

restore online

The LCD display corresponds to the button usage, and realizes the interaction

between human and machine thus complete the operation guide and state

indication for the printer.

LOAD PRINT MEDIUM

This printer is capable of dealing with single paper, cheque, multilayer carbon

paper, passbook and credit card. The printer will start process automatically if

operator put the print medium into paper feeding path. User needn’t bother to

align the print medium with the either border of the printer. The printer itself will

look after the alignment.

Note: As soon as the auto alignment process start after you put in a

medium, please release the medium.

Note: When apply passbook, to avoid both poorer print quality and jam as

paper advances, please make sure there is no curl or tears on the

passbook. In addition, please fold a new passbook toward the

opposite direction so as to flat it than before, and ease the paper

process in printer.

SETUP AND CONFIGURATION

PRINTER SETUP

If factory default setting doesn’t meet the customer’s requirement, set up the

printer again. It might be helpful to know that some parameters are only

available to special machine model, while some other parameters have sub-

choices only when the optional plug-in device is mounted, and some

parameters are even not allowed to change.

Operator has to understand what the parameters will result in before to alter

them. To prevent the printer from being left abnormal, operator is encouraged to

read this section beforehand.

CLASSIFICATION OF OFF-LINE OPERATIONS

The off-line operations can be divided into 6 different classes by the functions

and objects.

• Menu setup

Contents: Set up menu parameters for various modules (common

configuration and different emulation) in FW.

• Menu printing

• Contents: Print parameters settings of the current menu which related

to a specific module.

• Printing test

Contents: include printing user guide of off-line operation, ASCII

characters sets, Chinese characters set, and characters attributes.

• Adjustment

Contents: Include printing the current settings of photoelectric sensor,

resetting up the photoelectric sensor and printing the new settings,

setting up the left margin, setting up the top margin, alignment adjusting

for bi-direction print, and run-in printing etc.

• Debug test

Contents: include printing in hex (usual transaction and data printing),

soft test for reading magnetic stripe.

• Info inquiry

Contents: Inquire current parameters settings of both software and

hardware, including version (version number, non-standard issue tag,

special simulation etc.), hardware configuration (characters generators,

optional connection interface, scanner, sprocket), PCB ID, firmware

check sum etc.

The classification is shown in the diagram below:

Offline

operation

SETUP

PRINTING

TEST ADJUSTMENT DEBUG TEST

1.PHOTO SENSOR

VALUE

2.LEFT MARGIN

3.TOP MARGIN

4.RUN-IN TEST

5.BIDIRECTIONAL

PRINTING

6.PRINT PHOTO

VALUES

7.INQUIRE PHOTO

VALUES

8.RESUME HW

PARAMETERS

1.USER’S

GUIDE

、2 CHINESE

CHARACTER

、3 ASCII

CHARACTER SET

、4 CHARACTER

ATTRIBUTES

1.HEX PRINTING

2.READ MAGNETIC

STRIPE (OPTIONAL

MAGNETIC DEVICE

MUST EXIST)

1.CONFIGURE

2.OLIVETTI

CONFIGURE

3.OKI

CONFIGURE

4.IBM

CONFIGURE

5.SAVE

PARAMETERS

INFO

INQUIRY

1.VERSION

2.HW

CONFIGURATION

3.ID

4.FW CHECK

SUM

PRINTING

Enter by pressing STATION 2 and

COMPRESS buttons simultaneously

INSERT A4

SHEET

HOW TO SET UP MENU

• Menu parameters can be partitioned into 5 modules (configuration,

OLIVETTI configurationOKI configuration, IBM configuration and save

parameters). To modify the parameters, the relevant module must be

selected at first.

Operation guide

To enter the menu setup, either press both STATION 2 and COMPRESS▼

buttons when switch on printer, or press both STATION 2 and

COMPRESS▼buttons when printer is online.

During staying at off-line, usually press FEED/EJECT▲to scroll up menu

items list (but if it is the first parameter, press this key will scroll to the last

parameter). Press COMPRESS▼to scroll down menu items list (but if it is

the last parameter, press this key will scroll to the first parameter). Press

STOP■to acknowledge current setting. Press STATION2 to return to upper

level of menu (But if it is the topmost level, this key is invalid).

The first line on LCD displays the current level of menu, while the second line

displays the sub-menu.

ADJUSTMENT

Adjustment can be used to tuning and investigate some inherent parameters of

the printer. It may enhance the print performance. Sometimes, it’s possible to

improve the page layout to conform to the practical environment. The printer

has been adjusted corresponding to factory criteria before it is delivered. User

may usually leave the settings as what they are. If the printer has to be adapted,

the user should have already well understood the involved parameters. Or else

the printer may miss normal function. The following introduce the adjustable

parameters.

These parameters below allow manipulation on operator panel:

• ·Photoelectric sensor

• ·Left margin

• ·Top margin

• ·Run-in test

• ·Alignment adjustment for bi-directional printing

• ·Printing settings of photoelectric sensor

Andere Nantian Electronics Drucker Handbücher

Nantian Electronics

Nantian Electronics PR9 ES Bedienungsanleitung

Beliebte Drucker Handbücher anderer Marken

Lexmark

Lexmark 1400 Series Handbuch

Canon

Canon i70 Series Bedienungsanleitung

Evolis

Evolis Elypso Bedienungsanleitung

Kyocera

Kyocera FS-9530DN Bedienungsanleitung

Canon

Canon LASER SHOT LBP-1210 Bedienungsanleitung

Samsung

Samsung BIXOLON SRP-350plusF Bedienungsanleitung

Canon

Canon PIXMA PRO-1 Series Bedienungsanleitung

Canon

Canon PIXMA G3560 Einrichtungshandbuch

Dell

Dell Color Laser Printer 2130cn Bedienungsanleitung

Tektronix

Tektronix Phaser 840 Bedienungsanleitung

Epson

Epson ET-7750 Betriebsanleitung

Canon

Canon CLBR 460ps Bedienungsanleitung

Eltron

Eltron P210 Guide Bedienungsanleitung

Ricoh

Ricoh MD-P1 Bedienungsanleitung

Epson

Epson SC-F7100 series Bedienungsanleitung

Epson

Epson Stylus C40UX Bedienungsanleitung

Canon

Canon imagePASS-A2 Bedienungsanleitung

Canon

Canon S820D Bedienungsanleitung
