NAPCO Prima: User Installaon Guide1

User Installation Guide

OI436LF8/23©NAPCO2023

2NAPCO Prima: User Installaon Guide

Table of Contents

QuickStart......................................................................3

HomeScreen...................................................................6

PanelIcons/StatusBarIcons.........................................7

QuickSengsMenu.......................................................8

Arming............................................................................8

3UserTypes....................................................................8

AddingSensors...............................................................9

ArmingSengs...............................................................9

Auto‐Arming...................................................................9

NetworkConnecon.......................................................9

TesngYourSystem......................................................10

PanelInformaon.........................................................10

EmergencyBuon(Panel)............................................11

SuperPanelSpeciﬁcaons............................................11

ArmingSengs.............................................................13

SecuritySengs............................................................14

PanelSengs................................................................17

DoorbellCamera...........................................................18

DoorbellLEDIndicaons...............................................20

Window/DoorTransmier............................................21

SensorTroubleSignals...................................................24

PIRMoonSensor.........................................................25

Indoor/OutdoorHDCamera..........................................29

SolarPanel.....................................................................31

Keyfob............................................................................32

PanicBuon("Medical")...............................................34

Flood/FreezeTemperatureSensor................................37

GlassbreakTransmier..................................................39

RecessedWindow/DoorTransmier............................41

Smoke/CODetector.......................................................44

EventLog.......................................................................53

Z‐WaveHomeAutomaon............................................54

ApprovedZ‐WaveDevices.............................................56

TakeoverTranslatorModule.........................................57

OrderingInformaon....................................................59

FCCCompliance.............................................................60

NAPCOLimitedWarranty..............................................61

For technical service, contact your local security dealer.

NAPCO Prima: User Installaon Guide3

Wire the

Power Supply



 Connectredto(+)

 Connectblackto(−)

Connect Power Supply

InsertpowersupplyintoDCsocketshown(arrow).

RESET

BATTERY

SIM

Install Cover

Inserttabsatboomandpresstosnapclipsinplace.3 Install Tabletop Stand

Slidetabsinasshown(no"snap").4

Quick Start

4NAPCO Prima: User Installaon Guide

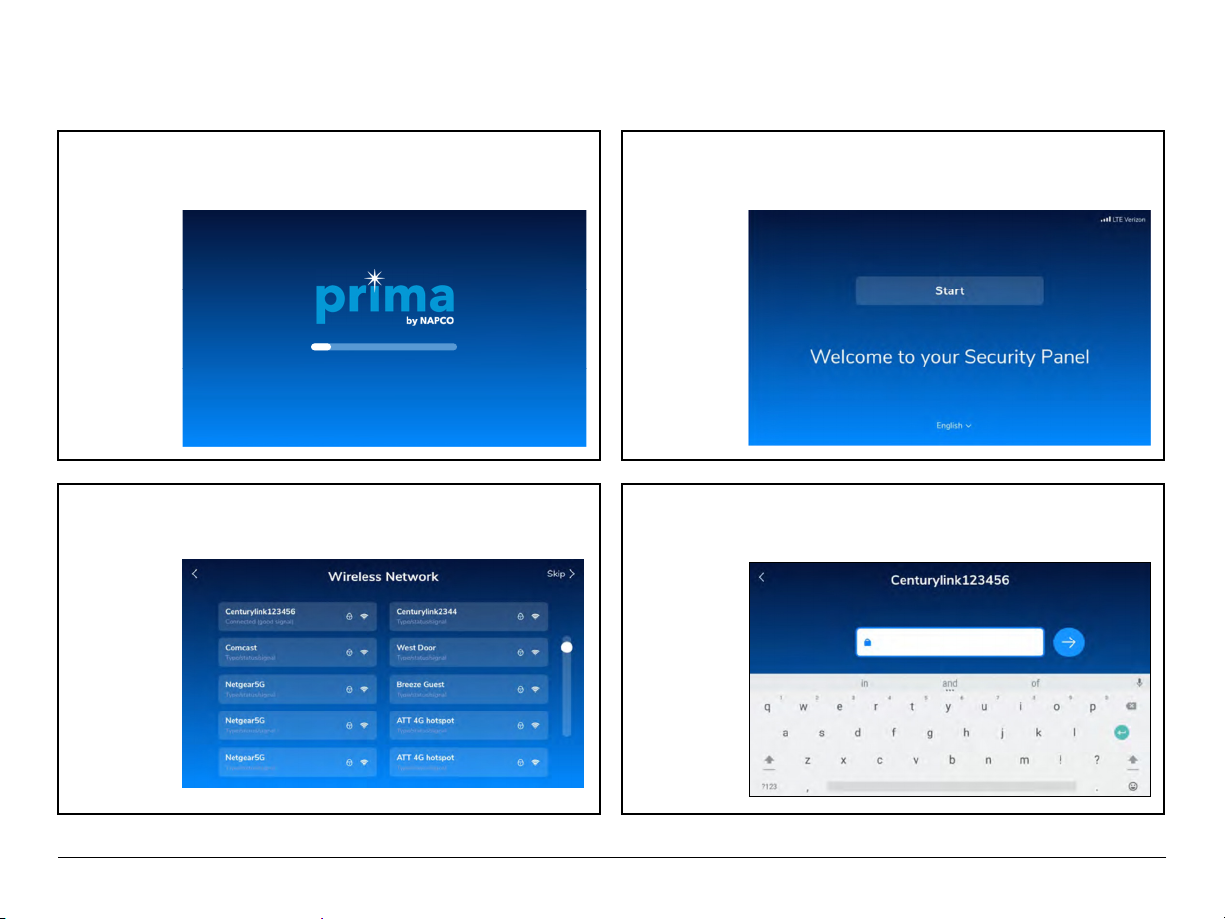

Tap Start



Setup Wizard

ApplypowerandtheSetupWizardappears.

Type your Password

(TextiscAsESeNsiTiVe).

Select your Wi‐Fi Network



5 6

7 8

Quick Start (cont'd)

NAPCO Prima: User Installaon Guide5

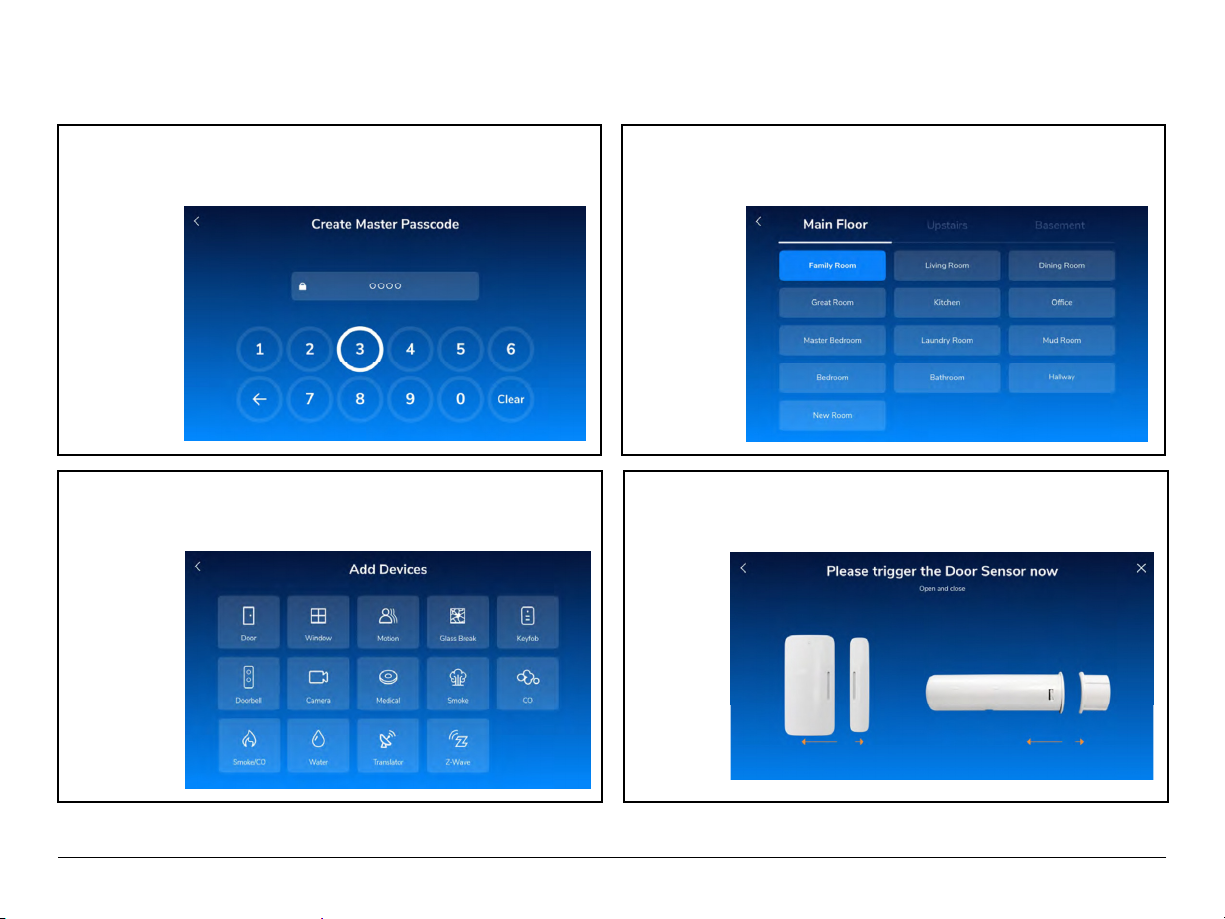

Pair the Sensor to the Panel

Followtheon‐screeninstrucons.

Install Your First Sensor

Selectthesensordevicetype.

Select Panel installaon Locaon



Create a Panel Master Passcode

Itmustbe4‐digits.

9 10

Next: Connuefollowingthesystempromptstocompleteyourinstalla‐

on.Onthenextpage,scantheQRcodetodownloadtheMobileApp.

Quick Start (cont'd)

For technical service, contact your local security dealer.

6NAPCO Prima: User Installaon Guide

Home Screen

TheNAPCOPP1A SuperPanelmenuoponsrunalongtheboomofthescreenandfeaturesiconstoalloweasyaccesstoitsmostimportant

panelfeatures.Seethenextpagefordescriponsofeachicon.

NAPCO Prima® Super Panel (Model PP1A)

Download the

Mobile App

Above QR Code will

Auto‐Detect your

Operang System

(Android or iOS)

For technical service, contact your local security dealer.

NAPCO Prima: User Installaon Guide7

Panel Icons

Icon Name Descripon

SengsAllowsyoutosetthepanelchanges.

SensorList Allowsyoutoaddandeditsensors.

Rooms Checksthestateoftheroomsensors.

DoorbellCamera Allowsyoutoconnectthedoorbellcameraandtosetfuncons.

History Displaysalistofsecurityevents.

Home Displaysthestatusofthesecuritysystemandopensensors.

Emergency Allowsyoutosendanemergencysignaltothecentralstaon.

Status Bar Icons

Icon Name Descripon

Volume Allowsyoutosetthevolumeofthepanel.

Brightness Allowsyoutosetthebrightnessofthescreen.

Wi‐Fi IndicatestheWi‐Fistrength.

ScreenClean Freezesthetouchscreensoitcanbecleaned.

Cellular Indicatesthelevelofcellularrecepon.

8NAPCO Prima: User Installaon Guide

TheSuperPanelallowstheusertoarm/disarminstaymodeoraway

mode,andtocontactanemergencyservice.



Select Arming Method*:

Clickthehomebuon()toselectanarmingmethod,eitherLeaving

orStaying*.



Arm When Staying:

1.WhenselecngStaying,youhavetheopontoinstantlyarmthe

systemorsetanexitme(Sengs >Arming >Staying >Exit me).

2.To Disarm:TapDisarm andenteryourUserpasscode(UserCode).

ToprogramtheabilitytodisarmwithoutaUserpasscode,goto

Sengs >Arming >Stay >Disarm.



Quick Sengs Menu

To access the quick sengs menu:

Tapthequicksengsbaronthetopmiddlescreen.



To adjust the volume and brightness level:

Slidevolume/screenbrightnessindicatorle(decreasesvolume/

brightness)orright(increasesvolume/brightness).



To clean the screen:

Clickthescreencleanicon()andthescreenwillbedisabledfor30

secondstoallowthescreentobecleanedwithouttriggeringacvity.

Arming

*Throughoutthisdocument,"Leaving"isidencalto"ArmedAway",and"Staying"isidencal

to"ArmedStay".

Arm When Leaving

1.SelectLeaving andthesystemwillarmaeradefaultexitme

of60seconds.

2.To Disarm:TapDisarm andenteryourUserpasscode(User

Code).



To Bypass a Zone

Note:Ifasensorisfaulted(e.g.,dooropen),thesystemcannotbe

armedunlthezoneiseithernolongerfaulted(e.g.,door

closed),orthesensorisbypassed.

1.Selectanarmingmethod,eitherStayingorLeaving.

2.ConﬁrmbyselecngBypass.

3.Thesystemarmsnormally;thescreenidenﬁesthesensor

thatisbypassed.

3 User Types

 Master:OnlyuserwithaccesstoSengs;andmustbesetby

default;onlytheMasterusercanaddand/ordeleteusers.

 Hostage:Duress("Ambush")isdisabledbydefault.AeraDu‐

ressuserpasscodeiscreated,duressisenabled.Ifanintruder

forcesyoutodisarmyoursystem,entertheDuressuserpasscode

tosendasilentemergencyalerttothemonitoredcentralstaon.

 User:Usersub‐typesare:Member,Scheduled,andTemporary.

AMemberhastheabilitytoarm/disarmatanyme.AScheduled

usermayonlyarm/disarmduringpre‐setmes.ATemporary

usermayarm/disarmonlyunlaspeciﬁedme.



1.EntertheMasterpasscodeandselectSengs.

2.Selectthe[+]icontoaddaUser.

3.Typeadesiredidenﬁcaonname,tap'back'tosavethename.

4.SettheUserType:Member,Scheduled,orTemporary (see

abovetypedescripons).

5.SetthedesiredUserpasscode,andconﬁrm.

NAPCO Prima: User Installaon Guide9

Modify a User Name

1.SelectSengs >Users >select user >Edit new name.

2.Selectthedesiredﬁeldtoedit.

3.Changethedesiredﬁeldandsetname



Modify a User Passcode

1.SelectSengs >Users >select user >Change passcode.

2.Changethedesiredﬁeldandsetanewpasscode.



Remove Exisng User

1.SelectSengs >Users >[select user] >Remove/Delete.

2.Selecttheicontoremovethedesireduser.



Adding Sensors

TheDevices screenallowsyoutoadd,modifyordeletesensors;

youcanalsocheckthestatusofeachsensor.



Add a Sensor

1.IntheDevices screen,selectthe[+]icon.

2.Selectthetypeofsensor.

3.IntheTrigger screen,acvatethesensortoallowittobede‐

tectedbythesystem.

4.TypeanameforthesensorandselectDone toﬁnishorselect

Sengs toconﬁgureanydesiredsensor/devicefeatures.

5.Tocheckthestateofthevarioussensorsinstalled,selectthe

Sensor Type andtheAccess to Groups screens.TheAll Devices

screenallowsyoutocheckthestateofallsensors.



Modify a Sensor

1.SelectSengs >[enter Master passcode]>Devices).

2.Selectthesensortype,thenselectthedesireditem(s)tobe

conﬁguredforthesensor.



Remove a Sensor

1.SelectSengs >[enter Master passcode]>Devices).

2.SelectthedesiredsensorandclickDelete toremove.

Arming Sengs

AllowsyoutomodifytheSecuritysengs,includinghowtoadjustde‐

laymes,volumeandchimesengs.

 Bypass Arm:On/Oﬀ;defaultisOn.IfOﬀisselected,youcannotarm

thesecuritysystemwithafaulted("open")sensor.

 Voice:On/Oﬀ;defaultisOn.IfOﬀisselected,thearmingprocess

occurswithoutsounds.

 Beep:On/Oﬀ. 

 Exit me:Adjuststheexitdelayme(duraonaerarmingthatallows

youtoopenanexitdoor,leavethepremisesandclosethedoorbehind

you).

 Sensors: Userscanselectthesensortobearmedortobeexcluded

fromarming.

 Arm: On/Oﬀ;passcoderequiredtoarm.

 Disarm: On/Oﬀ;passcoderequiredtodisarm(onlyforStayinf).



Access to Arming

SelectSengs >[enter Master passcode]>Arming >selectArming

Stay orArming Away.



Auto‐Arming

Allowstheusertoaddanarmingschedule.

1.SetupthedesiredArmingdaysoftheweek.

2.EnterthenewnameforAutoarming.

3.SelectthedesiredArmingmode.

4.SetupthedesiredArmingdaysoftheme.



Network Connecon

Allowstheuserselectthenetworktobeusedwiththesecuritysystem.

 Cellular: AllowstheusertoinsertavalidSIMcardinsidethePRIMA‐

P1Apaneltoestablishasecurenetworkconnecon.

 Wi‐Fi: AllowstheusertoaccesstotheavailableWi‐Finetworks:

1.SelectSengs >Network >Wi‐Fi.

(connued)

10NAPCO Prima: User Installaon Guide

2.SelectthedesiredWi‐Finetworkandenterthepassword.

3.SelectOK.

 Ethernet: AllowstheusertoconnecttoanetworkthroughanEther‐

netcable.



Tesng Your System

Yoursecuritysystemoperaonaltestsinclude:



Walk Test ‐‐ Allowstheusertocheckeachsensorinthesystem.Trig‐

geringthesensor(e.g.,openaprotecteddoor)veriﬁesthatthe

sensoriscurrentlycommunicangwiththePP1Apanel.



Touchscreen Test ‐‐ AllowstheusertoverifythatthePP1Atouchscreen

workscorrectly.



Wi‐Fi Test ‐‐ DisplaysthecurrentlyconnectedWi‐Finetworknameand

itscurrentstatus.Note:Thistestmaytakeupto60secondsto

concludeanddisplaytheresults.



SOS Alert Test ‐‐ Sendsatestsignaltothecentralstaon.Note:Con‐

tactacentralstaonrepresentavebeforeandduringthistest.



Ethernet Test ‐‐ VeriﬁesInternetnetworkconnecvity.



Server Test ‐‐ Sendsatestsignaltothesharednetworkcomputerto

conﬁrmdataconnecvity.



Call Test ‐‐ Displaysthecurrentlyconﬁguredcellularinformaon.



G Sensor Test ‐‐AnimpacttestoftheintegralG‐Forceaccelerometer

forcorrectregistraonofvalues.



Tamper (Panel) Test ‐‐ Teststhetamperswitchoperaonwhenrear

coverortabletopstandisremoved.Enterpasscodetosilence.



Camera Test ‐‐ Testsvideotransmissionconnecvityandencrypon.



Speaker Test ‐‐TestsifthePanelspeakersareworkingproperly.



Siren Test ‐‐ Checksthattheselectedsirenisoperaonal.



Microphone Test ‐‐Checksoperaonandifproperlyconﬁgured.



LED Test ‐‐ TestsallLEDsforoperaonandresponsivenesstoinputs.



Baery Test ‐‐ Panelintegralbaerytestofimpedanceanddischarge.



Upload Log ‐‐ Selecttoviewvideosuploadedtoyourcloudlibrary.



Developer Tools ‐‐Forinternalﬁrmwaretesnguseonly.



Panel Informaon

1.TheAccount tabdisplaystheaccountanddealerinformaon

(screen1).

2.Screen2displaystheIMEInumber,FirmwareVersion,Hardware

Version,MCUVersion,SystemversionandAPKUpdateme.

Panel ‐‐ Allowstheusertosettheme,temperaturescale,screenLED

aributes,etc.



Rooms ‐‐ Displaysthetotalnumberofsensorsineachroomandthe

statusofeach.

1.SelecttheRoom icontodisplayalltheroom(s)thathavesen‐

sors.

2.Selecttheroomtodisplaythesensor(s)within.

3.Selecttheindividualsensortodisplaythesensorinformaon.If

youwishtoeditthesensorinformaon,ﬁrstentertheMaster

passcode.



History ‐‐ Displaysalistofyourloggedsecurityevents(somemes

referredtoasthe"systemlog"or"audittrail").Eacheventin‐

cludesthemeandstateoraconofthePP1Apanel(armed,

disarmed,troubled,faulted,etc.).

 TheHistory screendisplaysallacvity,includingthearming/

disarmingandallalarms.Includestheme,stateandaconof

thepanelandselectedsensors.

 TheArm/Disarm screendisplaysthemeandstateoraconof

thearmanddisarmevents.

 TheAlarm screendisplaysthemeandstateoraconof

alarmsthatoccurred.

Andere Handbücher für Prima

Inhaltsverzeichnis

Andere NAPCO Hausautomation Handbücher

NAPCO

NAPCO iBridge IBR-ITAB Series Bedienungsanleitung

Beliebte Hausautomation Handbücher anderer Marken

Truth Hardware

Truth Hardware Sentry II Bedienungsanleitung

FIBARO

FIBARO FGWPA-111 Bedienungsanleitung

Hezborg

Hezborg BGR8016B Bedienungsanleitung

MYDLINK

MYDLINK Pro Series Bedienungsanleitung

Panasonic

Panasonic KX-HNA101FX Bedienungsanleitung

GamaBit

GamaBit Houseper Bedienungsanleitung

nedis

nedis WIFILRF10C37 Bedienungsanleitung

Veho

Veho TA45 Bedienungsanleitung

Nexa

Nexa ZPR-111 Bedienungsanleitung

Vimar

Vimar 00801 Bedienungsanleitung

Leviton

Leviton 47604-F6 Bedienungsanleitung

EVERSPRING

EVERSPRING AN180 Bedienungsanleitung

Coltech

Coltech 18-1339 Bedienungsanleitung

IDS

IDS NXT vegas Leitfaden

Vimar

Vimar 03975 Bedienungsanleitung

iNels

iNels RFIM-20B Bedienungsanleitung

EVA Logik

EVA Logik ZW30 Bedienungsanleitung

Leviton

Leviton ODCØP-S0W Bedienungsanleitung
