NAPOLI ELECTRONICS NPL-3735 Bedienungsanleitung

OWNER’S

MANUAL

DVD730I

SAFETY INFORMATION............................................................................................3

DISC NOTES ..................................................................................................................................4-5

INSTALLATION.......................................................................................................6-7

ELECTRICAL CONNECTION ....................................................................................8

THE PLAYER...................................................................................................................................... 9

OPERATION.............................................................................................................10

POWER ON/OFF THE UNIT.....................................................................................10

SETTINGS ..................................................................................................................10

DISC (DVD/VCD/CD/MP3) OPERATION............................................................11-13

RADIO OPERATION..................................................................................................14

USB/SD.......................................................................¡Error! Marcador no definido.

REMOTE CONTROL...........................................................................................17-18

PERFORMANCE......................................................................................................19

SAFETY INFORMATION

Use This Product Safely

This set has been designed and manufactured to assure personal safety. Improper use

can result in electric shock or fire hazard. The safeguards incorporated in this unit protect

you if you observe the following procedures for installation, use and servicing. This unit

doesn’t contain any parts that can be repaired by the user.

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or excessive moisture. This could cause electrical

shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your vehicle. Give

the interior a chance to cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with a 12 volt DC

Use Authorized Service Centers

Do not attempt to disassemble or adjust this precision product. Please refer to the

Service Center list included with this product for service assistance.

For Installation

The unit should be installed in a horizontal position with the front end up at a convenient

angle, but not more than 300.

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Handling and Cleaning

Dirt, dust, scratches and warping discs

will cause misoperation.

Do not place stickers or make

scratches on discs.

Do not warp discs.

A disc should always be kept in its

case when not in use to prevent from

damage.

Do not place discs in the following

places:

1. Direct sunlight.

2. Dirty, dusty and damp areas.

3. Near car heaters.

4. On the seats or dashboard.

Disc Cleaning

Use a dry soft cloth to wipe the

surface. If the disc is quite dirty, use a

soft cloth slightly moistured with

isopropyl (rubbing) alcohol. Never use

solvents such as benzine, thinner or

conventional record cleaners as they

may mar the surface of the disc.

Note:

A disc may become somewhat

scratched (although not enough to

make it unusable)

depending on the way it is handled and

conditions in the usage environment.

Note

these scratches are not an indication of

any problem with the player.



DISC NOTES

Preparing New Discs with

Rough Spots

A new disc may have rough edges on

its inside and outside edges. If a disc

with rough edges is used, the proper

setting will not be performed and the

player will not play the disc. Therefore,

remove the rough edges in advance

by using a ballpoint pen or pencil as

shown on the right. To remove the

rough edges, press the side of the

pen or pencil against the inside and

outside edges of the disc.

INSTALLATION

Notes:

Choose the mounting location where

the unit will not interfere with the

normal driving function of the driver.

Before finally installing the unit,

connect the wiring temporarily and

make sure it is all connected up

properly and the unit and the system

work properly.

Use only the parts included with the

unit to ensure proper installation. The

use of unauthorized parts can cause

malfunctions.

Consult with your nearest dealer if

installation requires the drilling of

holes or other modifications of the

vehicle.

Install the unit where it does not get in

the driver’s way and cannot injure the

passenger if there is an emergency

stop.

If installation angel exceeds 30°from

horizontal, the unit might not give its

optimum performance.

Avoid installing the unit where it would

be subject to high temperature, such

as from direct sunlight, or from hot air,

from the heater, or where it would be

subject to dust, dirt or excessive

vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either

from “Front”(conventional DIN

Front-mount) or “Rear”(DIN Rear-mount

installation, utilizing threaded screw holes

at the sides of the unit chassis). For details,

refer to the following illustrated installation

methods.

Installation Opening

This unit can be installed in any dashboard

having an opening as shown below:

ATTENTIONS OF INSTALLATION

1.This player should be installed by

professional technician.

2. please read the instruction and

operation of equipment carefully before

installing.

3. Make sure to connect other wires

before power connection.

4. To avoid short circuit. Please make

sure all the exposed wire are insulating.

5. Please fix all the wires after

installation.

6. Please make connection to the

player accordingly to this instruction

manual. Wrong connection may cause

damage.

7. This player only fit for 12V DC

device and please make sure your car

belongs to this kind of cathode grounding

electrical system.

8. Please connect the wires rightly.

Wrong connection will cause malfunction

or damage the electrical system.

53mm

182mm

INSTALLATION

4 Fix the unit by metre strap and screw.

OuterTrimRing

ELECTRICAL CONNECTON

Attention:

1.please make sure “B+”and ”ACC” pin location are correct before making connection

These two pins maybe dfferent in dfferent cars,wrong connections of these two pins

will burn the fuse in the out.

2.”Parking”wire must be connected to “ground” in order to active the video function

3. This player can only be used by the 12V DC cathode grounding electrical system.

4. Don’t connect the terminals of the car battery until the player is absolutely with well erection

joint.

5. Please make sure to connect the yellow wire to the positive of the battery(+).

6. When change the fuse. Please make sure the specifications are same.

7. Using good quality speaker with 4-8 ohm can result in the best effect of the equipment.

THE PLAYER

1. “ ” button.

2. “PWR/ MUTE” button.

3. “3 RPT ” button.

4. “AS/PS/” button.

5. “VOL / SEL/ENT” button.

6. “BAND / ” button

7. “5 ” button.

8. “IR”Infra Sensor.

9. “ 3" ” TFT display.

10. USB port.

11. “AUX IN” jack.

12. “6 ” TFT display.

13. “ / ” button.

14. “ / ” button.

15. “4/ ” button

16. “MODE/ ” button.

17. “2 RDM ” button.

18. “1 ” button.

19. RESET button.

20. SD card slot.

21. EJECT

22. DISC SLOT

OPERATION.

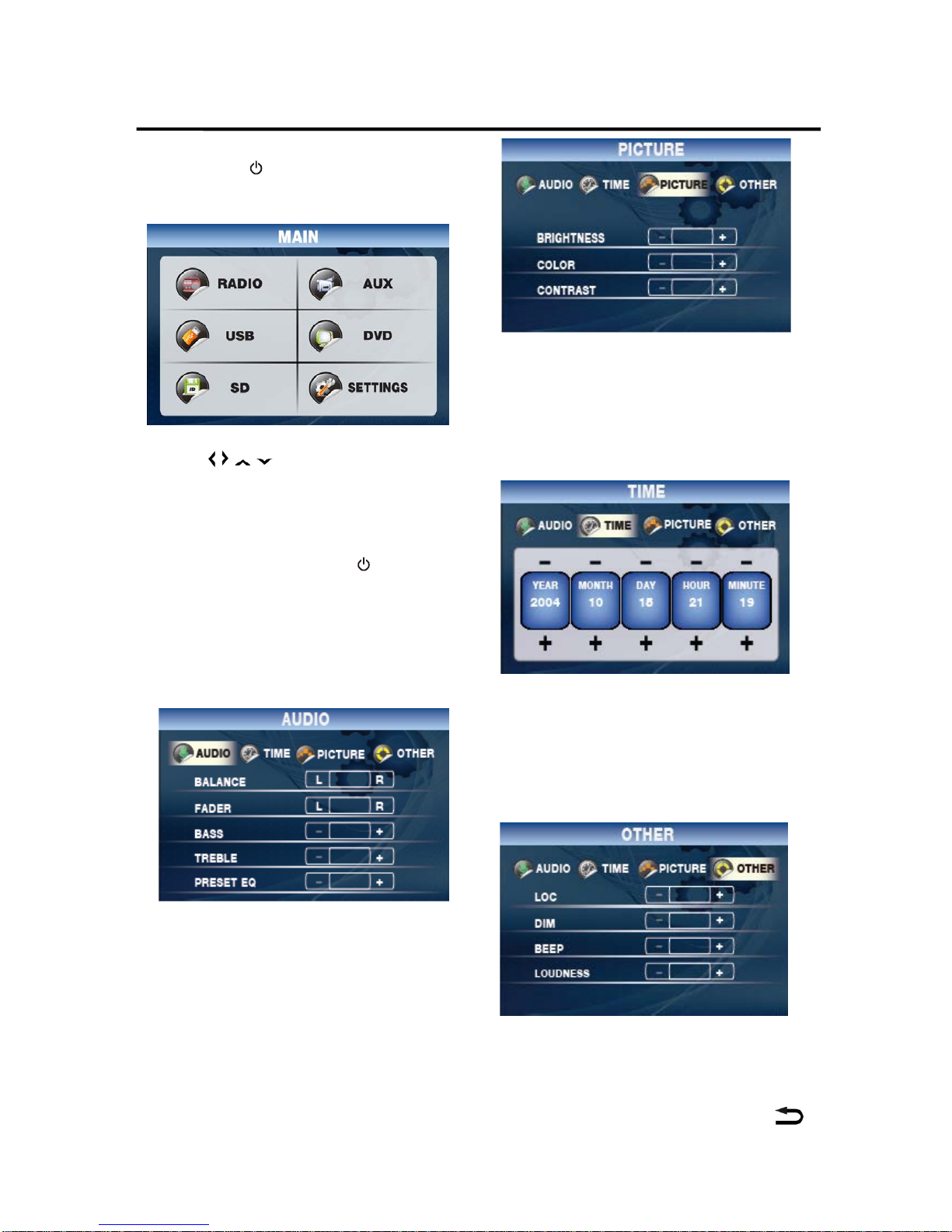

POWER ON/OFF THE UNIT

Press the button to turn on the unit，

Screen will display the main menu.

Using / , / button to select one mode

among:Radio,USB,SD, AUX,DVD. SETTING.

Then press ENT button to enter the

corresponding mode.

In any mode. Press and hold button for 2

seconds to turn off the unit.

SETTINGS

AUDIO SETTINGS

In the AUDIO settings，With the cursor and

the ENT key to change the corresponding

value you want

PICTURE SETTINGS

In the PICTURE settings，With the cursor

and the ENT key to change the corresponding

value you want

TIME

In the TIME settings，With the cursor and the

ENT key to change the corresponding value

you want

OTHER

In the OTHER settings，With the cursor and

the ENT key to change the corresponding

value you want

Note：After setup is complete press
