National Instruments 5401 Bedienungsanleitung

July 2007

373313H-01

GETTING STARTED GUIDE

NI Signal Generators

This document explains how to install, configure, and test National

Instruments signal generators for generating arbitrary and standard function

waveforms. This document applies to the NI 5401, NI 5402,NI 5404,

NI 5406, NI 5411, NI 5412, NI 5421, NI 5422, NI 5431, NI 5441, and

NI 5442 devices.

For more information about these devices, including signal generator

features and programming, refer to the NI Signal Generators Help at

Start»All Programs»National Instruments»NI-FGEN»Documentation.

This online document contains hardware information, concepts, a detailed

VI/function reference for the NI-FGEN instrument driver, and information

specific to your device. For the NI signal generator specifications, refer to the

specifications document included with each device.

For free downloads of the most current versions of documentation, visit

ni.com/manuals. For the latest version of NI-FGEN, visit ni.com/idnet.

Contents

Conventions ...............................................................................................2

1. Verifying the System Requirements ......................................................3

2. Unpacking ..............................................................................................4

3. Verifying the Kit Contents.....................................................................4

EMI Gasket ........................................................................................5

Other Required Items.........................................................................5

4. Installing the Software ...........................................................................5

5. Installing the Hardware..........................................................................6

Cooling Considerations for PXI and PCI Devices.............................6

Installing PXI Modules......................................................................7

Uninstalling PXI Modules .........................................................8

Installing and Uninstalling PXI Express Modules.............................9

Installing PCI Devices .......................................................................10

6. Power On Your Computer or PXI Chassis ............................................11

7. Configuring and Testing in MAX..........................................................12

8. Setting up Synchronization for NI-DAQmx Devices in MAX..............14

NI SIgnal Generators Getting Started Guide 2 ni.com

9. Generating Waveforms Interactively.....................................................15

Generating a Standard Waveform......................................................16

Generating an Arbitrary Waveform ...................................................17

Generating a Video Signal (NI 5431 Only) .......................................18

10. Generating Waveforms Programmatically ..........................................19

NI-FGEN Examples...........................................................................19

NI-FGEN Instrument Driver..............................................................19

NI Composite Video Generator (NI 5431 Only) ...............................19

11. Creating and Editing Waveforms ........................................................20

Appendix A: Front Panels..........................................................................20

NI PXI/PCI-5401 ...............................................................................21

NI PXI/PCI-5402/5406 ......................................................................23

NI PXI-5404 ......................................................................................25

NI PXI-5411/5431 .............................................................................27

NI PCI-5411/5431..............................................................................29

NI PXI/PCI-5412/5421/5422/5441....................................................30

NI PXIe-5442.....................................................................................32

Where to Go for Support ...........................................................................34

Conventions

The following conventions are used in this manual:

»The »symbol leads you through nested menu items

and dialog box options to a final action. The

sequence File»Page Setup»Options directs you to

pull down the File menu, select the Page Setup

item, and select Options from the last dialog box.

♦The ♦symbol indicates that the following text

applies only to a specific product, a specific

operating system, or a specific software version.

This icon denotes a tip, which alerts you to advisory

information.

This icon denotes a note, which alerts you to

important information.

This icon denotes a hot surface, which indicates

that a device may be hot. Touching the device may

result in bodily injury.

This icon denotes a caution, which advises you of

precautions to take to avoid injury, data loss, or a

system crash. When this symbol is marked on the

hardware product, refer to the Read Me First:

Safety and Radio-Frequency Interference

document included with the device, for precautions

to take.

bold Bold text denotes items that you must select or click

in the software, such as menu items and dialog box

options.

italic Italic text denotes emphasis or a cross-reference.

monospace Text in this font denotes text or characters that you

should enter from the keyboard, sections of code,

programming examples, and syntax examples. This

font is also used for disk drives, paths, directories,

functions, filenames, and extensions.

monospace italic

Italic text in this font denotes text that is a

placeholder for a word or value that you must

supply.

Platform Text in this font denotes a specific platform and

indicates that the text following it applies only to

that platform.

NI-DAQ mx devices The NI 5402/5404/5406/5412/5421/5422/

5441/5442 devices.

Traditional NI-DAQ The NI 5401/5411/5431 devices.

(Legacy) devices

1. Verifying the System Requirements

To use an NI signal generator with NI-FGEN, your system must meet certain

requirements. For more information on minimum system, recommended

system, and supported application development environments (ADEs), refer

to the NI-FGEN Instrument Driver Readme, which is available on the

NI-FGEN CDs.

Note After you install NI-FGEN, you can access the

NI-FGEN Instrument Driver Readme at Start»All Programs»

National Instruments»NI-FGEN»Documentation.

NI SIgnal Generators Getting Started Guide 4 ni.com

2. Unpacking

NI signal generators ship in an antistatic envelope to prevent electrostatic

discharge (ESD). ESD can damage several components on the device.

Caution Never touch the exposed pins of connectors.

To avoid damage when handling the device, take the following precautions:

• Ground yourself using a grounding strap or by touching a grounded

object.

• Touch the antistatic package to a metal part of your computer chassis

before removing the device from the package.

Remove the device from the envelope and inspect it for loose components or

any sign of damage. Notify NI if the device appears damaged in any way.

Do not install a damaged device into your computer.

Store the device in the antistatic envelope when not in use.

3. Verifying the Kit Contents

The following items are included in the NI signal generator kit:

❑NI signal generator

❑SMB-BNC cable (NI 5404/5412/5421/5422/5441/5442 only)

❑NI-FGEN instrument driver DVD-sized case, which contains the

following items:

– NI-FGEN CDs, which include the NI Signal Generators Help

– NI Signal Generators Getting Started Guide

❑NI Analog Waveform Editor CD. Eligible hardware kits receive an

activation license. (NI 5412/5421/5422/5441/5442 only)

❑Other included documents:

– The specifications document for the NI signal generator

– Read Me First: Safety and Radio-Frequency Interference

–Maintain Forced-Air Cooling Note to Users (except the

NI 5401/5404/5411/5431 devices)

– Retrofitting Your PXI Module Note to Users

❑(NI 5431 only) NI Composite Video Generator CD

EMI Gasket

The NI signal generator kit may also include an EMI gasket and the

Retrofitting Your PXI Module Note to Users that describes under what

conditions you should install the gasket. Refer to the Installing PXI Modules

section for more information about when you should install the gasket.

Other Required Items

In addition to the items contained in the kit, you need the following items to

install your signal generator:

❑1/8 in. flathead screwdriver

❑Cables appropriate for use with your device

♦For PXI devices

• A PXI chassis, a PXI/SCXI combination chassis,

or a PXI/CompactPCI chassis and chassis documentation

• A PXI controller or MXI bridge

♦For PXI Express devices

• A PXI Express chassis and chassis documentation

• A PXI Express controller or a MXI-Express bridge

♦For PCI devices

• A desktop computer with its documentation

Note If your application uses NI-TClk synchronization, you must

use a RTSI cable to connect the devices (PCI DAQmx devices

only).

4. Installing the Software

The NI-FGEN CDs, included with your device, install the instrument driver

for all NI signal generators. NI-FGEN CDs also include the FGEN Soft Front

Panel (SFP), which is an easy, interactive tool that helps you quickly begin

working with the NI signal generator.

To install NI-FGEN, complete the following steps:

1. (Optional) If you are developing an application for the NI signal

generator, install an ADE, such as LabVIEW or LabWindows™/CVI™.

2. Insert the first CD of the NI-FGEN CD set. The NI-FGEN installer

should open automatically.

Note If the installation window does not appear, navigate to the

CD drive, double-click the drive, and double-click setup.exe.

NI SIgnal Generators Getting Started Guide 6 ni.com

3. Follow the instructions in the installation prompts. For installation

troubleshooting information contact NI technical support or visit

ni.com/support.

(Windows Vista) Users may see access and security messages during

installation. Accept the prompts to complete the installation.

4. When the installer completes, a dialog box appears that asks if you want

to restart, shut down, or restart later. Select Restart.

5. If you are using a system running the LabVIEW Real-Time Module,

download NI-FGEN to the target using Measurement & Automation

Explorer (MAX). Refer to the Measurement & Automation Explorer

Remote Systems Help by selecting Help»Help Topics»Remote Systems

in MAX.

(NI 5431 only) Insert the NI Composite Video Generator CD into the

CD drive and follow the instructions in the installation window.

5. Installing the Hardware

Caution You must power off and unplug the computer or chassis

before installing the device.

To prevent damage to the device caused by ESD or contamination,

handle the device using the edges or the metal bracket. Refer to the

Read Me First: Safety and Radio-Frequency Interference document

for more information about handling your device.

Note You must install the NI-FGEN software before installing the

hardware.

Cooling Considerations for PXI and PCI Devices

Caution When installing an NI-DAQmx device (except the

NI 5404), follow the guidelines in the Maintain Forced-Air Cooling

Note to Users document included in the kit to ensure that the device

is cooled effectively.

Thermal Shutdown—If the device temperature rises above the maximum

operating temperature, the device shuts down and MAX or NI-FGEN

notifies you with an error message. For information about the operating

temperatures for your device, refer to the device specifications. To

re-enable the device after thermal shutdown, you must perform a hard reset,

using one of the following methods:

• Power off the computer or chassis that contains the device. After the

device has cooled, power on the computer or chassis and reboot the

controller, if necessary.

• Call the niFgen Reset Device VI or the niFgen_ResetDevice function.

• Perform a device reset in MAX. For more information about resetting a

device in MAX, refer to MAX Help for NI-DAQmx by navigating to

Help»Help Topics»NI-DAQmx»MAX Help for NI-DAQmx

within MAX.

Review the guidelines in the Maintain Forced-Air Cooling Note to Users

and make any necessary adjustments. The thermal shutdown error is reported

until the device has cooled to an acceptable operating temperature and has

been reset successfully.

Installing PXI Modules

To install the device in either a PXI chassis, a PXI/SCXI combination chassis,

or a PXI/CompactPCI chassis, complete the following steps:

1. Power off and unplug the PXI chassis.

2. (Optional) If you need to use the provided EMI gasket to reduce

high-frequency emissions, install it now. Refer to the Retrofitting Your

PXI Module Note to Users for more information about installing the

gasket.

3. Position the PXI chassis so that inlet and outlet vents are not obstructed.

For more information, refer to the chassis documentation.

4. Make sure that the ejector handle is in the unlatched (downward)

position.

5. Hold the PXI module by the ejector handle and slide it into an empty slot.

Make sure that the base engages with the guides in the chassis, as shown

in Figure 1.

NI SIgnal Generators Getting Started Guide 8 ni.com

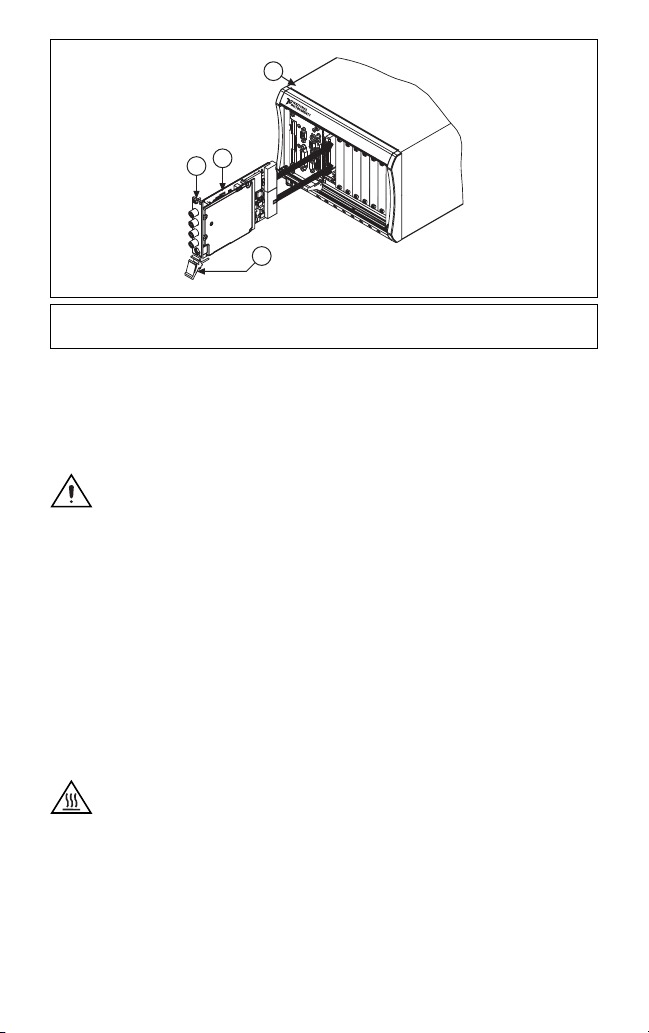

Figure 1. PXI Installation

6. Slide the module completely into the chassis and latch it by pulling up on

the ejector handle. Tighten the captive screws at the top and bottom of

the module front panel.

Caution Performance may suffer if both screws are not tightened

properly.

7. Verify that the PXI chassis fans are operable and free of dust and other

contaminants restricting airflow. Refer to the Cooling Considerations for

PXI and PCI Devices section for more information.

8. Plug in the PXI chassis.

Uninstalling PXI Modules

When removing PXI modules from the chassis, ensure that you are grounded

with a grounding strap or are touching a grounded metal surface. To avoid

ESD, do not touch the exposed connector pins or any exposed circuitry on

the device. When not in use, PXI devices should be stored in the original

antistatic envelope to avoid damage.

Hot Surface During operation, the metal surfaces of PXI devices

may become hot. Be careful when removing the device from the

chassis or when moving it to a different peripheral slot. When

removing the device, hold it by only the ejector handle and front

panel.

1 PXI Chassis

2 Ejector Handle

3 Screws

4 NI PXI signal generator

NI PXI-1042

Installing and Uninstalling PXI Express Modules

To install a PXI Express module, follow the instructions in the Installing PXI

Modules section and install the module in a PXI Express slot of a

PXI Express chassis. Refer to the chassis documentation to determine which

slots are designated for PXI Express modules.

Figure 2. PXI Express Module Installation

To uninstall a PXI Express module, follow the instructions in the

Uninstalling PXI Modules section.

1 PXI Express Chassis

2 Ejector Handle

3 Screws

4 NI PXI Express signal generator

5 Chassis slot markings

NI PXIe-1062Q

NI SIgnal Generators Getting Started Guide 10 ni.com

Installing PCI Devices

To install the PCI device, complete the following steps:

1. Power off and unplug the PC.

2. Remove the PC cover.

3. Insert the device into an open PCI slot, as shown in Figure 3.

Figure 3. PCI Installation

Tip To maximize airflow and extend the life of the device, leave

any adjacent PCI slots empty.

1 NI PCI Device 2PCISlot 3 Computer Chassis

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere National Instruments Prüfgeräte Handbücher

National Instruments

National Instruments NI PXI-2567 Betriebsanleitung

National Instruments

National Instruments PXIe-5170 Bedienungsanleitung

National Instruments

National Instruments PXIe-5433 Bedienungsanleitung

National Instruments

National Instruments PXIe-5672 Bedienungsanleitung

National Instruments

National Instruments PXI-5671 Bedienungsanleitung

National Instruments

National Instruments PXI-5154 Bedienungsanleitung

National Instruments

National Instruments ECUTS-16000 Bedienungsanleitung

National Instruments

National Instruments PXIe-5163 Bedienungsanleitung

National Instruments

National Instruments NI PXI-5105 Handbuch

National Instruments

National Instruments NI PXIe-5171R Handbuch

National Instruments

National Instruments NI PCI-5122 Handbuch

National Instruments

National Instruments SCXI-116 Series Bedienungsanleitung

National Instruments

National Instruments PXIe-5172 Bedienungsanleitung

National Instruments

National Instruments NI PXI-5922 Bedienungsanleitung

National Instruments

National Instruments PXIe-5164 Bedienungsanleitung

National Instruments

National Instruments VirtualBench VB-8054 Betriebsanleitung

National Instruments

National Instruments 449 Series Handbuch

National Instruments

National Instruments Module SCXI-1125 Handbuch

National Instruments

National Instruments NI PXIe-1078 Bedienungsanleitung

National Instruments

National Instruments 5124 Handbuch

National Instruments

National Instruments PXIe-5160 Bedienungsanleitung

National Instruments

National Instruments PXIe-5423 Bedienungsanleitung

National Instruments

National Instruments PCI-5153 Bedienungsanleitung

National Instruments

National Instruments USB Digitizers NI USB-5132 Bedienungsanleitung

Beliebte Prüfgeräte Handbücher anderer Marken

SMART

SMART KANAAD SBT XTREME 3G Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies BERT Serial Bedienungsanleitung

Agilent Technologies

Agilent Technologies N3280A Bedienungsanleitung

Vernier

Vernier Go Direct Voltage Bedienungsanleitung

Lifeloc

Lifeloc R.A.D.A.R. Bedienungsanleitung

Fluke

Fluke T5-600 Bedienungs- und Montageanleitung

Mercury

Mercury TSL01 Bedienungsanleitung

MAHA

MAHA MBT Series Bedienungsanleitung

Fuji Electric

Fuji Electric P-61 Bedienungsanleitung

ETC

ETC SealerAtor Bedienungsanleitung

Skyfine

Skyfine ETHYWAY V2 Bedienungsanleitung

Appion

Appion G5 Twin Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 8159-0112A Bedienungsanleitung

BW Technologies

BW Technologies MicroDock II Bedienungsanleitung

Sun Nuclear

Sun Nuclear 1027 Bedienungsanleitung

Biomark

Biomark HPR LITE READER Bedienungsanleitung

Hioki

Hioki 3169-20 Bedienungsanleitung

Ashcroft

Ashcroft ATE-100 Bedienungsanleitung
