Nauticam EEF60-F Bedienungsanleitung

Insert the plastic c

ring as shown and place

over the lens rubber focus ring.

Insert the gear of

EF60

on the plastic c

ring

until it reaches the flange of the plastic c-ring.

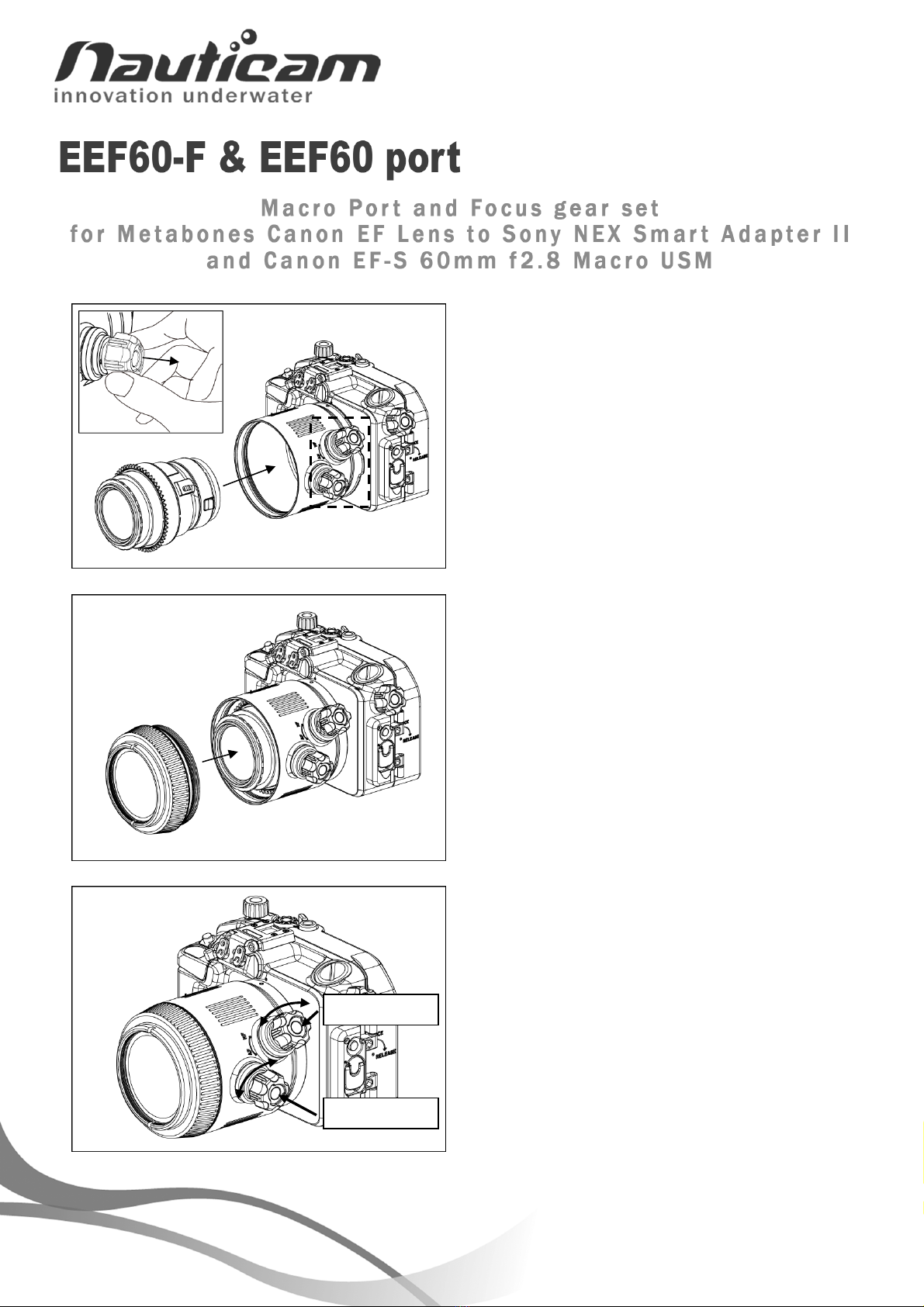

Please follow the instructions below to mount the dedicated focus gear on the lens.

Mount the alignment ring onto the lens by

screwing it into the thread on the front of the

lens.

4. To remove the EEF60-F gear, reverse the above

steps.

5. The tightness between the EEF60-F gear and the

lens can be adjusted by removing or adding

rubber grips on either sides of the plastic c-ring,

spare rubber grips are included in the package.

Please

follow the instruc

tions below to mount the dedicated Macro port on the housing.

Detach A from the port by turning it anti

clockwise while holding B firmly.

Install the camera body only into the

housing.

*Please refer to the housing manual for

installing camera into the housing.

Align the port mounting indices of B and the

housing. Gently push B into the port opening

of the housing, until it cannot go in any

further.

*Please refer to housing manual for locking

and un-locking the port.

ake sure the

two

nobs are at its most

outwards position before mounting/ un-

mounting the lens. The knobs should be left

at this position until it is made sure that the

lens and gear is properly installed.

Remove the O

ring from A, inspect for any

damage and lightly coat it with the provided

lubricant. Clean the O-ring groove before

placing it back.

6. Verify that the threaded section of B and

sealing surface are clean and free from

foreign material.

7. Align the external threaded section of A and

the internal threaded section of B.

Attach A on B

by holding the housing firmly

and turning A clockwise until it cannot go in

any further.

9. Engage the lens AF/MF switch by pushing in

the upper knob, then turn the knob both

ways to check if the lens is switching

between auto and manual focus.

10. Engage the gear by pushing in the lower

knob, then turn the knob both ways to check

if the lens manual focusing is functioning.

11. To un-mount the port, reverse the above

steps.

Upper Knob

Lower Knob
