Nauticam NA-R5 Bedienungsanleitung

NA - R5

For Canon R5 Camera

User Manual

Housing

FF- MIL

Introduction 2

Package Contents

Important Instructions

Part Names and Functions

Opening the housing

Closing the housing

Preparation for Use

Recommended Accessories

PN 17333

Care/Storage

Warranty

Speciﬁcations

INTRODUCTION

PACKAGE CONTENTS

Thank you for purchasing this Nauticam product.

Before using the product, please read this manual thoroughly to familiarize yourself with full scope of functions on the

product as well as ensuring that you will use the product correctly.

Make sure that you have all the included items listed below before using this product.

If some items are missing or damaged, contact your local Nauticam dealer.

After purchase, we suggest that

you reuse all packaging materials

for future travelling.

Panasonic CR2032 Battery

(pre-installed for Moisture Alarm)

Spare Main O-ring

Padded Travel Case Allen key set

O-ring Remover Manual Instruction Card

NA-R5

(2 x Handles with Mounting Balls, 1 x Housing Cap,

2 x Optical Fiber Mount Caps, 2 x Stainless Steel Handle Brackets)

Lubricant

IMPORTANT INSTRUCTIONS

Water-tight test of the housing (without

camera inside) before usage is recom-

mended as well as any O-ring renewal

and port change.

Use only Nauticam lubricant on silicone

rubber O-ring.

Discontinue use immediately when there is

a sign of leakage.

Do not expose the housing in direct

sunlight for a prolonged period.

Prevent any sand or dust or water

penetration inside the housing. Be

extra careful when changing lens and

inserting or removing the camera.

This product is not intened for use by

children, or persons with reduced physical,

sensory or mental capabilities, or lack of

experience and knowledge, unless they

are supervised and/or given instruction by

a responsible person concerning use of

the product to ensure that they can use it

safely.

Do not seal the housing when travelling by

air as this may lead to a pressure difference

between the atmosphere and inside the

housing.

Only the accesories speciﬁed by

Nauticam must be used. Third-party

accessories may result in malfunctions

or damage to the product.

Do not stretch any O-rings excessively.

Only remove it using Nauticam O-ring

remover.

Do not open the housing in wet or sandy

environment. Protect the housing from

moisture and debris in order to prevent

malfunction or leakage.

11 12

Do not attempt to remove parts of the

housing yourself. Repairs must be done

at authorized service centers only.

The housing should be positioned on the a

stable and safe surface on land.

PART NAMES AND FUNCTIONS

Menu button Rating/Voice memo button

Housing unlock button Moisture alarm window

TTL Indicator Window

AF point selection button

Info button

Access lamp

AE lock button

Multi selector

Set button

Delete button

1 2

3 4

Rear View

119

10 12

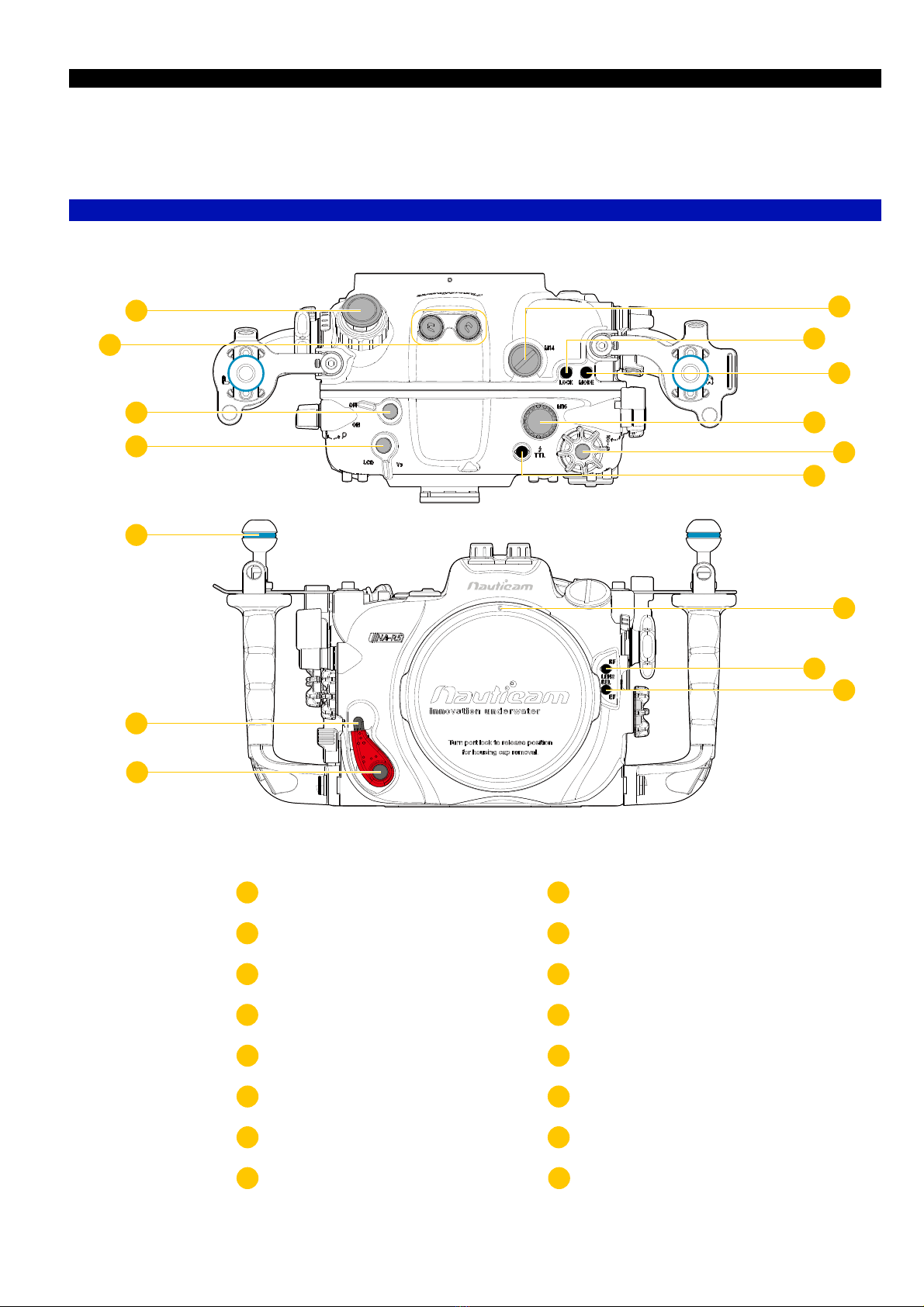

PART NAMES AND FUNCTIONS

M24 Accessory port

M14 Accessory port

Quick control dial 2

Port locking lever

RF mount lens release button EF mount lens release button

Optical cable connector

Multi-function lock button

TTL ﬂash on/off

Port index mark

Main switch

Mode button

Accessory mounting ball

LCD/Viewﬁnder lever

M16 Accessory port

Port lock safety button

15 16

Top + Front Views

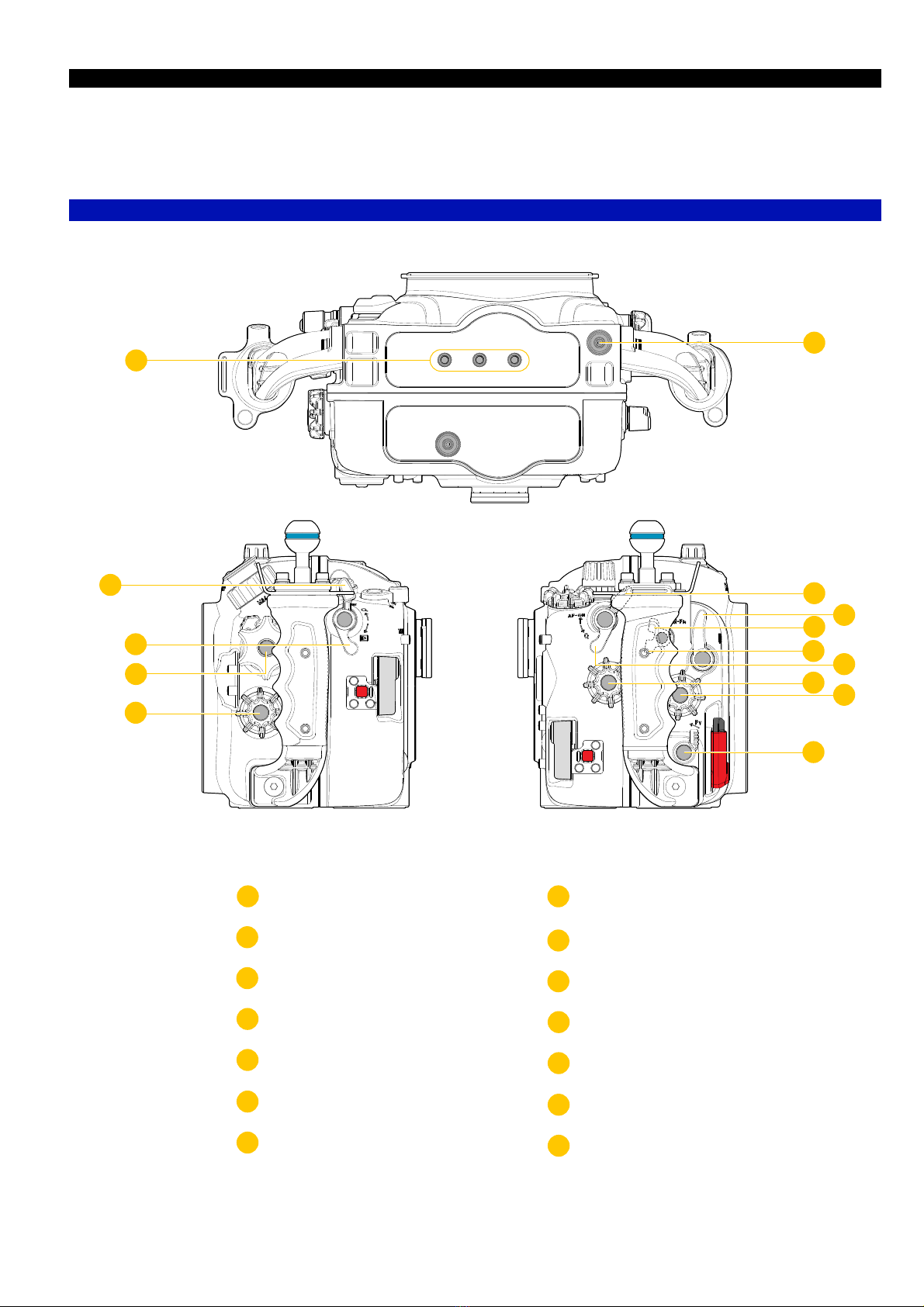

PART NAMES AND FUNCTIONS

Back + Side Views

Magnify/Reduce button

AF Start button

Quick control lever

M-Fn lever

Main dial

1/4” Threaded tripod holes

Playback lever

Shutter release lever

Quick control dial 1

REC lever

Preview lever

Zoom/Focus dial

Zinc Anodes

Control ring mount adaptor Fn

10 11

OPENING THE HOUSING

depress housing unlock button

turn housing lock outward

lift up the back housing

drawings as illustrations onl

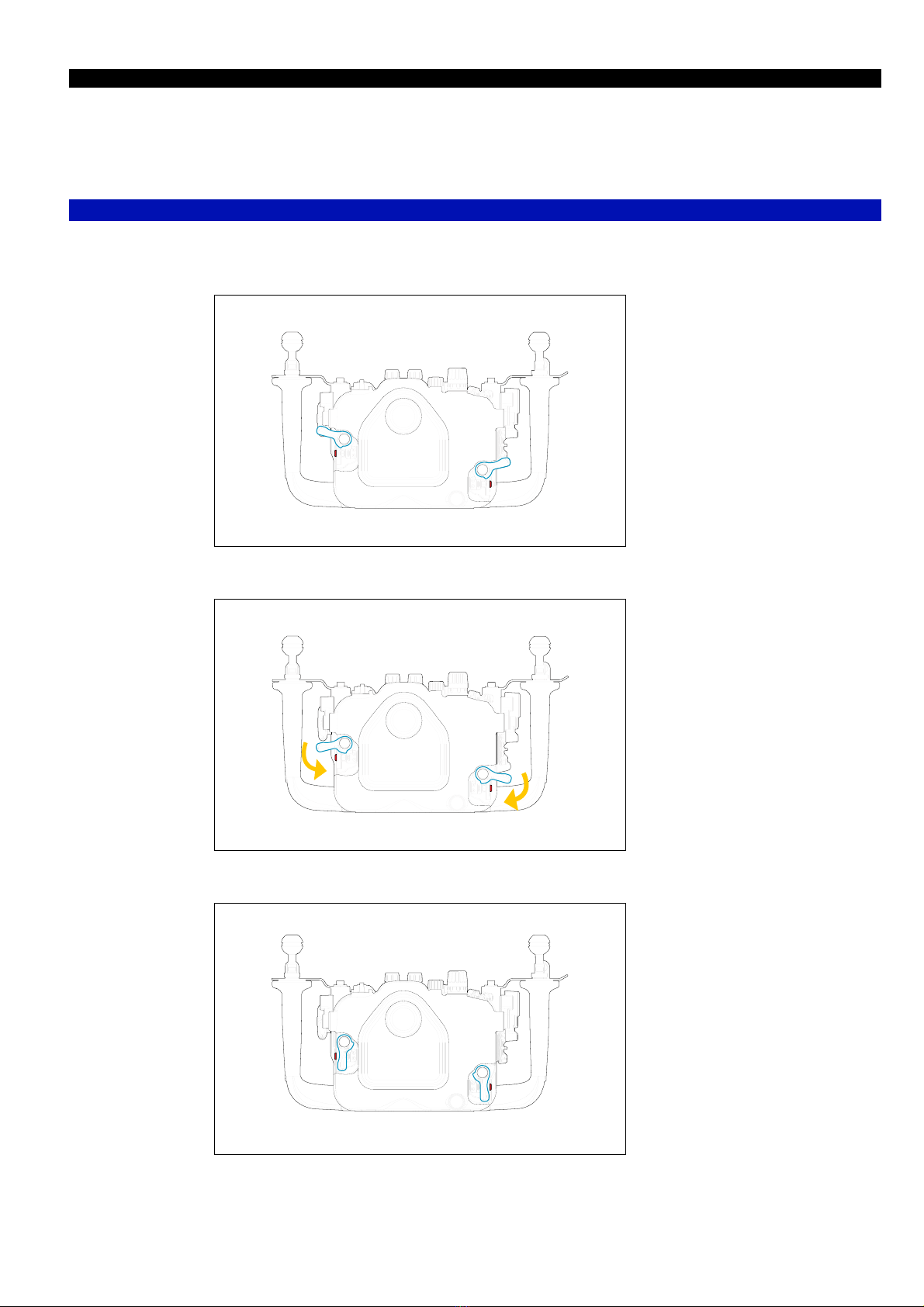

CLOSING THE HOUSING

Housing Lock - Lock

before closing the housing, clean

and lubricate the main O-ring

make sure nothing is caught

between front and back housing

and that they are fully aligned

before locking

turn housing lock inward until you

hear and feel it click into place

housing locked in place securely

drawings as illustrations onl

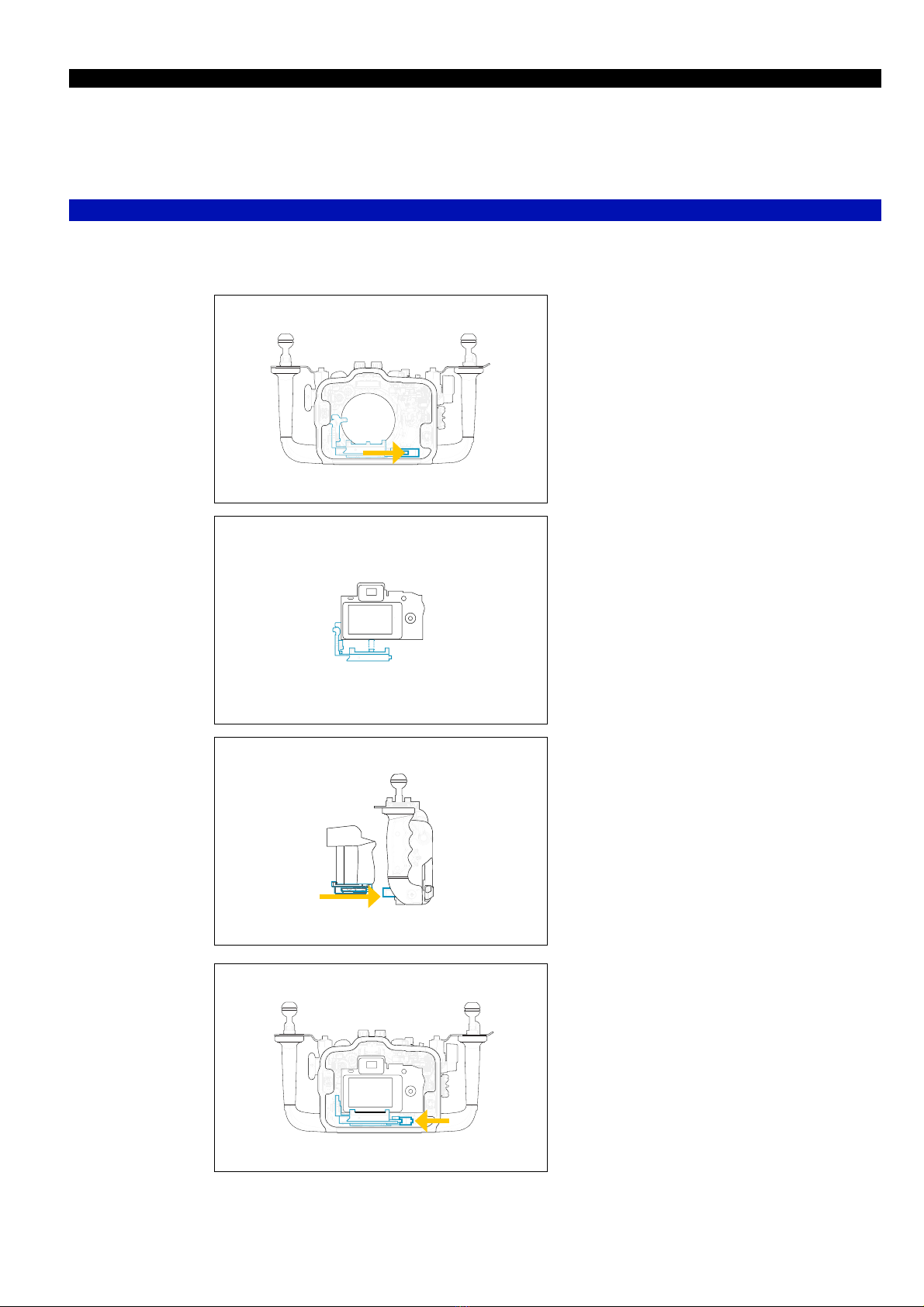

PREPARATION FOR USE

Installing the Camera - housing tray attachment

unlock camera tray lever and

remove the tray from the housing

lock camera tray

* gently push the Photo/movie

lever downwards and make sure

it is engaged with the lever on the

camera, also place the zoom/focus

knob in place and make sure it is

engaged with lens gear

attach the camera tray by tightening

the tray screw into the tripod socket

of the camera

*lift up the Photo/movie lever each

time before installing the camera,

also pull out the zoom/focus knob if

installing the camera with lens and

gear attached

* please refer to page 10 for lens

installment before sliding in the

camera

slide the camera tray back into the

housing along the tray rail

drawings as illustrations onl

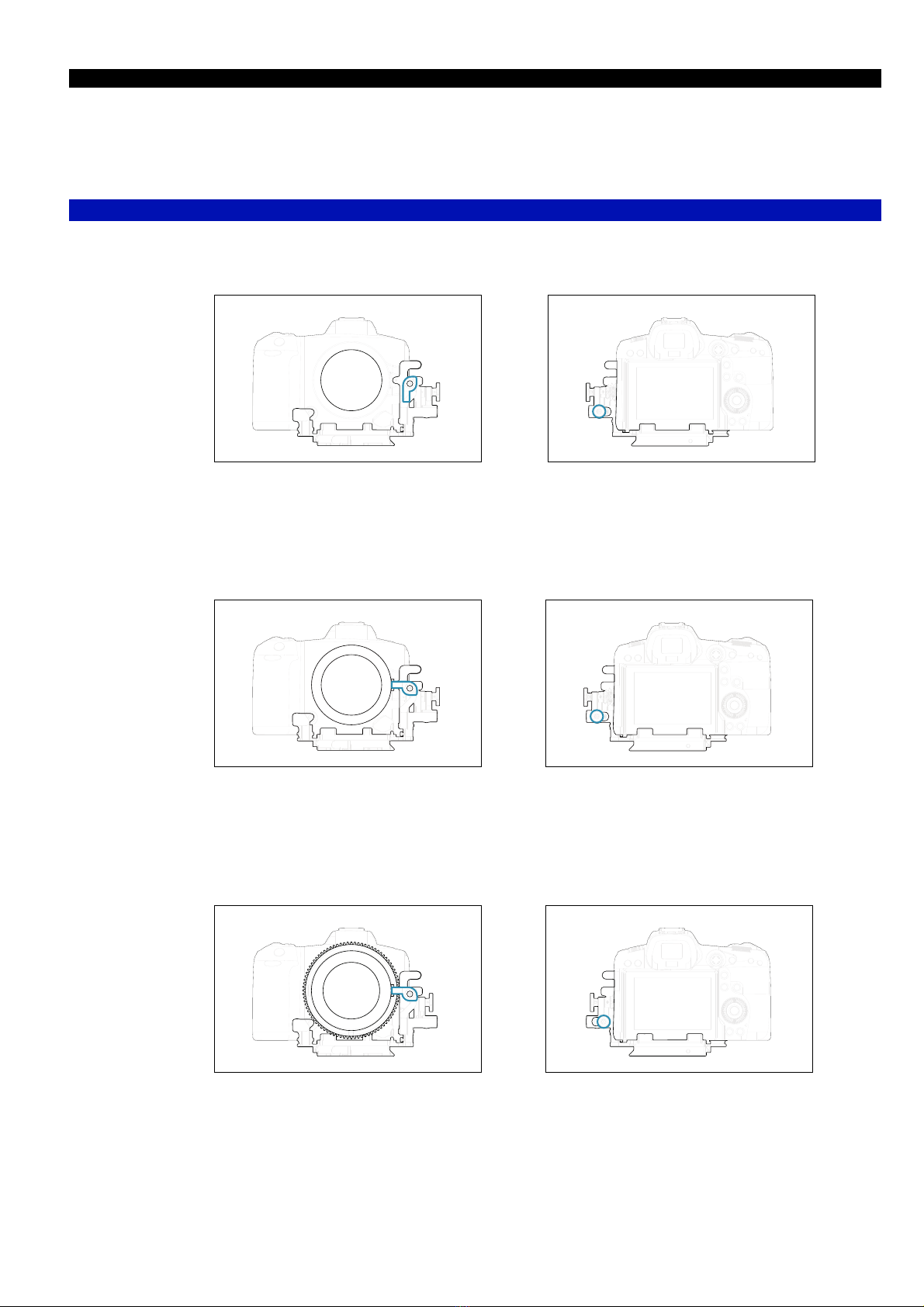

PREPARATION FOR USE

Installing the Camera - RF mount/ EF mount lens installment

RF mount lens

make sure the small lever is in vertical

position before RF mount lens installment

make sure the small lever is in horizontal

position before EF mount lens installment

make sure the small lever is in horizontal

position before EF mount lens installment

make sure the small gear engagement knob

on housing tray is on the left

make sure the small gear engagement knob

on housing tray is on the left

make sure the small gear engagement knob

on housing tray is on the right

EF mount lens

(w/ mount adaptor EF-R)

EF mount lens

(w/ control ring

mount adaptor EF-R)

drawings as illustrations onl
