Navien NFB-175H Leitfaden

WARNING

If the information in these instructions is not followed exactly, a fire or explosion may result,

causing property damage, personal injury, or death.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

WHAT TO DO IF YOU SMELL GAS

●Do not try to light any appliance.

●Do not touch any electrical switch; do not use any phone in your building.

●Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

●If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency or

the gas supplier.

The installation must conform with local codes or, in the absence of local codes, the

National Fuel Gas Code, ANSI Z223.1/NFPA 54 and/or CSA B149.1, Natural Gas and

Propane Installation Code.

Keep this manual near this boiler for future

reference whenever maintenance or service

is required.

User’s Information Manual

NFB-H Condensing Boilers

Model NFB-175H

NFB-200H

2Contents

Contents

1. Safety Information 3

2. About the Boiler 6

2.1 Description of the Boiler 6

2.2 Parts of the Boiler 6

2.3 The Front Panel 7

3. Operating the Boiler 9

3.1 Turning the Boiler On or Off 9

3.2 Adjusting the System Temperatures 9

3.3 Accessing Basic Menu Items 12

3.4 Resetting the Boiler 13

4. Maintaining the Boiler 14

4.1 Cleaning the Boiler 14

4.2 Draining the Boiler 14

4.3 Cleaning the Air Intake Filter 15

4.4 Protecting the Boiler from Freezing 16

4.5 Maintenance Schedules 17

5. Troubleshooting 22

5.1 Solving Basic Problems 22

5.2 Understanding Error Codes 23

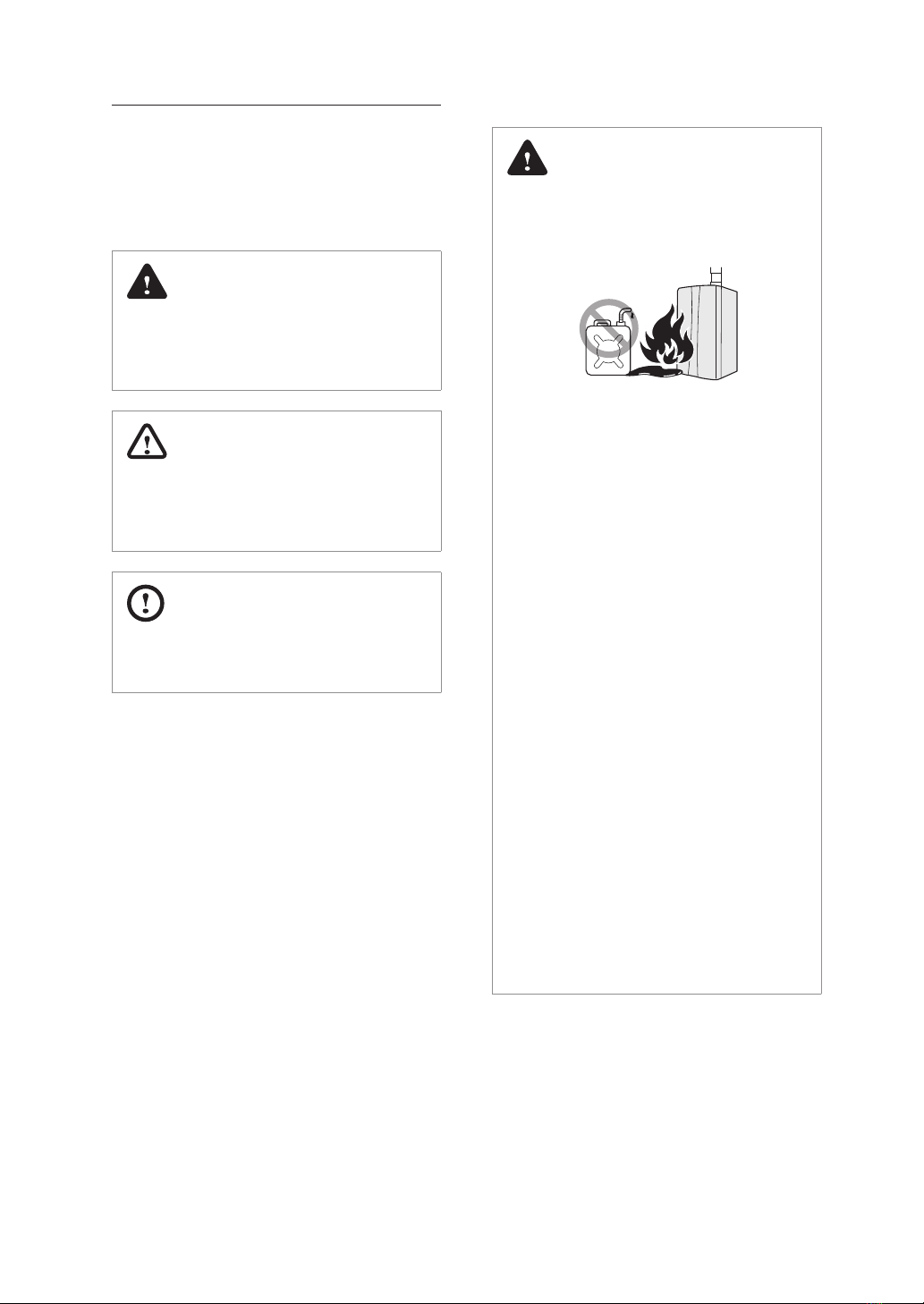

3Safety Information

The following safety symbols are used in this

manual. Read and follow all safety instructions in

this manual precisely to avoid unsafe operating

conditions, fire, explosion, property damage,

personal injury, or death. Keep this manual for

future reference.

DANGER

Indicates an imminently hazardous situation

which, if not avoided, could result in severe

injury or death.

WARNING

Indicates a potentially hazardous situation

which, if not avoided, may result in injury or

death.

CAUTION

Indicates a potentially hazardous situation that,

if not avoided, could result in property damage.

DANGER

If you do not follow these instructions exactly,

a fire or explosion may result causing property

damage, personal injury or loss of life.

A. This appliance does not have a pilot. It is

equipped with an ignition device which

automatically lights the burner. Do not try

to light the burner by hand.

B. BEFORE OPERATING smell all around the

appliance area for gas. Be sure to smell next

to the floor because some gas is heavier

than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

●Do not try to light any appliance.

●Do not touch any electric switch; do not

use any phone in your building.

●Immediately call your gas supplier from

a neighbor’s phone. Follow the gas

supplier’s instructions.

●If you cannot reach your gas supplier, call

the fire department.

●Do not return to your home until

authorized by your gas supplier or the

fire department.

C. Do not use this appliance if any part has

been under water. Immediately call a

qualified service technician to inspect the

appliance and to replace any part of the

control system and any gas control which

has been under water.

1. Safety Information

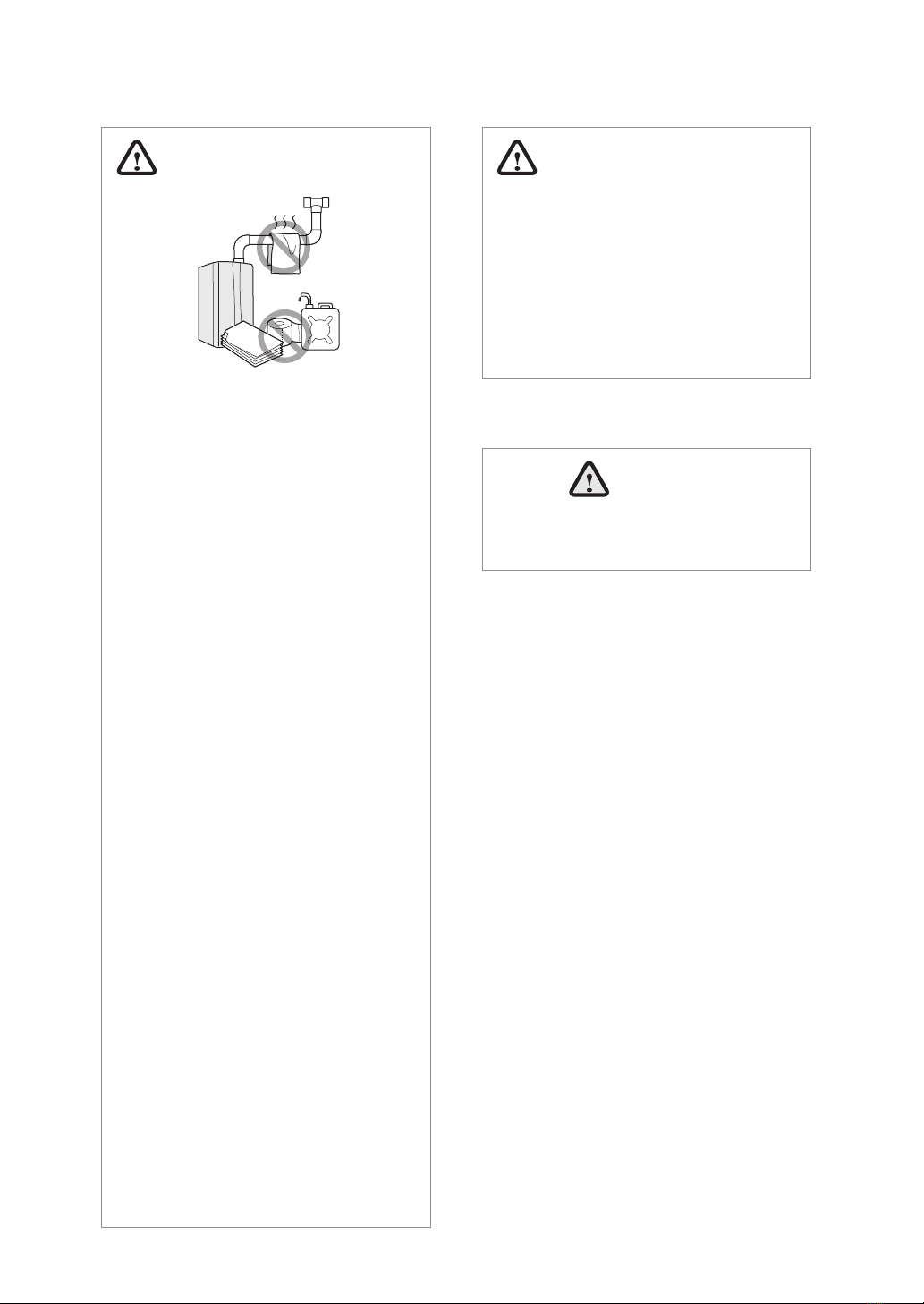

4Safety Information

WARNING

●Shut off the gas supply if the boiler is

damaged.

Have your installer or plumber show you

the location of the gas shut off valve and

demonstrate how to close the valve. If the

boiler is damaged as a result of overheating,

fire, flood, or any other reason, close the

manual shut off valve and do not operate the

boiler again until it has been inspected by a

qualified technician.

●Do not store or use gasoline or other

flammable liquids near this boiler.

Doing so may result in fire or explosion.

●Do not place combustibles, such as

newspapers or laundry, near the boiler or

venting system.

Doing so may result in a fire.

●Do not place or use hair sprays, spray

paints, or any other compressed gases near

the boiler or venting system, including the

vent termination.

Doing so may result in fire or explosion.

●Do not operate the boiler with the front

cover opened.

Doing so may result in fire or carbon

monoxide (CO) poisoning, which may result

in property damage, personal injury, or death.

●Do not operate this boiler without proper

venting.

Doing so may result in fire or carbon

monoxide (CO) poisoning, which may result

in property damage, personal injury, or death.

Inspect the vent termination and air intake

supply annually to ensure proper operation

of the boiler. Turn off and discontinue use

of the boiler if any of the vent pipes, vent

elbows, or intake pipes are damaged in any

way, separated at a joint, or show evidence of

corrosion, rusting, or melting.

WARNING

●Do not touch the power cord or internal

components of the boiler with wet hands.

Doing so may result in electric shock.

●Do not make any electrical connections

before turning off the electrical power

supply at service entrance panel.

Doing so may result in severe personal injury

or death.

California law requires the following Prop 65

warning to be provided:

WARNING

Cancer and Reproductive Harm -

www.P65Warnings.ca.gov

5Safety Information

CAUTION

●Do not attempt to repair or replace any

part of the boiler, unless it is specifically

recommended in this manual.

For all other service, contact an authorized

technician or licensed professional. Improper

adjustments, alterations, service, or

maintenance may lead to property damage,

personal injury, or death and will void your

warranty.

●Do not operate the boiler if you feel

something is wrong with it.

Doing so may result in product damage or

personal injury.

●Do not allow children to operate or access

the boiler.

Doing so may result in product damage or

personal injury.

●Do not turn on the boiler unless the water

and gas supplies are fully opened.

Doing so may damage the boiler.

●Do not use this boiler for anything other

than its intended purpose, as described in

this manual.

●Do not remove the front cover unless

the power to the boiler is turned off or

disconnected.

Failure to do so may result in electric shock.

●When servicing the controls, label all wires

prior to disconnecting them.

Failure to do so may result in wiring errors,

which can lead to improper or dangerous

operation.

●Do not use unapproved replacement or

accessory parts.

Doing so may result in improper or dangerous

operation and will void the manufacturer’s

warranty.

●Do not place anything in or around the vent

terminals, such as a clothes line, that could

obstruct the air flow in or out of the boiler.

●This boiler has been approved for use in the

USA and Canada only.

Using the boiler in any other country will void

the manufacturer’s warranty.

●Should overheating occur or the gas supply

fail to shut off, turn off the manual gas

valve to the appliance.

6About the Boiler

2.1 Description of the Boiler

The Navien NFB-H boiler is available in 2 models:

NFB-175H and NFB-200H.

The main features are as follows:

●Power Interruption: When the power is restored

after a power failure, the boiler will automatically

start and return to normal operation. A manual

reset is not required.

●Freeze Protection: A sensor inside the boiler

automatically detects the temperature and,

if necessary, initiates a safety heating cycle to

prevent internal equipment damage due to

freezing temperatures.

●Short-Circuit Protection: Any short-circuit

occurring in the boiler’s electrical circuit

immediately blows the internal glass fuses and

automatically cuts off the gas supply.

●Lightning Protection: Each boiler is specially

grounded, both internally and externally, to

protect against lightning strikes.

●Carbon Monoxide Protection: The boiler is

designed to maintain a safe air-to-gas ratio and

combustion rate. This function is continuously

monitored by the boiler’s combustion controls.

●Auto Fan Detection: The rotation of the fan is

automatically detected and controlled. Fan failure

will stop the operation of the boiler.

●Boiling Prevention: Excessive temperatures will

automatically stop the boiler.

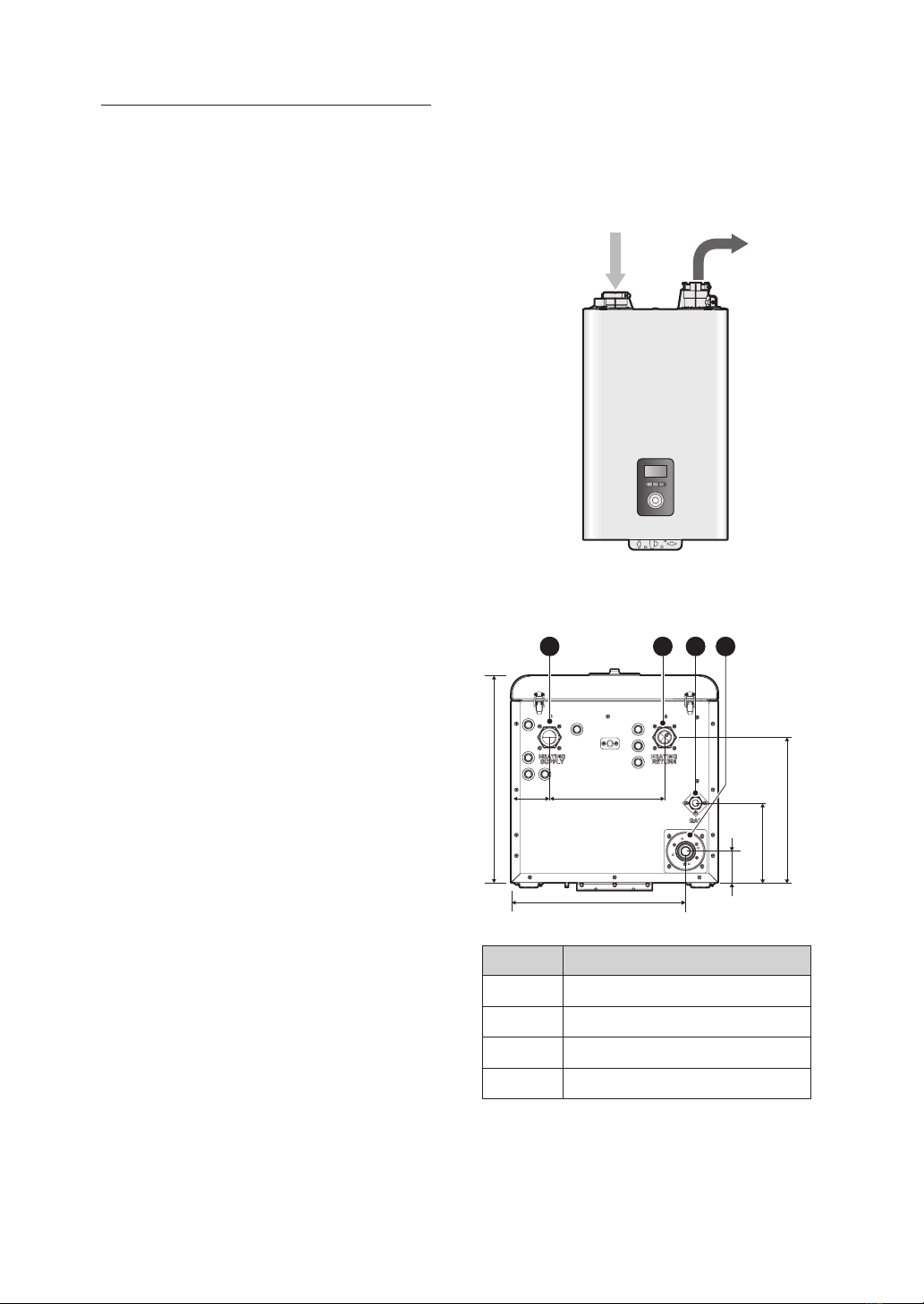

2.2 Parts of the Boiler

2.2.1 Front View

Exhaust

Gas Vent

Combustion

Air Intake

2.2.2 Bottom View

14.6”(370 mm)

2.6”(67mm)

12.1”(308 mm)

6.3”(160.5 mm)

AB C D

17.3”(440 mm)

9.6”(244mm)3.2”(81.7mm)

#Description

AHeating Supply

BHeating Return

CGas Connection

DCondensate Outlet

2. About the Boiler

7About the Boiler

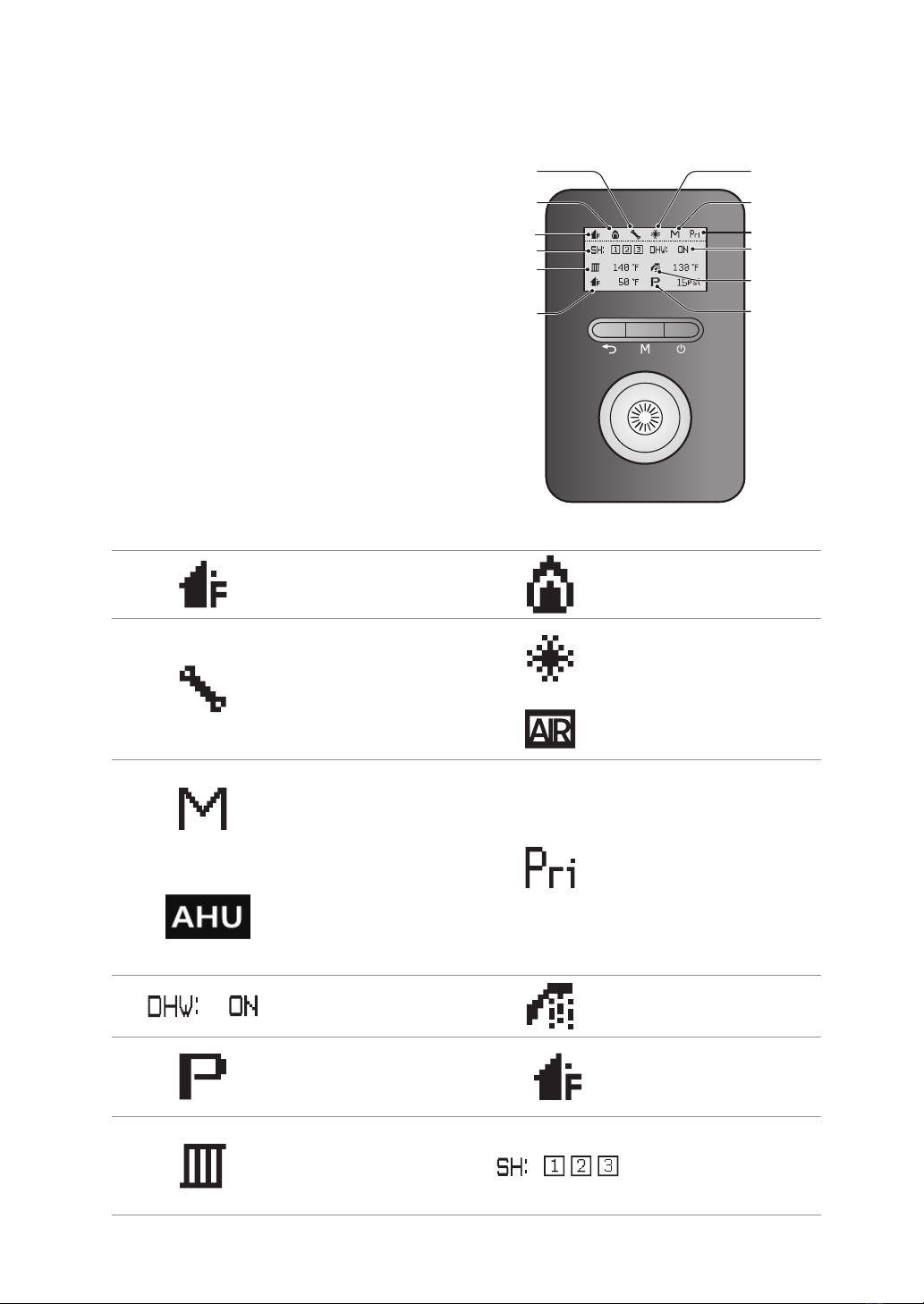

2.3 The Front Panel

The front panel allows you to adjust the

temperature and view the operating status or error

codes. Remove the protective sheet from the front

panel before using it.

2.3.1 Icons and Digital Display

The icons and digital display on the front panel

provide important information required for the

boiler’s operation. Refer to the following table for

detailed information.

aOutdoor reset

Displayed when the Outdoor

Reset feature is enabled.

bCombustion

Displayed when the burner is

combusting.

System check or error

Displayed when an error is

detected or a system check is

needed due to service alarm

overtime.

Anti-freeze

Displayed when the boiler

is operating in anti-freeze

mode.

Auto air purge

Displayed when an auto air

purge is being performed.

Cascade/Main mode

Flashes when configuring a

cascade system. Turns on solid

if the boiler is set as the Main

unit in a cascade system.

fDHW priority

Displayed when the DHW

Priority feature is enabled.

AHU connection

Displayed when the AHU

connection settings are

enabled. If there is a problem

or a connection is being

made, this icon will blink.

gDHW demand

Indicates that DHW

demand is present.

hDHW temperature

Displays the set and current

DHW temperature.

System pressure

Displays the internal water

pressure of the boiler

system.

jOutdoor temperature

Displays the outdoor

temperature.

Space heating

temperature

Displays the set and

current space heating

temperature.

Space heating demand

Indicates the space heating

demands from thermostats

1, 2, and 3.

8About the Boiler

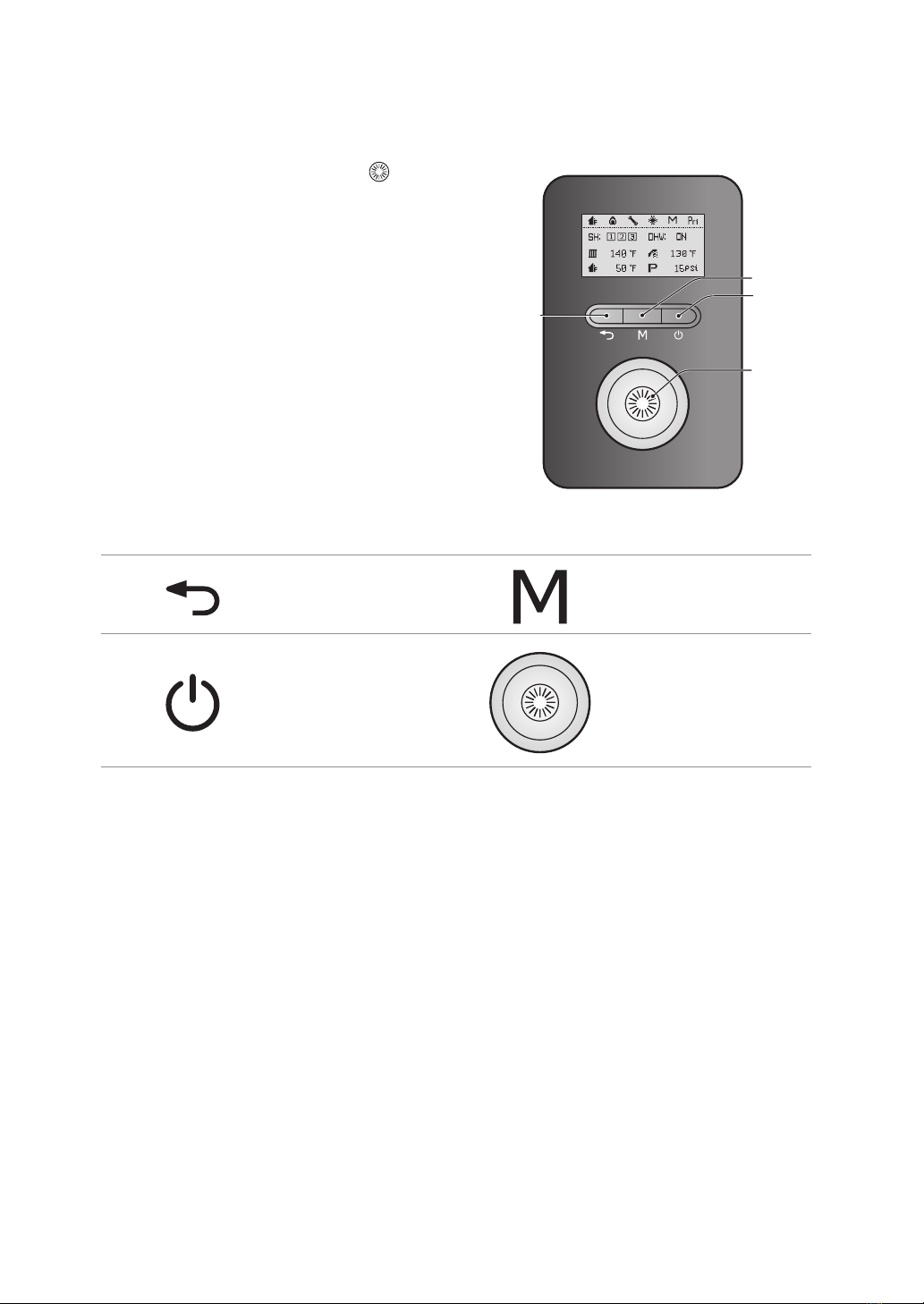

2.3.2 Buttons and Command Dial

Using the buttons and the Command dial ( ) on

the front panel, you can turn on or off the boiler,

monitor the current operation status, and set the

values required for the boiler’s operation, such as

space heating and DHW supply temperatures. Refer

to the following table for detailed information.

aBack button

Return to the previous menu

or screen.

bMode button

Enter the boiler’s main menu.

cPower button

Turn on or off the boiler. d

Command dial

Rotate to switch between

menu items, or to increase/

decrease values.

Press to make a selection or

to confirm changes.

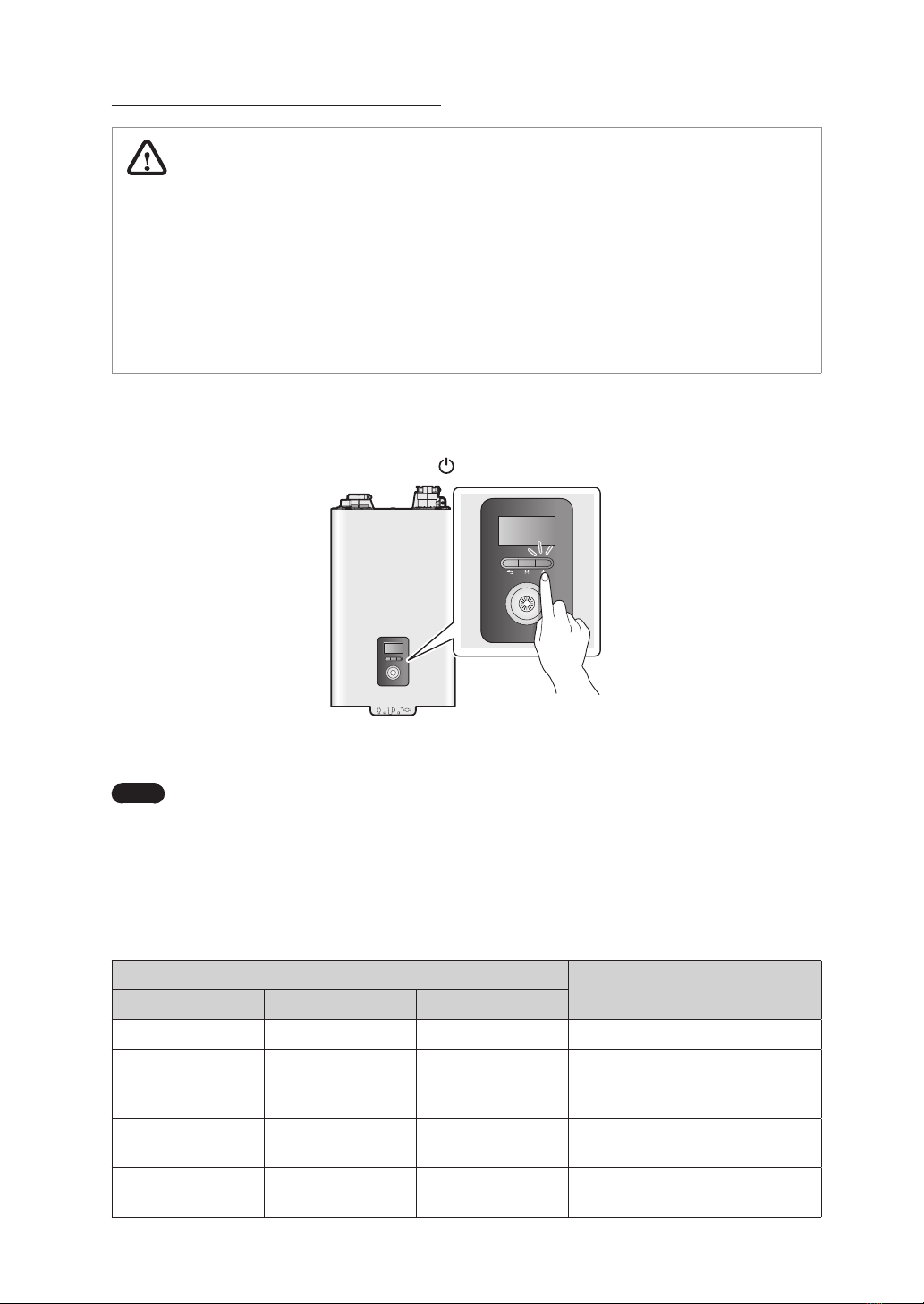

9Operating the Boiler

WARNING

Follow the instructions below to avoid unsafe operating conditions that could cause property damage, severe

personal injury, or death.

●Ensure that the boiler is filled with water before turning it on.

●If overheating occurs or the gas supply fails to shut off, shut off the gas supply to the boiler by using the

manual gas valve.

●If any part of the boiler has been submerged in water, do not use this appliance and immediately call a

qualified service technician. The boiler must be replaced.

3.1 Turning the Boiler On or Off

To turn the boiler on or off, press the Power button ( ).

When the power is on, the boiler automatically enters normal operation mode, and the boiler’s operating

conditions are displayed on the screen.

Note The boiler status icons remain displayed when the boiler is turned off.

3.2 Adjusting the System Temperatures

In normal operation mode, space heating teperature for each zone can be set depending on the settings in the

following table.

Settings Space heating settings

Zone Priority Settings Zone Settings Pump 1 Settings

Disable N/A N/A Space heating temperature settings

Enable Zone Pump System DHW Pump

Space heating temperature settings

for Zone 2 and Zone 3 (Pump 1

Settings”is set to“DHW Pump”.)

Enable Zone Pump System Zone1 Pump Space heating temperature settings

for Zone 1, Zone 2 and Zone 3

Enable Zone Valve System DHW Pump (Default) Space heating temperature settings

for Zone 1, Zone 2 and Zone 3

3. Operating the Boiler

10 Operating the Boiler

3. Rotate the Command dial ( ) to the right or

left to increase or decrease the temperature.

4. Press the Command dial ( ) to confirm the

new temperature.

5. Press the Back button ( ) to return to normal

operation mode, or rotate the Command dial

() to adjust other operation conditions.

You can adjust the temperature while the

highlighted section is flashing. Once the flashing

stops, the current temperature setting is stored.

3.2.2 Adjusting the Space Heating

Temperature (When “3. Zone Priority

Setting”is enabled)

To adjust the heating temperature:

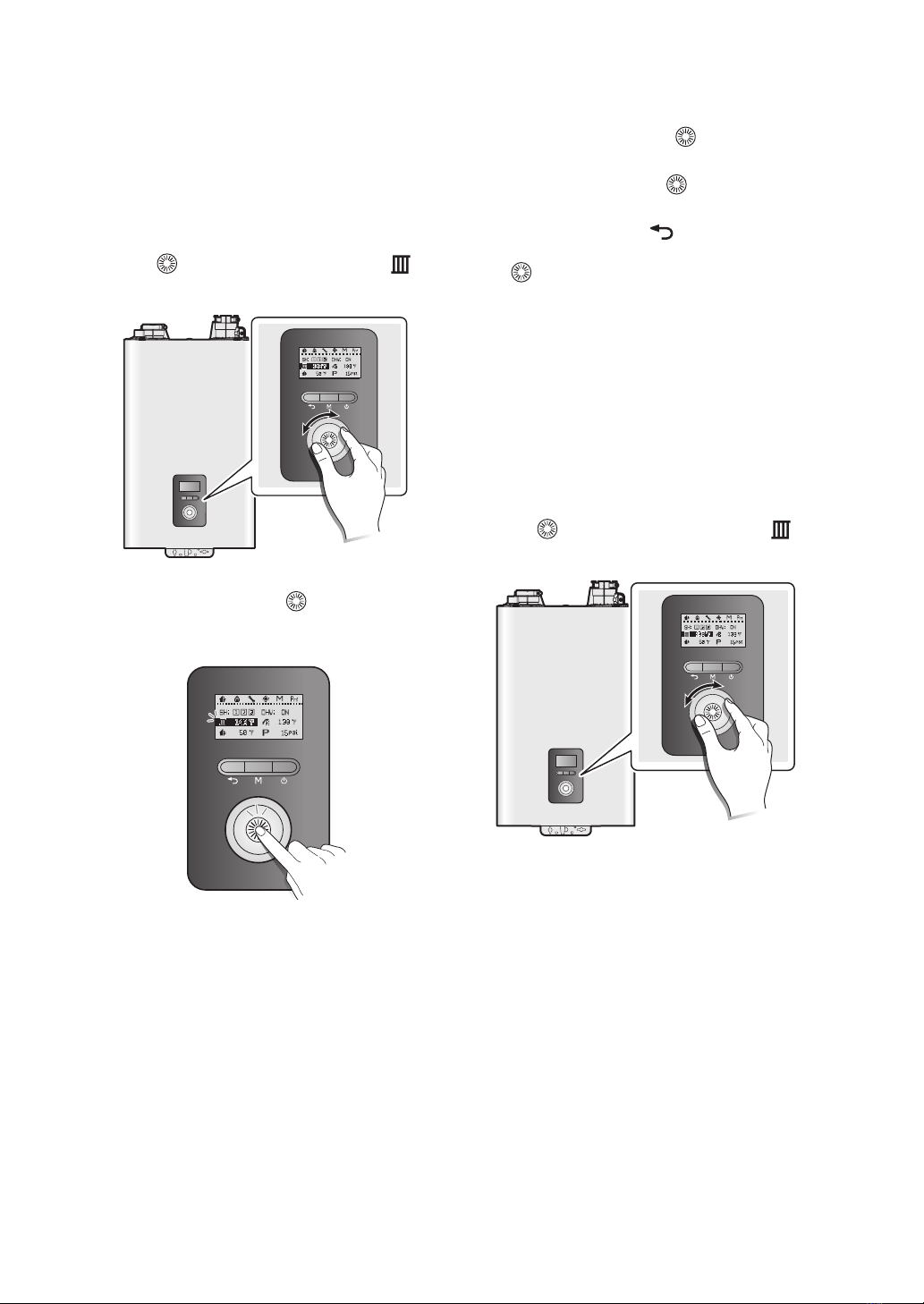

1. In normal operation mode, rotate the Command

dial ( ). The space heating temperature ( ) is

highlighted on the screen.

3.2.1 Adjusting the Space Heating

Temperature (When “3. Zone Priority

Setting”is disabled)

To adjust the heating temperature:

1. In normal operation mode, rotate the Command

dial ( ). The space heating temperature ( ) is

highlighted on the screen.

2. Press the Command dial ( ) to select the space

heating temperature. The highlighted section

will flash.

Andere Handbücher für NFB-175H

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Navien Kessel Handbücher

Navien

Navien CH-180 Bedienungsanleitung

Navien

Navien NFB-301C Bedienungsanleitung

Navien

Navien NCB-240 Bedienungsanleitung

Navien

Navien NHB-055 Bedienungsanleitung

Navien

Navien KDB-203 STC Bedienungsanleitung

Navien

Navien NHB-055 Bedienungsanleitung

Navien

Navien NFC-250/175H Bedienungsanleitung

Navien

Navien NCB-190/060H Bedienungsanleitung

Navien

Navien NHB-110 Leitfaden

Navien

Navien NCB-24LDWE Leitfaden

Navien

Navien NFC-250/200H Leitfaden

Navien

Navien NCB500-2S/37K Bedienungsanleitung

Navien

Navien NHB-55 Bedienungsanleitung

Navien

Navien NFB-175H Bedienungsanleitung

Navien

Navien NHB H Series Bedienungsanleitung

Navien

Navien LL1GBQ21-NAVIEN NCN CE 21K Bedienungsanleitung

Navien

Navien NCB300-28K Bedienungsanleitung

Navien

Navien NFB Series Bedienungsanleitung

Navien

Navien NCN-21K(A) Bedienungsanleitung

Navien

Navien NCB700-24L Leitfaden

Navien

Navien NFC-200 Bedienungsanleitung

Navien

Navien NFC Series Leitfaden

Navien

Navien NFB-301C Leitfaden

Navien

Navien NFC-175 Bedienungsanleitung

Beliebte Kessel Handbücher anderer Marken

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Bedienungsanleitung

Radijator

Radijator BIO max 23.1 Bedienungsanleitung

Brunner

Brunner BSV 20 Bedienungsanleitung

Buderus

Buderus Logamax GB062-24 KDE H V2 Bedienungsanleitung

Potterton

Potterton 50e Datenblatt

UTICA BOILERS

UTICA BOILERS TriFire Bedienungsanleitung

Joannes

Joannes LADY Series Handbuch

ECR International

ECR International UB90-125 Gebrauchsanweisung

Froling

Froling FHG Turbo 3000 Bedienungsanleitung

Froling

Froling P4 Pellet 8 - 105 Bedienungsanleitung

U.S. Boiler Company

U.S. Boiler Company K2 Bedienungsanleitung

Henrad

Henrad C95 FF Bedienungsanleitung

NeOvo

NeOvo EcoNox EF 36 Bedienungsanleitung

Potterton

Potterton PROMAX SL 12 Bedienungsanleitung

Eco Hometec

Eco Hometec EC 25 COMPACT Bedienungsanleitung

Viessmann

Viessmann VITODENS 200 Leitfaden

Baxi

Baxi Prime 1.24 Bedienungsanleitung

REXNOVA

REXNOVA ISA 20 BITHERMAL Bedienungsanleitung
