NCR Port C Handbuch

Kit Instructions

Wireless Card and Antenna (Port C)

7772-K168

Issue A

The product described in this document is a licensed product of NCR Corporation.

NCR is a registered trademark of NCR Corporation. Product names mentioned in this publication may be

trademarks or registered trademarks of their respective companies and are hereby acknowledged.

Where creation of derivative works, modifications or copies of this NCR copyrighted documentation is

permitted under the terms and conditions of an agreement you have with NCR, NCR's copyright notice

must be included.

It is the policy of NCR Corporation (NCR) to improve products as new technology, components,

software, and firmware become available. NCR, therefore, reserves the right to change specifications

without prior notice.

All features, functions, and operations described herein may not be marketed by NCR in all parts of the

world. In some instances, photographs are of equipment prototypes. Therefore, before using this

document, consult with your NCR representative or NCR office for information that is applicable and

current.

To maintain the quality of our publications, we need your comments on the accuracy, clarity,

organization, and value of this book. Please use the link below to send your comments.

Email: FD230036@ncr.com

By NCR Corporation

Global Headquarters

864 Spring St NW

Atlanta, GA 30308

U.S.A.

Revision Record

Issue Date Remarks

AJun 2020 First Issue

Wireless Card and Antenna (Port C)

This kit provides a Wireless Card and Antenna for Port C of the NCR CX7 All-in-One

POS (7772) or NCRCX5 All-in-One POS(7773).

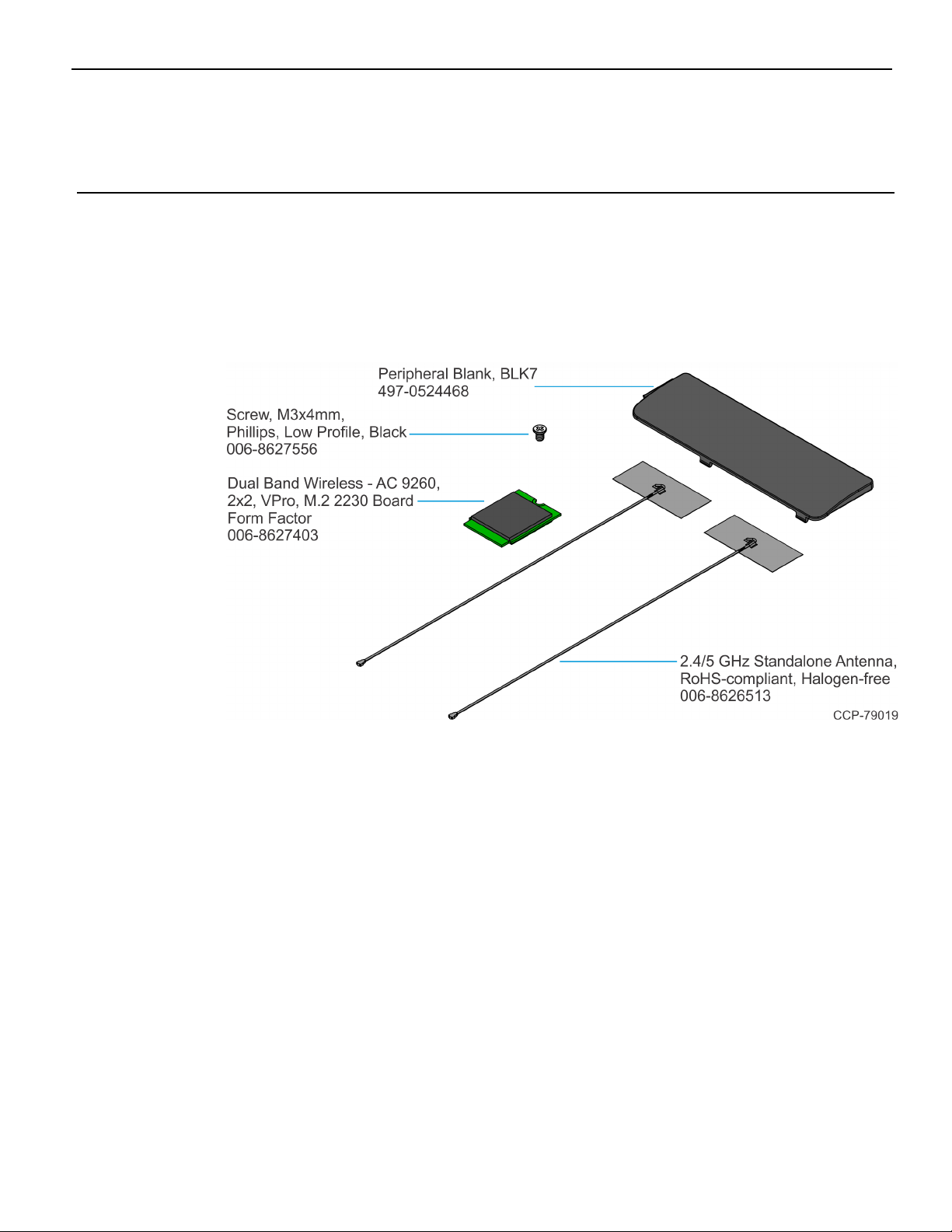

Kit Contents

2 Wireless Card and Antenna (Port C)

Installation Procedure

1. Lay the Display face down on a flat surface.

Note: Always use a soft material (cloth, foam) to protect the display screen when

placing the terminal face down.

2. Remove the Cable Cover.

a. Remove the two (2) screws that secure the Cable Cover to the Back Cover.

b. Rotate and unhook the Cable Cover from the Back Cover.

Wireless Card and Antenna (Port C) 3

3. Disconnect the Cables.

a. Loosen the thumbscrew of the 180-degree USB-C Cable then disconnect the

Cable.

b. Remove the Ethernet Cable from the Cable Management Hook then disconnect

the Cable.

4. Loosen the two (2) captive screws that secure the Back Cover to the Display.

4 Wireless Card and Antenna (Port C)

5. Rotate the Back Cover away from the Display and unhook the Back Cover Tabs.

Wireless Card and Antenna (Port C) 5

6. Insert a flat screw driver in the slot to unsnap the Peripheral Filler Plate from Port C

of the display housing.

7. Insert the Wireless Card into the connector.

6 Wireless Card and Antenna (Port C)

8. Secure the Card with a screw.

9. Route the first Antenna Cable through the port opening located as shown and pull

the Cable completely through.

Note: If present, remove the protective cover from the Micro Coax Connector.

Wireless Card and Antenna (Port C) 7

10. Remove the adhesive liner from the Antenna and place the Antenna on the location

marked “1” on the display housing. Ensure the solder joint of the Antenna is within

the opening.

11. Route and secure the Antenna Cable under the Cable Management Hooks as shown.

Note: Route the Cable above the upper edge of the Speaker.

8 Wireless Card and Antenna (Port C)

12. Connect the first Antenna Cable to Connector 1 (Aux)of the Wireless Card.

13. Route the second Antenna Cable through the port opening located as shown and

pull the Cable completely through.

Note: If present, remove the protective cover from the Micro Coax Connector.
