NEC Display Solutions of America, Inc.

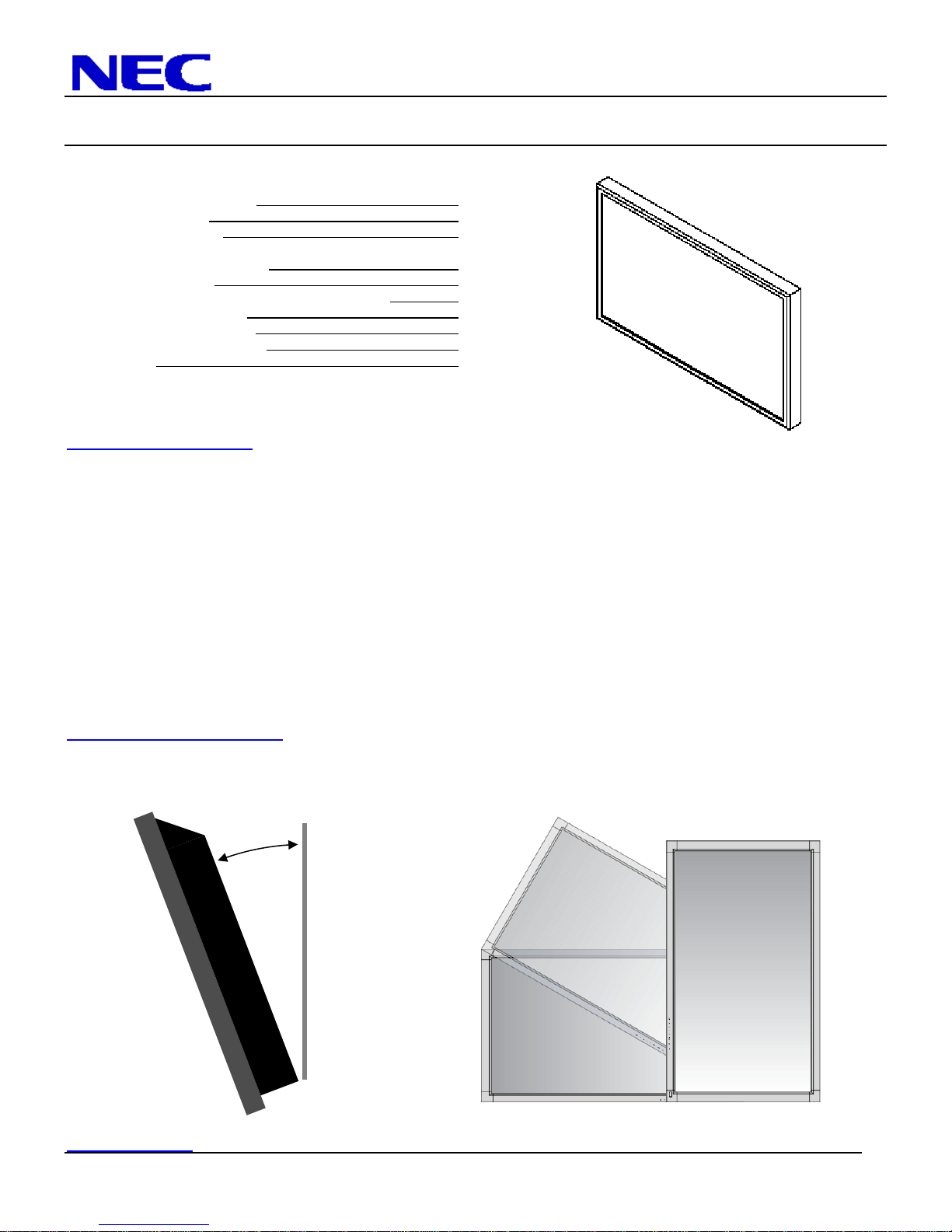

LCD4615 Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com

Contents:

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Requirements Page 2

Display Dimensions

Front, Top & Right Side Page 3

Rear & Bottom Page 4

Display Dimensions w/Optional Speakers and Stand Page 5

Table Top Stand Dimensions Page 6

Optional Speaker Dimensions Page 7

Dimensions optional Wall Mount Page 8

Control Codes Page 9

Product Description

Type: LCD Display Screen Surface: Anti-Reflective

Resolution: 1920 x 1080 Dimensions: 44.2”(W) x 26.2”(H) x 5.1”(D)

Aspect Ratio: 16:9 Weight: 52.5 lbs

FCC: Class B

Power Consumption: 240W (max) BTU’s: 818 BTU/hour

Notes

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to

be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally to

fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary ±5%.

Tilt Angle and Rotation

Below are the maximum angles that the monitor can be tilted in the landscape position only.

Landscape 20deg

LCD4615 Page 1 of 9

Max. 20 deg

NEC Display Solutions of America, Inc.

LCD4615 Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com

Ventilation Requirements (all models)

Dimensions below are minimum required for proper ventilation.

WALL Landscape

5 to 40°C

41 to 104°F

Portrait

5 to 35°C

41 to 95°F

100mm

4” 100mm

4”

LCD4615 Page 2 of 9

NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the

opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for

design review and recommendations.

WALL WALL

100mm

4”

100mm

4”

100mm

4”

NEC Display Solutions of America, Inc.

LCD4615 Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com

Display dimensions

LCD4615 Page 3 of 9

NEC Display Solutions of America, Inc.

LCD4615 Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com

Display dimensions (cont.)

LCD4615 Page 4 of 9

Kensington Lock

100mm MOUNTING HOLE PATTERN

for MOUNT UNIT (4-M6 Depth 12mm)

Control Panel AC InletPower Switch

NEC Display Solutions of America, Inc.

LCD4615 Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com

Dimensions with optional speakers and stand

LCD4615 Page 5 of 9

NEC Display Solutions of America, Inc.

LCD4615 Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com

Table Top Stand Dimensions (ST-4620)

Table Top Stand

ST-4620

LCD4615 Page 6 of 9

NEC Display Solutions of America, Inc.

LCD4615 Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com

Optional Speaker Dimensions (SP-4615)

Optional Speakers

SP-4615

LCD4615 Page 7 of 9

NEC Display Solutions of America, Inc.

LCD4615 Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com

Dimensions with optional Wall Mount Kit (WMK3260-L)

LCD4615 Page 8 of 9

NEC Display Solutions of America, Inc.

LCD4615 Installation Guide

46” LCD Display Rev 1.0

www.necdisplay.com

Control Codes

Function Code Data

POWER ON 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0D

OFF 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0D

INPUT SWITCH VGA (15pin HD) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 31 03 73 0D

RGBHV 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 32 03 70 0D

DVI 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 33 03 71 0D

VIDEO (Composite) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 35 03 77 0D

DVD/HD 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 43 03 01 0D

S-Video 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 37 03 75 0D

AUDIO MUTE ON 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0D

OFF 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0A 0D

PICTURE MODE sRGB 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 31 03 07 0D

HIBRIGHT 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 33 03 05 0D

STANDARD 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 34 03 02 0D

CINEMA 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 35 03 03 0DSCREEN MODE: NORMAL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 31 03 70 0D

FULL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 32 03 73 0D

WIDE 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 33 03 72 0D

ZOOM 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 34 03 75 0D

AUTO SETUP EXECUTE 01 30 41 30 45 30 41 02 30 30 31 45 30 30 30 31 03 01 0D

FILM MODE OFF 01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 31 03 77 0D

AUTO 01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 32 03 74 0D

NOTE: Contact your NEC rep for codes not listed.

NOTE: Use a cross/reverse/null modem cable.

Cable Connection

Communication Protocol:

Interface: RS-232C Parity: None

Communication: Asynchronous Stop Bit: 1 bit

Baud Rate: 9600 bps Communication Code: Hex

Data Length: 8 bits

PC Control Connector (D-Sub 9P)

NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

These connections are not required. The only connections required are pins 2 (RxD), 3 (TxD) and 5 (GND).

LCD4615 Page 9 of 9
