NEC Display Solutions of America, Inc.

LCD4215 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com LCD4215 Page 1 of 10

Contents:

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Requirements Page 2

Display Dimensions

Front, Top & Right Side Page 3

Rear & Bottom Page 4

New I/O Connections Page 5

Display Dimensions w/Optional Speakers and Stand Page 6

Table Top Stand Dimensions Page 7

Optional Speaker Dimensions Page 8

Optional Wall Mount Dimensions Page 9

Control Codes Page 10

Product Description

Type: LCD Display Screen Surface: Anti-Reflective

Resolution: 1366 x 768 Dimensions without stand: 40.3”(W) x 24.2”(H) x 5.2”(D)

Aspect Ratio: 16:9 Dimensions with stand: 40.3” (W) x 25.7” (H) x 13.0” (D)

FCC: Class B Weight without stand: 47.6 lbs

Power Consumption: 160W (max) Weight with stand: 51.6 lbs

BTU’s: 545.93 BTU/hour

NOTES:

•This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

•Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

•4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

•Distances are in inches, for millimeters multiply by 25.4.

•Distances may vary ±5%.

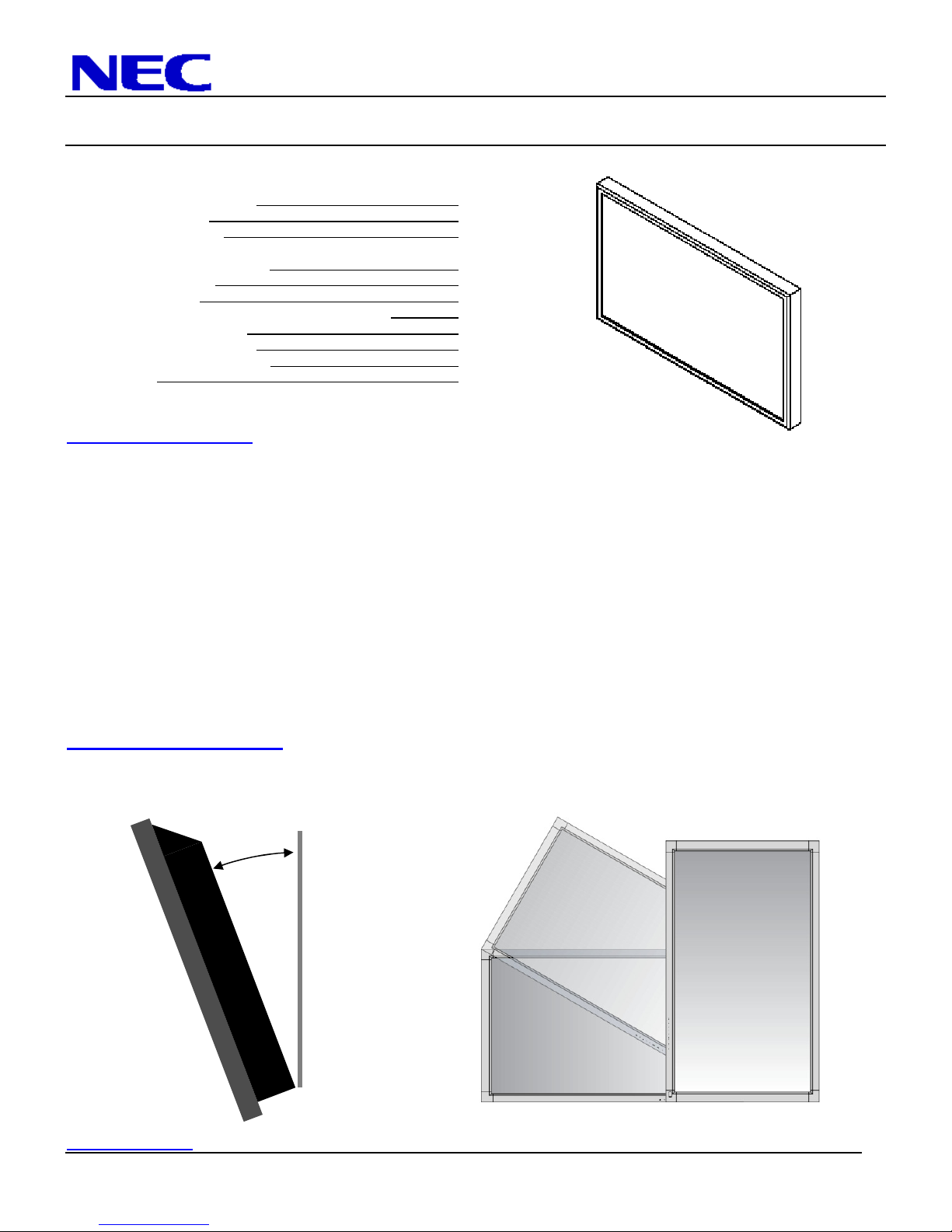

Tilt Angle and Rotation

Below are the maximum angles that the monitor can be tilted in the landscape position only.

Landscape 20deg

Max. 20 deg

NEC Display Solutions of America, Inc.

LCD4215 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com LCD4215 Page 2 of 10

Ventilation Requirements (all models)

Dimensions below are minimum required for proper ventilation.

NOTE:

•The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be

covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and

recommendations.

WALL

100mm

4”

WALL

100mm

4”

100mm

4”

100mm

4”

100mm

4”

Portrait

5 to 35°C

41 to

95°

Landscape

5 to 40°C

41 to 104

NEC Display Solutions of America, Inc.

LCD4215 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com LCD4215 Page 3 of 10

Display dimensions

(PANEL DISPLAY AREA)

(PANELDISPLAYAREA)

NEC Display Solutions of America, Inc.

LCD4215 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com LCD4215 Page 4 of 10

Display dimensions (cont.)

Power Switch

100mm MOUNTING HOLE PATTERNfor MOUNT UNIT

4-M6 Depth 11mm

Control Panel

NEC Display Solutions of America, Inc.

LCD4215 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com LCD4215 Page 5 of 10

Old I/O Terminal

Ne I/O Terminal

NEC Display Solutions of America, Inc.

LCD4215 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com LCD4215 Page 6 of 10

Dimensions ith optional speakers and stand

NEC Display Solutions of America, Inc.

LCD4215 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com LCD4215 Page 7 of 10

Table Top Stand Dimensions (ST-4020)

ST-4020

2.36

0.69

0.834.94

13.00

5.00

0.83

0.51

1.40

3.483.52

1.86

2.89

Table Top Stand

NEC Display Solutions of America, Inc.

LCD4215 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com LCD4215 Page 8 of 10

Optional Speaker Dimensions (SP4020-4620)

INPUT TERMINAL

0.79

SP4020-4620

Optional Speakers

NEC Display Solutions of America, Inc.

LCD4215 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com LCD4215 Page 9 of 10

Dimensions ith optional Wall Mount Kit (WMK3260-L)

NEC Display Solutions of America, Inc.

LCD4215 Installation Guide

42” LCD Display

Rev 1.1

www.necdisplay.com LCD4215 Page 10 of 10

Control Codes

Function Code Data

POWER ON 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0D

OFF 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0D

INPUT SWITCH VGA (15pin HD) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 31 03 73 0D

RGBHV 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 32 03 70 0D

DVI 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 33 03 71 0D

VIDEO (Composite) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 35 03 77 0D

DVD/HD 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 43 03 01 0D

S-Video 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 37 03 75 0D

AUDIO MUTE ON 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0D

OFF 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0A 0D

PICTURE MODE sRGB 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 31 03 07 0D

HIBRIGHT 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 33 03 05 0D

STANDARD 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 34 03 02 0D

CINEMA 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 35 03 03 0D

SCREEN MODE: NORMAL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 31 03 70 0D

FULL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 32 03 73 0D

WIDE 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 33 03 72 0D

ZOOM 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 34 03 75 0D

AUTO SETUP EXECUTE 01 30 41 30 45 30 41 02 30 30 31 45 30 30 30 31 03 01 0D

FILM MODE OFF 01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 31 03 77 0D

AUTO 01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 32 03 74 0D

NOTE: Contact your NEC rep for codes not listed.

NOTE: Use a cross/reverse/null modem cable.

Cable Connection

Communication Protocol:

Interface: RS-232C Parity: None

Communication: Asynchronous Stop Bit: 1 bit

Baud Rate: 9600 bps Communication Code: Hex

Data Length: 8 bits

PC Control Connector (D-Sub 9P)

NOTE:

•If so desired, jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

These connections are not required. The only connections required are pins 2 (RxD), 3 (TxD) and 5 (GND).
