NEC MultiSync V552 Bedienungsanleitung

NEC Display Solutions of America, Inc.

V552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com V552 Page 1 of 8

Contents:

Product Description and Notes Page 1

Tilt Angle and Rotation Page 1

Ventilation Requirements Page 2

Display Dimensions

Front, Top, Right Side, Left Side, Bottom Page 3

Rear Page 4

Optional Table Top Stand Dimensions Page 5

Optional Speaker Dimensions Page 6

Display with Optional Wall Mount Kit Page 7

Input Panels Page 8

Control Codes Page 8

Product Description:

Type: LCD Display

Resolution: 1920 x 1080 Dimensions without stand: 49.2” (W) x 28.4” (H) x 2.5” (D)

Aspect Ratio: 16:9 Dimensions with stand: 49.2”(W) x 29.8”(H) x 13.8”(D)

FCC: Class A Weight without stand: 58.0 lbs / 26.3 kg

Power Consumption: 100W (typ) Weight with stand: 73.4 lbs / 33.3kg

BTU’s: 341.21 BTU/hour

NOTES:

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally

to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary ±5%.

Tilt Angle and Rotation:

Below is the maximum angle the monitor can be tilted. Note that the monitor can only be tilted in either landscape or portrait

orientation.

CLOCKWISE ROTATION ONLY MAXIMUM TILT ANGLE

NEC Display Solutions of America, Inc.

V552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com V552 Page 2 of 8

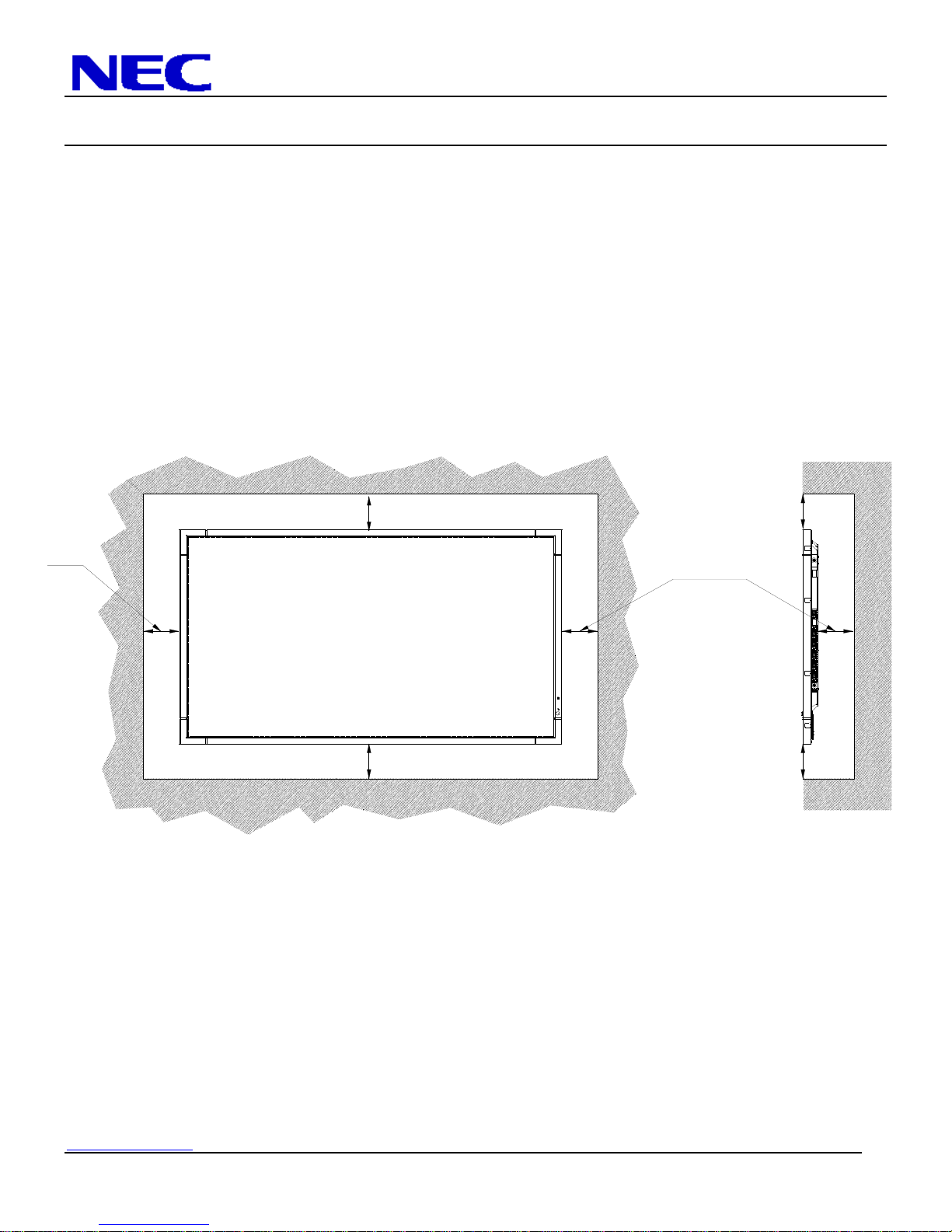

Ventilation Recommendation (all models):

Dimensions below are minimum recommended for proper ventilation.

NOTE:

The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be

covered, other means of ventilation will need to be incorporated into the design. Contact NEC for design review and

recommendations.

10cm (4in.)

10cm (4in.) 10cm (4in.)

10cm (4in.)

10cm

(4in.)

Operating temperatures:

Landscape: 5-40 C, 41-104 F

Portrait: 5-40 C, 41-104 F

NEC Display Solutions of America, Inc.

V552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com V552 Page 3 of 8

Display dimensions:

NEC Display Solutions of America, Inc.

V552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com V552 Page 4 of 8

Display dimensions (cont.):

NEC Display Solutions of America, Inc.

V552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com V552 Page 5 of 8

Table Top Stand Dimensions (ST-4620):

NEC Display Solutions of America, Inc.

V552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com V552 Page 6 of 8

Optional Speaker Dimensions including holder (SP-RM1):

NEC Display Solutions of America, Inc.

V552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com V552 Page 7 of 8

Dimensions with Optional Wall Mount Kit (WMK-3257):

NEC Display Solutions of America, Inc.

V552 Installation Guide

55” LCD Display Rev 1.0

www.necdisplay.com V552 Page 8 of 8

Input Panel:

Bottom

Side

Control Codes:

NOTE: Contact your NEC rep for codes not listed.

NOTE: Use a cross/reverse/null modem cable.

Cable Connection

Communication Protocol:

Interface: RS-232C Parity: None

Communication: Asynchronous Stop Bit: 1 bit

Baud Rate: 9600 bps Communication Code: Hex

Data Length: 8 bits PC Control Connector (D-Sub 9Pin)

NOTE:

If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection. These

connections are not required. The only connections required are pins 2 (RxD), 3 (TxD) and 5 (GND).
