NEC MultiSync V721 60000531 60000531 Bedienungsanleitung

MultiSync V521

MultiSync V721

MultiSync V921

User’s Manual

English-1

English

Declaration of the Manufacturer

We hereby certify that the colour monitors

MultiSync V521(N0501)

MultiSync V721(N0701)

MultiSync V921(N9902)

are in compliance with

Council Directive 73/23/EEC:

- EN 60950

Council Directive 89/336/EEC:

- EN 55022

- EN 61000-3-2

- EN 61000-3-3

- EN 50082-1

(IEC 801-2)

(IEC 801-3)

(IEC 801-4)

and marked with

NEC-Mitsubishi Electric Visual Systems Corporation

686-1, NISHIOI OI-MACHI

ASHIGARAKAMI-GUN

KANAGAWA 258-8533, JAPAN

English-2

Safety Instruction

Caution:

When operating the MultiSync V521/V721/V921 with a 220-240V AC

power source in Europe except UK, use the power cord provided with the

monitor.

In UK, a BS approved power cord with moulded plug has a Black (five

Amps) fuse installed for use with this equipment. If a power cord is not

supplied with this equipment please contact your supplier.

When operating the MultiSync V521/V721/V921 with a 220-240V AC

power source in Australia, use the power cord provided with the monitor.

For all other cases, use a power cord that matches the AC voltage of the

power outlet and has been approved by and complies with the safety

standard of your particular country.

ENERGY STAR®Product

As an ENERGY STA R Partner, NEC-Mitsubishi Electronics Display of

America Inc. has determined that this product meets the ENERGY STA R

guidelines for energy efficiency. The ENERGY STA R emblem does not

represent EPA endorsement of any product or service.

IBM is registered trademark of International Business Machines Corporation

Apple and Macintosh are registered trademarks of Apple Computer Inc.

Microsoft and Windows are registered trademarks of the Microsoft Corporation.

ENERGY STAR is a U.S. registered mark.

NEC is a registered trademark of NEC Corporation.

All other trademarks or registered trademarks are property of their respective owners.

English-3

English

Contents

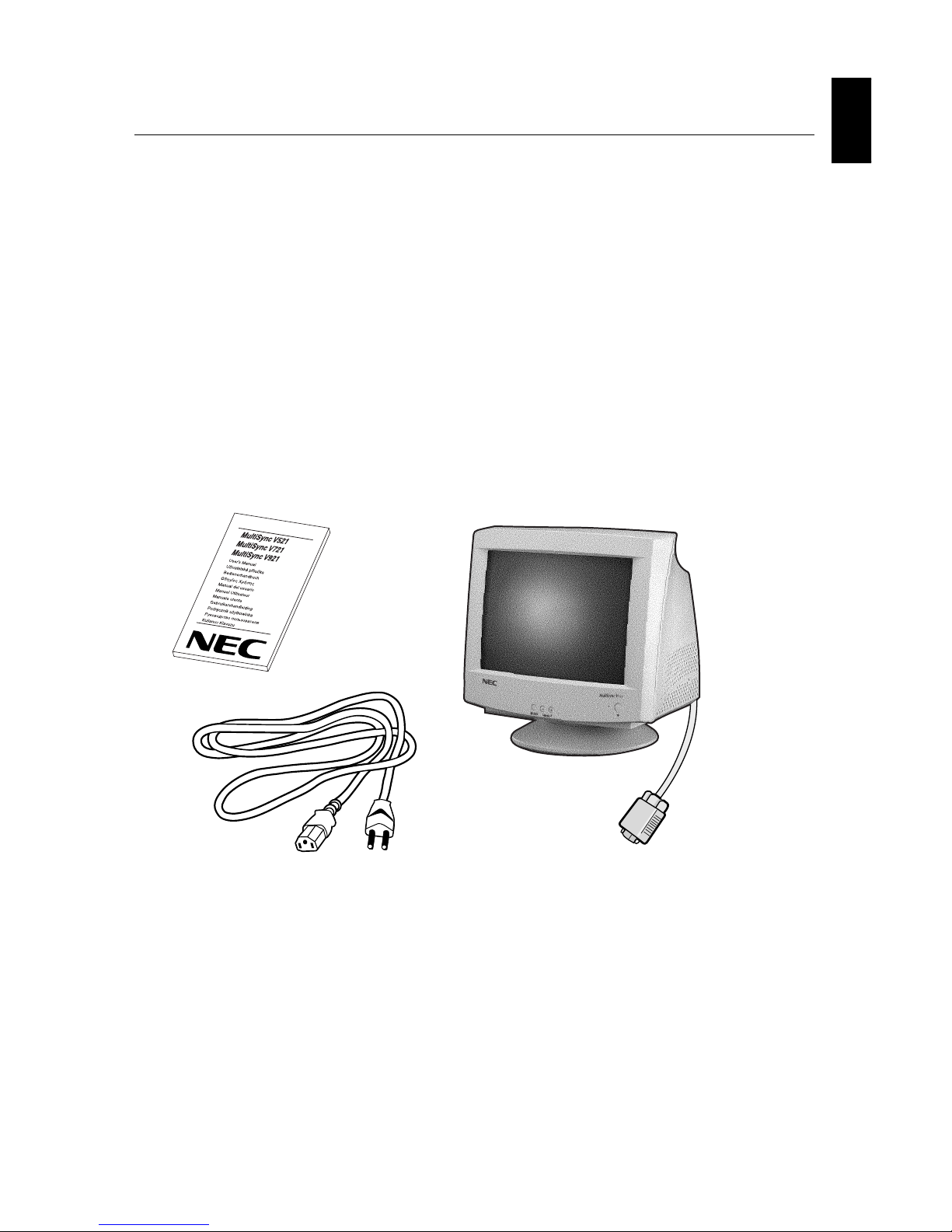

V Series monitor box* should contain the following:

•MultiSync V Series Monitor with tilt / swivel base MultiSync V521,

MultiSync V721 or MultiSync V921

•Power cord

•Captive Signal Cable

•User‘s manual

•CD-ROM includes complete User‘s Manual in PDF format and

Windows related files (Inf file and color profile). To see the complete

User‘s Manual, Acrobat Reader 4.0 must be installed on your PC.

* Remember to save your original box and packing material to transport

or ship the monitor.

English-4

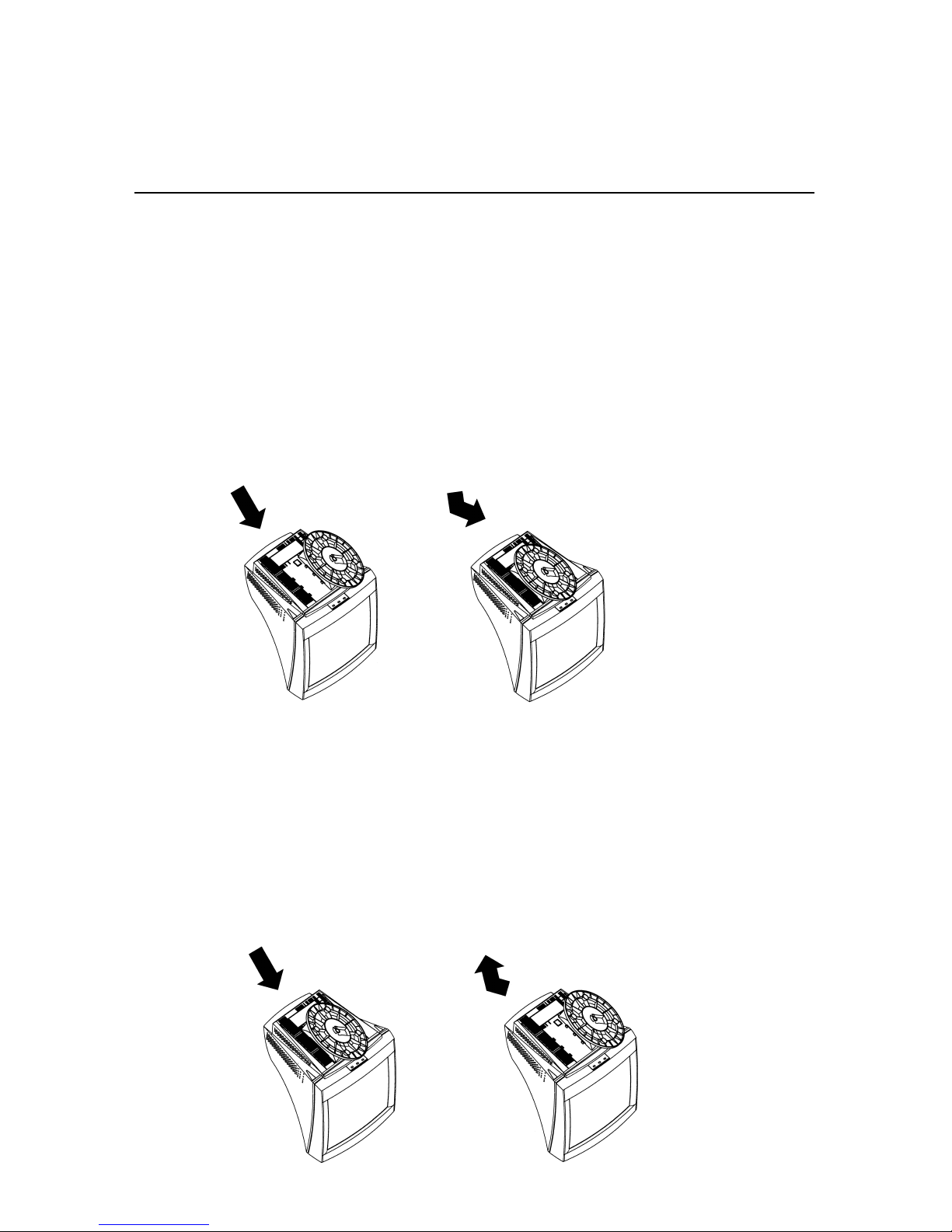

Tilt / swivel base fixing,

removing

Fixing

This product consists of the MultiSync monitor and the tilt / swivel base.

When fixing the tilt / swivel base to the MultiSync monitor, please follow

the steps below.

•Push the six hooks of the tilt / swivel base into the six holes at the

bottom of the MultiSync monitor.

•Then slide the tilt /swivel base forward.

•Then the latch above the tilt / swivel base engages it is secure.

Removing

Please removing the tilt / swivel base when transporting for repair.

•Push down the latch of the MultiSync monitor and pull out the tilt /

swivel base.

•Slide backward the tilt / swivel base from the front of the MultiSync

monitor.

•Pull out the tilt / swivel base from the holes of the MultiSync monitor.

English-5

English

Quick Start

To attach the MultiSync V Series monitor to your

system, follow these instruction:

1. Turn off the power to your computer and MultiSync monitor.

2. If necessary, install the display card. For more information, refer to the

display card manual.

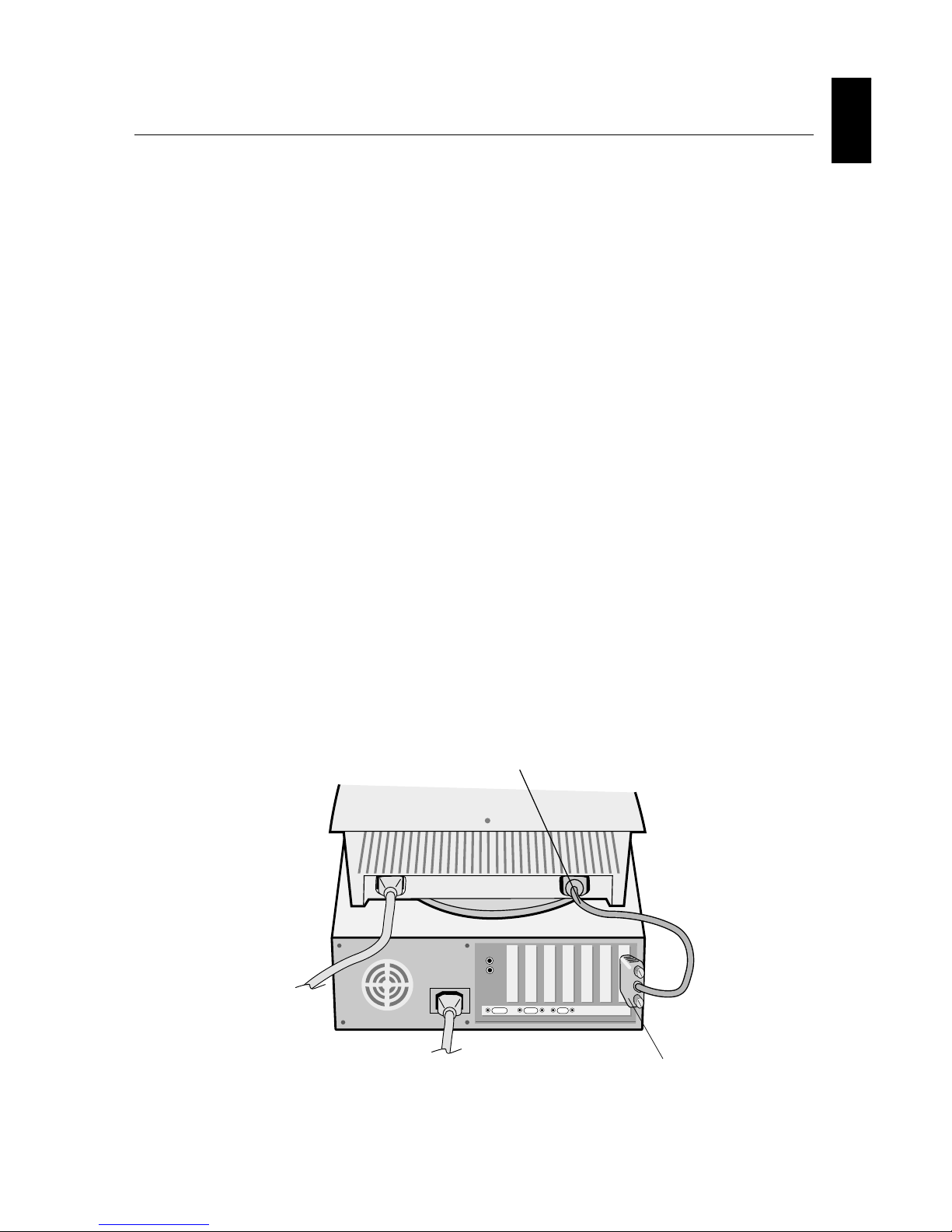

3. For the PC: Connect the 15-pin mini D-SUB of the captive signal

cable to the connector of the display card in your system (Figure A.1)

Tighten all screws.

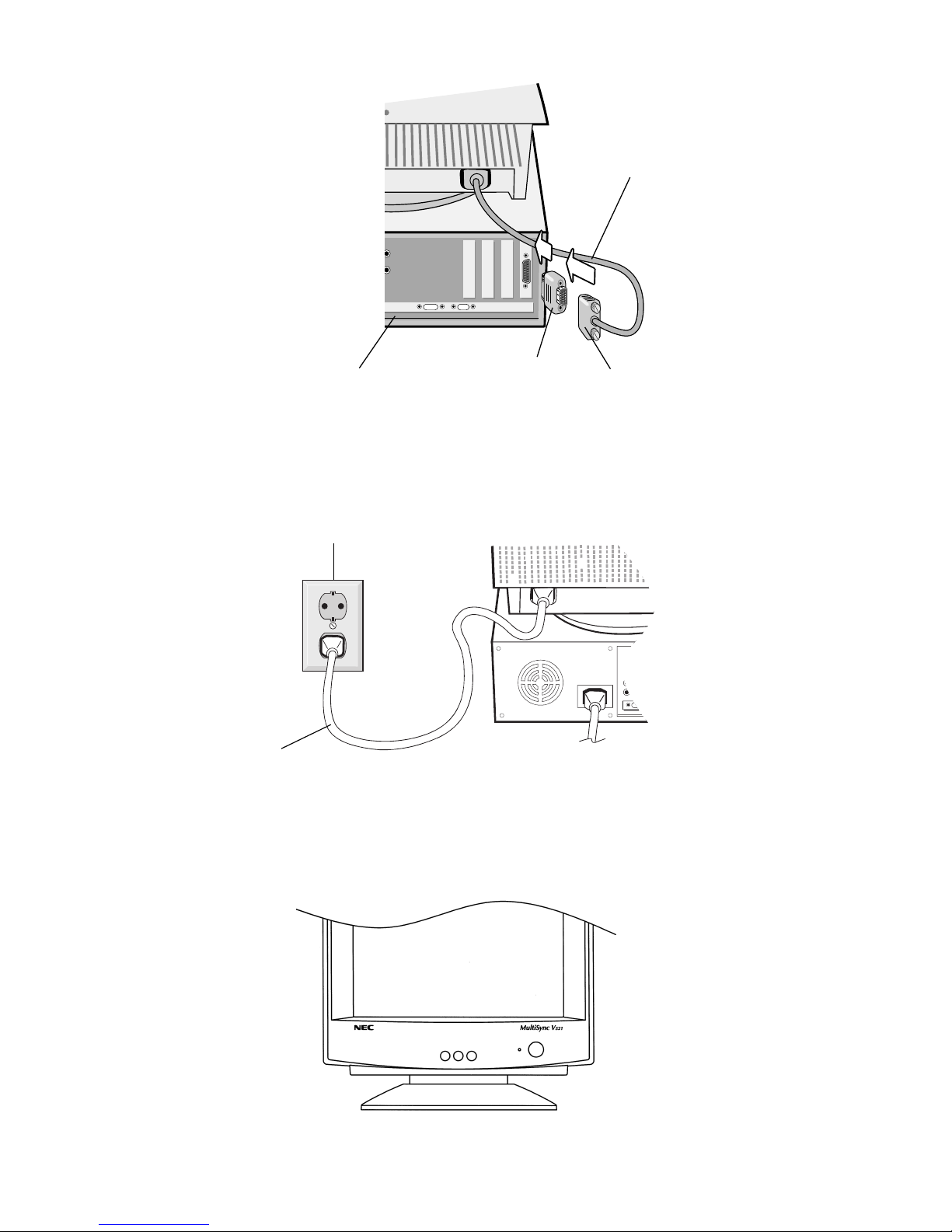

For the Mac: Connect the Macintosh Cable Adapter (not included) to

the monitor connector on the Macintosh (Figure B.1). Attach the

15-pin mini D-SUB end of the captive signal cable to the Macintosh

cable adapter on the computer (Figure B.1). Tighten all screws.

4. Connect one end of the power cord to the MultiSync V Series monitor

and the other end to the power outlet (Figure C.1).

5. Turn on the monitor (Figure D.1) and the computer.

6. This completes the installation.

NOTE: If you have any problems, please refer to the

Troubleshooting section of this User‘s Manual.

Captive Signal Cable

15-pin-mini-D-SUB

Figure A.1

English-6

Figure B.1

Figure C.1

Figure D.1

Computer Mac Adapter

(not included) 15-pin mini D-SUB

Captive Signal Cable

Power Outlet

Power cord

English-7

English

Controls

OSM (On-screen Manager) control buttons on the

front of the monitor function as follows:

SELECT Enters and exits the OSM menu.

CONTROL-/+ Selects one of the controls and decreases or increases

the adjustment.

RESET Resets the highlighted control to the factory setting.

Press -/+ button at the same time for approximately

1 sec.

BRIGHTNESS: Adjusts the overall image and background

screen brightness.

CONTRAST: Adjusts the image brightness in relation to the

background. (Contrast control is also effective with “-,+”

button even though OSM window is not visible.)

R Red Color Control: Adjust the red contrast of the display.

G Green Color Control: Adjust the green contrast of the

display.

B Blue Color Control: Adjust the blue contrast of the display.

Horizontal: Moves the image horizontally left or right.

Vertical position: Moves the image vertically up or down.

Horizontal size: Decreases or increases the horizontal size

of the image.

Vertical size: Decreases or increases the vertical size of the

image.

The Geometry controls allow you to adjust the curvature or angle of the

sides of your display.

Pincushion/Barrel: Decreases or increases the curvature of

the sides either inward or outward.

Trapezoid: Decreases or increases the bottom of the screen

to be the same as the top.

English-8

Parallelogram: Decreases or increases the tilt of the sides

either to the left or right.

Bow (Pincushion Balance): Decreases or increases the

curvature of the sides either to the left or right.

Rotates: Rotates the image.

Degauss: Select the degauss icon on “Icon select window”

and push “SELECT”button. It will eliminate the stray

magnetic field and correct the scan of the electron beam,

which affect the purity, focus and convergence.

Note: Allow a minimum interval of 20 minutes to elapse

between uses of the degauss function.

Color Temperature: Select the Color Temperature icon on

“Icon Select Window”and push “SELECT”button.

It can be switched to change the color Temperature.

(9300K, 7550K, 6550K, user)

OSD: There are 3 background colours (Blue, Black, and

white). These can be selected by “SELECT”button after the

selection of “OSD”on “Icon select window”.

EXIT: To exit OSM window. Select EXIT on “Icon select

window”, then push “SELECT”button.

MultiSync V921

EXIT: To exit OSM window. Select ESC on “Icon select

window”, then push “SELECT”button.

Horizontal Moiré Canceler: Reduces horizontal moiré

levels.

Vertical Moiré Canceler: Reduces vertical moirélevels.

Note: If you do not push buttons within 10 seconds in

OSM condition, the window will automatically

disappear.

exit

(V521/V721)

9300

(V921)

9300K

(V521/V721)

English-9

English

Recommended use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE

NOTE THE FOLLOWING WHEN SETTING UP

AND USING THE MULTISYNC V SERIES

COLOUR MONITOR:

•DO NOT OPEN THE MONITOR. There are no user serviceable parts

inside and opening or removing covers may expose you to dangerous

shock hazards or other risks. Refer all servicing to qualified service

personnel.

•Use the monitor in a clean, dry area.

•Do not spill any liquids into the cabinet or use your monitor near

water.

•Do not insert objects of any kind into the cabinet slots, as the may

touch dangerous voltage points, which can be harmful or fatal or may

cause electric shock, fire or equipment failure.

•Do not place any heavy objects on the power cord. Damage to the

cord may cause shock or fire.

•Do not place this product on a sloping or unstable cart, stand or table,

as the monitor may fall, causing serious damage to the monitor.

•Keep the monitor away from high capacity transformers, electric

monitors and other devices such as external speakers or fans, which

may create strong magnetic fields.

•If possible, position the monitor so that it is facing the east to minimize

the effects of the earth‘s magnetic field.

•Changing the direction of the monitor while it is powered on may

cause image discoloration. To correct this, turn the monitor off for

20 minutes before powering it back on.

•To separate the equipment from the power source you have to

remove the plug from the inlet socket.

•When operating the MultiSync V Series with it is AC 220-240V

worldwide power supply, use a power supply cord that matches the

power supply voltage of the AC power outlet being used. The power

supply cord you use must have been approved by and comply with

the safety standards of your country. (Type H05VV-F should be used

except in UK)
