Introduction to the NEC MultiSync LCD1525V E - 1
Introduction to the NEC MultiSync LCD1525V
Congratulations on your purchase of the NEC MultiSync LCD1525V
true colour monitor!
Wider Compatibility
Because the MultiSync LCD monitor is analog through and through, it
does not require special analog to digital display or interface cards but
can accept RGB input directly.
Reduced Footprint
Provides the ideal solution for environments requiring superior image
quality but with size and weight limitations. The monitor’s small foot-
print and low weight allow it to be moved or transported easily from one
location to another.
Colour Control System
Allows you to adjust the colours on your screen and customize the colour
accuracy of your monitor to a variety of standards.
OSM (On-Screen Manager) Controls
Allow you to quickly and easily adjust all elements of your screen image
via simple to use on-screen menus.
ErgoDesign Features
Enhance human ergonomics to improve the working environment,
protect the health of the user and save money. Examples include OSM
controls for quick and easy image adjustments, tilt/swivel base for
preferred angle of vision, small footprint and compliance with MPRII
guidelines for lower emissions.
Plug and Play
The Microsoft®solution with the Windows®operating system facilitates
setup and installation by allowing the monitor to send its capabilities (such
as screen size and resolutions supported) directly to your computer, auto-
matically optimizing display performance.
LCD1525E.PM5 99/06/09, 14:33Page 13 PageMaker5.0J
IPM (Intelligent Power Manager) System
Provides innovative power-saving methods that allow the monitor to shift
to a lower power consumption level when on but not in use, saving two-
thirds of your monitor energy costs, reducing emissions and lowering the
air conditioning costs of the workplace.
Multiple Frequency Technology
Automatically adjusts monitor to the display card’s scanning frequency,
thus displaying the resolution required.
FullScan Capability
Allows you to use the entire screen area in most resolutions, significantly
expanding image size.
E - 2 Introduction to the NEC MultiSync LCD1525V
LCD1525E.PM5 99/06/09, 14:33Page 14 PageMaker5.0J
Contents
Your new NEC MultiSync LCD monitor box should contain the following:
– NEC MultiSync LCD1525V.
– AC Power Cord.
– ACAdapter.
– Video Signal Cable.
– User’s Manual.
Remember to save your original box and packing material to transport or
ship the monitor.
Contents E - 3
MultiSync LCD
1525V
MultiSync LCD1525V monitor
with video signal cable
and AC Adapter
Power Cord
LCD1525E.PM5 99/06/09, 14:33Page 15 PageMaker5.0J
Recommended Use
Safety Precautions and Maintenance
For optimum performance, please note the following when setting up and
using the MultiSync LCD colour monitor:
• DO NOT OPEN THE MONITOR.There are no user serviceable
parts inside and opening or removing covers may expose you to
dangerous shock hazards or other risks. Refer all servicing to
qualified service personnel.
• Allow adequate ventilation around the monitor so that heat can
properly dissipate. Do not block ventilated openings or place
the monitor near a radiator or other heat sources. Do not put
anything on top of monitor.
• Do not spill any liquids into the cabinet or use your monitor
near water.
• Do not insert objects of any kind into the cabinet slots, as they
may touch dangerous voltage points, which can be harmful or
fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to
the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or
table, as the monitor may fall, causing serious damage to the
monitor.
• The power cable connector is the primary means of detaching
the system from the power supply. The monitor should be
installed close to a power outlet that is easily accessible.
• When operating the MultiSync LCD monitor with its AC220-
240V worldwide power supply, use a power supply cord that
matches the power supply voltage of theAC power outlet being
used. The power supply cord you use must have been approved
by and comply with the safety standards of your country.
• Use supplied AC Adapter.
• No Object shall be placed onAC Adapter.
E - 4 Recommended Use
LCD1525E.PM5 99/06/09, 14:33Page 16 PageMaker5.0J
• AC Adapter shall not be used outdoors.
• Handle with care when transporting. Save packaging for trans-
porting.
• The inside of the fluorescent tube located within the LCD moni-
tor contains mercury. Please follow the bylaws or rules of your
local municipality to dispose of this tube properly.
Immediately unplug your monitor from the wall outlet and refer servic-
ing to qualified service personnel under the following conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet is damaged.
Recommended Use E - 5
LCD1525E.PM5 99/06/09, 14:33Page 17 PageMaker5.0J
CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR
CAN REDUCE EYE, SHOULDERAND NECK FATIGUE. CHECKTHE
FOLLOWING WHEN YOU POSITION THE MONITOR:
• For optimum performance, allow 20 minutes for warm-up.
• Adjust the monitor height so that the top of the screen is at or
slightly below eye level. Your eyes should look slightly down-
ward when viewing the middle of the screen.
• Position your monitor no closer than 40 cm and no further away
than 70 cm from your eyes. The optimal distance is 53 cm for
the MultiSync LCD1525V monitor.
• Rest your eyes periodically by focusing on an object at least 6 m
away. Blink often.
• Position the monitor at a 90° angle to windows and other light
sources to minimize glare and reflections.Adjust the monitor tilt
so that ceiling lights do not reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an
anti-glare filter.
• Clean the LCD monitor surface with a lint-free, non-abrasive
cloth. Avoid using any cleaning solution or glass cleaner!
• Adjust the monitor’s brightness and contrast controls to enhance
readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen
or reference material) directly in front of you to minimize turn-
ing your head while you are typing.
• Avoid displaying fixed patterns on the monitor for long periods
of time to avoid image persistence (after-image effects).
• Get regular eye checkups.
E - 6 Recommended Use
LCD1525E.PM5 99/06/09, 14:33Page 18 PageMaker5.0J
Installation
To attach the MultiSync LCD1525V monitor to your system, follow these
instructions:
1. Turn off the power to your computer.
2. For the PC: Connect the 15-pin mini D-SUB of the appropriate
signal cable to the connector of the display card in your system
(FigureA.1). Tighten all screws.
Forthe Mac:Connect the MultiSync LCD1525V Macintosh cable
adapter to the computer (Figure B.1). Attach the 15-pin mini
D-SUB end of the appropriate signal cable to the MultiSync
LCD1525V Macintosh cable adapter (Figure B.1). Tighten all
screws.
3. Remove connector cover and cable cover. Connect the 15-pin
mini D-SUB of the video signal cable to the appropriate connec-
tor on the back of the monitor (Figure C.1).
Place the Video Signal Cable under Clip A. Then place AC
Adapter Cable under Clip B.
Replace connector cover and cable cover.
NOTE: Incorrect cable connections may result in irregular operation,
damage display quality/components of LCD module and/or shorten the
module’s life.
4. Connect one end of the power cord to the MultiSync LCD
Series monitor and the other end to the power outlet (Figure
D.1).
5. Turn on the monitor (Figure E.1) and the computer.
6. To complete the setup of your MultiSync LCD monitor, use the
following OSM controls:
• Auto Adjust Contrast
• Auto Adjust
Refer to the Controls section of this User’s Manual for a full description
of these OSM controls.
NOTE: If you have any problems, please refer to the Troubleshooting
section of this User’s Manual.
Installation E - 7
LCD1525E.PM5 99/06/09, 14:33Page 19 PageMaker5.0J
E - 8 Installation

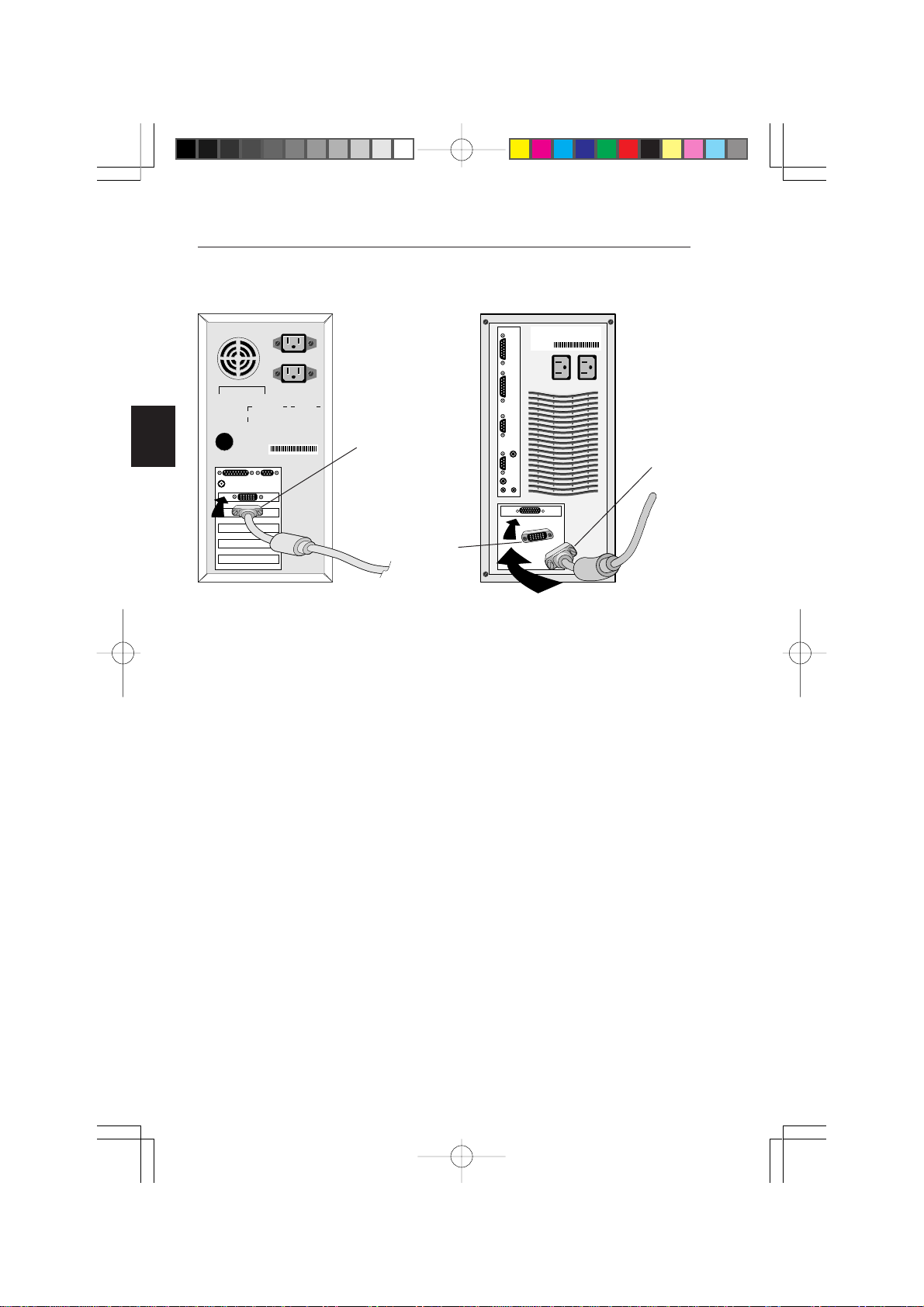

Figure A.1 Figure B.1
15-pin
mini D-SUB
Mac Adapter
(not included)
15-pin
mini
D-SUB
LCD1525E.PM5 99/06/09, 14:33Page 20 PageMaker5.0J
