MultiSync LCD1830

User’sManual

English-1

English

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN

OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITHAN

EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS

CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINETAS THEREARE HIGH VOLTAGE

COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER

(OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have

sufficient magnitude to cause electric shock. Therefore, it is dangerous to make

any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation

and maintenance of this unit has been included. Therefore, it should be read

carefully in order to avoid any problems.

CAUTION

WARNING

RISK OF ELECTRIC SHOCK •DO NOT OPEN

Caution:

When operating the MultiSync LCD1830 with a 220-240V AC power source in

Europe except UK, use the power cord provided with the monitor.

In the UK, a BS approved power cord with a moulded plug has a Black (five Amps)

fuse installed for use with this equipment. If a power cord is not supplied with this

equipment please contact your supplier.

When operating the MultiSync LCD1830 with a 220-240V AC power source in

Australia, use the power cord provided with the monitor.

For all other cases, use a power cord that matches the AC voltage of the power

outlet and has been approved by and complies with the safety standard of your

particular country.

ENERGYSTAR is a U.S. trademark.

As an ENERGYSTAR®Partner, NEC-Mitsubishi Electronics Display of America, Inc. has

determined that this product meets the ENERGYSTAR guidelines for energy efficiency. The

ENERGYSTAR emblem does not represent EPA endorsement of any product or service.

IBM PC/XT/AT, PS/2, MCGA, VGA, 8514/A and XGA are registered trademarks of

International Business Machines Corporation.

Apple and Macintosh are registered trademarks of Apple Computer Inc.

Microsoft and Windows are registered trademarks of the Microsoft Corporation.

NEC is a registered trademark of NEC Corporation.

All other trademarks or registered trademarks are property of their respective owners.

English-2

Declaration

Declaration of the Manufacturer

We hereby certify that the colour monitor

MultiSync LCD1830 (LA-18S02) and

MultiSync LCD1830 (LA-18S02-BK)

are in compliance with

Council Directive 73/23/EEC:

–EN 60950

Council Directive 89/336/EEC:

–EN 55022

–EN 61000-3-2

–EN 61000-3-3

–EN 55024

(IEC 61000-4-2)

(IEC 61000-4-3)

(IEC 61000-4-4)

(IEC 61000-4-5)

(IEC 61000-4-6)

(IEC 61000-4-8)

(IEC 61000-4-11)

and marked with

NEC-Mitsubishi Electric Visual Systems, Corp.

686-1, NISHIOI OI-MACHI

ASHIGARAKAMI-GUN

KANAGAWA258-8533, JAPAN

Power consumption of the monitor is less

than 3 W when in power-saving mode.

English-3

English

For the Customer to use in

U.S.A. or Canada

Canadian Department of Communications

Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the

Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du

Règlement sur le matériel brouiller du Canada.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety

Regulations according to CSA C22.2 #950.

Ce produit porte la marque ‘C-UL’et se conforme aux règlements de

sûrele Canadiens selon CAN/CSA C22.2 No. 950.

FCC Information

1. Use the attached specified cables with the MultiSync LCD1830

colour monitor so as not to interfere with radio and television

reception.

(1)The power supply cord you use must have been approved by and

comply with the safety standards of U.S.A., and meet the following

condition.

Power supply cord Non shield type, 3-conductor

Length 2.0 m

Plug shape

(2)Shielded video signal cable.

Use of other cables and adapters may cause interference with

radio and television reception.

English-4

2. This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy, and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced

radio/television technician for additional suggestions. The user may

find the following booklet, prepared by the Federal Communications

Commission, helpful: “How to Identify and Resolve Radio-TV

Interference Problems.”This booklet is available from the U.S.

Government Printing Office, Washington, D.C., 20402,

Stock No. 004-000-00345-4.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two

conditions. (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

U.S. Responsible party: NEC-Mitsubishi Electronics

Display of America, Inc.

Address: 1250 N. Arlington Heights Road

Itasca, Illinois 60143-1248

Tel. No.: (630)467-3000

Type of Product: Computer Monitor

Equipment Classification: Class B Peripheral

Models: MultiSync LCD1830

We hereby declare that the equipment specified above conforms to the technical

standards as specified in the FCC Rules.

English-5

English

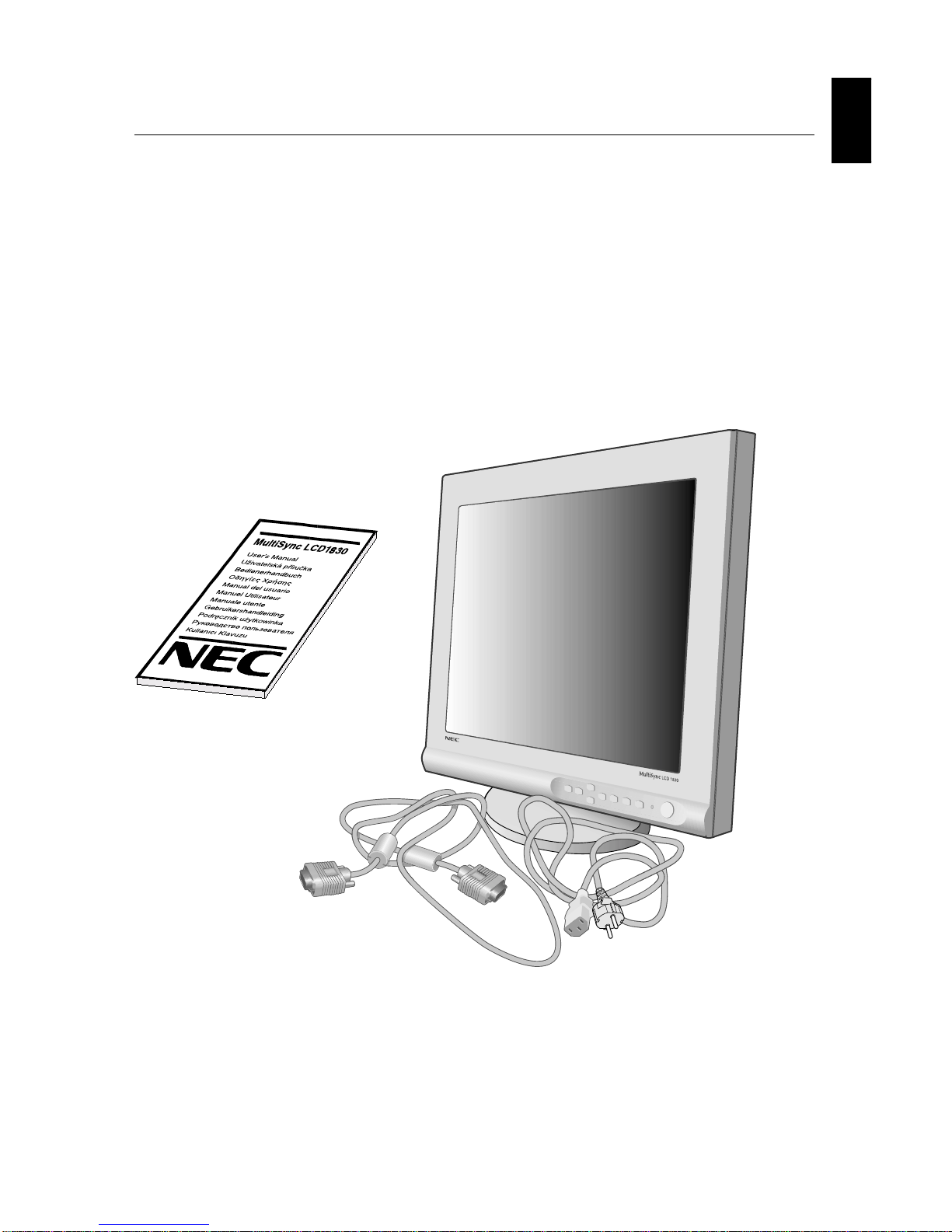

Contents

Your new NEC MultiSync LCD monitor box* should contain the following:

•MultiSync LCD1830monitor with tilt base

•PowerCord

•Video Signal Cable

•User’sManual

•CD-ROM includes complete User‘s Manual in PDF format and

Windows related files (Inf file and color profile). To see the complete

User‘s Manual, Acrobat Reader 4.0 must be installed on your PC.

* Remember to save your original box and packing material to transport

or ship the monitor.

English-6

Quick Start

To attach the MultiSync LCD monitor to your system, follow these

instructions:

1. Turn off the power to your computer.

2. For the PC: Connect the 15-pin mini D-SUB of the appropriate

signal cable to the connector of the display card in your system

(Figure A.1). Tighten all screws.

For the Mac: Connect the MultiSync LCD1830 Macintosh cable

adapter to the computer (Figure B.1). Attach the 15-pin mini D-SUB

end of the appropriate signal cable to the MultiSync LCD1830

Macintosh cable adapter (Figure B.1). Tighten all screws.

Remove connector cover and cable cover on back of monitor

(Figure E.1).

3. Connect the 15-pin mini D-SUB of the video signal cable to the

connector “INPUT 1”or “INPUT 2”on the back of the monitor

(Figure C.1).

NOTE: Incorrect cable connections may result in irregular operation,

damage display quality/components of LCD module and/or

shorten the module’s life.

4. Connect one end of the power cord to the MultiSync LCD Series

monitor and the other end to the power outlet. (Figure C.1)

Replace connector cover and cable cover. (Figure E.1)

NOTE: Please refer to Caution section of this manual for proper

selection of AC power cord.

5. Turn on the monitor (Figure D.1) and the computer.

6. To complete the setup of your MultiSync LCD monitor, use the

following OSM controls:

•Auto Adjust Contrast

•Auto Adjust

Refer to the Controls section of this User’s Manual for a full description

of these OSM controls.

NOTE: If you have any problems, please refer to the Troubleshooting

section of this User’s Manual.

NOTE: For easy removal of the cable cover or signal cable, place the

monitor face down. (Figure R.2)

English-7

English

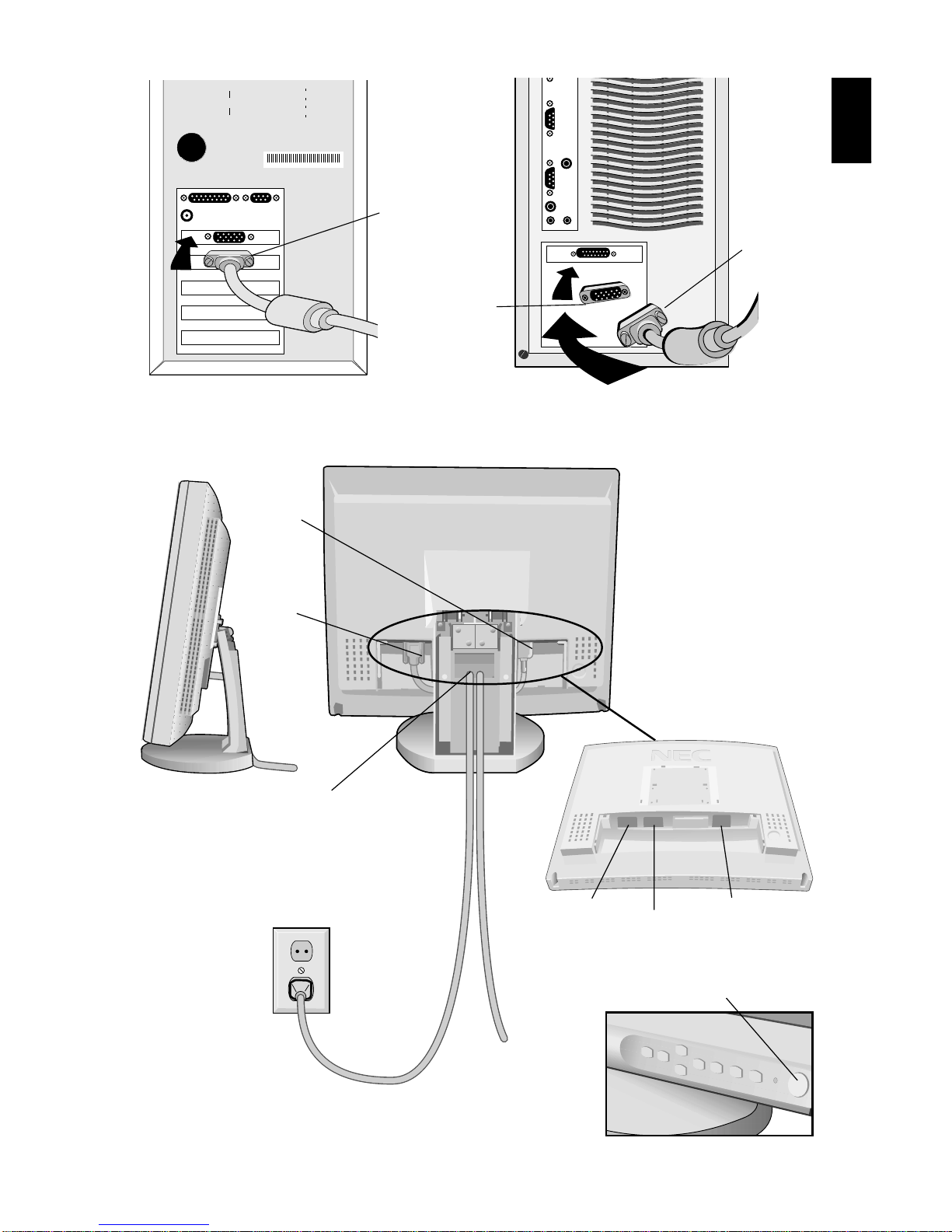

15-pin

mini D-SUB 15-pin

mini D-SUB

Mac Adapter

(not included)

Figure A.1 Figure B.1

Figure D.1

Power Switch

Figure C.1

Power Outlet

To Computer

AC Power

Cord

1. Cables pass through in this hole.

2. Connect each connector.

3. Replace connector cover with

cables passing through upper

opening.

Signal

Cable

INPUT2 INPUT1 AC-IN

English-8

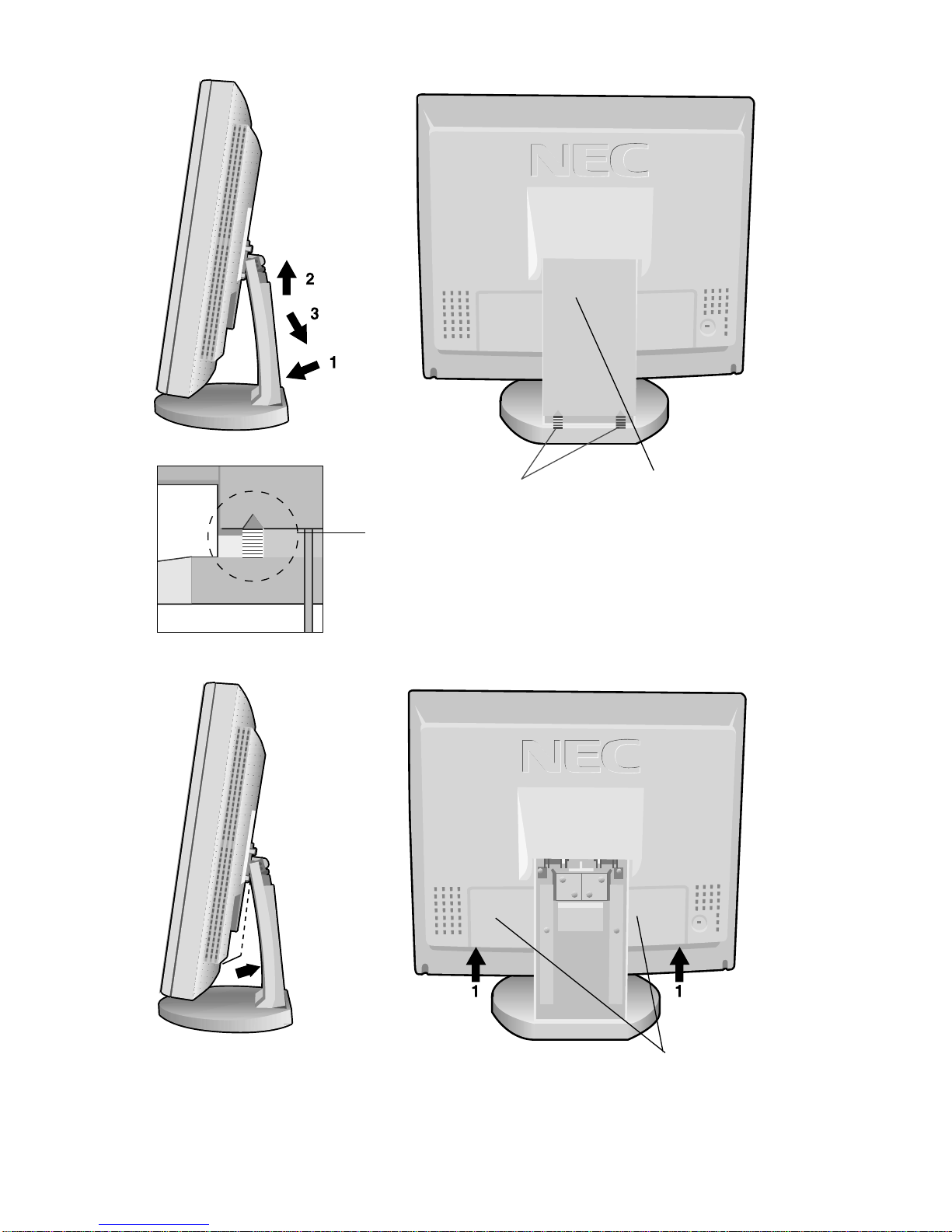

Push Push

Marking area

(1. Push)

Marking

Figure E.1

I. Cable Cover

How to remove this cover.

1. Push marking area

2. Slide to up side

3. Remove

II. Connector Cover

How to remove this cover.

1. Push under side

2. Remove

English-9

English

Tilt

Grasp both sides of the monitor screen with

your hands and adjust the tilt as desired

(Figure TS.1).

Remove Monitor Stand

for Mounting

To prepare the monitor for alternate mounting

purposes:

1. Remove the connector

cover, hinge cover and

cable cover. (Figure R.1)

2. Disconnect all cables.

3. Place monitor face down

on a non-abrasive

surface.

(Place the screen on a

32 mm platform so that

hole of stand match to

screw location)

(Figure R.2).

4. Remove the 4 srcews

connecting the monitor to the

stand and lift off the stand

assembly (Figure R.2) the monitor

is now ready for mounting in an

alternate manner.

5. Connect the AC cord and signal

cable to the back of the monitor.

6. Reverse this process to reattach

stand.

Caution:To fulfil the safety requirements

the monitor must be mounted to

an arm which guaranties the

necessary stability under

consideration of the weight of the

monitor. The LCD monitor shall

only be used with an approved

arm (e.g. GS mark).

Figure TS.1

Figure R.1

Push

Figure R.2

Screws

Andere Handbücher für NEC MultiSync LCD1830 LCD1830 LCD1830

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere NEC Monitor Handbücher

NEC

NEC LCD5220-AV - MultiSync - 52" LCD Flat Panel... Bedienungsanleitung

NEC

NEC V221W Bedienungsanleitung

NEC

NEC MultiSync LCD6520L Bedienungsanleitung

NEC

NEC LCD1700NX - MultiSync - 17" LCD Monitor Bedienungsanleitung

NEC

NEC MultiSync LCD4010 Bedienungsanleitung

NEC

NEC LCD17V Bedienungsanleitung

NEC

NEC LCD71V - AccuSync TFT LCD Flat Panel Monitor Bedienungsanleitung

NEC

NEC MultiSync V463 Bedienungsanleitung

NEC

NEC LCD1770NX - MultiSync - 17" LCD Monitor Bedienungsanleitung

NEC

NEC PX-42XR4A Bedienungsanleitung

NEC

NEC MultiSync E232WMT Bedienungsanleitung

NEC

NEC MultiSync M500 Bedienungsanleitung

NEC

NEC LCD1980SX - MultiSync - 19" LCD Monitor Handbuch

NEC

NEC X461UN - MultiSync - 46" LCD Flat Panel... Bedienungsanleitung

NEC

NEC MultiSync LCD1810X Bedienungsanleitung

NEC

NEC LCD2080UX - MultiSync - 20.1" LCD Monitor Bedienungsanleitung

NEC

NEC AccuSync 50 Bedienungsanleitung

NEC

NEC LCD1980SX - MultiSync - 19" LCD Monitor Bedienungsanleitung

NEC

NEC PlasmaSync 42PD3 Bedienungsanleitung

NEC

NEC MultiSync E424 Bedienungsanleitung

NEC

NEC X461HB - MultiSync - 46" LCD Flat Panel... Bedienungsanleitung

NEC

NEC E805-PC2 Bedienungsanleitung

NEC

NEC MultiSync EA224WMi Benutzerhandbuch

NEC

NEC LCD1915X Bedienungsanleitung

Beliebte Monitor Handbücher anderer Marken

Linear Acoustic

Linear Acoustic LQ-1000 Bedienungsanleitung

AOC

AOC I2579V Bedienungsanleitung

Gateway

Gateway FPD1520 Bedienungsanleitung

Furuno

Furuno Mu 120c Bedienungsanleitung

Asus

Asus VB171D - 17" LCD Monitor Bedienungsanleitung

Dell

Dell S2230MX Gebrauchsanweisung

Philips

Philips 107C64 Bedienungsanleitung

Dell

Dell S2409WFP Bedienungsanleitung

EverFocus

EverFocus EN-7517E Bedienungsanleitung

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Bedienungsanleitung

Dell

Dell Precision 7680 Bedienungsanleitung

LG 50PM1M - - 50" Plasma Panel Bedienungsanleitung

Bosch

Bosch DDU 9 Bedienungsanleitung

Acer

Acer A231HL Bedienungsanleitung

Philips

Philips 86BDL4152T Bedienungsanleitung

Emay

Emay SleepO2 Bedienungsanleitung

IBM

IBM 6360 Montageanleitung

LG M1950D-PZ Bedienungsanleitung
