42VM5/42VP5/42XM3 Installation Guide

42” Plasma Displays v3.8

Contents

Product Description and Notes Page 1

Ventilation Requirements Page 2

www.necvisualsystems.com 42VM5/42VP5/42XM3 Page 1 of 12

Display Dimensions

Front,Top&Bottom Page 3

Rear Page 4

Left&RightSide Page 5

Display Dimensions w/Optional Speakers and Stand Page 6

Dimensions w/Optional Flat Wall Mount Page 7

Dimensions w/Optional Tilt Wall Mount Page 8

Dimensions w/Optional Ceiling Mount Page 9

PortraitMode Page 10

Connections Page 11

Control Codes Page 12

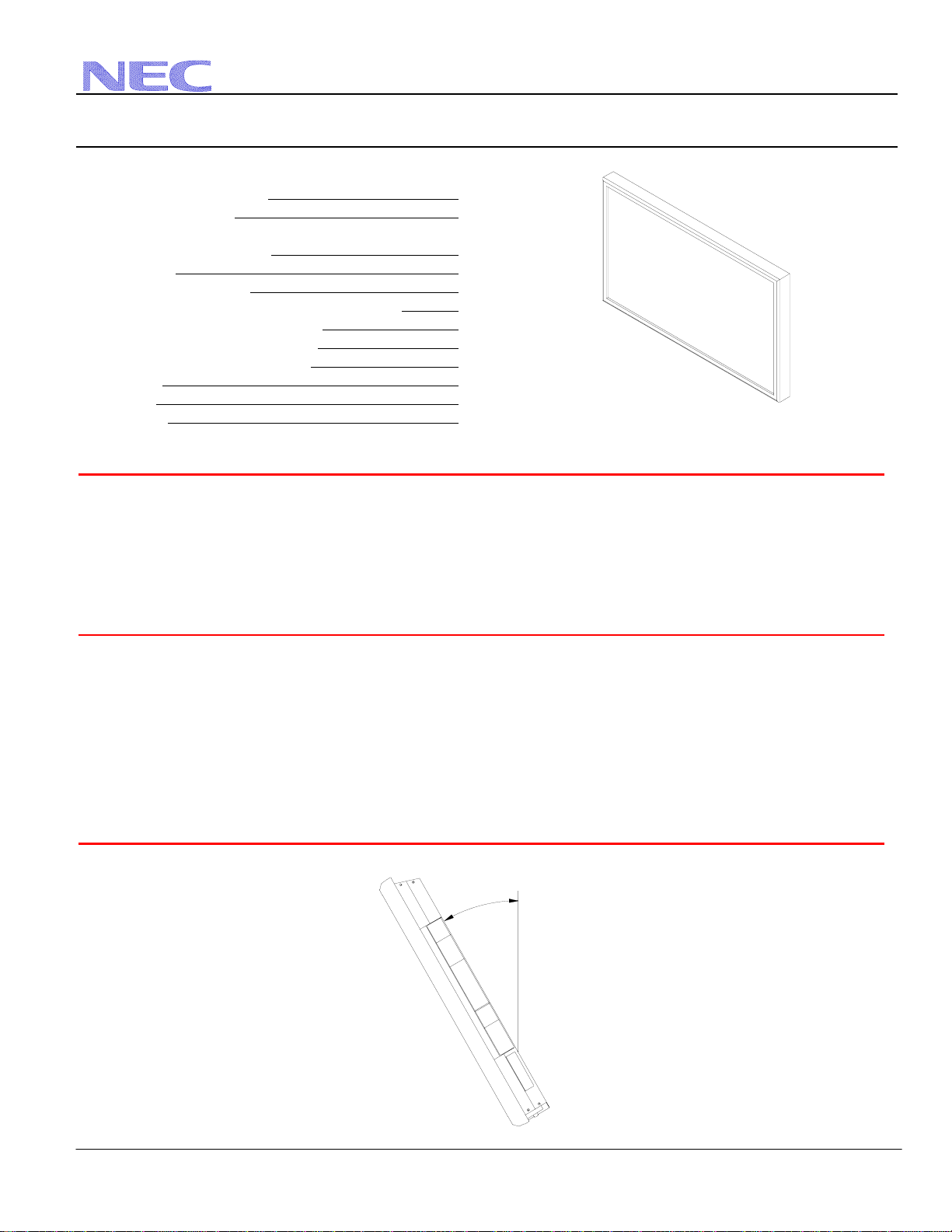

ProductDescription

Type: Plasma Display Screen Surface: 42VM5/42XM3: Anti-Reflective

Resolution: 42VM5/42VP5:853x480 42VP5: Anti-Glare

42XM3: 1024x768 Dimensions: 40”(W) x 24”(H) x 3.5”(D)

Aspect Ratio: 16:9 Weight: 42VM5/42VP5: 62.8 lbs

Color Correction: NEC CCF (Capsulated Color Filter, in panel) 42XM3: 65.0 lbs

and AccuCrimson (in front filter)

Notes

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not

intended to be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the display and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched

horizontally to fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary ±5%.

MaximumTiltAngles

Below are the maximum angles that the display can be tilted in both landscape and portrait mode

Max Tilt

Landscape 30°

Portrait 10°

Ventilation Requirements (all models)

Dimensions below are minimum required for proper ventilation.

WALL

NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the

opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for

design review and recommendations.

www.necvisualsystems.com 42VM5/42VP5/42XM3 Page 2 of 12

Display dimensions

Ventilation Openings

Ventilation Openings Ventilation Openings Ventilation Openings

1.380.981.14

0.38 1.69 0.6334.690.381.690.63

40.08

1.42

1.30

24.02

2.72

0.59

36.76

0.98

2.52

0.79

3.11

0.63 1.69 0.38

23.27

33.25

34.55

33.03

0.81 2.70

16.81

5.53

3.50 0.63

1.14

0.98

1.38

2.171.34

3.95

0.35

www.necvisualsystems.com 42VM5/42VP5/42XM3 Page 3 of 12

Display dimensions (cont.)

42VM5/42VP5 Rear View

AC IN

+- +-

8-M4*14 MAX

Ventilation Openings

20.879.61

4.13

4.724.96 4.96

5.12

4.25

5.1212.836.06

8.78 1.65 19.21 1.65 8.78

9.61

For PC Option

1.78

3.35

17.35

M4*10 MAX

For Mount

42XM3 Rear View (rear ventilation different)

AC IN

+- +-

8.78 1.65 19.21 1.65 8.78

4.13

6.06 12.83 5.12

9.61 20.87 9.61

4.25 4.96 5.12 4.96 4.72

8-M4*14MAX

Ventilation Openings

1.67 17.52 1.67

For PC Option

4.02

4.02 1.77

1.77

M4*10 MAX

For Mount

www.necvisualsystems.com 42VM5/42VP5/42XM3 Page 4 of 12

Display dimensions (cont.)

www.necvisualsystems.com 42VM5/42VP5/42XM3 Page 5 of 12

VIDEO

(IN/OUT)

VIDEO 1

VIDEO 2

YCb/PbCr/Pr

DVD 1/HD 1 AUDIO 2

AUDIO 3

Y Cb/Pb HD VD

RGB 2/DVD 2/HD 2 RGB 1

(IN/OUT)

RGB 3

DVI OUTIN REMOTE

External Control

Ventilation Openings

1.5°

3.50

0.640.68

22.06

0.63 0.51

0.37

1.57

1.97

0.40

0.06 0.39 23.11 0.39

0.40

0.06

VIDEO 3

Cr/Pr G/ B/

AUDIO 1

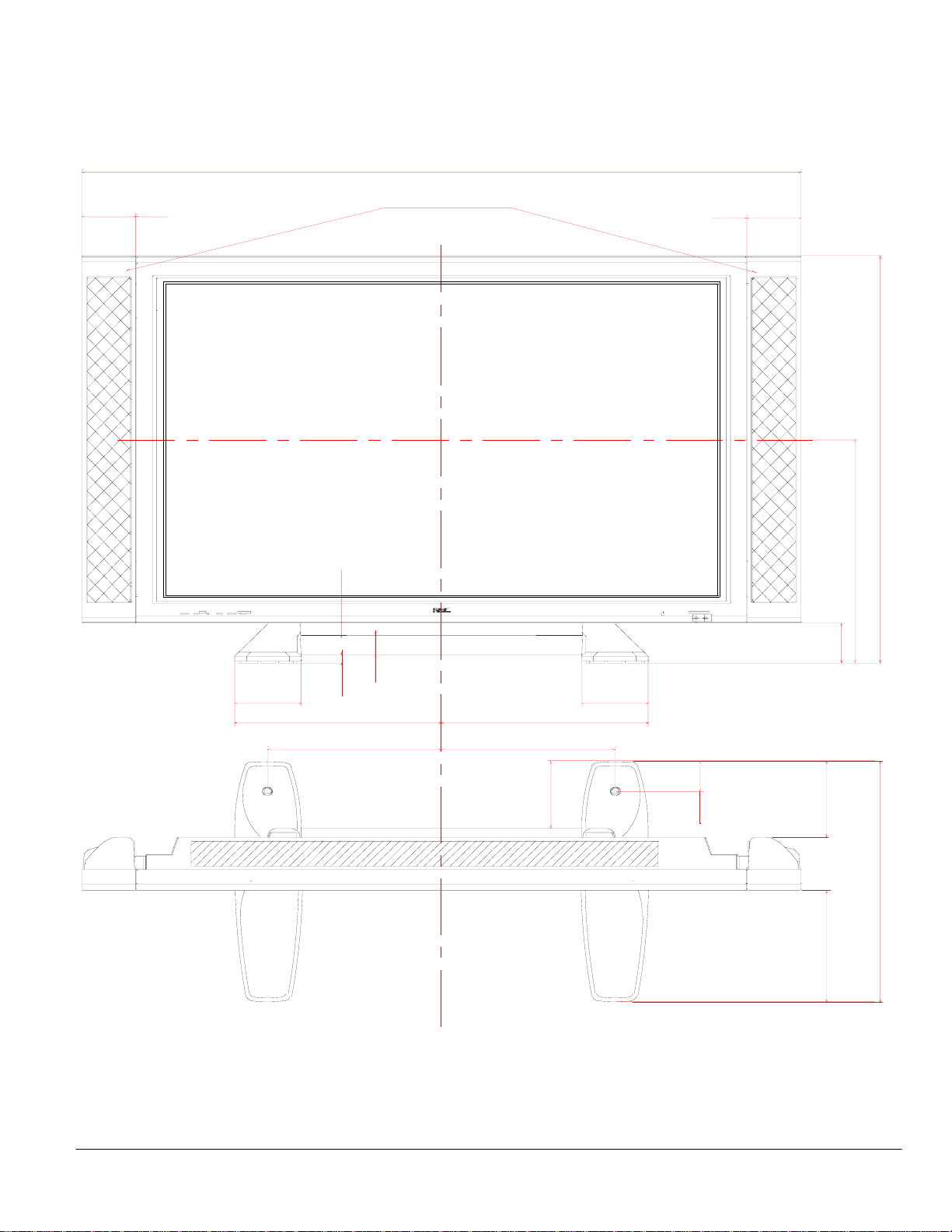

Dimensions with optional speakers and stand

www.necvisualsystems.com 42VM5/42VP5/42XM3 Page 6 of 12

47.20

0.02 3.54

3.54 0.02

0.75

0.53

1.30

4.41

4.41 13.58

13.58

11.42 11.42

4.37

1.97

26.59

14.59

2.58

7.28 4.96

15.75

Optional Speakers

Dimensions with optional Flat Wall Mount Kit (FWMK)

8.45.99.8

16.04.0

12.1

8.1

4.0

8.0

12.0

2.513.51

6.02

www.necvisualsystems.com 42VM5/42VP5/42XM3 Page 7 of 12

Dimensions with optional Tilt Wall Mount Kit (TWMK)

16.0

4.0

3.51

8.1

12.1

4.08.0

12.0

5.04

8.55

15.0°

Tilt Range

9.7

5.9

8.4

Depth at 15° Tilt

12.1

www.necvisualsystems.com 42VM5/42VP5/42XM3 Page 8 of 12

Dimensions with optional Ceiling Mount Kit (CMK)

www.necvisualsystems.com 42VM5/42VP5/42XM3 Page 9 of 12

AC IN

LEFTRIGHT { SPEAKERS MUST

HAVE MORE THAN

7WATT RATING

IMPEDANCE 6 OHM}

+-+

16.0 12.0

12.2

2.5 1.5

0.5

8.717.5

Portrait Mode

Rotating the Display

The display must be rotated clockwise so the input panel is at the bottom and vents are at the top.

Rotating the display counter-clockwise will not allow the unit to cool properly and will void the warranty.

Inputs

Vents

Clockwise

Power

Rotate

Rotating Source Content

Note: The display is not capable of rotating any source content.

Pivot® software from Portrait Displays, Inc. (www.portrait.com) allows you to rotate the Windows operating system 90 degrees. This

software installs in Windows on the PC and allows you to select landscape or rotate 90 degrees to portrait mode. Everything

running in the Windows environment is also rotated.

Note: All displays connected to the PC will have to support rotating to portrait mode.

NTSC Video

NTSC Video has to be brought into a PC with the appropriate hardware and software, and sent back out through the PC graphics

output. The method to rotate the video would then be the same as above and done within the PC Windows environment.

www.necvisualsystems.com 42VM5/42VP5/42XM3 Page 10 of 12
