NEC PlasmaSync 42XM4 Bedienungsanleitung

NEC Solutions (America), Inc.

Visual Systems Division

42XM4 Installation Guide

42” Plasma Display Rev 1.2

www.necvisualsystems.com Page 1 of 10PX-42XM4

Contents:

Product Description and Notes Page 1

Ventilation Requirements Page 2

Display Dimensions

Front, Top & Bottom Page 3

Rear Page 4

Left & Right Side Page 5

Display Dimensions w/Optional Speakers and Stand Page 6

Dimensions w/Optional Wall Mount Page 7

Dimensions w/Optional Ceiling Mount Page 8

Connections Page 9

Control Codes Page 10

Product Description

Type: Plasma Display Screen Surface: Anti-Reflective

Resolution: 1024x768 Dimensions: 40”(W) x 24”(H) x 3.9”(D)

Aspect Ratio: 16:9 Weight: 59.5 lbs

Color Correction: AccuCrimson Color Filter FCC: Class B

Notes

This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to

be a step-by step procedure for installation.

Any ceilings or walls must be strong enough to support the display and the installation must be in accordance with any local

building codes. All mounts should make secure contact to wood studs.

4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally to

fill the screen using the menus (see “Aspect Modes” in menus and user manual).

Distances are in inches, for millimeters multiply by 25.4.

Distances may vary ±5%.

Maximum Tilt Angles

Below are the maximum angles that the display can be tilted in landscape mode

Landscape 30°

Max Tilt

NEC Solutions (America), Inc.

Visual Systems Division

42XM4 Installation Guide

42” Plasma Display Rev 1.2

www.necvisualsystems.com PX-42XM4 Page 2 of 10

Ventilation Requirements (all models)

Dimensions below are minimum required for proper ventilation.

NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the

opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for

design review and recommendations.

NEC Solutions (America), Inc.

Visual Systems Division

42XM4 Installation Guide

42” Plasma Display Rev 1.2

www.necvisualsystems.com PX-42XM4 Page 3 of 10

Display dimensions

40.24

24.0

37.48

21.18

17.21

LED IR

12.280.79

0.79

CONTROL BUTTONS

AC INLET

POWER BUTTON

SPEAKER TERMINAL

20.3(SCREENAREA)

36.28 (SCREEN AREA) 1.98

1.9

0.18"

FILTER SURFACE

12.01

14.61 5.51

2.251.59

NEC Solutions (America), Inc.

Visual Systems Division

42XM4 Installation Guide

42” Plasma Display Rev 1.2

www.necvisualsystems.com PX-42XM4 Page 4 of 10

Display dimensions (cont.)

F F F

REAR VIEW

AC IN

20.87

4.96

5.12

4.96

for mount

8 - M4*16 Max

17.52

0.87

4.02

for PC

4 - M4*10 Max

3.019.12.0

20.87

37.56

4 - M8*14 Max

for speaker

NEC Solutions (America), Inc.

Visual Systems Division

42XM4 Installation Guide

42” Plasma Display Rev 1.2

www.necvisualsystems.com PX-42XM4 Page 5 of 10

Display dimensions (cont.)

LEFT SIDE VIEW RIGHT SIDE VIEW

0.0

1.59

3.86

0.60

0.5

3.548.4611.60

20.10

0.50

1.87

NEC Solutions (America), Inc.

Visual Systems Division

42XM4 Installation Guide

42” Plasma Display Rev 1.2

www.necvisualsystems.com PX-42XM4 Page 6 of 10

Dimensions with optional speakers and stand

TOP VIEW

RIGHT SIDE VIEW

1.38

2.91

3.540.04

3.54 0.04

47.40

1.38

3.50

0.12

2.68

4.00

0.71

15.75

1.97

4.004.00

0.53

1.30

1.00

2.74

26.75

14.75

22.84

5.00

16.00

7.00

27.00

20.3(SCREENAREA)

36.28 (SCREEN AREA)

NEC Solutions (America), Inc.

Visual Systems Division

42XM4 Installation Guide

42” Plasma Display Rev 1.2

www.necvisualsystems.com PX-42XM4 Page 7 of 10

Dimensions with optional Wall Mount Kit (4250WMK)

F F F

AC IN

20.87

9.17

5.05

3.06

6.78

4.44

9.04

NEC Solutions (America), Inc.

Visual Systems Division

42XM4 Installation Guide

42” Plasma Display Rev 1.2

www.necvisualsystems.com PX-42XM4 Page 8 of 10

Dimensions with optional Ceiling Mount Kit (4250CMK)

FF F F

AC IN

20.87

4.57

8.25

Note: Optional Accessories

not included with 4250CMK

NEC Solutions (America), Inc.

Visual Systems Division

42XM4 Installation Guide

42” Plasma Display Rev 1.2

www.necvisualsystems.com PX-42XM4 Page 9 of 10

Connections

Located at right side of display

Control Panel

AC Inlet

Power Switch

Ext Speaker Connections

NEC Solutions (America), Inc.

Visual Systems Division

42XM4 Installation Guide

42” Plasma Display Rev 1.2

Control Codes

Function Code Data

POWER ON 9FH 80H 60H 4EH 00H CDH

OFF 9FH 80H 60H 4FH 00H CEH

INPUT SWITCH VIDEO1 (BNC) DFH 80H 60H 47H 01H 01H 08H

VIDEO2 (RCA) DFH 80H 60H 47H 01H 02H 09H

VIDEO2 (S-Video) DFH 80H 60H 47H 01H 03H 0AH

DVD1/HD1(RCA/Component) DFH 80H 60H 47H 01H 05H 0CH

DVD2/HD2 (5BNC/Component) DFH 80H 60H 47H 01H 06H 0DH

RGB1 (15pin HD) DFH 80H 60H 47H 01H 07H 0EH

RGB2 (5BNC/RGB) DFH 80H 60H 47H 01H 08H 1FH

RGB3 (DVI) DFH 80H 60H 47H 01H 0CH 13H

AUDIO MUTE ON 9FH 80H 60H 3EH 00H BDH

OFF 9FH 80H 60H 3FH 00H BEH

PICTURE MODE NORMAL DFH 80H 60H 0AH 01H 01H CBH

THEAT.1 DFH 80H 60H 0AH 01H 02H CCH

THEAT.2 DFH 80H 60H 0AH 01H 03H CDH

DEFAULT DFH 80H 60H 0AH 01H 04H CEH

BRIGHT DFH 80H 60H 0AH 01H 05H CFH

SCREEN MODE: STADIUM DFH 80H 60H 51H 01H 02H 13H

ZOOM DFH 80H 60H 51H 01H 03H 14H

NORMAL DFH 80H 60H 51H 01H 04H 15H

FULL DFH 80H 60H 51H 01H 05H 16H

2.35:1 DFH 80H 60H 51H 01H 0AH 1BH

AUTO PICTURE ON DFH 80H 60H 7FH 03H 03H 09H 00H 4DH

OFF DFH 80H 60H 7FH 03H 03H 09H 01H 4EH

CINEMA MODE ON DFH 80H 60H C1H 01H 01H 82H

OFF DFH 80H 60H C1H 01H 02H 83H

NOTE: Contact your NEC rep for codes not listed.

NOTE: Use a cross/reverse/null modem cable.

Cable Connection

Communication Protocol:

Interface: RS-232C Parity: Odd

Communication: Asynchronous Stop Bit: 1 bit

Baud Rate: 9600 bps Communication Code: Hex

Data Length: 8 bits

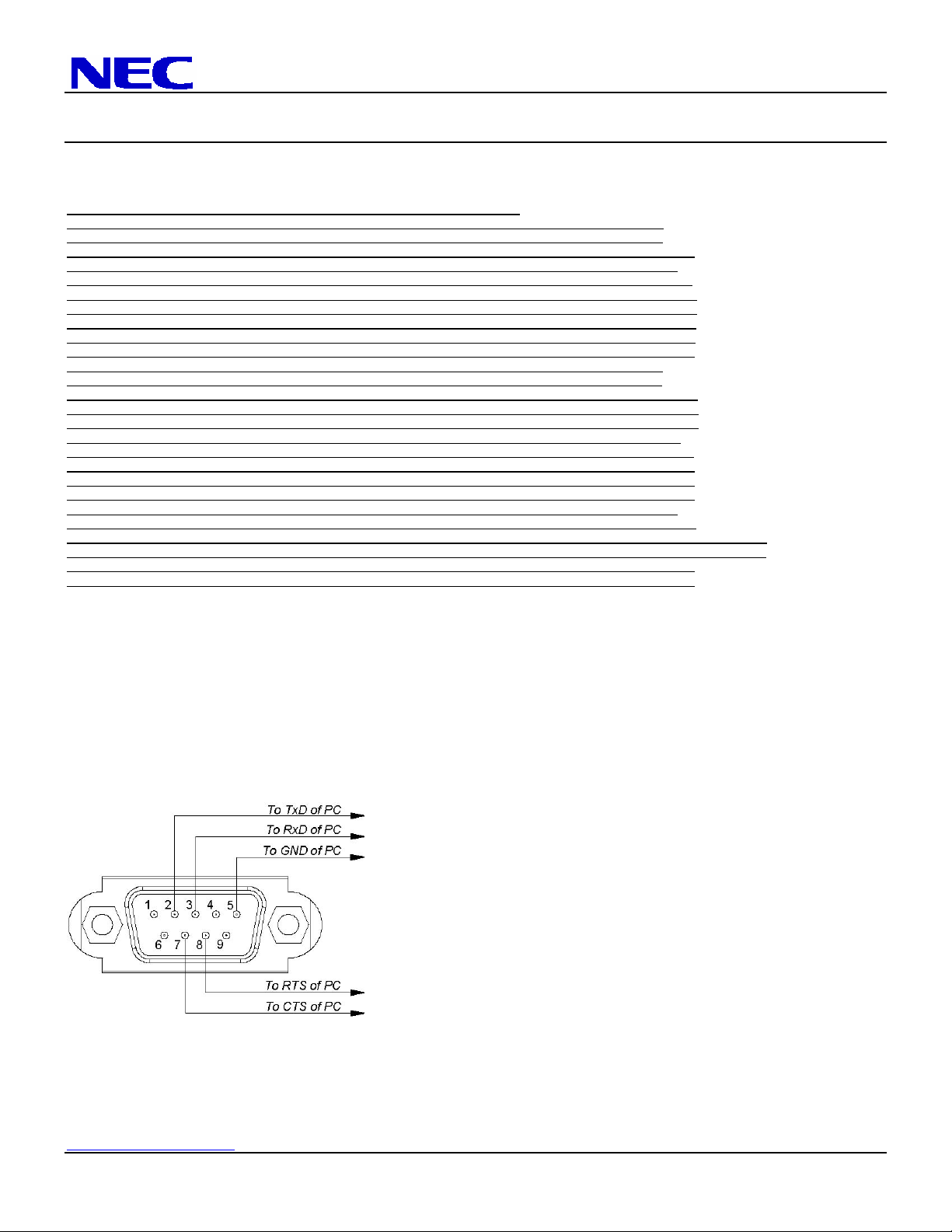

PC Control Connector (D-Sub 9P)

NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection. These

connections are not required. The only connections required are pins 2 (RxD), 3 (TxD) and 5 (GND).

www.necvisualsystems.com PX-42XM4 Page 10 of 10
