Express5800 series

System Configuration Guide

Express5800/R320a-E4,R320b-M4

(Windows2008 R2 model) [2010.10]

Express5800/R320a-E4, R320b-M4(Windows2008 R2 model)

Fault Tolerant technology

GeminiArchitecture™

•4U Rackmount form factor

•Windows Server®2008 R2 Enterprise and Hyper-V

supported

•Intel®Xeon®Processor E5504(R320a-E4)/

X5670(R320b-M4)

R320a-E4/R320b-M4 (Windows2008 R2 model)

Model NEC Express5800/R320a-E4 NEC Express5800/R320b-M4 Redundancy

Product Code N8800-155F N8800-154F

CPU*1 Intel® Xeon® Processor

E5504 Intel® Xeon® Processor

X5670 Redundant

2GHz 2.93GHz

1/2

4MB 12MB

4C/4T 6C/12T

Chipset Redundant

Memory*1 Redundant

48GB

(4GBDIMM ×3×4) 96GB

(8GBDIMM ×3×4)

800MHz 1333MHz

Storage Capacity (std.) Redundant

Hard

drive Capacity (max.)

Hot swap

I/F and RAID

Optical disk drive

Floppy disk drive

Expansion Slots

2 × PCI Express 1.0

(x4 lane, x8 socket)*4

2 × PCI Express 2.0

(x4 lane, x8 socket)*4

2 × PCI Express 1.0

(x4 lane, x8 socket)*4

Redundant

Graphics

Interface

Redundant

Dimensions (W x D x H)

Weight (min./max.)

Power supply Redundant

Power consumption (Max. config, Operating)

Temperature, Relative Humidity

Included Accessories

Software for Availability Active UpgradeTM

Redundant

Supported operating system

Notes

*1 Specifications are for each CPU/IO module. Actual number isdouble that is specified due to duplication.

*2 Logical Capacity

*3 Writing software is not provided for thisDVD drive.

*4 The number of Slotsper CPU/IO module.

NEC EXPRESSBUILDER (NEC ESMPRO/Manager(Windows),

NEC ESMPRO/Agent(Windows), ExpressSetup),

User's Guide, User's Guide (Setup), Key

2.5-inch HDD:

SAS 4.8TB (8 ×600GB)*2

Supported

Operating: 10 to 35°C/Non-Operating: -10 to 55°C, 20 to 80% (non condensation)

16,777,216-color: 800x600, 1024x768

65,536-color: 1280x1024

1 × Analog RGB (Mini D-Sub15 pin, 1×Rear),

4 × USB2.0 (1×Front, 3× Rear),

46kg/52kg

1400VA/1390W

483×736×178mm

Type

Clock Speed

Number of processors (std./max.)

L3 Cache

DVD-RAM drive*3

DDR3 SDRAM DIMM, Registered

ECC, x4 SDDC

Core and Thread (per processor)

Standard

Max

Supported Memory

Intel®5500　+ GeminiEngine™(FPGA)

Native Speed (max.)

Error detection and correction

Windows Server® 2008 R2 Enterprise (Hyper-V 2.0 supported)

SAS 3Gb/s: RAID1 (Standard)

Type

Controller/Video RAM

Color depth and Resolution

2x 1000BASE-T LAN connector

(1000BASE-T/100BASE-TX, RJ-45, 2×Rear)*4,

1x Management LAN connector

(100BASE-TX/10BASE-T, RJ-45, 1x Rear)*4

Internal/External drive (option)

Integrated in Server Management Controller / 32MB

AC100/240V±10%、50/60Hz±3Hz

Express5800/R320a-E4, R320b-M4(Windows2008 R2 model)

N8800-155 Express5800/R320a-E4(4C/E5504-W28EX64) no-Memory, no-HDD

Intel® Xeon® Processor E5504 (2.0GHz) x1, 4MB 3rd cache, QPI speed 4.8GT/s

no-Memory, no-HDD,

DVD-RAM drive x1, 1000BASE-T 2ch, PCI slot x2

Windows Server 2008 R2 Enterprise supported.

NEC EXPRESSBUILDER (NEC ESMPRO Manager/Agent included)

Active UpgradeTM include as standard

Low-End Rack mount model

Intel® Xeon®

Processor E5504 WindowsServer 2008

R2 Enterprise

(25CAL)

N8800-154 Express5800/R320b-M4(6C/X5670-W28EX64)no-Memory,no-HDD

Intel® Xeon® Processor X5670 (2.93GHz) x1, 12MB 3rd cache, QPI speed 6.4GT/s

no-Memory, no-HDD,

DVD-RAM drive x1, 1000BASE-T 2ch, PCI slot x4

Windows Server 2008 R2 Enterprise Edition supported.

EXPRESSBUILDER(NEC ESMPRO Manager/Agent included)

Active UpgradeTM included as standard

Mid-Range Rack mount model

Intel® Xeon®

Processor X5670 WindowsServer 2008

R2 Enterprise

(25CAL)

Tower conversion kit

N8843-003 Tower conversion kit

About ft Server Control Software

ft Server Control Software controls the operations of the NEC Express5800/ft series main components.ft Server

Control Software update may be required to support a new option.

How to confirm the ft Server Control Software Version

On the "Programs and Features" of the Control Panel,

select "ftServer Control Software" from the list of programs.

The current version is Ver. 7.0. (As of October, 2010)

x64

Express5800/R320a-E4, R320b-M4(Windows2008 R2 model)

450

689

736

483

178

Tower conversion kit

R320a-E4, R320b-M4

External Design

220 804

592

327

Express5800/R320a-E4, R320b-M4(Windows2008 R2 model)

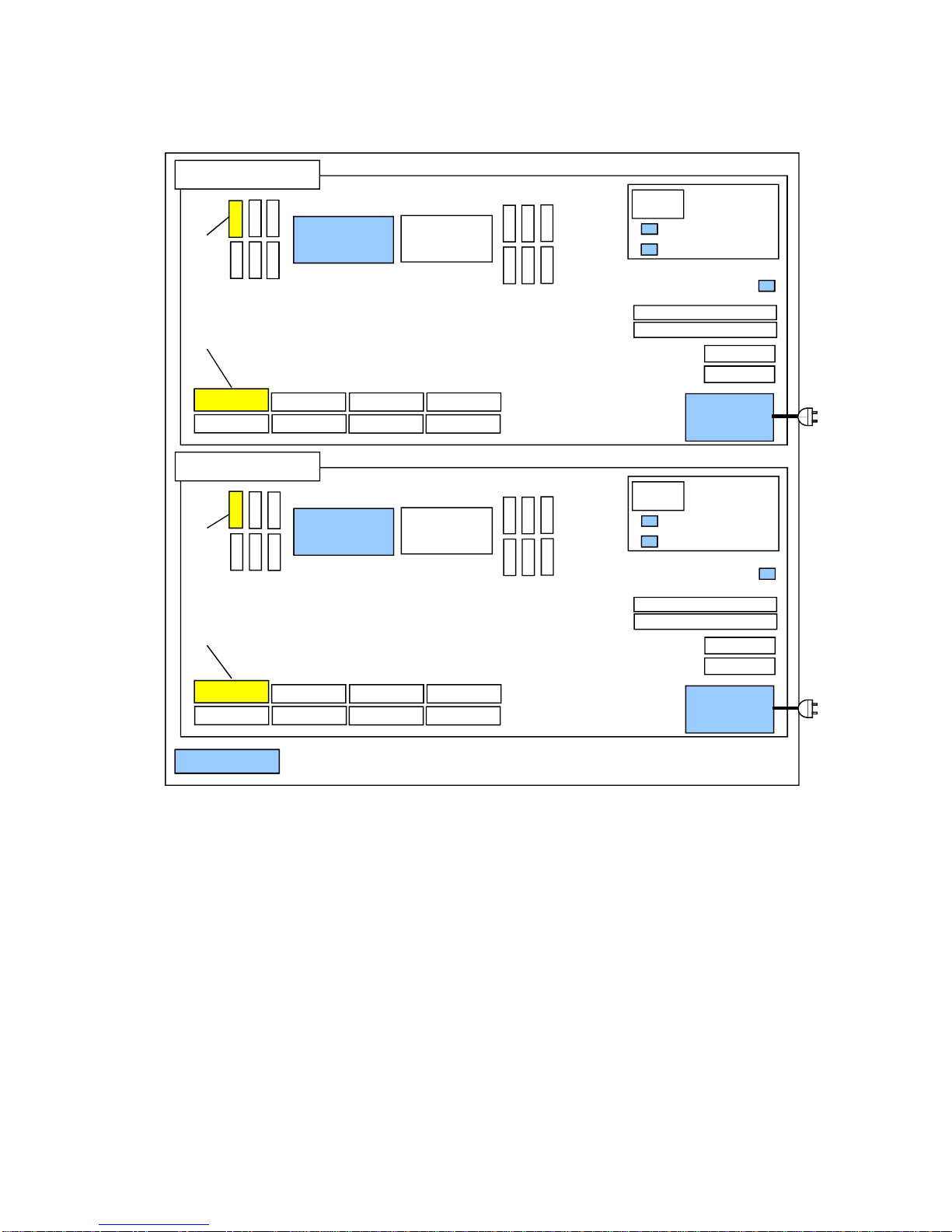

R320a-E4 Quick configuration sheet

Intel® Xeon®

Processor

E5504 Empty

Empty

DIMM slots x12

CPU socket×2

PSU

Empty

CPU/IO module#0

Empty

Empty Empty

LAN

1000BASE-T x1

#1 Empty

2.5-inch disk bays x8 Low-profile PCI-Express x4 x2

(x8 socket)

Empty Empty

Empty

#2 Empty

Empty

Intel® Xeon®

Processor

E5504 Empty

Empty

DIMM slots x12

CPU socket×2

PSU

Empty

CPU/IO module#1

Empty

Empty Empty

LAN

1000BASE-T x1

#1 Empty

2.5-inch disk bays x8 Low-profile PCI-Express x4 x2

(x8 socket)

Empty Empty

Empty

#2 Empty

Empty

DVD-RAM

Management LAN ×１

Management LAN ×1

Empty Empty

Empty

Arrange at least one

Empty

Empty Empty

Arrange at least one

Express5800/R320a-E4, R320b-M4(Windows2008 R2 model)

Intel® Xeon®

Processor

X5670 Empty

Empty

DIMM slots x12

CPU socket x 2

PSU

Empty

CPU/IO module#0

Empty

Empty Empty

LAN

1000BASE-T x1

DVD-RAM

#4 Empty

#3 Empty

#1 Empty

R320b-M4 Quick configuration sheet

2.5-inch disk bays×8Low-profile PCI-Express x4×2

(x8 socket)

Full-height PCI-Express x4×2

(x8 socket)

Empty Empty

Empty

#2 Empty

Empty

Intel® Xeon®

Processor

X5670 Empty

Empty

DIMM slots x12

CPU socket x 2

PSU

Empty

CPU/IO module#1

Empty

Empty Empty

LAN

1000BASE-T x1

#4 Empty

#3 Empty

#1 Empty

2.5-inch disk bays×8Low-profile PCI-Express x4 x2

(x8 socket)

Full-height PCI-Express x4 x2

(x8 socket)

Empty Empty

Empty

#2 Empty

Empty

Management LAN

Empty Empty

Empty

Empty Empty

Arrange at least oneArrange at least one

Express5800/R320a-E4, R320b-M4(Windows2008 R2 model)

DIMM slots

CPU

Memory

Intel® Xeon® Processor E5504 / X5670

Empty

Intel® Xeon® Processor E5504 / X5670 x1 Standard

CPU/IO module#0

Empty

CPU/IO module#1

Set of CPU x2

CPU socket

A pair of processors

Set of 2 or 6 DIMMs

For R320a-E4 (DDR3-1333 Registered DIMM set)

N8802-047 2GB(2GB×1)x2

N8802-048 12GB(4GB×3)x2

N8802-049 24GB(8GB×3)x2

N8802-044 2GB(2GB×1)x2

N8802-045 12GB(4GB×3)x2

N8802-046 24GB(8GB×3)x2

*4GB or larger size is recommended when using Hyper-V

N8801-041 2GHz, Set of CPU x2

N8801-043 2.93GHz, Set of CPU x2

Intel® Xeon® Processor E5504 / X5670 x1 Standard

CPU Total MEM 1 2 3 4 5 6 12 11 10 9 8 7 Required system disk

2GB*1 2

4GB 2 2

6GB 2 2 2

8GB 2 2 2 2

10GB 2 2 2 2 2

12GB 2 2 2 2 2 2

12GB 4 4 4

24GB 4 4 4 4 4 4

24GB 8 8 8

36GB 8 4 8 4 8 4

48GB 8 8 8 8 8 8 300GB

2GB*1 2

4GB*1 2 2

6GB 222

8GB 2 2 2 2

10GB 2 2 2 2 2

12GB 222 222

16GB 2 2 2 2 2 2 2 2

20GB 2 2 2 2 2 2 2 2 2 2

24GB 2 2 2 2 2 2 2 2 2 2 2 2

24GB 4 4 4 4 4 4

36GB 4 2 4 2 4 2 2 4 2 4 2 4

48GB 4 4 4 4 4 4 4 4 4 4 4 4

48GB 888 888

72GB 8 4 8 4 8 4 4 8 4 8 4 8

96GB 8 8 8 8 8 8 8 8 8 8 8 8

*1: Interleave is enabled except 2GB DIMM x1 per CPU configuration.

DIMM Slot number

146.5GB or larger

Standard CPU side 2nd CPU side Notes

73.2GB or larger

146.5GB or larger

300GB

Twin

73.2GB or larger

Single

Note)Select the same CPU

as the standard CPU.

N8801-041 for N8800-155F(R320a-E4)

N8801-043 for N8800-154F(R320b-M4)

Memory configuration pattern * Only the following patterns are supported.

For R320b-M4 (DDR3-1333 Registered DIMM set)

Express5800/R320a-E4, R320b-M4(Windows2008 R2 model)

Diskbays

Internal HDD

Be sure to install by double of hard disk drives in order to have the RAID-1 configuration.

Also, both of the hard disk drives must have same capacity and rotational speed.

N8850-042 146.5GB HDD (10,000rpm)

N8850-043 300GB HDD (10,000rpm)

N8850-044 600GB HDD (10,000rpm)

N8850-045 73.2GB HDD (15,000rpm)

N8850-046 146.5GB HDD (15,000rpm)

Disk bays x8

Install 2x HDD (Same product code) as one set

CPU/IO module＃0CPU/IO module＃1

Mirroring

#0 #2 #4

Disk bays x8

System Disk

Empty Empty

Empty

System Disk

Empty Empty

Empty

The 73.2 GB of hard disk drive is recommended to install as system

drive in order to reduce the time to resynchronize,when the system

memory is below 20GB.

When the system memory is 20GB or more,the system Disk needs to be

146.5GB or larger. Also,300GB HDD is required when the system memory

is 48GB or more.

*The RDR resumes disk mirroring by performing quick copies of only data

changes, helping reduce the resynchronization time. However, please note that it

would be the whole copy when replacing with a new disk.

#1 #3 #5 #7

#0 #2 #4 #6

#1 #3 #5 #7

Onboard

RAS chip

Server Management (EXPRESSSCOPE Engine2)

R320a-E4 and R320b-M4 have the enhanced remote management function “EXPRESSSCOPE

Engine2”as standard.

EXPRESSSCOPE Engine 2 (Standard)

*There is Management LAN port (100/10BASE-TX) on each CPU/IO module.

CPU/IO module#0

CPU/IO module#1

Onboard

RAS chip

Express5800/R320a-E4, R320b-M4(Windows2008 R2 model)

Display

D-sub 15 pin

Interface Local procurement.

Keyboard

N8870-002AF Keyboard (USB) (Cable length 1.8m)

Not included in the main unit.

USB

Mouse

N8870-010A Mouse (USB) (Cable length 1.8m)

Not included in the main unit.

Connect via keyboard

Display is NOT provided with the main unit. Please arrange locally.

FDD

N8160-81 External FDD

3.5-inchFDD(720KB/1.44MB)

USB

A tray to install the floppy disk drive is needed to install in the rack mount

system. (local procurement)

USB cable

[K410-177(1A)]

(1.5m)

Arrange as needed.

Cable length 0.9m

USB cable

[K410-177(1A)]

(1.5m)

Arrange as needed.

*Necessary when

using a tray

[Notes for Keyboard/Mouse]

Do not connect non-NEC-authorized USB devices.

USB N8160-86 Flash FDD

1.44MB

[Notes for Flash FDD]

For more details to use Flash FDD, please refer to Flash FDD User‘s Guide and the main unit’s User’s Guide.

Only one floppy drive or equivalent drive can be installed in the system.

The flash FDD does not support disaster recovery feature supported with backup software, including OS

standard feature.

[Notes for FDD]

Choose one form the following (Exclusive use)

[Discontinued on 2010/11/29]

Express5800/R320a-E4, R320b-M4(Windows2008 R2 model)

KVM switch unit

N8191-10F KVM switch unit(8Server/USB)

Required when connecting two or more servers.

* ft Server must be connected to the master

KVM switch when cascade connection.

*When Keyboard/Mouse do not work after fail over of CPU/IO module, disconnect and reconnect the USB

cable or press the reset switch of the KVM Switch.

Sample configuration with KVM switch [N8191-10F]

Switch unit connection cable

set [K410-118(XX)]

Switch unit connection cable

set [K410-119(XX)]

Switch unit connection cable

set [K410-119(XX)]

Switch unit connection cable

set [K410-119(XX)]

Express5800/100 Series

KVM switch unit

[N8191-10F]

(Master)

KVM switch unit

[N8191-10F]

(Slave)

Keyboard

Mouse

[N8170-23]

Display/Keyboard extension cable

[K410-104A(03)]

Switch unit connection cable

set [K410-119(1A)]

PS/2

USB

PS/2

Up to two KVM switch units

FT server

DVD-RAM

DVD-RAM drive (Standard)

DVD-RAM

[Notes for DVD-RAM drive]

The writing software is not provided for the DVD drive.

Andere Handbücher für NEC Express5800 Series

107

Inhaltsverzeichnis

Andere NEC Server Handbücher

NEC

NEC Univerge SV8100 Bedienungsanleitung

NEC

NEC Express5800 120Li Bedienungsanleitung

NEC

NEC Express5800/B140a-T Bedienungs- und Wartungshandbuch

NEC

NEC UNIVERGE SL2100 Bedienungsanleitung

NEC

NEC Express5800/R320c-E4 Bedienungsanleitung

NEC

NEC Express5800/R320c-M4 Bedienungsanleitung

NEC

NEC NEC Express5800 Series Bedienungsanleitung

NEC

NEC 320Lc EXP356F Bedienungsanleitung

NEC

NEC NEC Express5800/B120d Bedienungsanleitung

NEC

NEC Express5800/320Fd-LR Bedienungsanleitung

NEC

NEC SIGMABLADE N8406-035 Bedienungsanleitung

NEC

NEC NP-90MS01 Bedienungsanleitung

NEC

NEC EXP339 Bedienungsanleitung

NEC

NEC Express5800/R110h-1 Bedienungsanleitung

NEC

NEC NECCare Platinum Express5800/A1160 Bedienungsanleitung

NEC

NEC Express5800/T110h Bedienungsanleitung

NEC

NEC Express5800/R110g-1E Bedienungsanleitung

NEC

NEC NEC Express5800 Series Bedienungsanleitung

NEC

NEC Univerge SV8100 Bedienungsanleitung

NEC

NEC NEC Express5800 Series Bedienungsanleitung

NEC

NEC Express5800/120Mc2 series Bedienungsanleitung

NEC

NEC NEC Express5800 Series Bedienungsanleitung

NEC

NEC Express5800/R120f-2M Bedienungsanleitung

NEC

NEC Express5800 120Li Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung

Planet

Planet NAS-7410 Bedienungsanleitung
