Neptronic SKE4-N Series Bedienungsanleitung

SKE4-E-Remote SDU Guide-190201

SKE4-E Steam Humidifier

Remote SDU Installation Guide

SKE4-E Steam Humidifier

Remote SDU Installation Guide

www.neptronic.com

Page | 2

Dimensions and Weight

Condensate

Outlet Steam

Outlet Electrical Supply

Bottom View

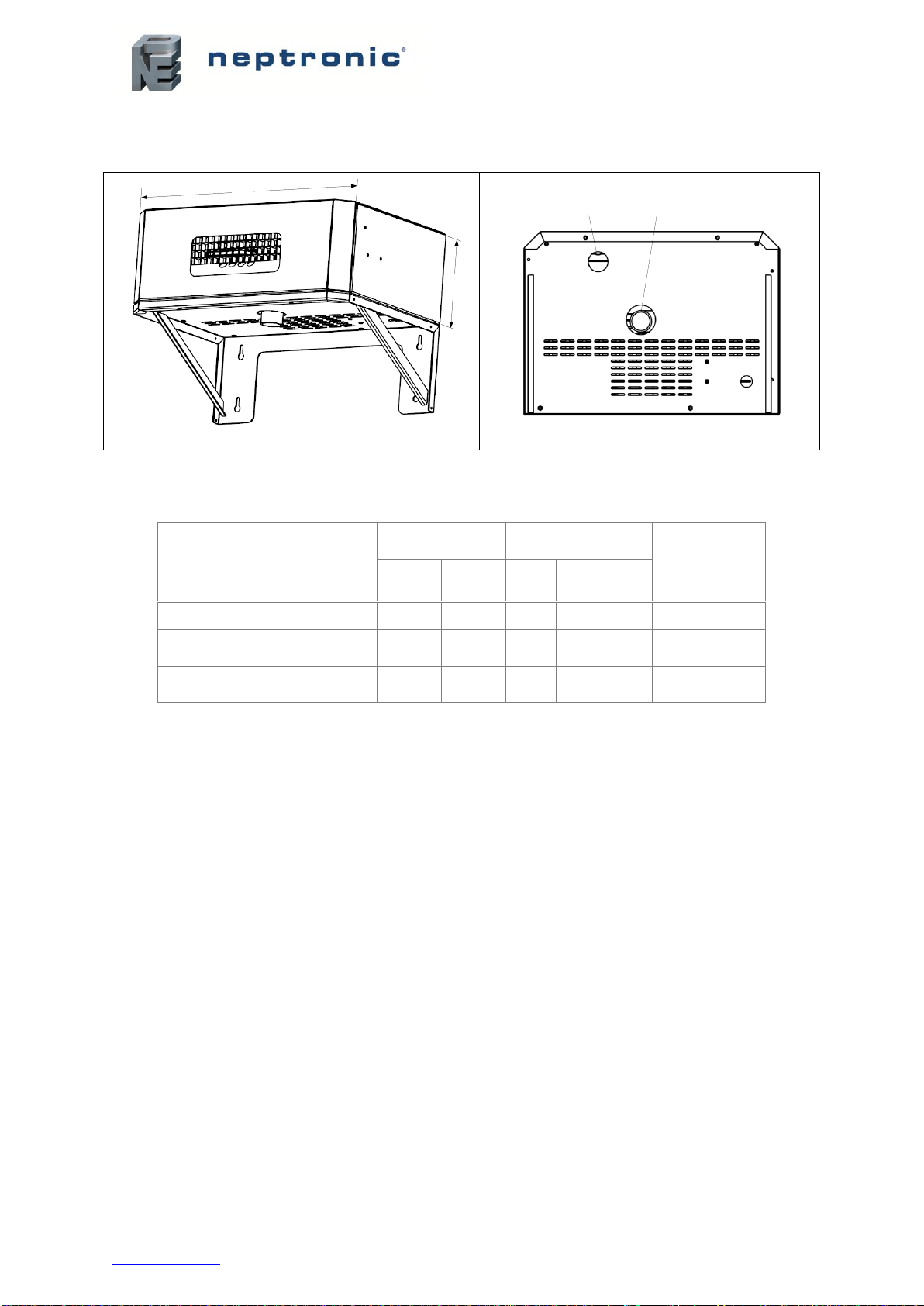

Illustration 1 - Remote SDU

Table 1 - Dimensions and Weight

Model

SDU

Dimensions

(mm)

Steam Outlet

SDU Weight

(kg)

Qty

Diameter

(mm)

SKE4-E05

SDU4-1

171

492

SKE4-E10

SKE4-E20

SDU4-2

197

565

SKE4-E30

SKE4-E40

SDU4-3

289

565

SKE4-E Steam Humidifier

Remote SDU Installation Guide

www.neptronic.com

Page | 3

Mechanical and Piping Installation

Positioning

The SDU must be installed in an environment where the air is relatively clean. This will

prevent the blower from getting clogged with dust.

The SDU must be mounted such that the SDU fan section is at least 2 m above the floor.

Allocate a minimum clearance of 0.45 m from the ceiling to avoid ceiling and wall

condensation.

If additional ventilation is not present, ensure that the fan has a clearance of at least 1.35

m from the ceiling. Proper ventilation must be observed to avoid ceiling and wall

condensation.

Remote Installation

To install the remote SDU, follow the guidelines and piping recommendations outlined below.

Mount the SDU to the wall on brackets (supplied). Do not drill mounting holes through the

cabinet of the SDU.

Connect the steam hose to the bottom inlet of the SDU and to the humidifier steam outlet

located on top of the cabinet.

Secure the steam hose with the hose clamp (supplied).

Connect the condensate hose to the bottom of the SDU and to an open drain or to the

humidifier using the knockout hole located on the top of the cabinet.

Connect the electrical wires from the SDU to the top of the humidifier. Field wiring must

conform to local codes.

The fan of the SDU will operate for a period of five minutes after steam production has

stopped to prevent condensation.

Avoid any obstruction of the ventilation openings on top of the SDU.

18''

(0.45 m)

78''

(2 m)

Field piping

(by others)

Without

additional

ventilation

54'' (1.35 m)

Field wiring

(by others)

4''

(0.10 m)

Connect condensate

hose to humidifier

(back knockout hole)

Or to open drain

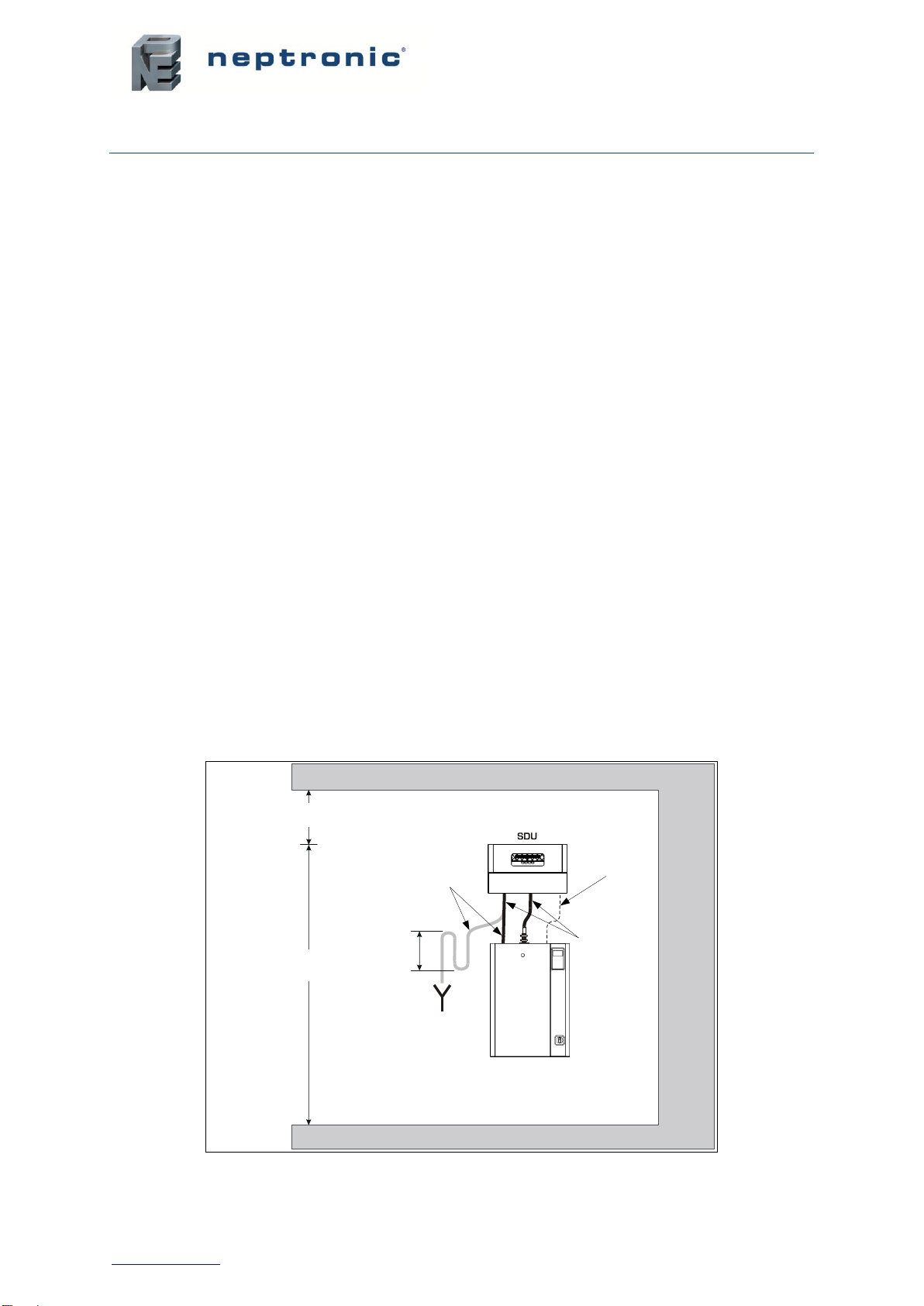

Illustration 2 - Remote SDU Installation

SKE4-E Steam Humidifier

Remote SDU Installation Guide

www.neptronic.com

Page | 4

Connecting Condensate Hose to Humidifier

If connecting a condensate hose to the humidifier using the top knockout hole, remove the plug from

the open silicone pipe near the water fill valve. Then, insert a ½” fitting (not supplied) inside of the

silicone pipe and connect the end of the ½” condensate hose (not supplied) on the fitting. Use a hose

clamp (not supplied) on each end of the hose to secure the connection.

Remove the plug

Connect the condensate hose

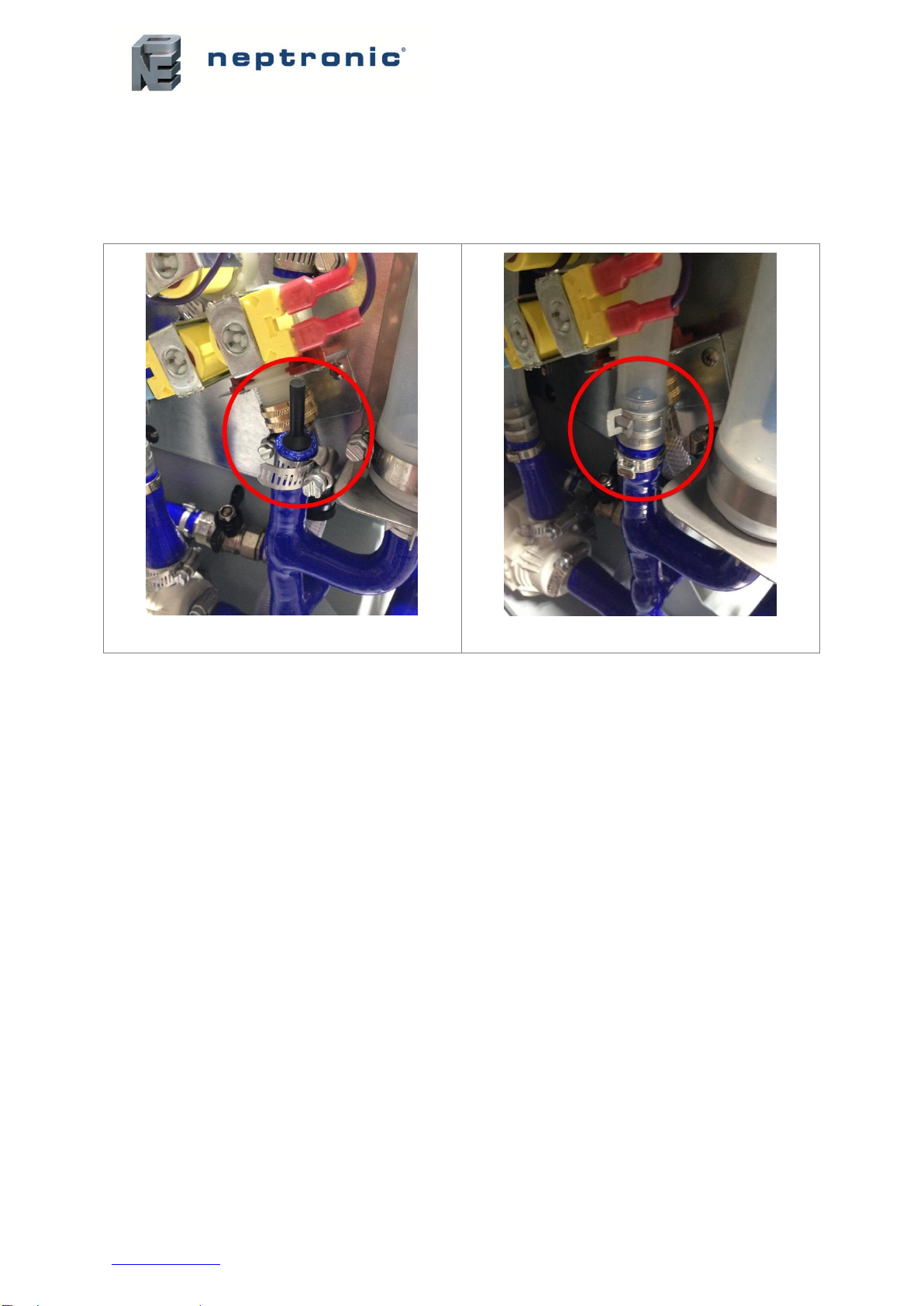

Illustration 3 - Condensate Hose Installation

SKE4-E Steam Humidifier

Remote SDU Installation Guide

www.neptronic.com

Page | 5

Wall Mounting the Remote SDU

(102mm)

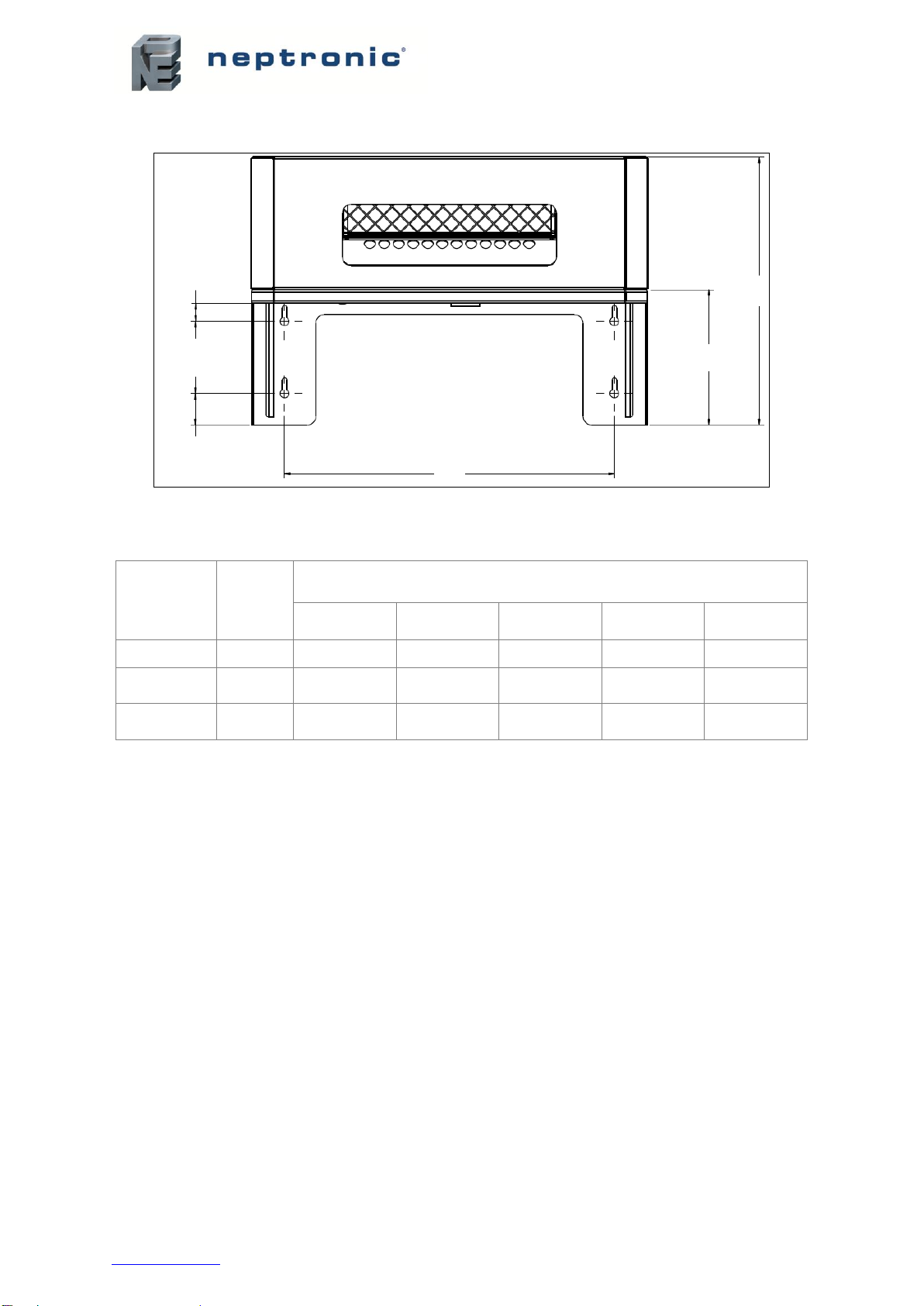

Illustration 3 - Remote SDU Mounting Bracket

Table 2 - Remote SDU Mounting Bracket Dimensions

Model

SDU

Dimensions (mm)

SKE4-E05

SDU4-1

406

171

348

SKE4-E10

SKE4-E20

SDU4-2

470

191

377

SKE4-E30

SKE4-E40

SDU4-3

470

191

480

SKE4-E Steam Humidifier

Remote SDU Installation Guide

www.neptronic.com

Page | 6

Remote SDU Cover Installation (Option)

Perform the following steps to install the optional remote SDU cover:

1) Secure the two side covers onto the remote SDU mounting bracket by fastening them with 3x

M3.5 x 0.6 nuts (supplied).

2) Secure the front cover onto the remote SDU mounting bracket by fastening it with 6x M4 x 0.7

screws (supplied).

SDU

Mounting

Bracket

Side

Cover

Front

Cover

Side

Cover

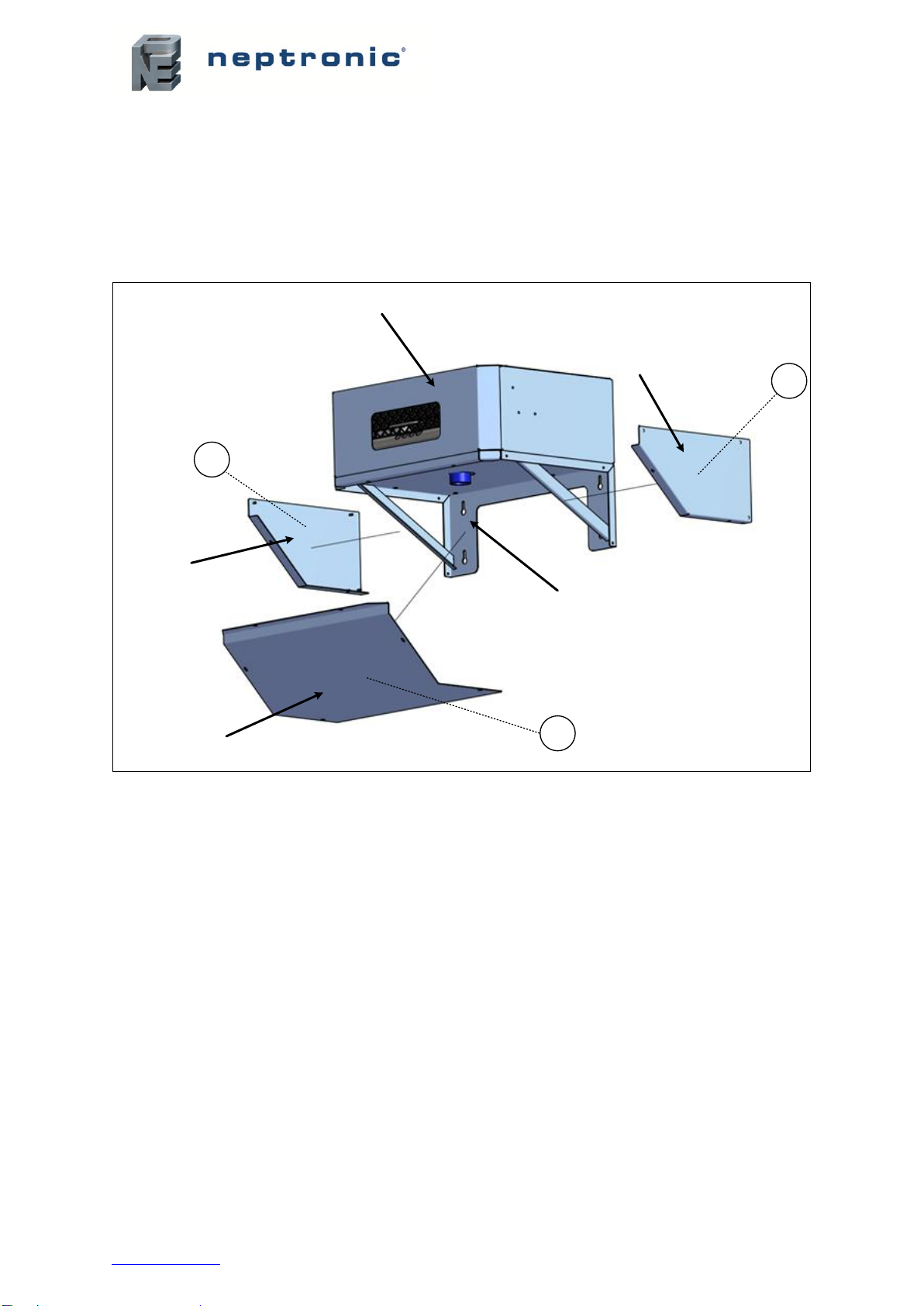

Illustration 4 - Remote SDU Cover Installation

SKE4-E Steam Humidifier

Remote SDU Installation Guide

www.neptronic.com

Page | 7

Electrical Installation

CAUTION: Risk of electric shock. Disconnect the SDU from the electric supply

before proceeding with the connection.

The wiring to the SDU must be done by a qualified electrician and must conform to the

procedure, regulation and local codes.

Use copper conductors only.

An external over current protection must be installed on the supply, adjacent to the SDU.

It is also recommended to install a circuit breaker.

To provide strain relief to the supply cable, install a knock-out (not supplied) at the bottom

of the SDU.

Ensure that the size of the wire conductors is appropriate for the current supplied.

Ensure that each terminal connection is properly secured.

Ensure that the ground conductor is equipped with a ring terminal and is connected

directly to the electrical panel.

Table 3 - SDU Power Supply Specifications

Model

SDU

Amperage (A)

230V/1ph

400V/1ph

SKE4-E05

SDU4-1

0.2

0.1

SKE4-E10

SDU4-2

0.3

0.2

SKE4-E20

0.2

SKE4-E30

SDU4-3

0.2

SKE4-E40

0.2

SKE4-E Steam Humidifier

Remote SDU Installation Guide

www.neptronic.com

Page | 8

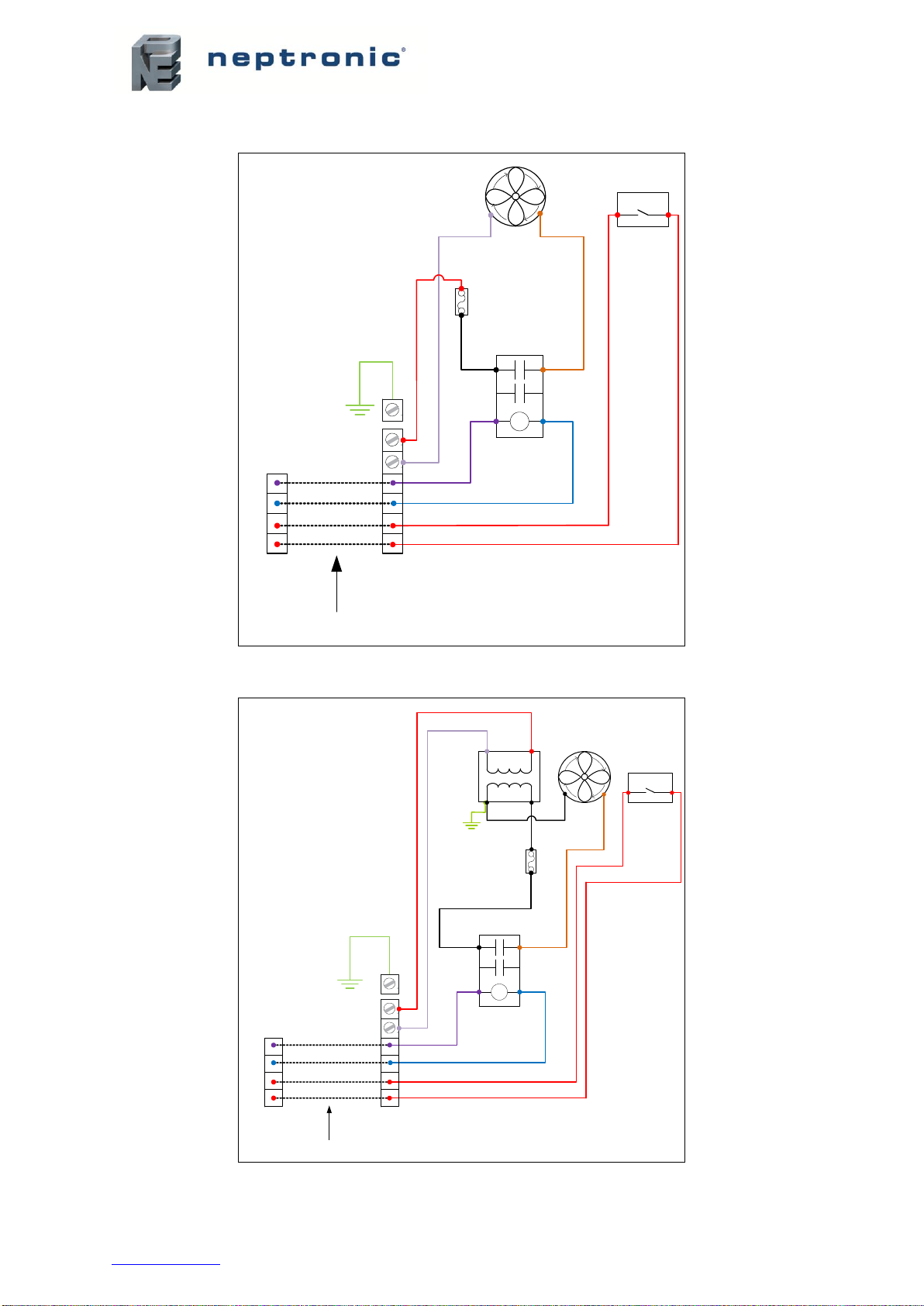

Wiring Diagrams

SDU Fan

Fuse

PD Switch

Red

Grey

Red

Purple

SDURelay

Orange

Black

Blue

Power

supply

for SDU

Ground

Wiring by

others

SDU Terminal

Block

Humidifier

Terminal Block

Illustration 5 - Wiring for SDU4-1 Model at 230V (1ph)

SDU Fan

Fuse

PD Switch

Red

Black

White

Red

Grey

Transformer

Red

Green

Purple

SDURelay

Orange

Black

Blue

Power

supply

for SDU

Ground

Wiring by

others

SDU Terminal

Block

Humidifier

Terminal Block

Illustration 6 - Wiring for SDU4-2 Model at 230V (1ph) or all SDU Models at 400V (1ph)
