NESSG1ZWAVEGATEWAY

SupportsD8/D16Panels



PartNumber:101‐800|Revision:1.1



INSTALLATIONGUIDE



2



Contents



GENERALPRECAUTIONS................................................................................................................................................3

WIRING..........................................................................................................................................................................4

APPS...............................................................................................................................................................................4

SPECS.............................................................................................................................................................................4

SUPPORT........................................................................................................................................................................4

TYPICALCONFIGURATION.............................................................................................................................................5

SETTINGUPGATEWAYFORFIRSTTIME........................................................................................................................6

CAMERA.........................................................................................................................................................................9

SmartWiFiSetup.......................................................................................................................................................9

Manualinput...........................................................................................................................................................11

LocalSearch.............................................................................................................................................................12

ScanQRCode..........................................................................................................................................................13

LIVEVIEWIPCAMERA&LIVEVIEWCONTROLS..........................................................................................................14

PAIRINGZ‐WAVEDEVICES...........................................................................................................................................15

EXCLUDINGZ‐WAVEDEVICES......................................................................................................................................18

HOUSEMODE/ARMINGMODES................................................................................................................................21

HOTKEYCONTROL.......................................................................................................................................................21

AddingHotkey.........................................................................................................................................................22

DeletingHotkey.......................................................................................................................................................25

EditingHotkey.........................................................................................................................................................26

SCENESENGINE...........................................................................................................................................................27

Addascene.............................................................................................................................................................28

ROOM..........................................................................................................................................................................32

CreateaRoom.........................................................................................................................................................32

AdddevicetoaRoom.............................................................................................................................................33

RemovedevicefromaRoom..................................................................................................................................35

EVENTHISTORY...........................................................................................................................................................36

AccessingEventLog................................................................................................................................................36

QRCODEEXPORT/COPYSETTINGSTOANOTHERDEVICE.........................................................................................37

D8/D16AlarmNotifications........................................................................................................................................39

USERMANAGMENT.....................................................................................................................................................41

Z‐WAVEBACKUP/RESTORE........................................................................................................................................42

ADDINGNESSD8/D16SECURITYSYSTEM...................................................................................................................43

MINUMUMREQURMENTS......................................................................................................................................43

CONFIGURINGIP232MODULE................................................................................................................................43

CONFIGURINGD8/D16SETTINGS................................................................................................................................44

SETTINGUPANDADDINGAND8/D16TOTHEGATEWAY..........................................................................................46

DEFAULTUNIT.............................................................................................................................................................48

FIRMWARE...................................................................................................................................................................49

CheckingwhatfirmwareisinG1Gateway..............................................................................................................49

FirmwareUpdate....................................................................................................................................................49

RELEASENOTES...........................................................................................................................................................50



3



GENERAL PRECAUTIONS

 Keep the unit more than 1 m away from radio or TV.

 Keep the unit wires more than 30cm away from AC100-240V wiring. AC induced noise and/or unit

malfunction could result.

 Install the unit in an area that will be accessible for future inspections, repairs, and maintenance.

 The unit can be damaged if dropped. Handle with care.

 The unit turns inoperative during power failure.

 In areas where broadcasting station antennas are close by, the system may be affected by radio

frequency interference.

 All the units are designed for indoor use only. Do not use outdoor.

 Do not use product as a security system and use it for automation purposes.

 For wiring, specify CAT5e / CAT6 straight cable.

 Do not locate the units in a location with restricted access. It impedes maintenance inspection or

repairs. Also, unit trouble could result.

 If the wrong power supply is used it could damage the product(s) and will void your warranty on

the product.

 Do not install in a metal housing, or next to any radio antennas.

 Do not mount gateway in final location until it’s paired into smart phone as you may need to

access the details on the back of the unit.

NOTICE

 We will under no conditions be liable for:

◦ Damage that occurs due to failures in network equipment; failures due to internet

providers and cell phone companies; failures such as disconnected lines and other

losses in communication, which render it impossible to provide this service or in any way

delay this service due to causes outside of our responsibility; or if an error or missing

data occurs during transmission.

◦ Damage that occurs due to the inability to communicate due to malfunctions, problems,

or operational errors in this product.

◦ Damage caused if a customer's password or transmitted information are leaked through

bugging or unlawful computer access over Internet communication.

◦ Any damages or losses resulting from this product's contents or specifications.

◦ Damage caused by the installer or customer powering up the unit with the wrong power

supply. It’s the installers responsibly to double check to ensure the correct power supply

is being used.

 Please note that:

◦ Images depicted in this manual may differ from the actual images.

◦ This manual may be revised or changed without prior notice.

◦ Product specifications may be changed for the sake of improvement without prior notice.

◦ It is the customer's responsibility to ensure that their computer, phones and network is

secure. We will under no conditions be liable for security failures.

 This system is not intended for life support or crime prevention.

 It is just a supplementary means of conveying information. We will under no conditions be liable

for loss of life or property which occurs while the system is being operated.



4



WIRING

APPS

 Apps are available for both Android and iOS.

 Apps may be removed or replaced with or without notice.

Search Google Play and Apple App Store for Ness zComms.

SPECS

PowerSupply:5vDC1.5amp

Z‐WaveFrequency:921.42MHz

LAN:10/100/1000

MaximumofZ‐Wavedevices:120(intotal).

NumberofextendedGateways:20



SUPPORT

TechnicalsupportisavailablefromMondaytoFriday(8:30amto5PM)

Phone:1300551991

Email:[email protected]





5



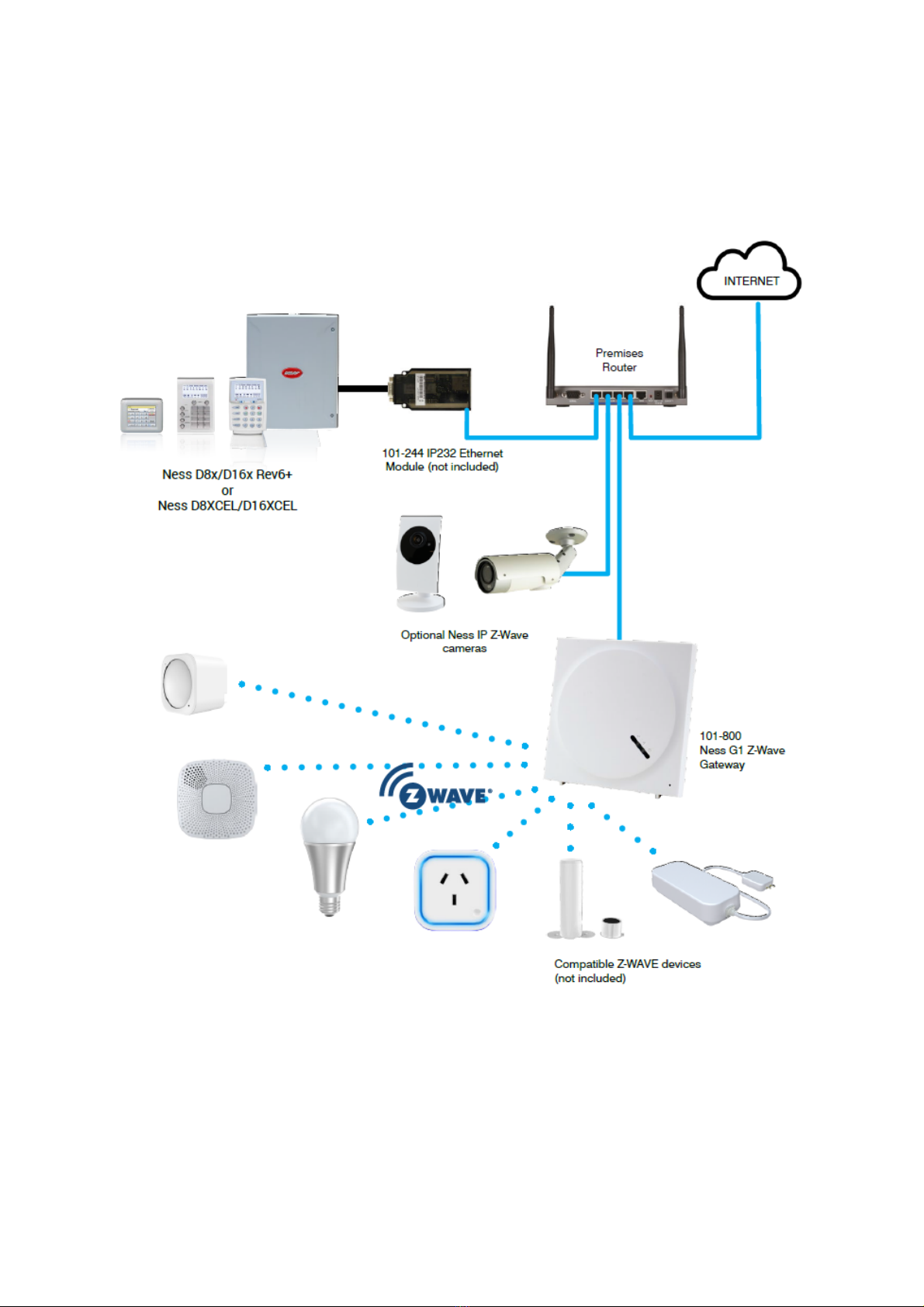

TYPICAL CONFIGURATION







6



SETTING UP GATEWAY FOR FIRST TIME

1.PlugintheLANcableintothebackoftheZ‐Wavegateway,andplugtheotherendintoyourcomputernetwork,

whichhasaDHCPserverrunning.(Suchasyounetworkrouter).

2.Poweruptheunitandwaitapprox1‐2minutesforittofullybootup.

3.DownloadandopentheNesszCommsapponyourAndroidoriOSdevice.

4.Ifyouareprompted,acceptthenotificationspermission.Thisallowspush

notificationsonyourdevicewhenaneventoccursonthegateway.



5.Tapontheplus(+)iconinthemiddleofthescreentoaddyourgateway.



6.Tapon‘Setupanewgateway’fromthelist.



7



7.Select‘Gateway’fromthelist.



8.ConfirmthegatewayispoweredupwithasolidRedLED,andclick‘Continue’. 



9.Enterinyourdevicesdetails.



Name

Enteranynameyouliketoidentifythisunitas.



ID

ScantheQRCodeonthebackofthegatewayorscantheQRcodethatcome

withthisgateway.



Useraccount

Enteradminastheuseraccount



UserPassword

Leavethisblank.



TaponOKtobeginsettingupthisgateway.



10.IfsuccessfulitshoulddisplayaHomeiconwithyourgatewaynameunderit.



11.Taponyourgatewayintheapp,anditwillconnecttoit. 





8



12.Whenyouconnectforthefirsttime,itwillaskyoutosetanewadmin

usernameandpassword.



Enterinanewadminusernameandpassword,butmakesureyouremember

whatitisforfuturereference.





13.Thegatewayisnowsetupandreadytobeused.



IfaddingaD8/D16paneltothegateway,thenpleaserefertotheD8/D16setup

sectioninthisusermanual.



9



CAMERA

Youcanpairunlimitednumberofcamerastoyourgateway.ThesecamerasneedtobeeithertheIndooror

outdoorNessIPZ‐WaveCameras.(101‐803or101‐804)OtherIPCamerasarenotsupported.



101‐803  101‐804

NESS722Z‐WAVEINDOORCAMERA  NESS727Z‐WAVEOUTDOORCAMERA



SmartWiFiSetup

ThisfeatureallowstheIPcameratoscantheQRCodefromtheapptoaddittothesystem.

IfyouareconnectingtheIPcameratoyourWiFithenselectthisoption.



Thisfeatureisonlysupportedonthe101‐803Cameraonly.(Notsupportedonthe101‐804).



1.PowerupyourcamerawithoutpluggingintheLANCable,andwaitapprox1‐2

minutesforittofullypowerup.



2.Removetheprotectiveplasticcoverfromthecameralens.



3.Selecttheoption‘SmartWiFiSetup’.ThenpresstheNextbuttoniconupthe

topright.



Note:

YourphoneneedstobeconnectedtotheWiFinetworkyouareplanningto

connecttheIPCamerato.



4.Whenprompted,enterintheWiFiPasswordtoyourWiFiAccessPointand

pressOK.





10



4.PresstheWPSButtononthesideofthecamera.



TheLEDsonthesideofthecamerashouldbeflashing.





5.Younowneedtohavepatiencewiththisnextstep.



HoldyourphonescreenwhichhastheQRCodefacingtheIPCamerasothe

cameracanviewtheQRCode.



Youneedtohavethephoneapprox10‐30cmfromthecamera.Youmayneedto

moveitbackandforwardforittoreadthecamera.



WhenthecamerasuccessfullyreadstheQRCode,thenthecamerawillbeep.



6.Oncesuccessfulitwillpromptyoutogivethecameraaname.



7.Thecameraisnowpairedintothegateway. 




